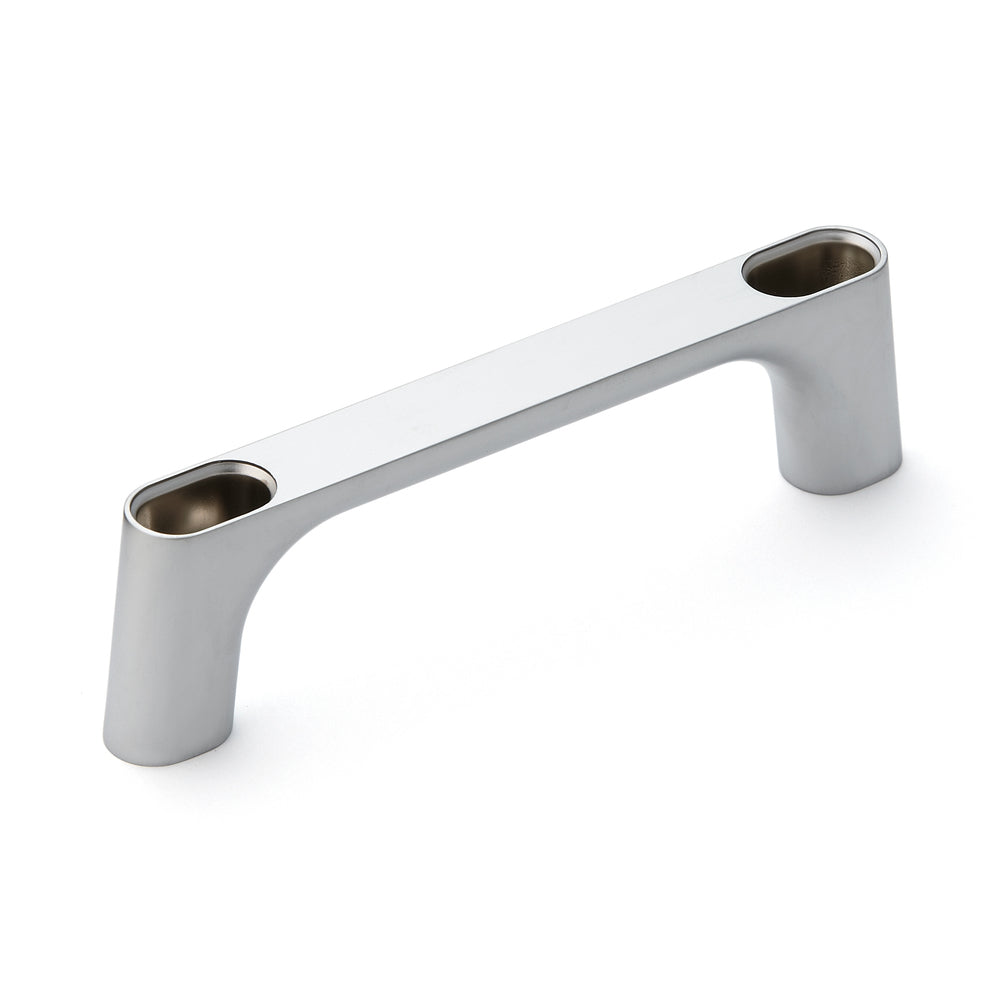

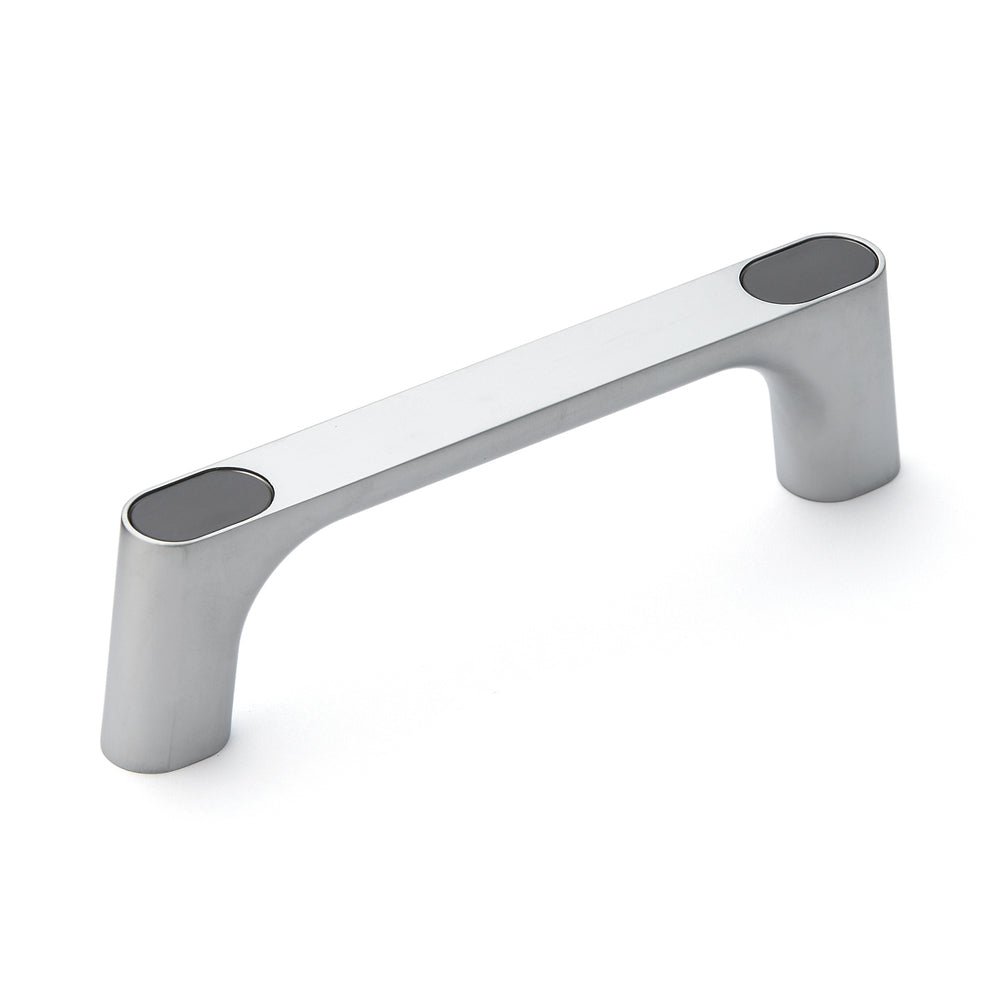

High-quality, solid zinc alloy (ZDC) handle, chrome-plated, satin-finished with gray cover caps, 145 mm (5.8") KMH-120-GR. KMH-120-GR machine handle for industrial cabinets, production facilities, and mechanical engineering, from Sugatsune / LAMP® (Japan)

High-quality appliance handle made of solid zinc alloy (ZDC), chrome-plated, satin matt, with grey cover caps KMH-120-GR

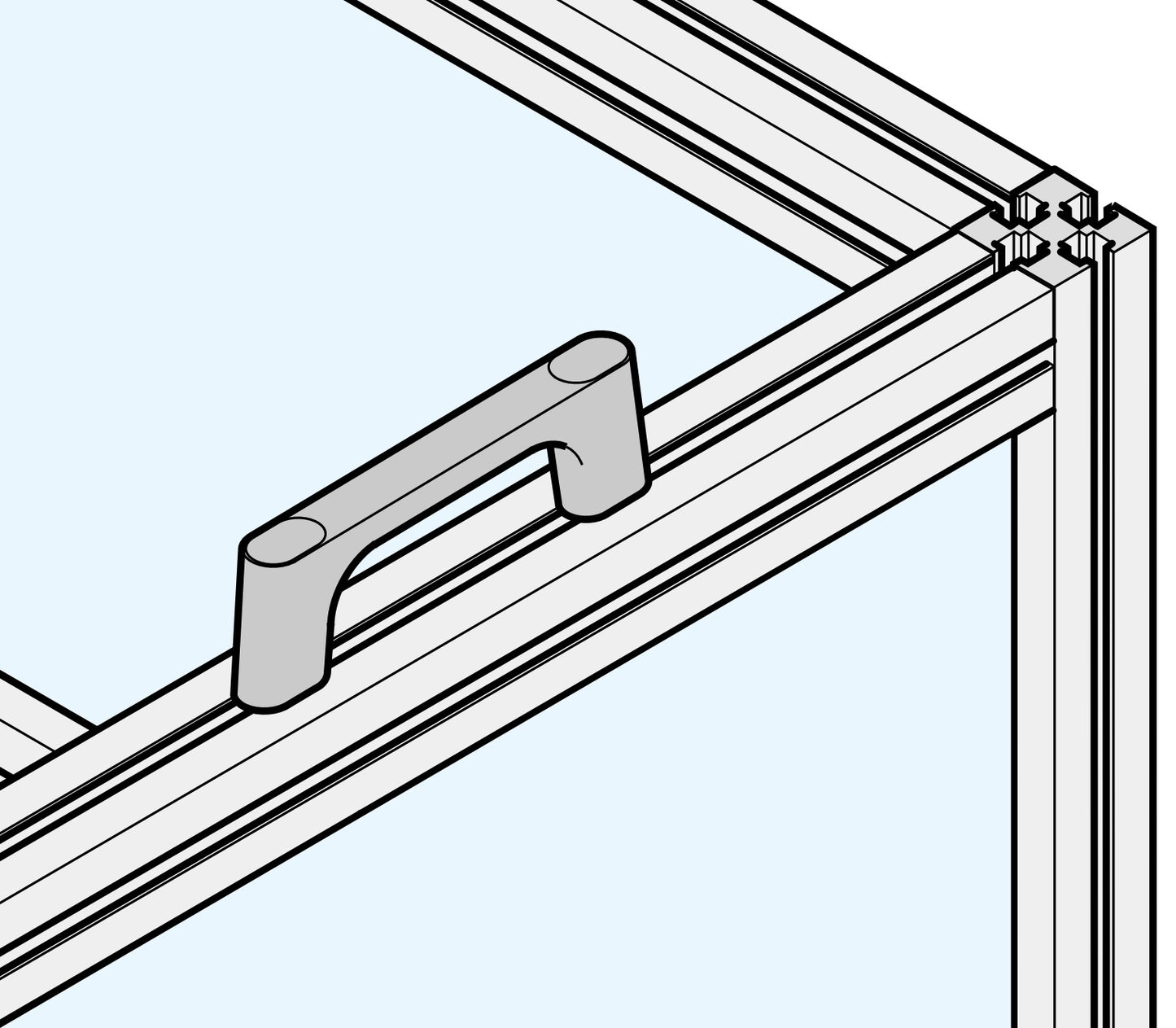

Application: [caption id="attachment_98536" align="alignnone" width="420"] High-quality, solid appliance handle made of zinc alloy (ZDC), chrome-plated, satin-finished with gray cover caps, KMH-120-GR, 145 mm, from Sugatsune. Application[/caption] Machine handle KMH-120-GR for industrial cabinet, production plant, mechanical engineering. The inner surface of the industrial handle is rounded to facilitate easy and quick gripping. The cover caps are securely attached to prevent them from falling off. The high-quality KMH-120-GR tool handles are ideal for:

• industrial cabinet
• production facility
• Mechanical engineering
• Office furniture
• Medical technology
• electrical appliance

Material:

• The high-quality KMH-120-GR handles are made of solid zinc alloy (ZDC)

Surface:

• Chrome-plated, satin matt
• The cover caps are available in white, black, light blue and grey

Assembly:

• The fastening is done with hexagon socket screw M5 or flat head screw M5 screws (not included in delivery)
• For assembly, two holes for the fastening screws must be pre-drilled in the front with a distance (P) of 120 mm (4-23/32″) (for further details see assembly drawing ).

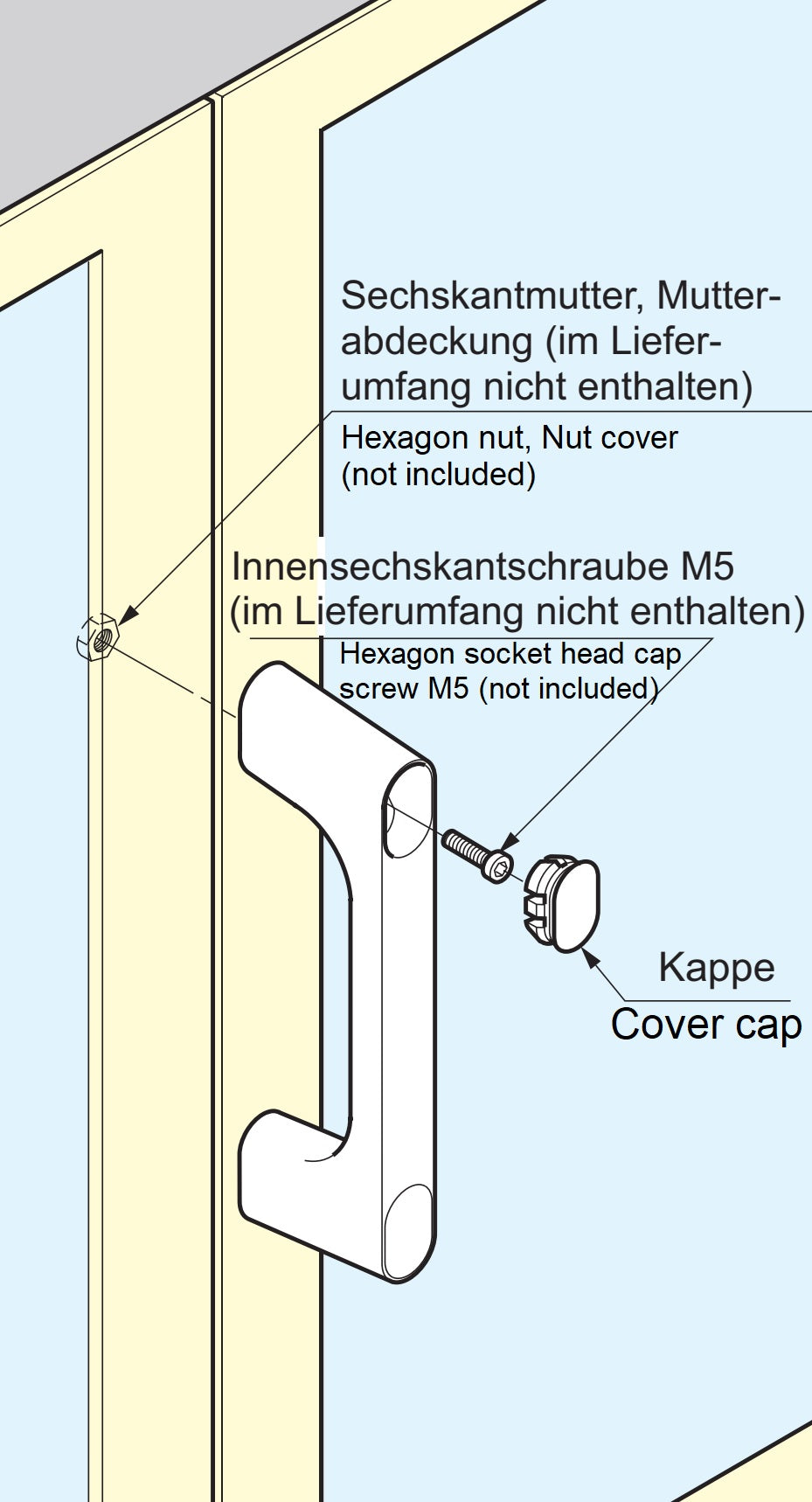

[caption id="attachment_98555" align="alignnone" width="420"] High-quality solid appliance handle made of zinc alloy (ZDC), chrome-plated, satin-finished with gray cover caps, KMH-120-GR, 145 mm, from Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 182 g
• Load capacity: 500 N (51.1 kp)
• Size: 145 mm (5.8″)
• Internal height of the grip area: 30 mm (1-3/16″)
• Ergonomic
• Solid
• Robust
• Made of zinc alloy (ZDC)
• Chrome-plated, satin matt
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Length of the tool handle (L): 145 mm (5-45/64″)
• Height: 40 mm (1-37/64″)
• Distance between mounting holes (P): 120 mm (4-23/32″)
• Material thickness: 16 mm (5/8″) x 10 mm (25/64″)

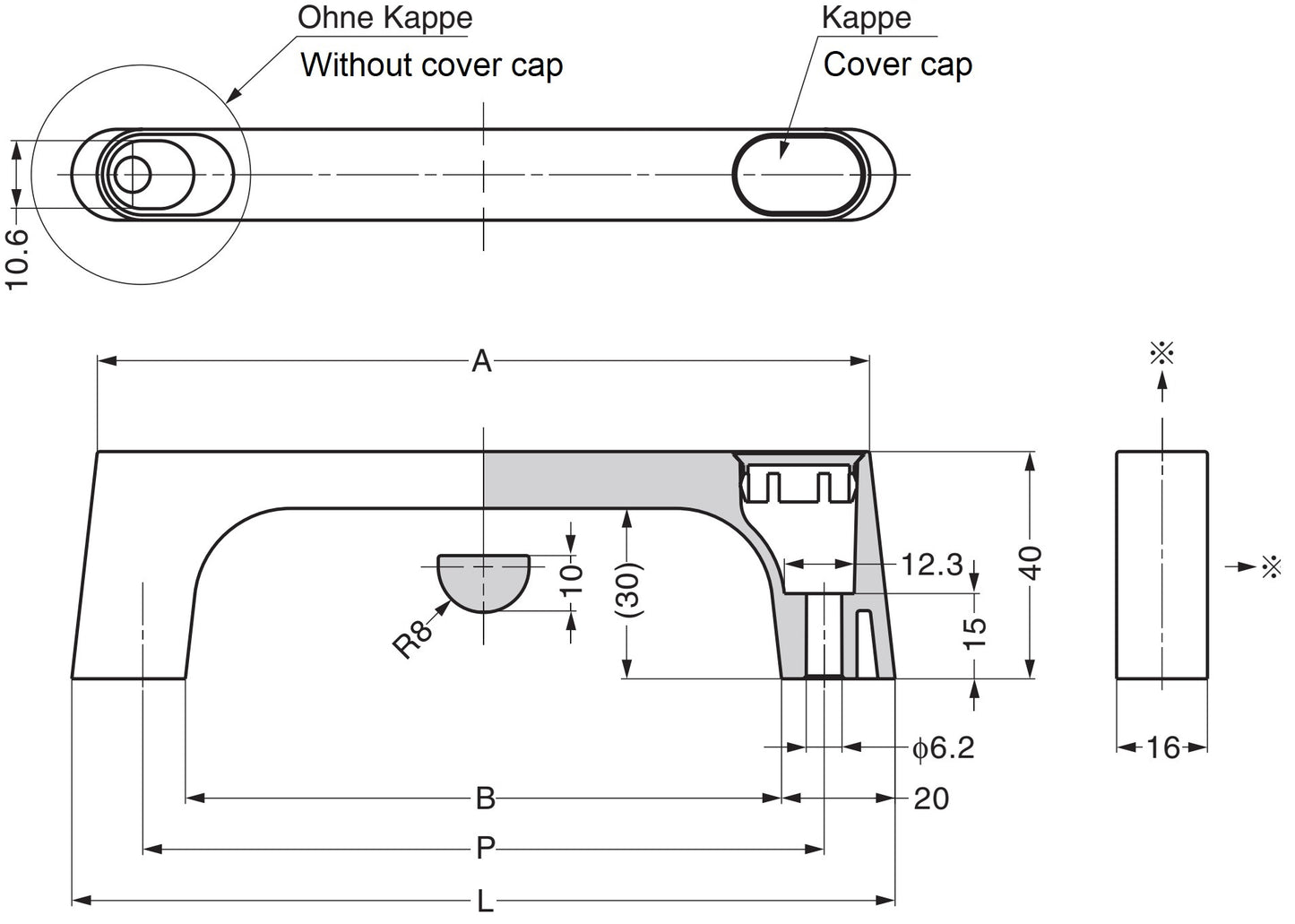

[caption id="attachment_98572" align="alignnone" width="420"] High-quality solid appliance handle made of zinc alloy (ZDC), chrome-plated, satin-finished with gray cover caps, KMH-120-GR, 145 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece KMH-120-GR tool handle made of zinc alloy (ZDC), chrome-plated, satin matt
• 2 pieces of grey cover cap

Watch product video: Manufacturer reference number:

• Article number: 100-024-064, 100-024-067
• Item number: KMH-120-GR
• EAN number: 4510932038621, 4510932038591

Manufacturer: Sugatsune / LAMP® (Japan)
