High-quality, noiseless folding padeye made of SUS316 stainless steel, 56.5 mm (2.3"), EY-R50. V4A folding padeye for shipbuilding, yachts, loop stops, outdoor use, humid environments, harsh environments, and much more, from Sugatsune / LAMP® (Japan)

Folding deck eye made of high-quality stainless steel (V4A), with damping, surface: glossy polished, EY-R50

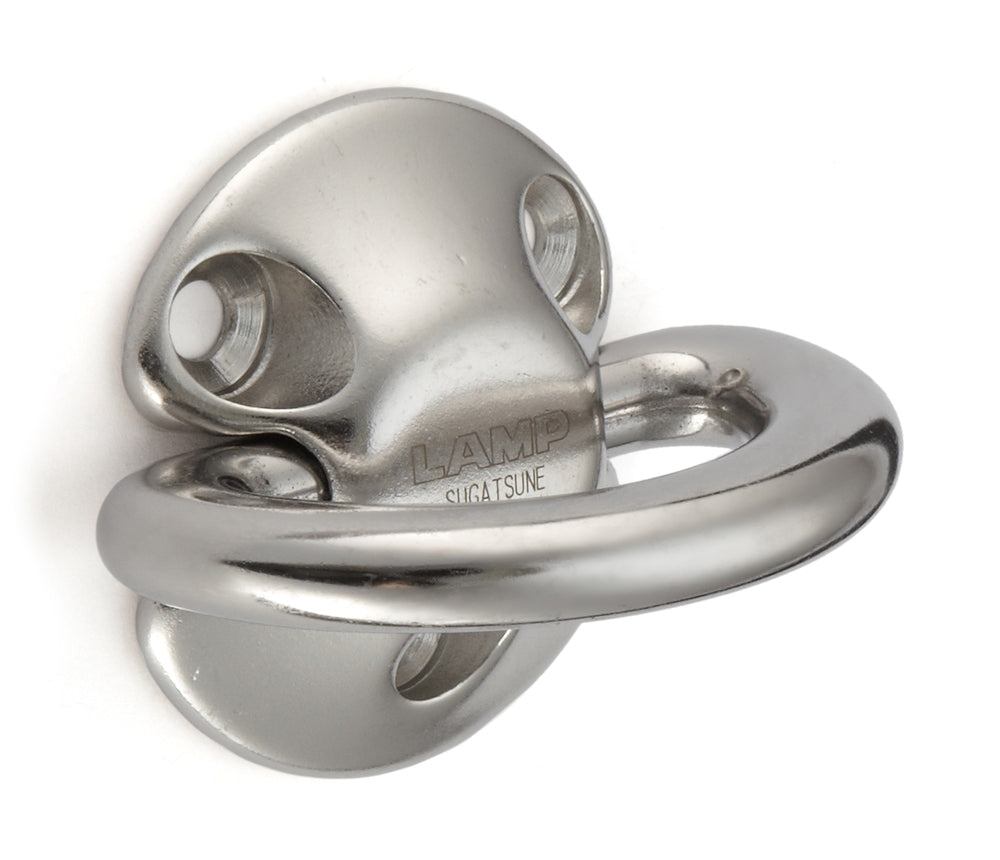

Application: Folding padeye made of V4A for shipbuilding, yachts, loop stops, outdoor use, humid environments, harsh environments and much more. The EY-R50 folding deck eyes feature a soft-motion hinge. It provides a constant torque to prevent rattling on the deck. [caption id="attachment_126127" align="alignnone" width="420"] High-quality, noiseless folding deck eye made of SUS316 stainless steel, EY-R50, 56.5 mm, from Sugatsune. Application[/caption] The folding Padeye EY-R50 is perfect for the seat belt or safety line; it can be easily folded up when needed. The EY-R50 folding deck eye is the optimal solution for attachment points. The folding function of the folding padeye EY-R50 helps to keep the deck and aisles clear. These folding deck eyes can be opened at any time and attached to a snap block or fender. Otherwise, they fold securely and flat on the deck. The base with three fastening screws is also ideal for heavy loads. The high-quality EY-R50 folding deck eyes have a simple and robust design and are ideal for, among other things:

• Rope attachments
• Stretch rope
• mooring line
• Pick-up point
• lashing
• Lifting points
• fender
• dog leash
• shipbuilding
• yachts
• Loops attacks
• Outdoor area
• humid environment
• harsh environment

Material:

• The folding deck eyes EY-R50 are made of high-quality stainless steel (V4A)
• SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
• Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk screw M5 × 16 mm)
• The fastening screws are also made of stainless steel
• The folding deck eye EY-R50 has three mounting holes with a distance of 28 mm (1-7/64″) horizontally (P1) and 24 mm (15/16″) vertically (P2).
• The diameter of the mounting holes is ⌀5.5 mm (7/32″)

Characteristics:

• Weight: 116 g
• Load capacity: 4900 N (500 kp)
• Size: 56.5 mm (2.3″)
• high quality
• stable
• Shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Width of the folding padeye (W): 56.5 mm (2-7/32″)
• Length (H): 54 mm (2-1/8″)
• Height (D): 14.5 mm (37/64″)
• Material thickness of the bracket (⌀D2): ⌀7.5 mm (19/64″)

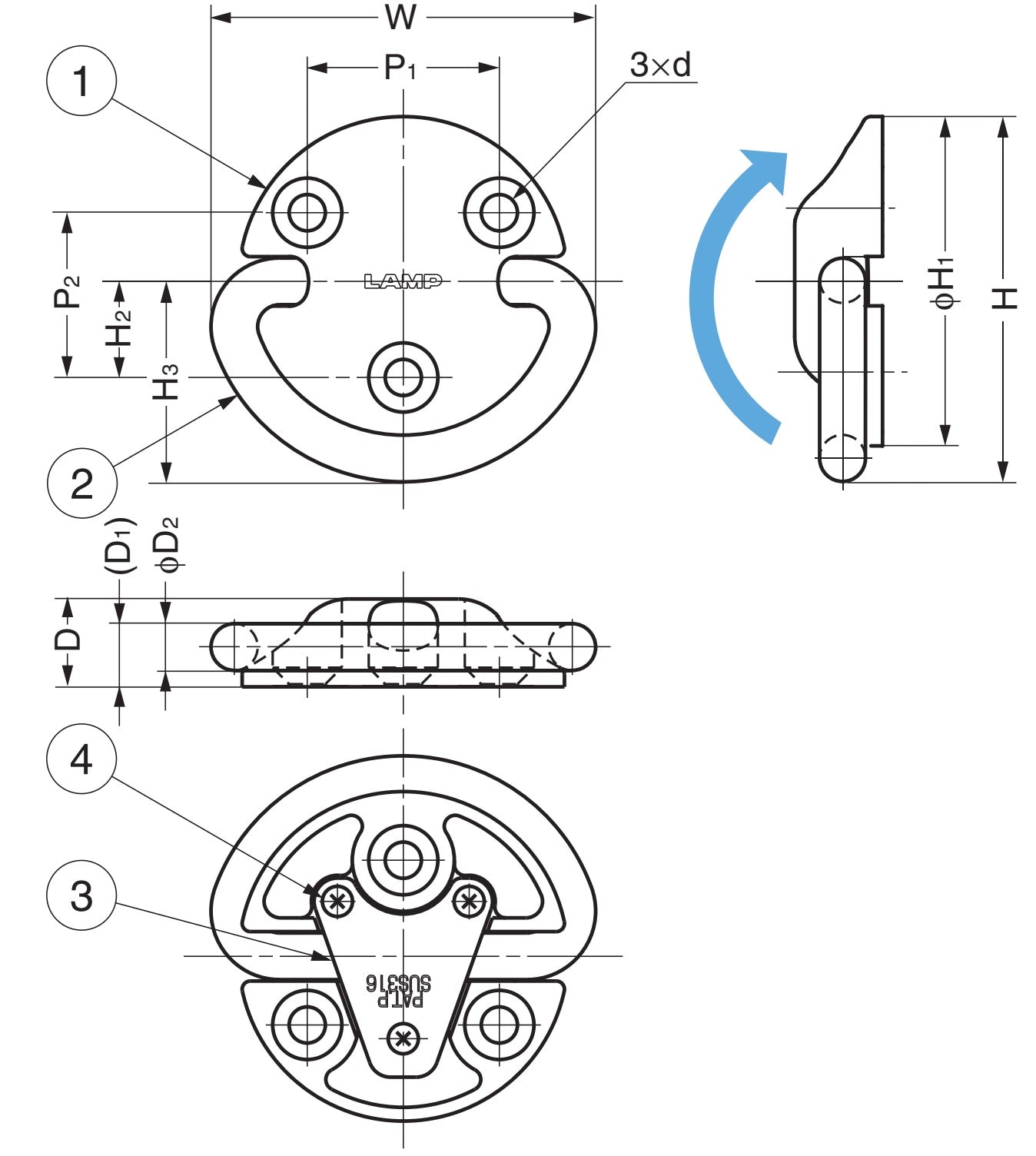

[caption id="attachment_126139" align="alignnone" width="376"] High-quality, noiseless folding deck eye made of SUS316 stainless steel, EY-R50, 56.5 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

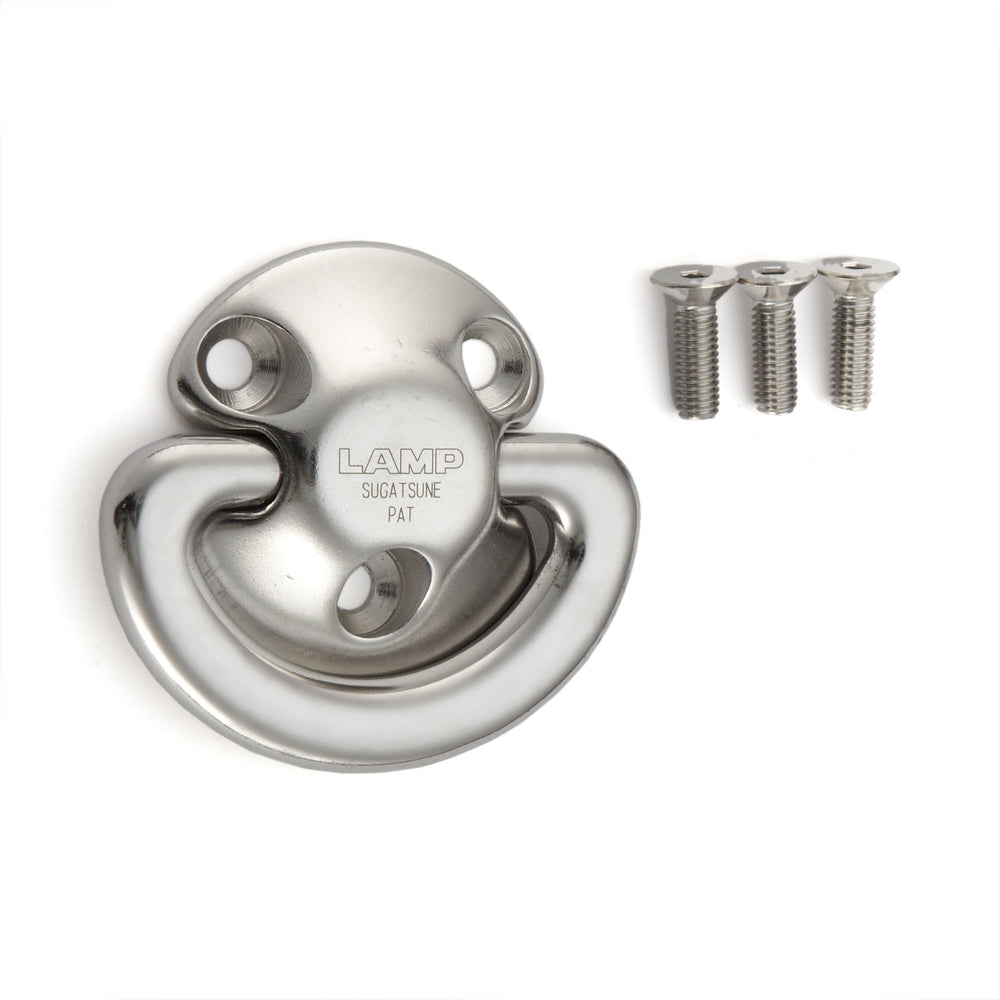

• 1 piece folding deck eye EY-R50 made of high-quality stainless steel, shiny polished
• 3 x countersunk head screws M5 × 16 mm made of stainless steel

Watch product video: Manufacturer reference number:

• Article number: 110-012-542
• Item number: EY-R50
• EAN number: 4510932013048

Manufacturer: Sugatsune / LAMP® (Japan)
