GRASS Hetal Kinvaro S-35 Type 4 / D, D-type power mechanism. Pivot flap fitting with opening assistance and adjustable closing damping. Flap fitting with gray cover caps.

GRASS Hetal Kinvaro S-35 "Type 4 / D, energy storage D"

Swing flap fitting with opening support and adjustable closing damper, with grey cover caps

• Allows the use of cornices, gallery floors and surface-mounted lights
• The flap is held securely in any position from 45° opening angle
• Particularly easy movement
• The spring force is adjustable
• Integrated adjustable closing damper
• Wide range of applications for a wide variety of flap materials
• Pre-assembled Euro screws and positioning pins for easy installation of the fitting on the side wall
• Quick, tool-free clip assembly of the front

• Height adjustment: ±1.5 mm
• Lateral adjustment: ±1.5 mm
• Tilt adjustment: ±1.5 mm

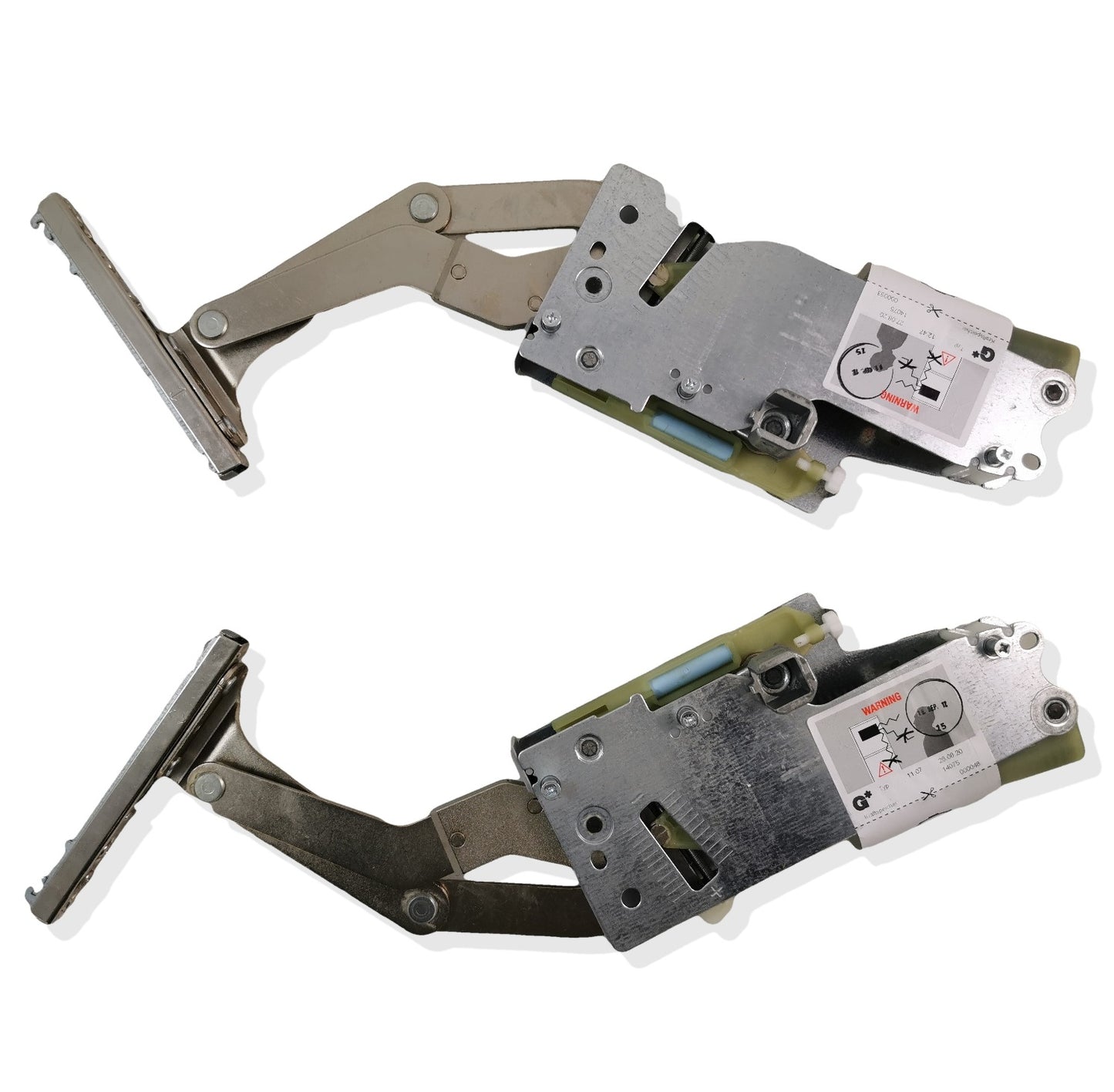

• 2 x fittings (1 x right and 1 x left)

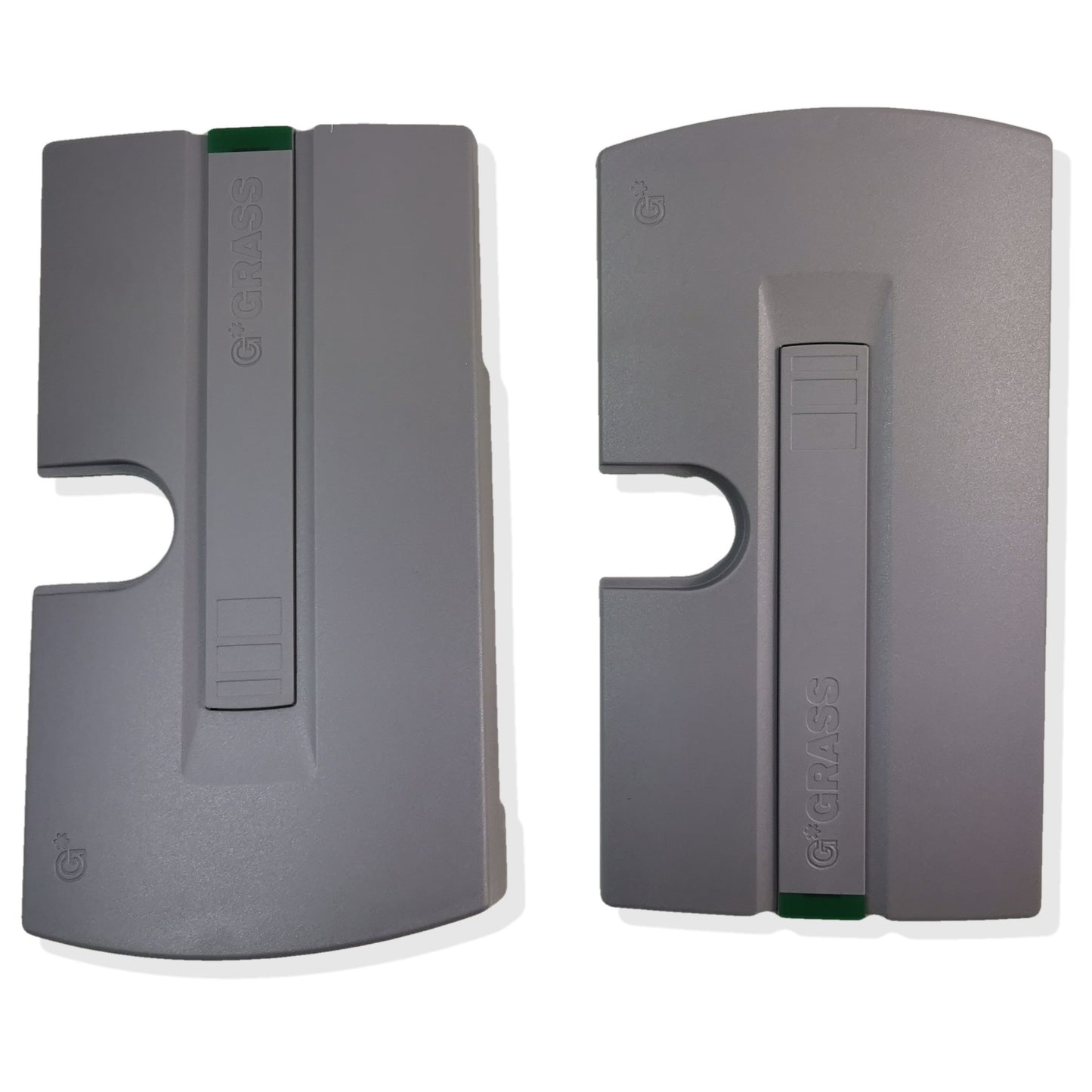

• 2 x cover caps (1 x right and 1 x left)
