Large rotating hook with safety catch made of SUS304 stainless steel, 164 mm (6.5"), JN-T100. Rope hook with safety catch made of V2A for shipbuilding, outdoor use, humid environments, and much more, from Sugatsune / LAMP® (Japan)

High-quality large rotating hook with safety flap made of stainless steel (V2A), with damping, surface: glossy polished, JN-T100

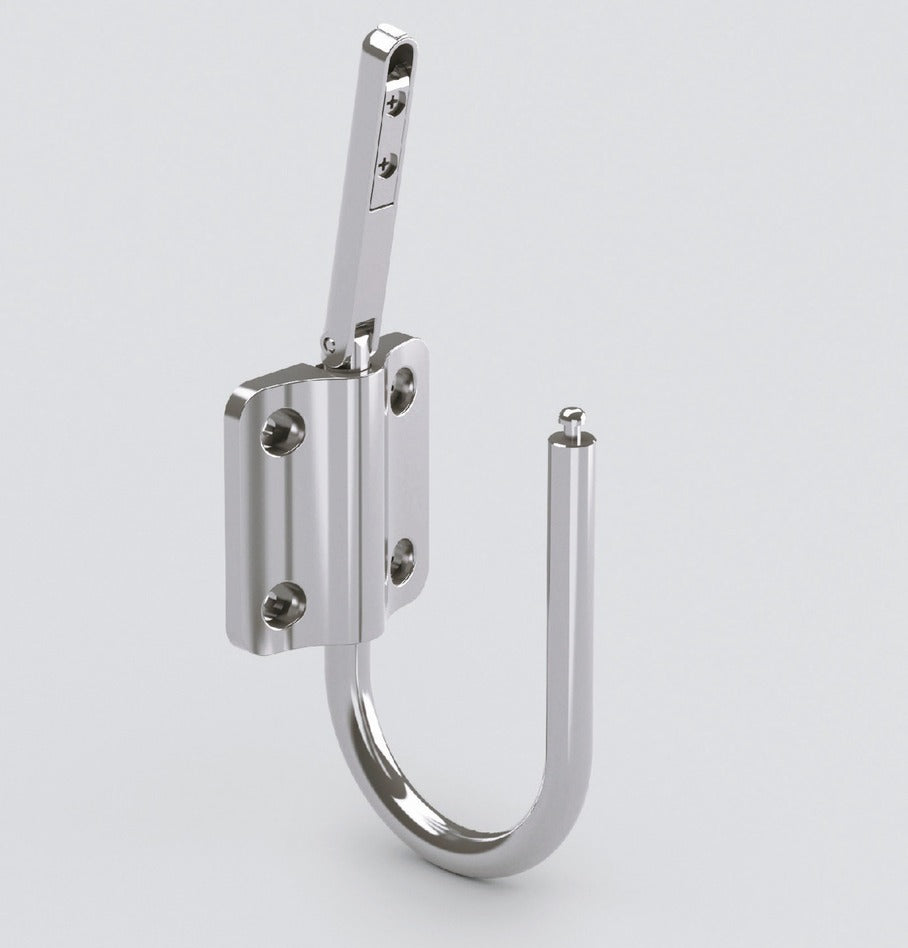

Application: Rope hook with safety lock made of V2A for shipbuilding, outdoor use, damp environments and much more. The hooks with safety flap JN-T100 (eye hooks) have a cap that can be opened upwards. [caption id="attachment_126263" align="alignnone" width="402"] Large rotating hook with safety catch made of SUS304 stainless steel, JN-T100, 164 mm, from Sugatsune. Application[/caption] The hook's flap features a safety lock to prevent accidental opening. This prevents suspended objects such as rope, cord, hose, or cable from coming loose from the hook. To open the safety flap, it must be pushed backwards. The rope hook with safety lock JN-T100 can be rotated 180°. The high-quality hooks with safety flap JN-T100 have a simple and robust design and are ideal for, among others:

• dog leash
• shipbuilding
• Outdoor area
• humid environment

Material:

• The hooks with safety flap JN-T100 are made of stainless steel (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in the delivery (round head screw, self-tapping 5 × 30 mm)
• The fastening screws are also made of stainless steel
• The hook with safety flap JN-T100 has four mounting holes with a diameter of ⌀5.5 mm (7/32″)
• The distance between the mounting holes is 55 mm (2-11/64″) vertically and 50 mm (1-31/32″) horizontally

Characteristics:

• Weight: 800 g
• Load capacity: 392 N (40 kp)
• Size: 164 mm (6.5″)
• high quality
• stable
• Shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Length of the hook with safety: 164 mm (6-29/64″)
• Depth: 114.5 mm (4-33/64″)
• Width: 80 mm (3-5/32″)
• Hook material thickness: ⌀14 mm (35/64″)

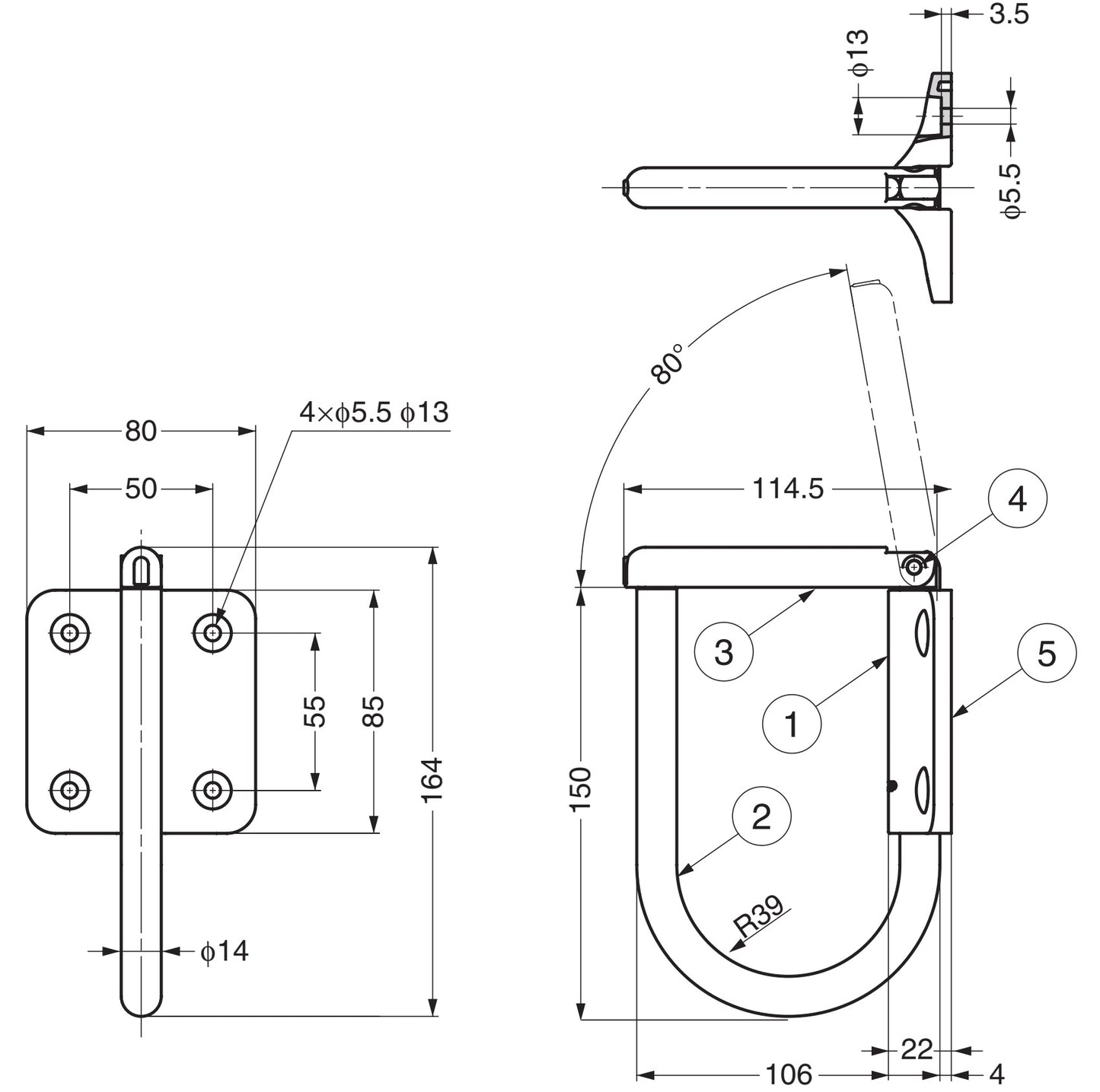

[caption id="attachment_126275" align="alignnone" width="420"] Large rotating hook with safety catch made of SUS304 stainless steel, JN-T100, 164 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

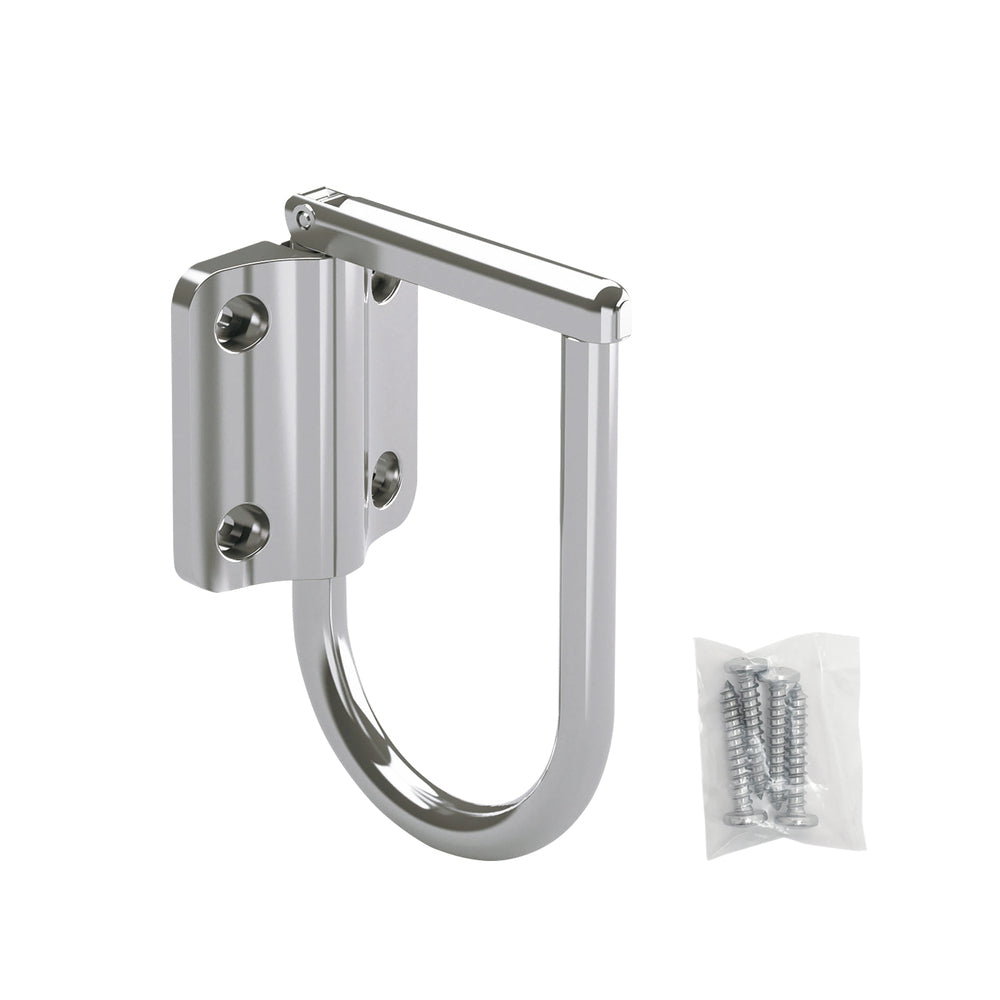

• 1 piece hook with safety flap JN-T100 made of stainless steel, shiny polished
• 4 pieces of self-tapping lens head screws 5 × 30 mm made of stainless steel

Watch product video: Manufacturer reference number:

• Article number: 110-022-111
• Item number: JN-T100
• EAN number: 4510932164290

Manufacturer: Sugatsune / LAMP® (Japan)
