High-quality hook with safety catch made of SUS316 stainless steel, EN-K120. Rope hook with safety catch made of V4A for shipbuilding, outdoor use, humid environments, harsh environments, and much more, from Sugatsune / LAMP® (Japan)

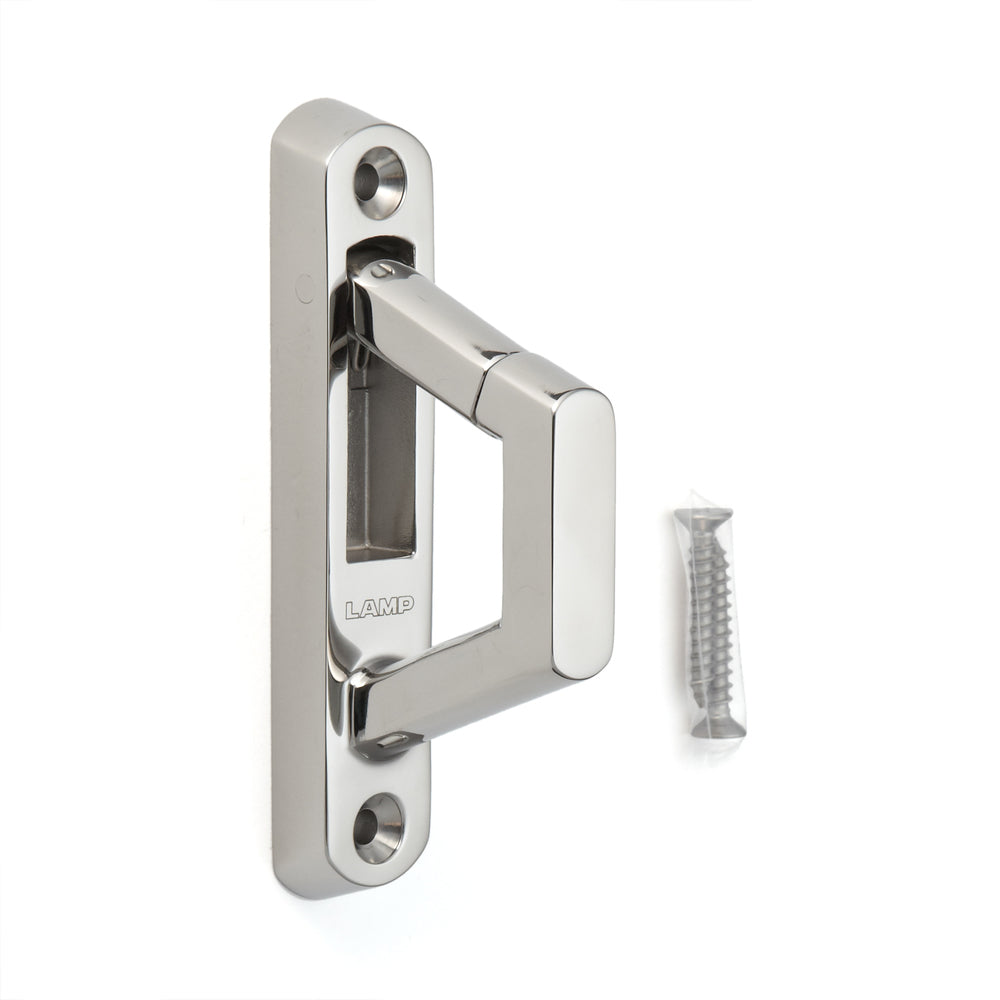

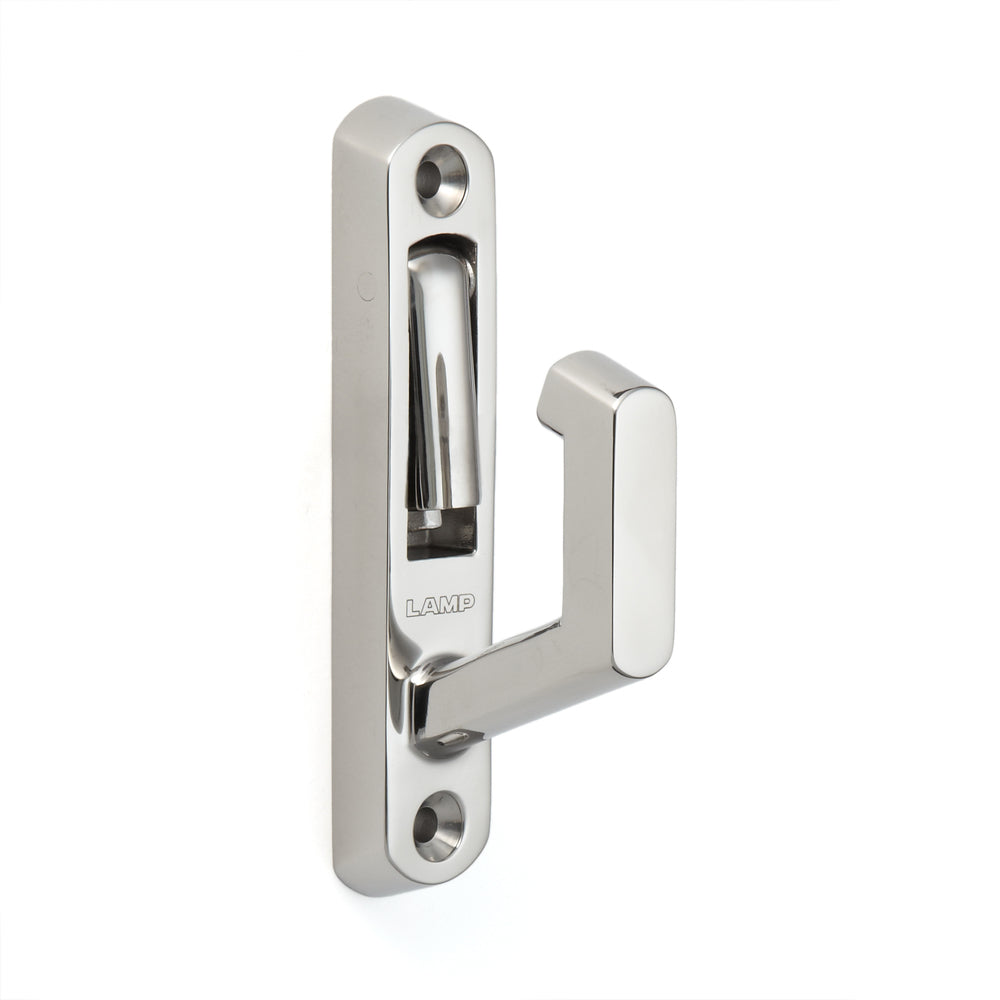

Hook with safety flap made of high-quality stainless steel (V4A), surface: shiny polished, EN-K120

Application: Rope hook with safety lock made of V4A for shipbuilding, outdoor use, damp environments, harsh environments and much more. [caption id="attachment_125907" align="alignnone" width="420"] High-quality hook with safety catch made of SUS316 stainless steel, EN-K120, from Sugatsune. Application[/caption] The EN-K120 eye hooks with safety cap feature a spring-loaded cap that automatically closes once the rope, cord, or cable has been hung. This prevents these items from accidentally detaching from the hook. The spring hook EN-K120 can also be used perfectly as a leash holder. The stainless steel hook EN-K120 is suitable for rope or chain with a diameter of up to ⌀12 mm (15/32″). The high-quality hooks with safety flap EN-K120 have a simple and robust design and are ideal for, among other things:

• dog leash
• shipbuilding
• Outdoor area
• humid environment
• harsh environment

Material:

• The hooks with safety flap EN-K120 are made of high-quality stainless steel (V4A)
• SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
• Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in the delivery (countersunk head self-tapping screw 4 x 25 mm)
• The fastening screws are also made of stainless steel
• The hook with safety flap EN-K120 has two mounting holes with a distance (P) of 96 mm (3-25/32″)

Characteristics:

• Weight: 280 g
• Load capacity: 588 N (60 kp)
• Size: 120 mm (4.8″)
• high quality
• stable
• Shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

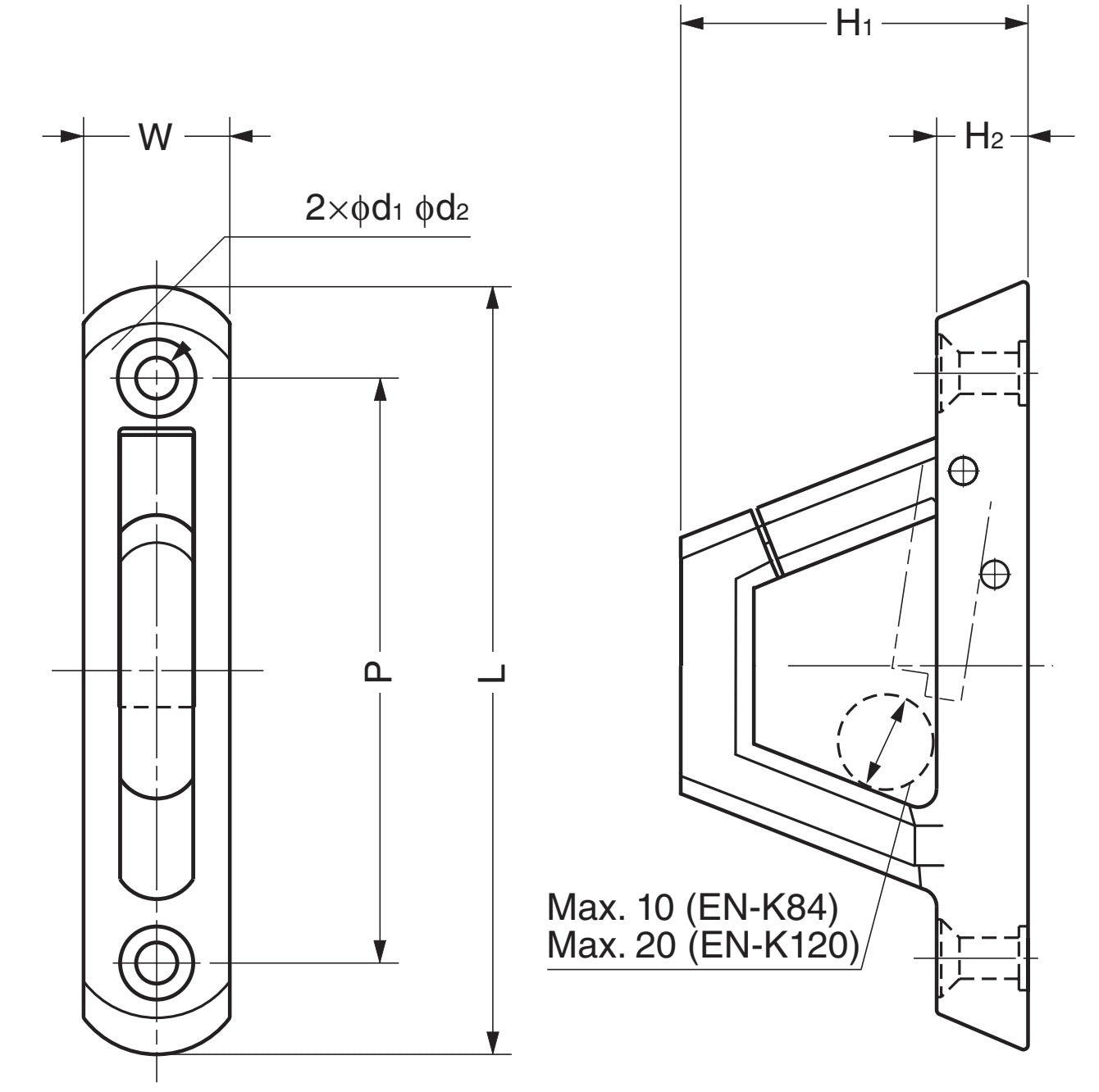

For further dimensions and details see technical drawing . The dimensions:

• Length of the hook with safety (L): 120 mm (4-23/32″)
• Depth (H1): 54 mm (2-1/8″)
• Width (W): 22 mm (55/64″)

[caption id="attachment_125919" align="alignnone" width="420"] High-quality hook with safety catch made of SUS316 stainless steel, EN-K120, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece hook with safety flap EN-K120 made of high-quality stainless steel, shiny polished
• 2 pieces countersunk head sheet screw 4 x 25 mm made of stainless steel

Watch product video: Manufacturer reference number:

• Article number: 110-010-109
• Item number: EN-K120
• EAN number: 4510932003841

Manufacturer: Sugatsune / LAMP® (Japan)
