Hochwertiger Haken mit Sicherungsklappe aus Edelstahl SUS316, geeignet für Vorhängeschloss, EN-R80-K. Seilhaken mit Sicherheitssperre aus V4A für Schiffbau, Außenbereich, feuchte Umgebung, raue Umgebung und viel mehr, von Sugatsune / LAMP® (Japan)

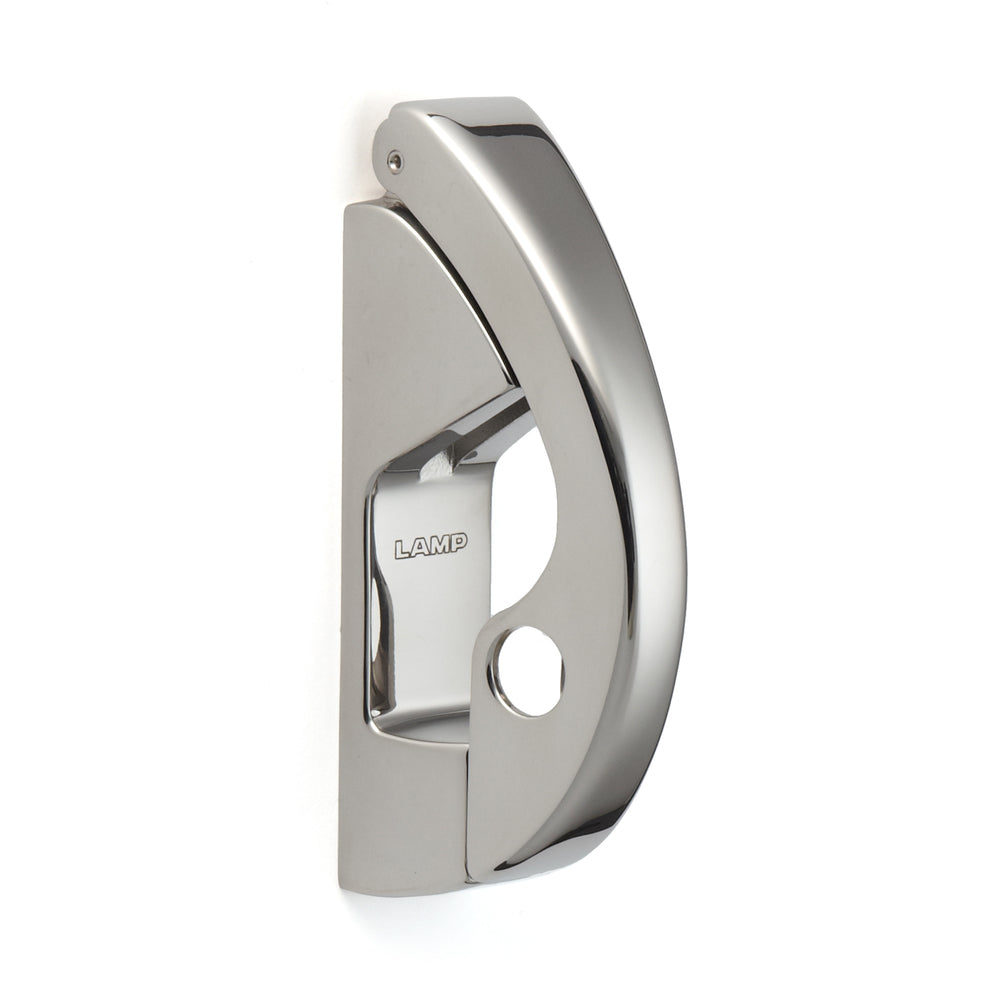

Hook with safety flap made of high-quality stainless steel (V4A), surface: shiny polished, EN-R80-K

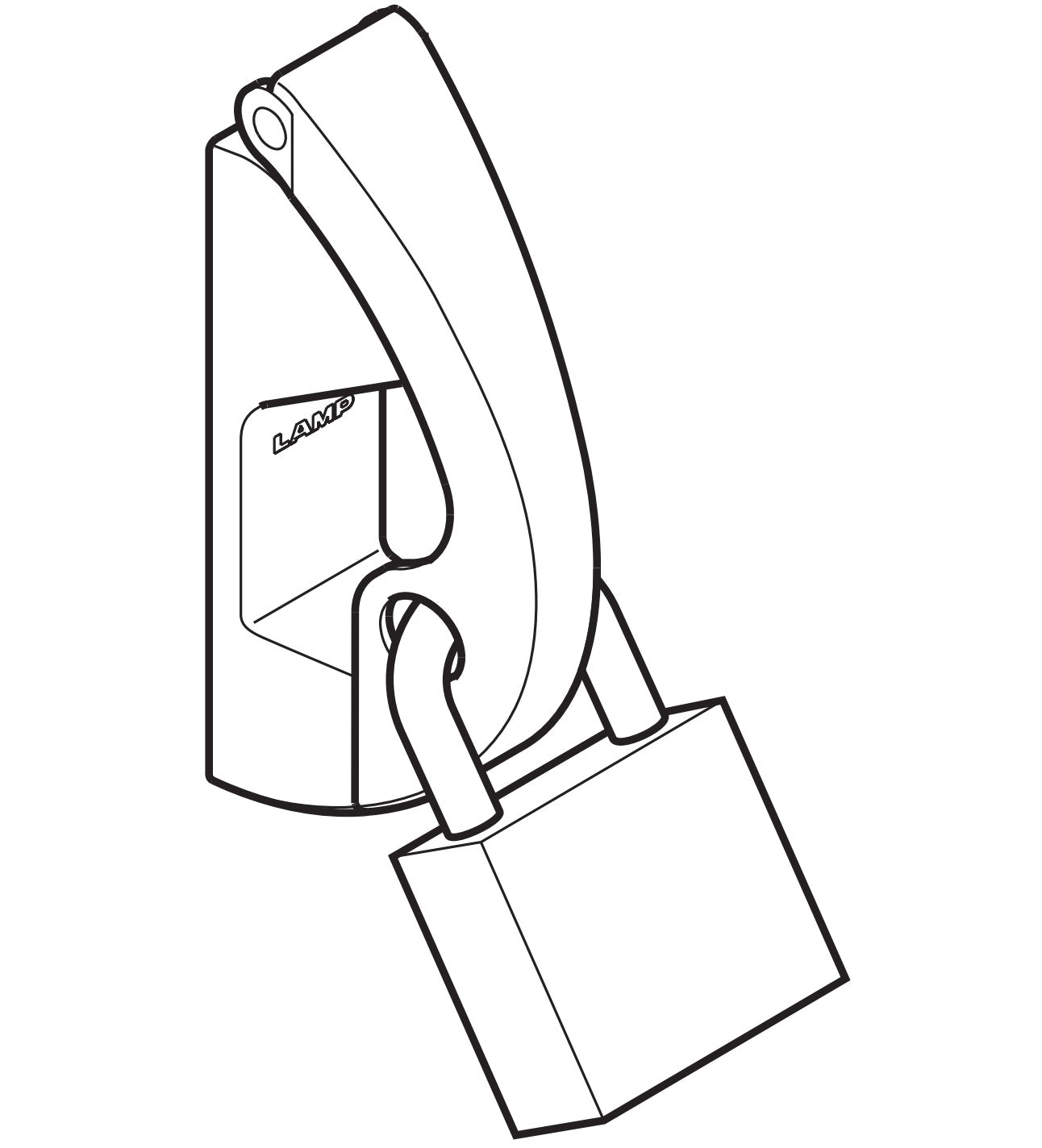

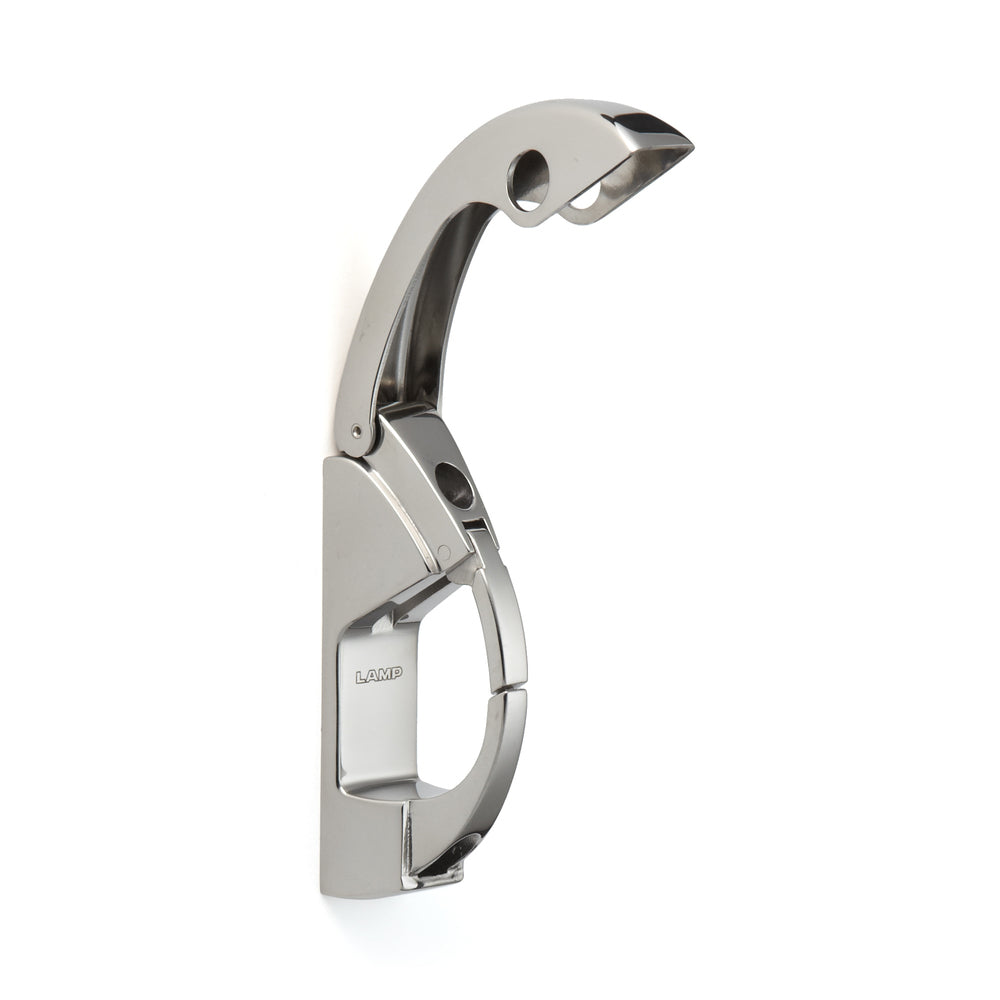

Application: Rope hook with safety lock made of V4A for shipbuilding, outdoor use, damp environments, harsh environments and much more. The EN-R80-K eye hooks with safety cap feature a spring-loaded cap that automatically closes once the rope, cord, or cable has been hung. This prevents these items from accidentally detaching from the hook. In addition, the safety hook with safety flap has an outer cover that can be closed and then protects the hook even better against accidental opening. For even more security, this outer cover has a ⌀10 mm (25/64″) hole for padlock use. [caption id="attachment_125622" align="alignnone" width="381"] High-quality hook with safety latch made of SUS316 stainless steel, suitable for padlock EN-R80-K from Sugatsune. Application[/caption] The spring hook EN-R80-K can also be used perfectly as a leash holder. The stainless steel hook EN-R80-K is suitable for rope or chain with a diameter of up to ⌀12 mm (15/32″). The high-quality hooks with safety flap EN-R80-K have a simple and robust design and are ideal for, among other things:

• dog leash
• shipbuilding
• Outdoor area
• humid environment
• harsh environment

Material:

• The hooks with safety flap EN-R80-K are made of high-quality stainless steel (V4A)
• SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
• Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in the delivery (countersunk head self-tapping screw 4 x 25 mm)
• The fastening screws are also made of stainless steel
• The hook with safety flap EN-R80-K has two mounting holes with a distance of 64 mm (2-33/64″)

Characteristics:

• Weight: 180 g
• Load capacity: 196 N (20 kp)
• Size: 89.7 mm (3.6″)
• high quality
• stable
• Shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Hook length with safety: 89.7 mm (3-17/32″)
• Depth: 40.5 mm (1-19/32″)
• Width: 21.5 mm (27/32″)

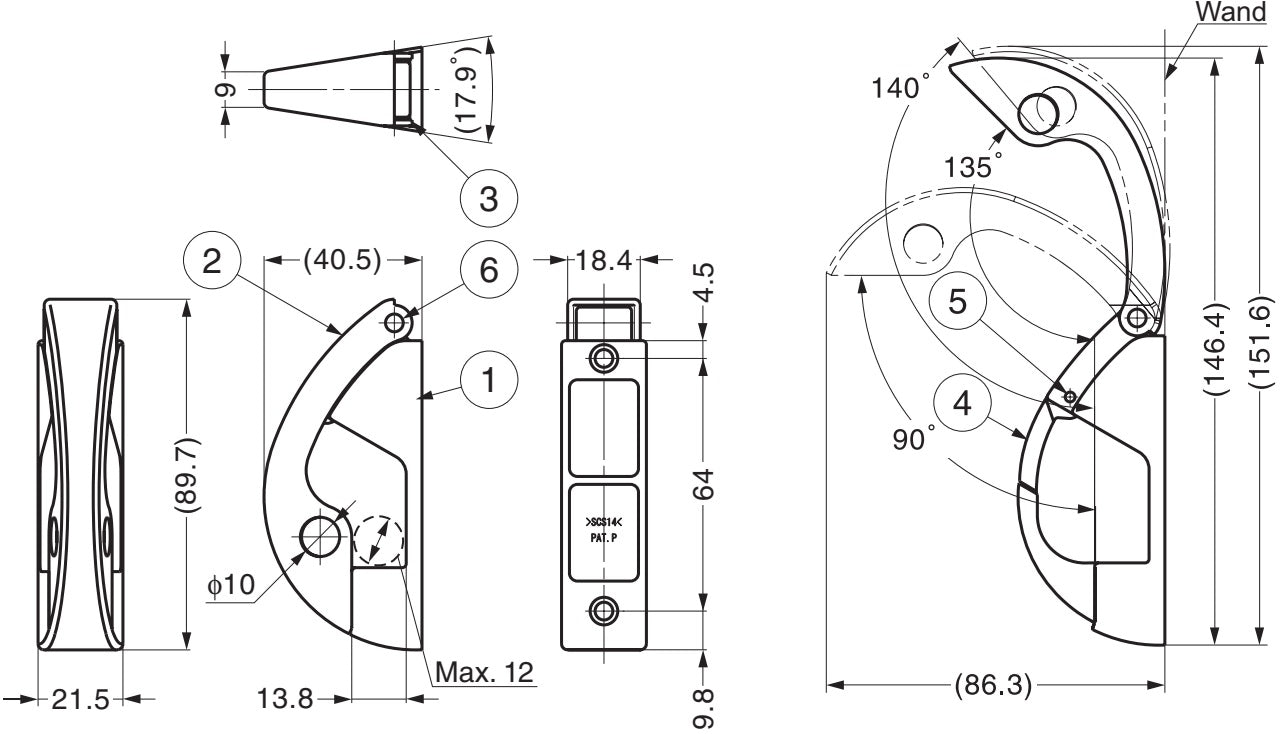

[caption id="attachment_125634" align="alignnone" width="420"] High-quality hook with safety latch made of SUS316 stainless steel, suitable for padlocks, EN-R80-K, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece hook with safety flap EN-R80-K made of high-quality stainless steel, shiny polished
• 2 pieces countersunk head sheet screw 4 x 25 mm made of stainless steel

Watch product video: Manufacturer reference number:

• Article number: 110-022-201
• Item number: EN-R80-K
• EAN number: 4510932161541

Manufacturer: Sugatsune / LAMP® (Japan)
