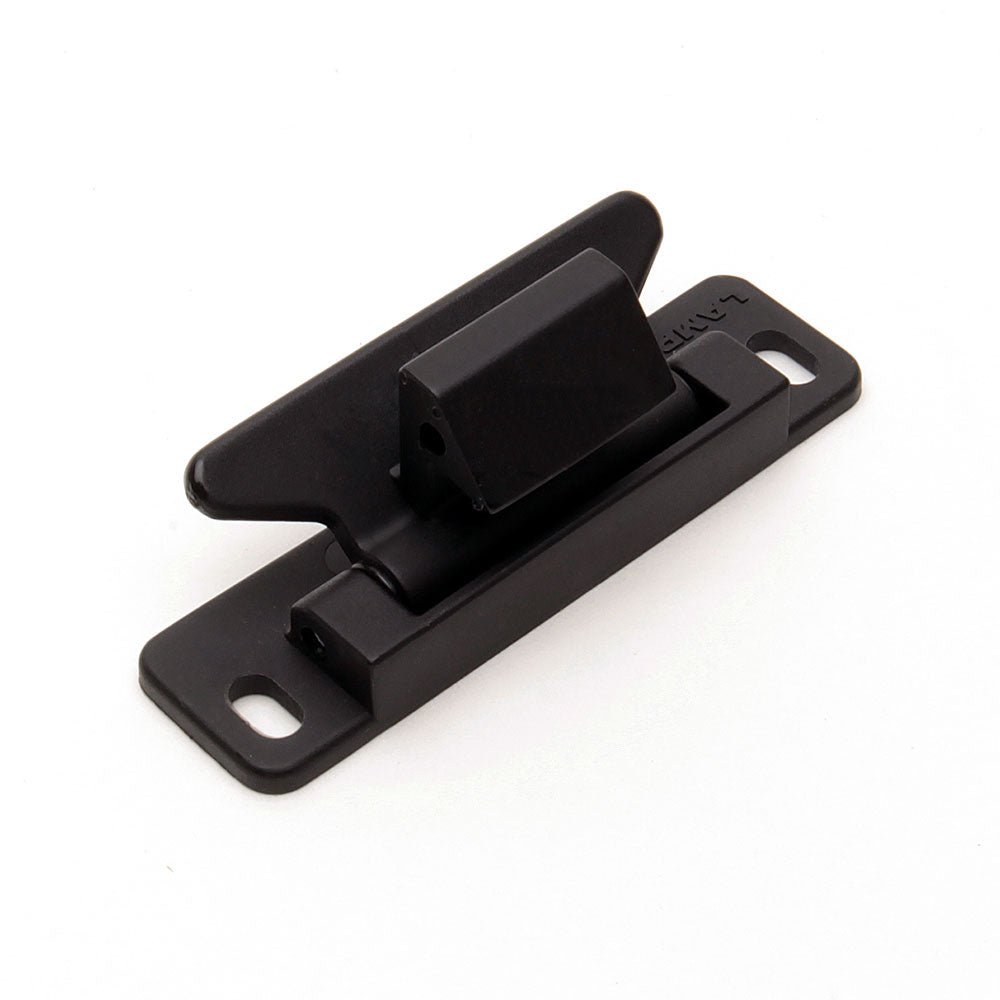

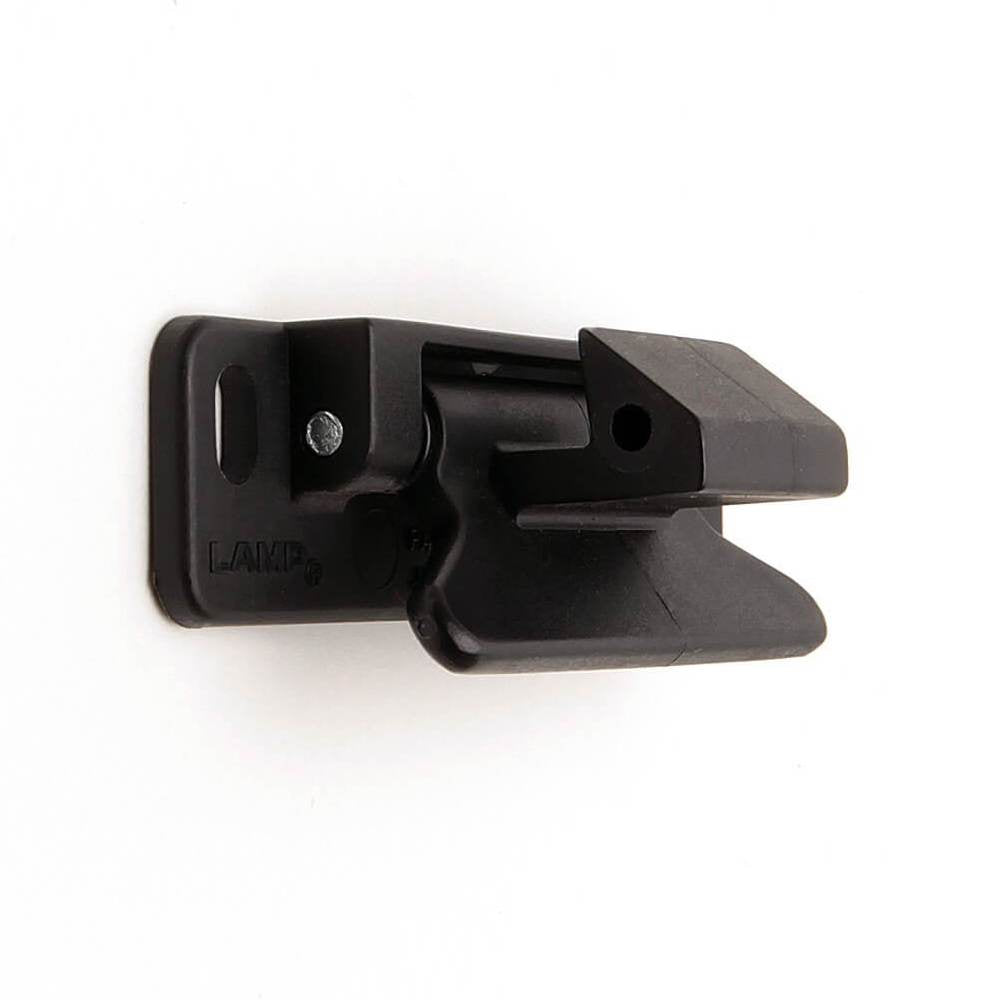

Black lever lock, polyamide finger catch with a steel counter plate, LL-66BL by Sugatsune / LAMP® (Japan)

Lever lock black, finger catch made of polyamide with a counter plate made of steel, LL-66BL

Application: The finger catch fits all doors to keep them closed, especially strong holding due to the non-magnetic catch. The lever lock is ideal for applications where doors must remain closed, e.g., while driving or as a child safety lock, as well as for vehicles, boats, airplanes, mobile homes, caravans, etc. In trendy black for exclusive interiors. The wood screws are coated black to match the lever lock. Features:

• Lock is designed for doors without knobs and handles

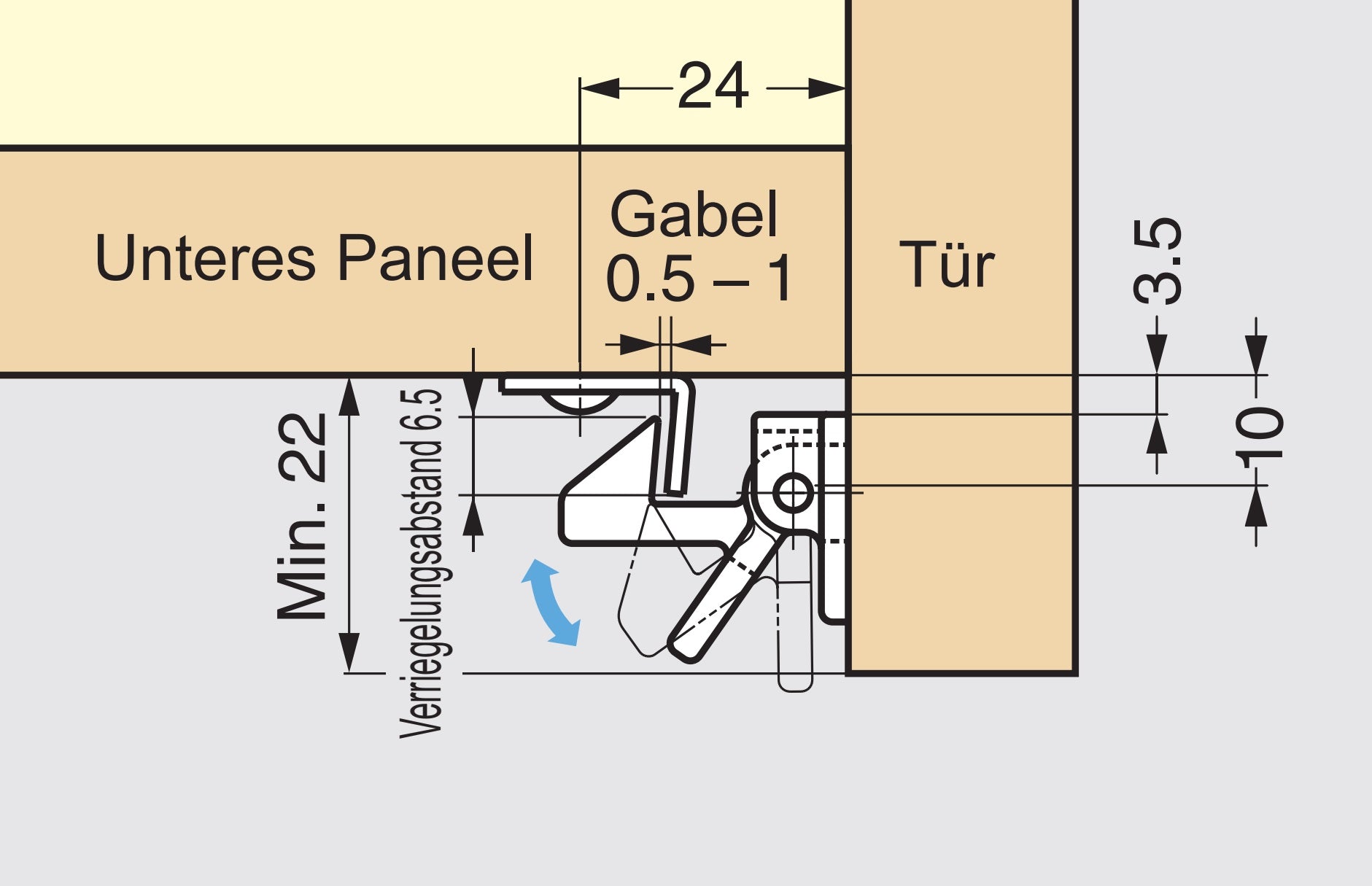

• Installation position can be adjusted (locking body: vertical ±1.5 mm, counter plate: horizontal ±1.5 mm)
• Holding force: 196 N (20 kp)
• Weight: 25 g

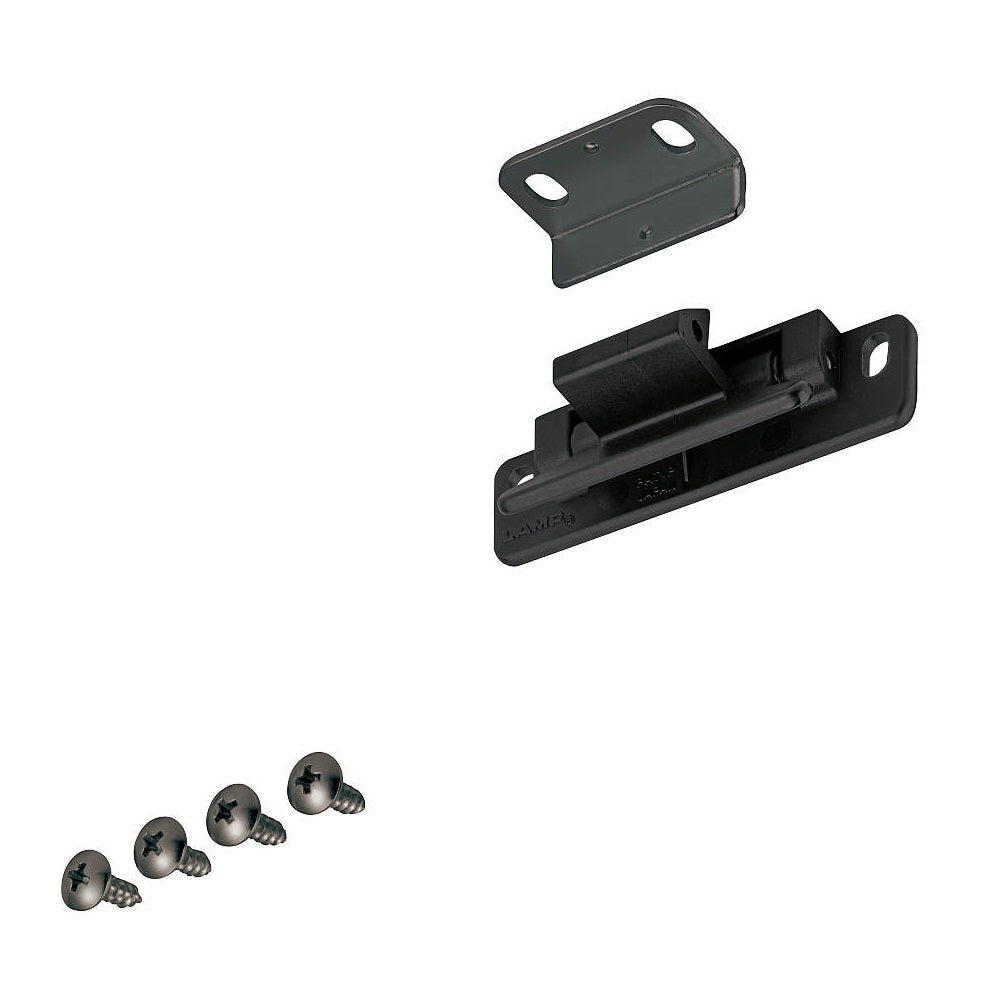

Scope of delivery:

• 1 x lever lock black
• 4 x truss head screw, self-tapping, 4 x 12

Material:

• Closure body: polyamide (PA)
• Lever: Polyamide (PA)
• Shaft: steel (color: zinc chromate, yellow)
• Spring: stainless steel (SUS304)
• Counterpart: Steel (Color: Nickel)

Color: black [video width="1920" height="1080" mp4="https://furniton.com/wp-content/uploads/Hebelriegel-Fingerschnaepper-Lever-latch-sugatsune-lamp-LL-66-video.mp4"][/video] Manufacturer reference number:

• Article name: LL-66BL
• Article number: 140-047-143

Manufacturer: SUGATSUNE / LAMP® (Japan)
