Hochwertige rechteckige Griffmuschel aus robustem Kunststoff, Oberfläche: Elfenbein, 70 mm (2,8″) HH-JS70-IV. Möbelgriff HH-JS70-IV für Blech, Holz, Schubkasten, Metallschrank, Holzschrank, Büromöbel, Schlafzimmermöbel, von Sugatsune / LAMP® (Japan)

High-quality handle shell made of robust plastic, surface: ivory, HH-JS70-IV

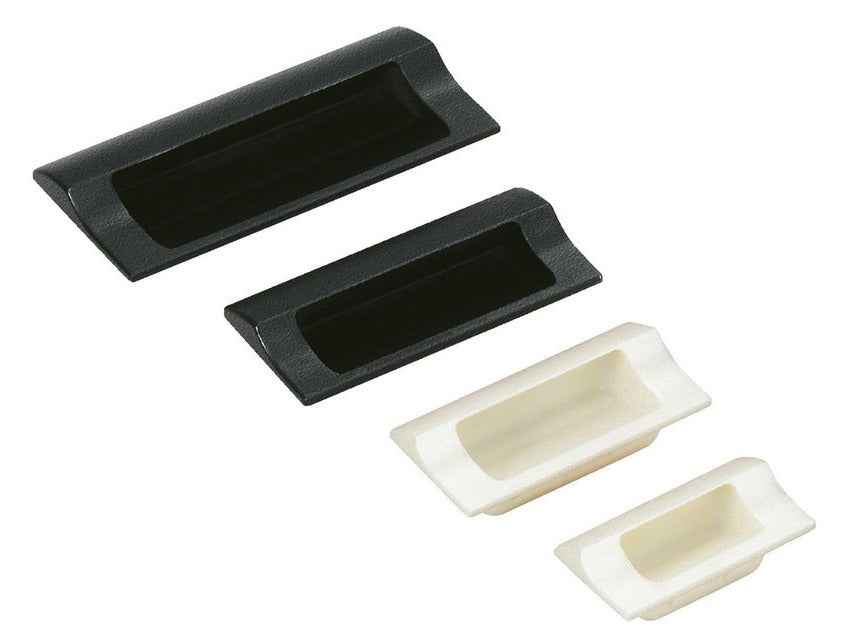

Application: [caption id="attachment_109897" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS70-IV, 70 mm, from Sugatsune. Application[/caption] Furniture handle HH-JS70-IV for sheet metal, wood, drawer, metal cabinet, wooden cabinet, office furniture, bedroom furniture. The high-quality HH-JS70-IV handle shells are ideal for, among others:

• Living room furniture
• kitchen furniture
• sheet metal
• Wood
• drawer
• metal cabinet
• wooden cabinet
• Office furniture
• bedroom furniture

Material:

• The high-quality handle shells HH-JS70-IV are made of ABS and polycarbonate (plastic)
• Spacer: made of steel

Surface:

• ivory

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head screw M4 x 10 mm)
• For installation, a cutout in the front measuring 48 mm (1-57/64″) x 25 mm (63/64″) must be made
• The depth of the cutout is 10 mm (25/64″) (only relevant for installation in wood)
• Furthermore, two holes with a diameter of Φ6.5 mm must be drilled for the screws with a distance of 58 mm (2-9/32″)

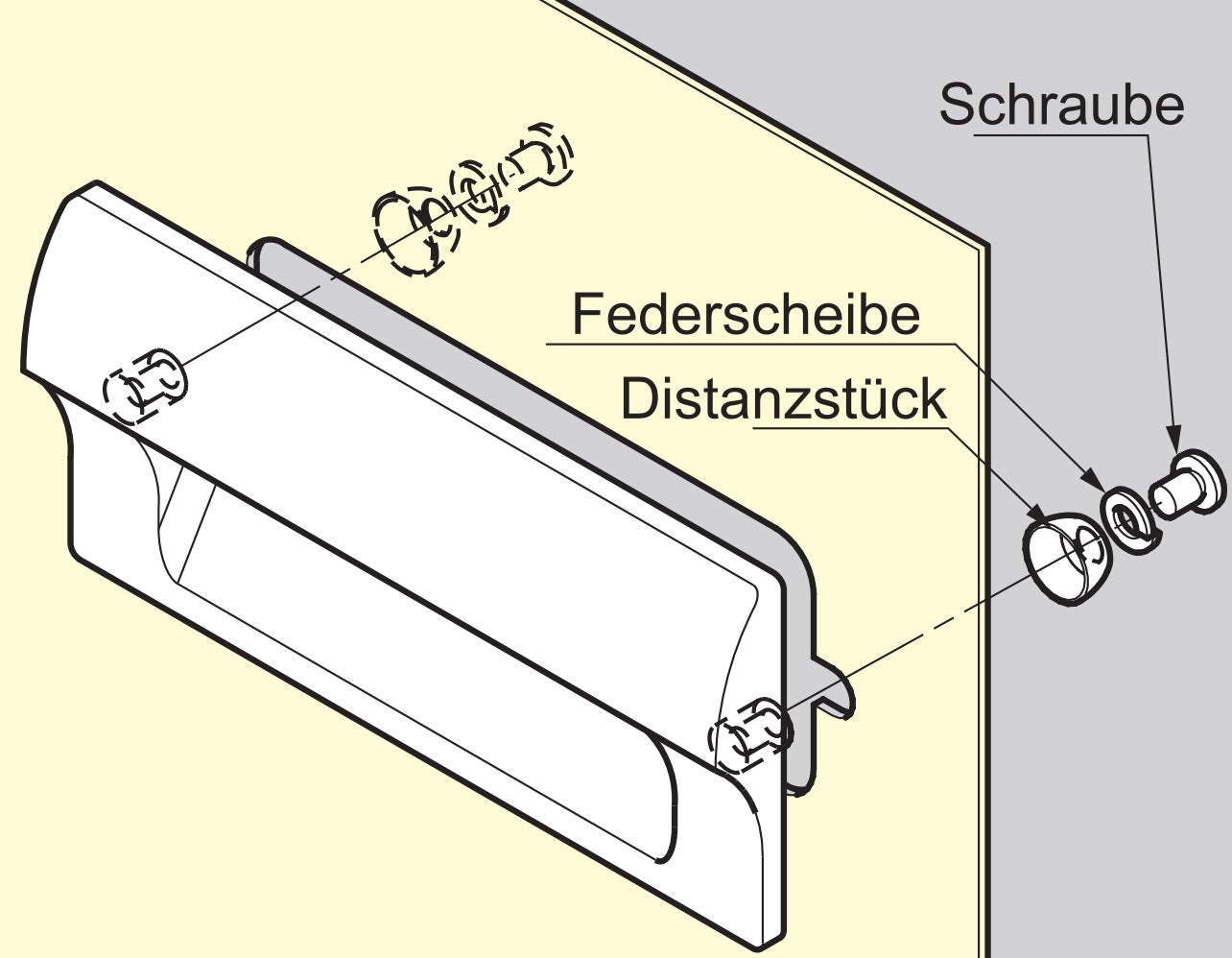

• When mounting in sheet metal, the two spacers included in the delivery must be used
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

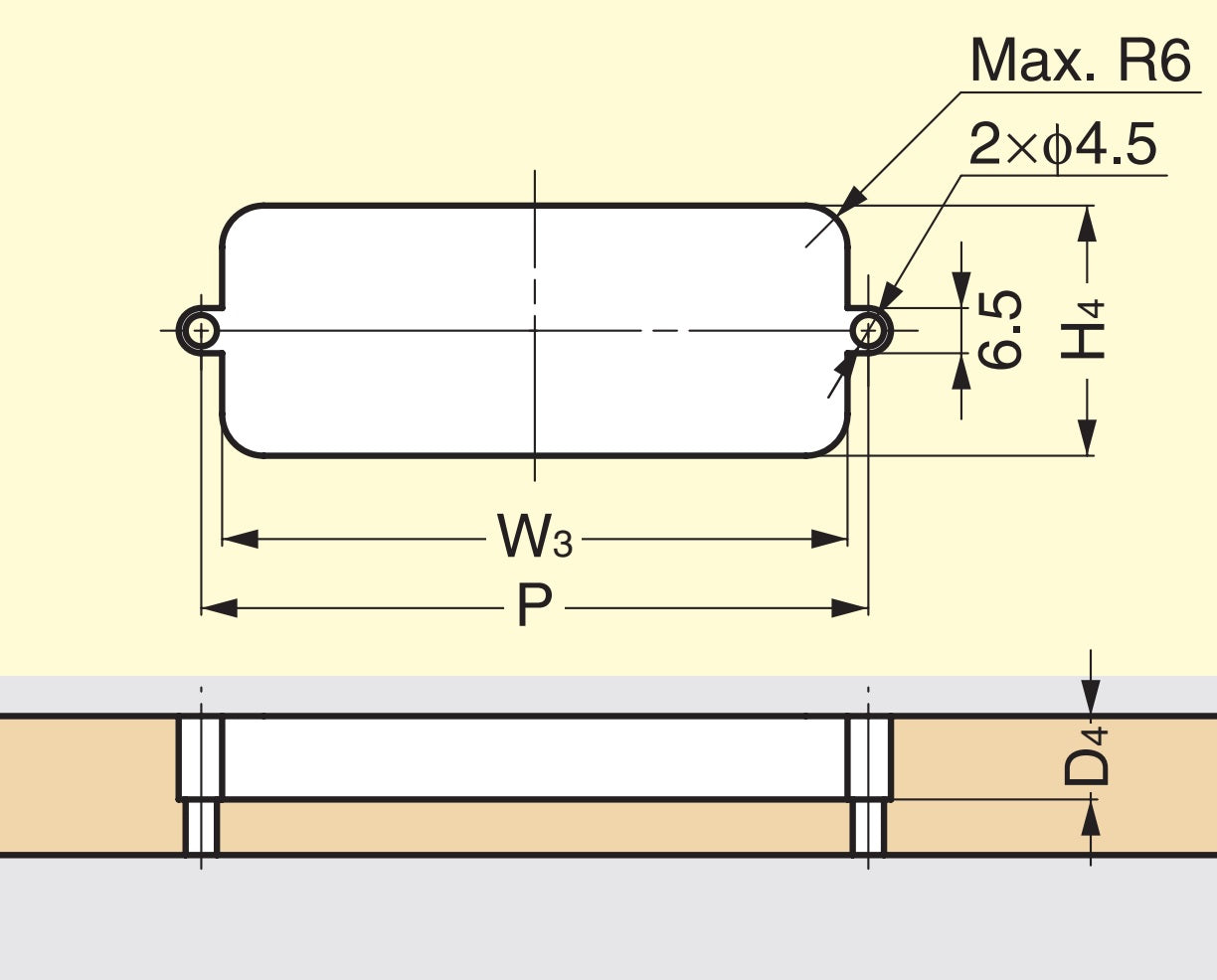

[caption id="attachment_109915" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS70-IV, 70 mm, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_109933" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS70-IV, 70 mm, from Sugatsune. Cutout for mounting in sheet metal.[/caption] Characteristics:

• Weight: 20 g
• Size: 70 mm (2.8″)
• Elaborately processed
• Ergonomic
• Stable
• Solid
• Robust
• ivory
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Width of the handle (L): 70 mm (2-3/4″)
• Height: 38 mm (1-1/2″)
• Depth of grip area: 9 mm (23/64″)

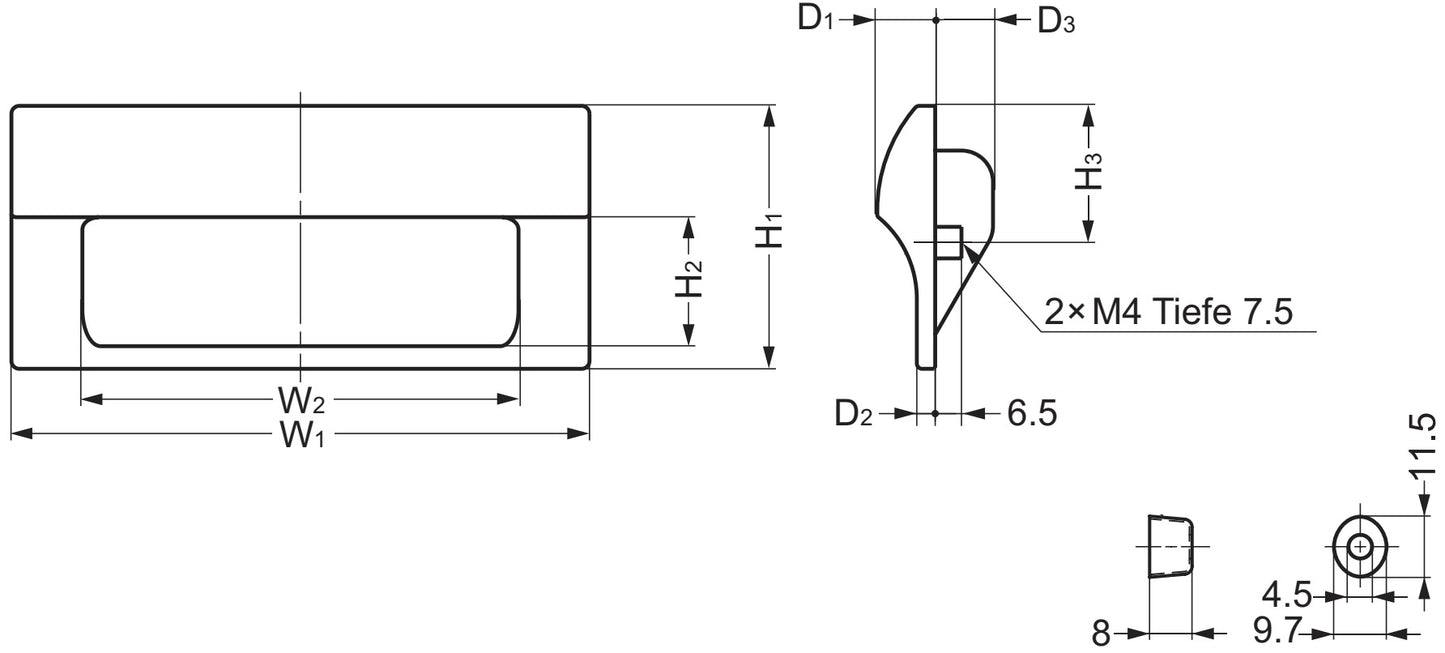

[caption id="attachment_109951" align="alignnone" width="420"] High-quality rectangular pull handle made of robust plastic, ivory finish, HH-JS70-IV, 70 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece handle shell HH-JS70-IV made of robust plastic, ivory
• 2 pieces of raised countersunk head screw M4 x 10 mm made of steel
• 2 pieces spacer for sheet metal, 8 mm high
• 2 pieces spring washer

Manufacturer reference number:

• Article number: 100-024-574
• Item number: HH-JS70-IV
• EAN number: 4510932043007

Manufacturer: Sugatsune / LAMP® (Japan)
