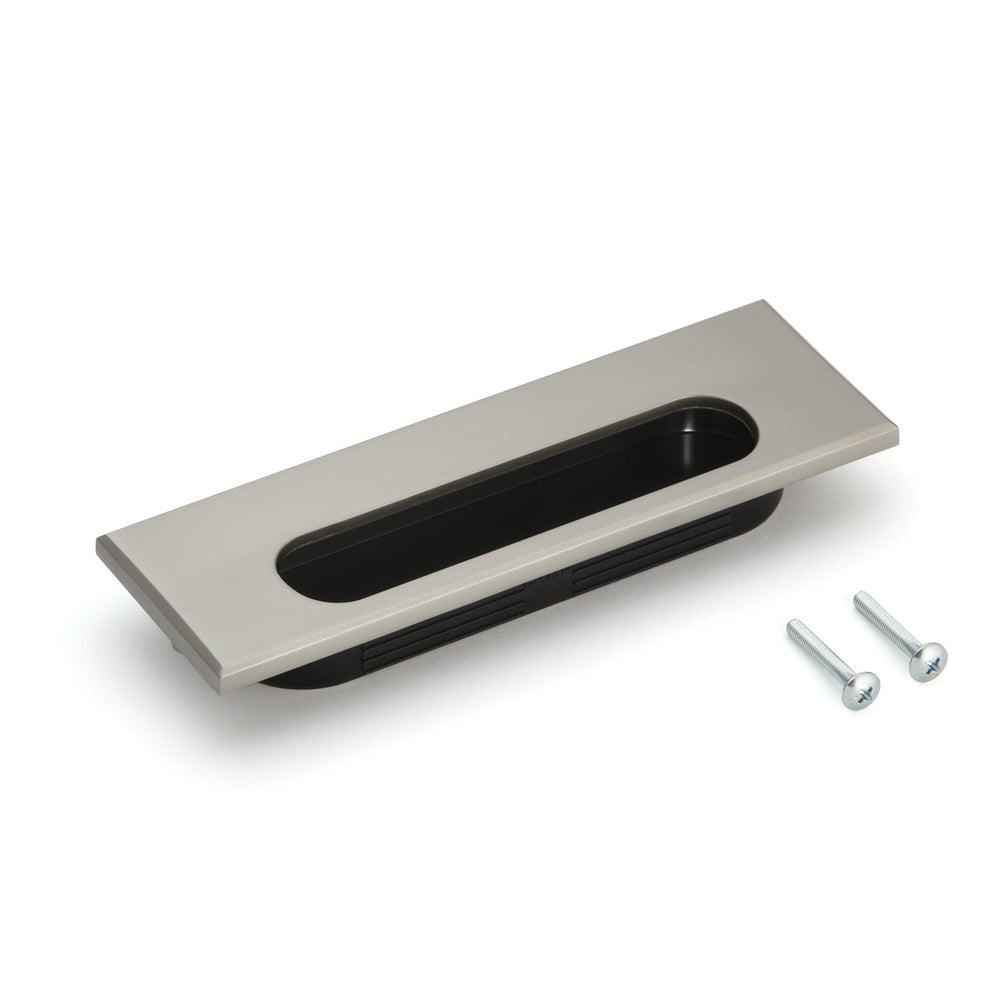

High-quality rectangular recessed pull made of solid zinc alloy, finish: white bronze, 164 mm (6.5") SD-160WB. Furniture handle SD-160WB for drawers, cabinets, office furniture, bedroom furniture, and kitchen furniture, by Sugatsune / LAMP® (Japan)

High-quality handle shell made of solid zinc alloy, surface: white bronze SD-160WB

Application: Furniture handle SD-160WB for drawers, cabinets, office furniture, bedroom furniture, and kitchen furniture. The high-quality SD-160WB handle shells are ideal for, among other things, the following:

• drawer
• Wardrobe
• Office furniture
• bedroom furniture
• kitchen furniture
• Living room cabinet

Material:

• The high-quality SD-160WB handle shells are made of solid zinc alloy (ZDC)

Surface:

• white bronze

Assembly:

• The fastening is carried out using the screws included in delivery (truss head screw M4 x 8 mm)
• For installation, a cutout in the front measuring 135 mm (5-5/16″) x 41 mm (1-39/64″) must be made
• Furthermore, two holes must be drilled with a distance of 150 mm (5-29/32″) for the screws
• When mounting in sheet metal, the spacer L.BSP-8 (100-019-635) must be used
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

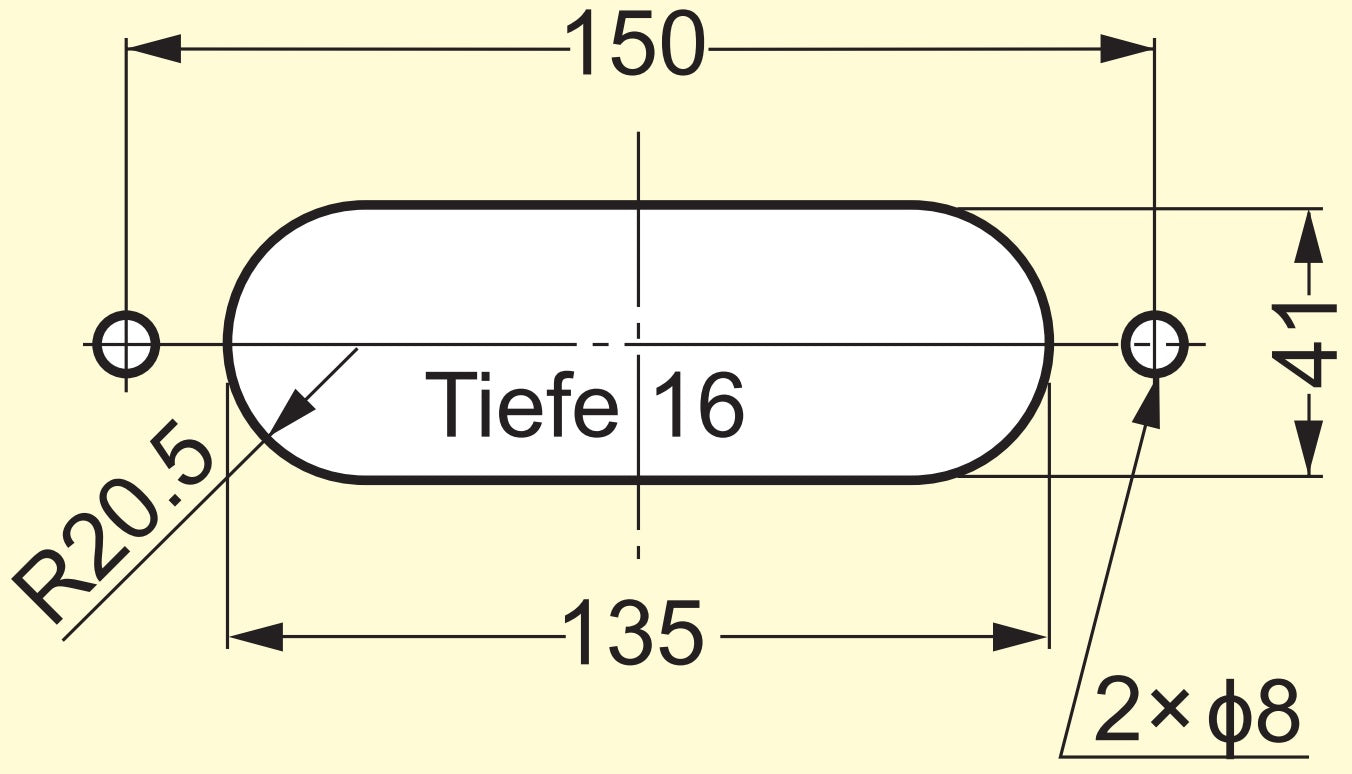

[caption id="attachment_106645" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: white bronze, SD-160WB, 164 mm, by Sugatsune, white bronze. Assembly drawing[/caption]

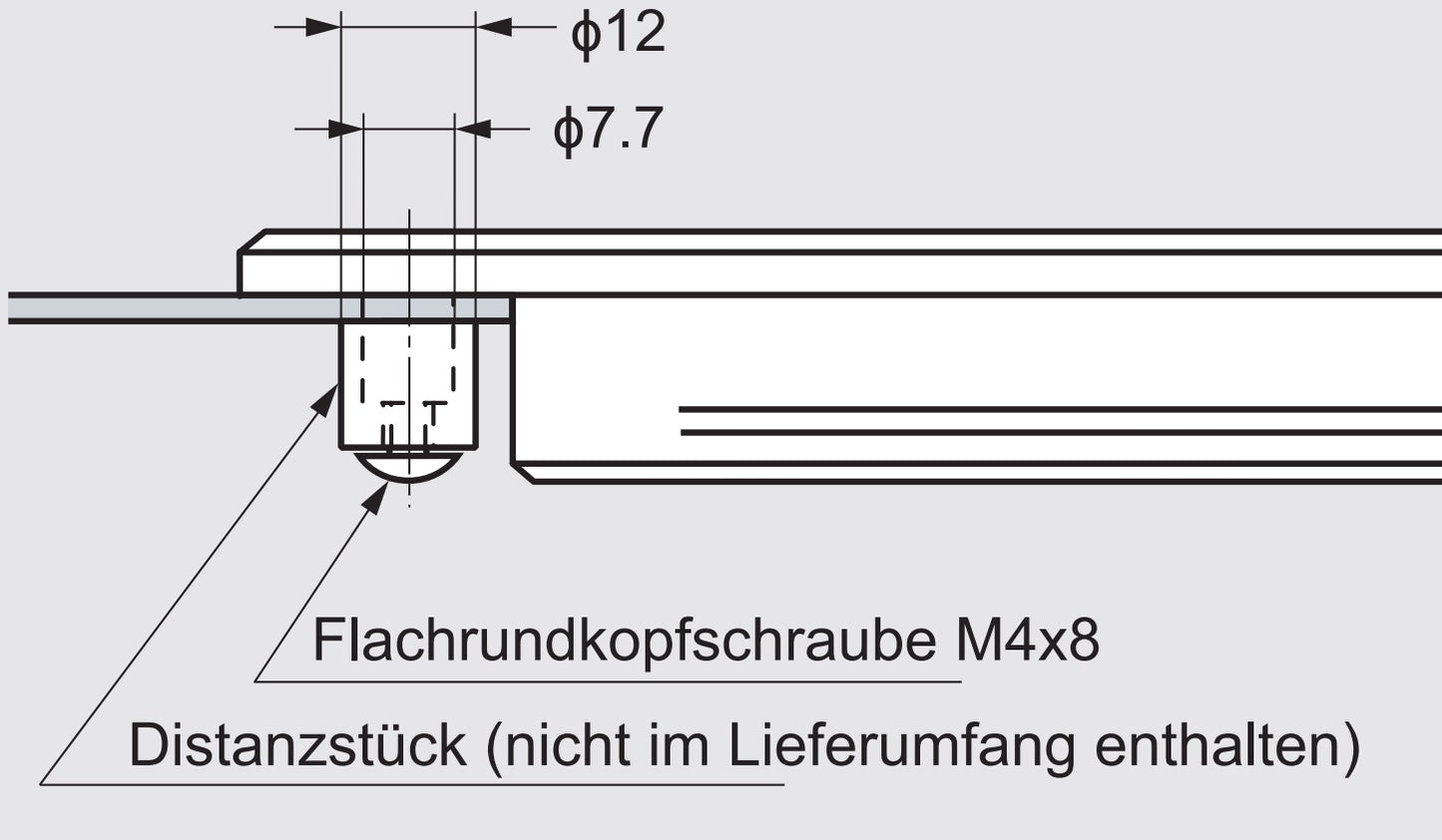

[caption id="attachment_106663" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: white bronze, SD-160WB, 164 mm, from Sugatsune, white bronze. Drawing for mounting in sheet metal[/caption]

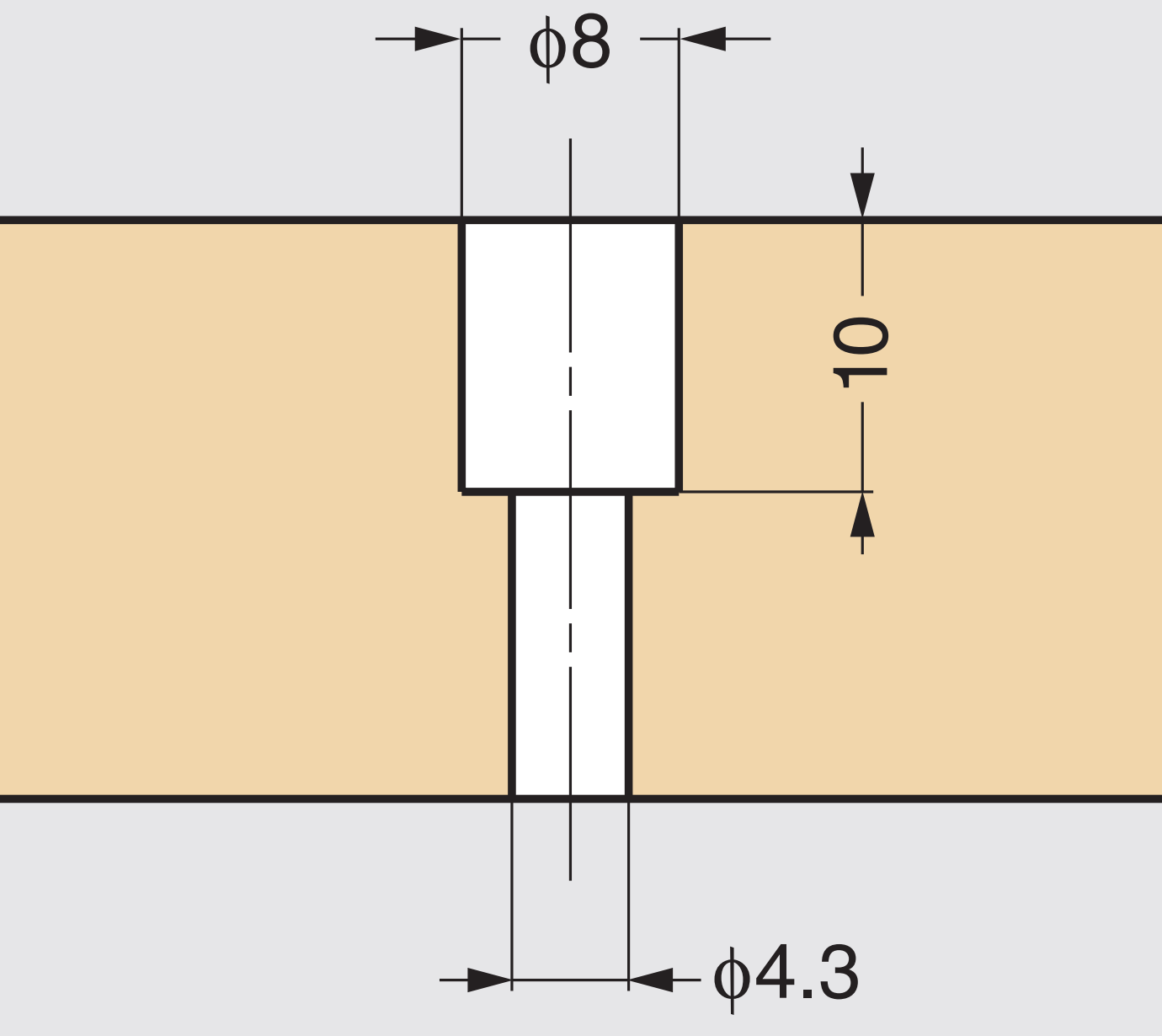

[caption id="attachment_106681" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: white bronze, SD-160WB, 164 mm, by Sugatsune, white bronze. Drawing for installation in wood.[/caption]

Characteristics:

• Weight: 184 g
• Size: 164 mm (6.5″)
• Elaborately processed
• Ergonomic
• Solid
• Robust
• white bronze
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Width of the grip (L): 164 mm (6-29/64″)
• Height: 54 mm (2-1/8″)
• Distance between mounting holes (P): 150 mm (5-29/32″)
• Grip width: 112 mm (4-13/32″)
• Depth of grip area: 16 mm (5/8″)

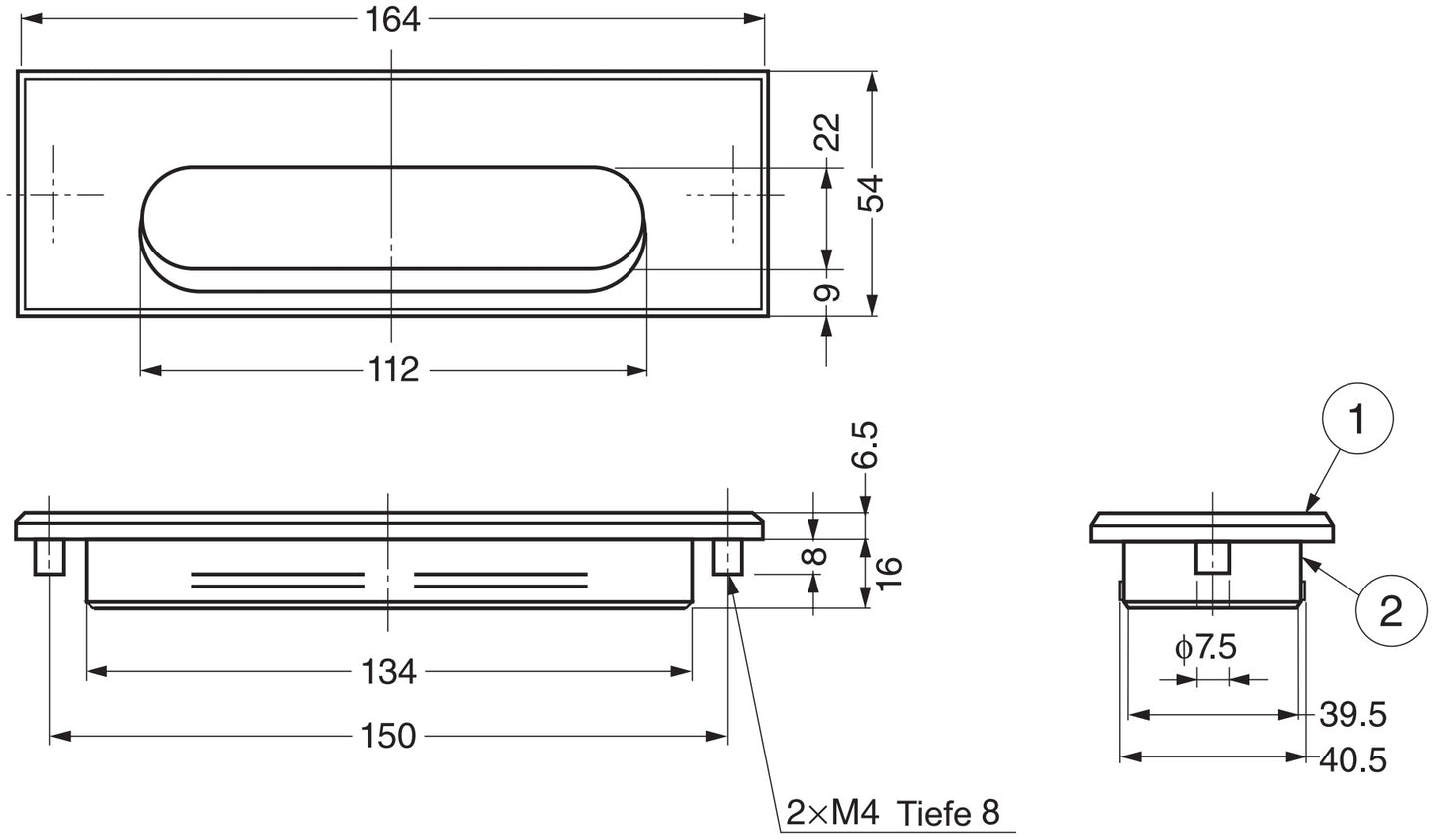

[caption id="attachment_106699" align="alignnone" width="420"] High-quality rectangular pull handle made of solid zinc alloy, finish: white bronze, SD-160WB, 164 mm, by Sugatsune, white bronze. Technical drawing[/caption]

Included in delivery:

• 1 piece SD-160WB handle shell made of solid zinc alloy, white bronze
• 2 pieces of round head screw M4 x 8 mm

Manufacturer reference number:

• Article number: 100-010-194
• Item number: SD-160WB
• EAN number: 4510932040419

Manufacturer: Sugatsune / LAMP® (Japan)
