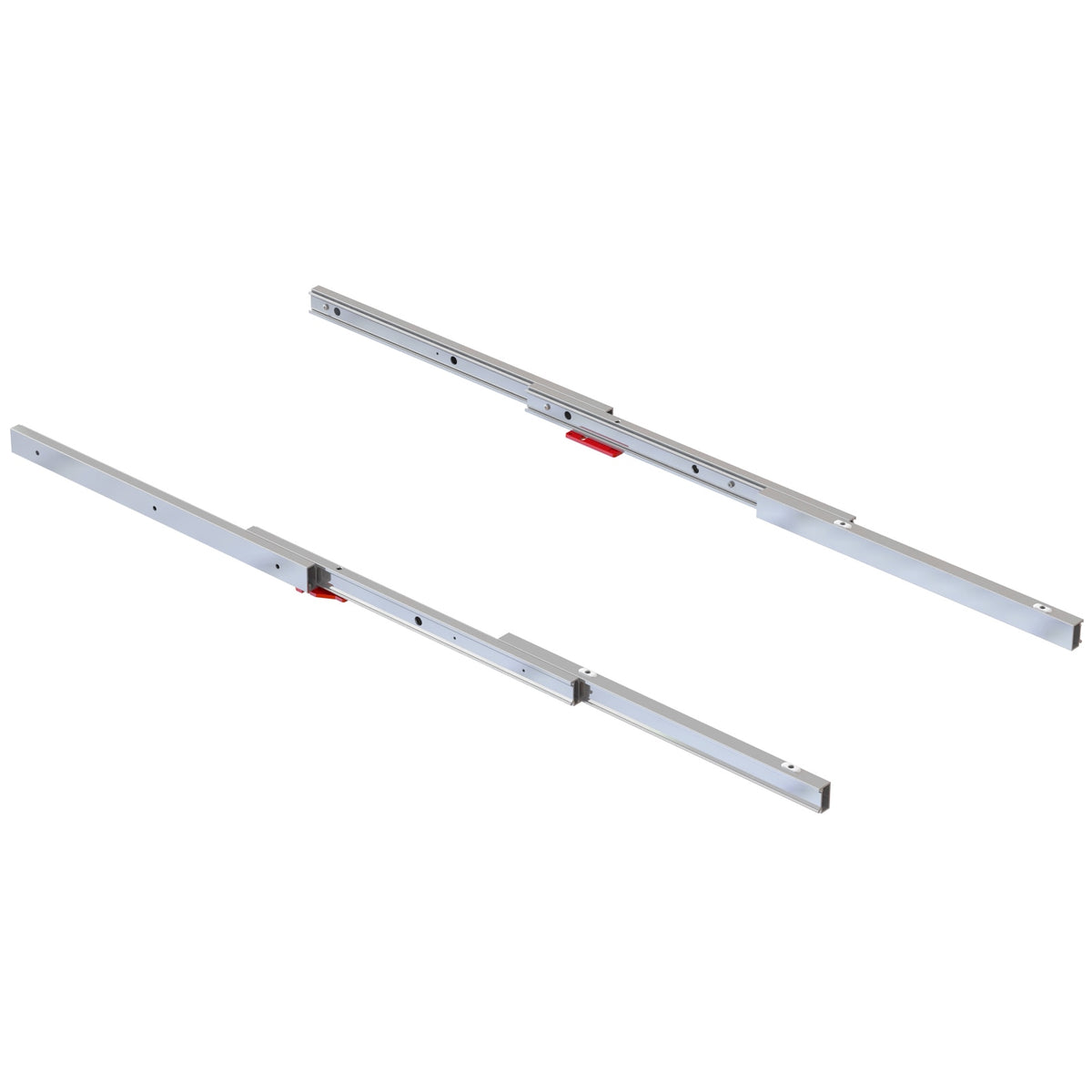

High-quality pull-out table fitting, made of robust aluminium alloy (aluminium), surface: stainless steel look, anodized, 2046369, pull-out length: 750 mm (29-17/32″), load capacity: 60 kg (132 lbs)

Application:

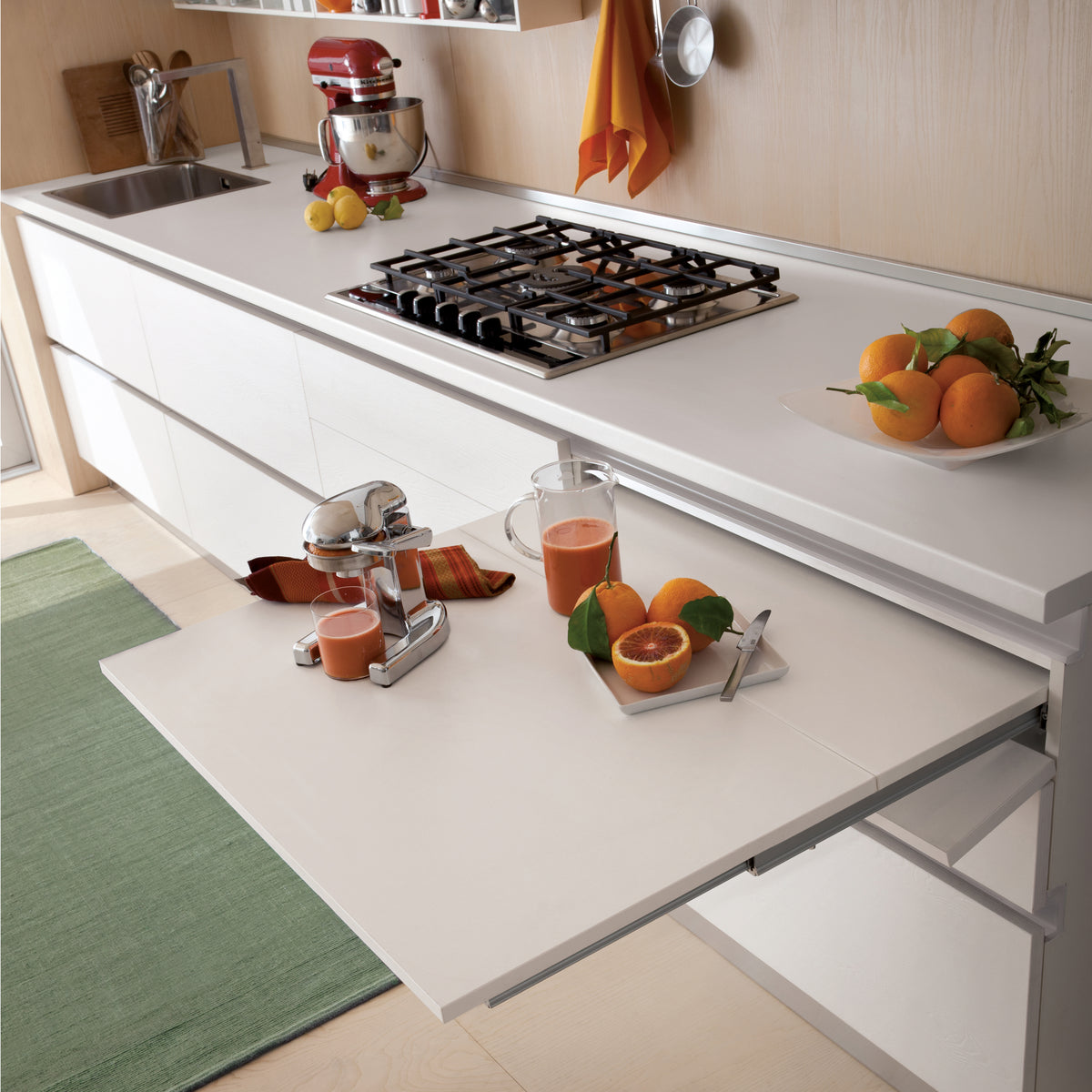

Robust table pull-out for kitchen cabinets, kitchen base cabinets, kitchen furniture, pull-out tables, folding tables, and much more.

The 2046369 pull-out table fitting enables a pull-out and subsequently foldable table or work surface, which is hidden in a furniture cabinet to save space.

With a pull-out length of 750 mm (29-17/32″), the system creates a generous additional surface when needed and remains almost completely hidden in the furniture when closed.

It is suitable for cabinet widths from 300 mm (11-13/16″) to 1200 mm (47-1/4″) with a minimum installation depth of 545 mm (21-29/64″), making it flexible for use in kitchen and living room furniture.

The load capacity of up to 60 kg allows for stable use as a dining, work, or storage surface.

A locking mechanism in the extended position prevents accidental retracting and increases safety during use.

The guide profiles made of extruded, stainless steel-coloured anodised aluminium combine low weight, corrosion resistance, and a high-quality appearance.

The high-quality 2046369 table pull-outs are ideal for, among other things:

• Breakfast tables
• Dining tables
• Additional work surfaces
• Worktops
• Small kitchens
• Living room furniture
• Home office furniture
• Kitchen cabinets
• Kitchen base cabinets
• Kitchen furniture
• Pull-out tables
• Folding tables

Material:

• The 2046369 table pull-outs are made of a robust aluminium alloy (aluminium)
• Aluminium alloy offers excellent corrosion resistance and durability, making it ideal for use in furniture fittings
• It is also lightweight yet strong, which facilitates handling and installation without compromising stability

Surface:

• Stainless steel look, anodized

Installation:

• Fastening is done with 6x M6 x 12 mm and 4x M6 x 45 mm, as well as 10x M6 threaded inserts (not included in the scope of delivery)
• Mounting holes to be prepared in the wood: 10 holes with ⌀8 mm and 13 mm depth for the M6 threaded inserts, six of which are for fastening in the cabinet and four for the pull-out panel
• First, the furniture cabinet must be prepared with a width of 300 to 1,200 mm, an installation depth of at least 545 mm, and a free height of at least 110 mm
• Then, the table tops must be cut according to the module width L and the mounting holes created according to the specified drilling pattern
• The M6 threaded inserts are inserted into the ⌀8 x 13 mm holes
• The left and right guides are then fastened in the cabinet with the supplied M6 x 12 mm screws
• The pull-out panel is attached to the guide mechanism with the provided M6 x 45 mm screws and then connected to the folding panel

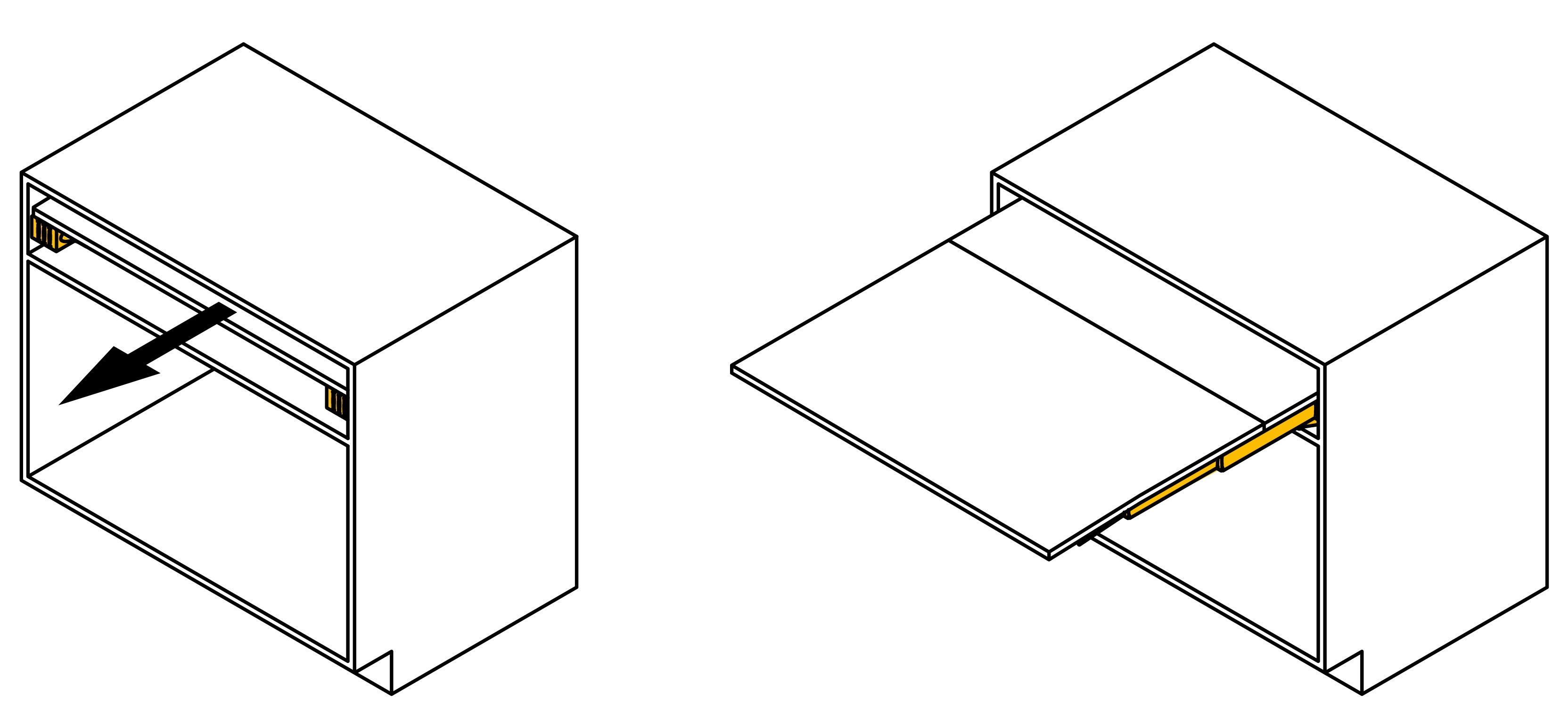

• Finally, the table pull-out is fully extended, the folding panel is unfolded, and the correct function of the locking mechanism is checked (for further details, see assembly drawing)

Features:

• Weight: 3000 g
• Load capacity: 60 kg (132 lbs)
• Pull-out length: 750 mm (29-17/32″)
• Easy to install
• Practical
• Stable
• For module widths from 300 mm (11-13/16″) to 1200 mm (47-1/4″)
• Minimum installation depth 545 mm (21-29/64″)
• Minimum installation height 110 mm (4-21/64″)
• Space-saving integration into furniture cabinets
• Extendable and foldable table surface
• Safety lock in extended position
• Protection against accidental retraction
• Guide profiles made of extruded aluminium
• Suitable for kitchen and living room furniture
• Especially suitable for small rooms
• Table tops individually adaptable to the cabinet width
• Table tops not part of the fitting system
• Model Coktail Reverse H35
• Stainless steel look, anodized
• Aluminium alloy
• Aluminium
• Robust
• High brand quality from UMAXO®

Dimensions:

• Pull-out length: 750 mm (29-17/32″)
• Module width: 300 to 1,200 mm (11-13/16″ to 47-1/4″)
• Minimum installation depth: 545 mm (21-15/32″)
• Minimum installation height: 110 mm (4-11/32″)
• Minimum height in the guide area: 35 mm (1-3/8″)
• Depth of large pull-out panel B: 529 mm (20-13/16″)
• Depth of folding panel C: 240 mm (9-7/16″)
• Width of pull-out panel B: L - 5 mm
• Width of folding panel C: L - 5 mm
• Dimension L: Module width, maximum 1,200 mm (47-1/4″)
• Holes for M6 threaded inserts: ⌀8 mm x 13 mm deep (⌀5/16″ x 1/2″)
• Slot width: 11 mm (7/16″)
• Slot length: 34 mm (1-11/32″)
• Distance from slot to edge: 14.5 mm (9/16″)
• Material thickness in the shown slot area: 2.5 mm (3/32″)
• Drilling distance pull-out panel: 300 mm (11-13/16″)
• Edge distance pull-out panel: 100 mm (3-15/16″)
• Edge distance folding panel: 38.5 mm (1-17/32″)
• First cabinet drill point: 60 mm (2-3/8″)
• Further cabinet drill distances: 214.5 mm (8-7/16″) and 214.5 mm (8-7/16″)
• Dimension of drill position on panel B: L - 88.5 mm
• Dimension of drill position on panel C: L - 51.5 mm

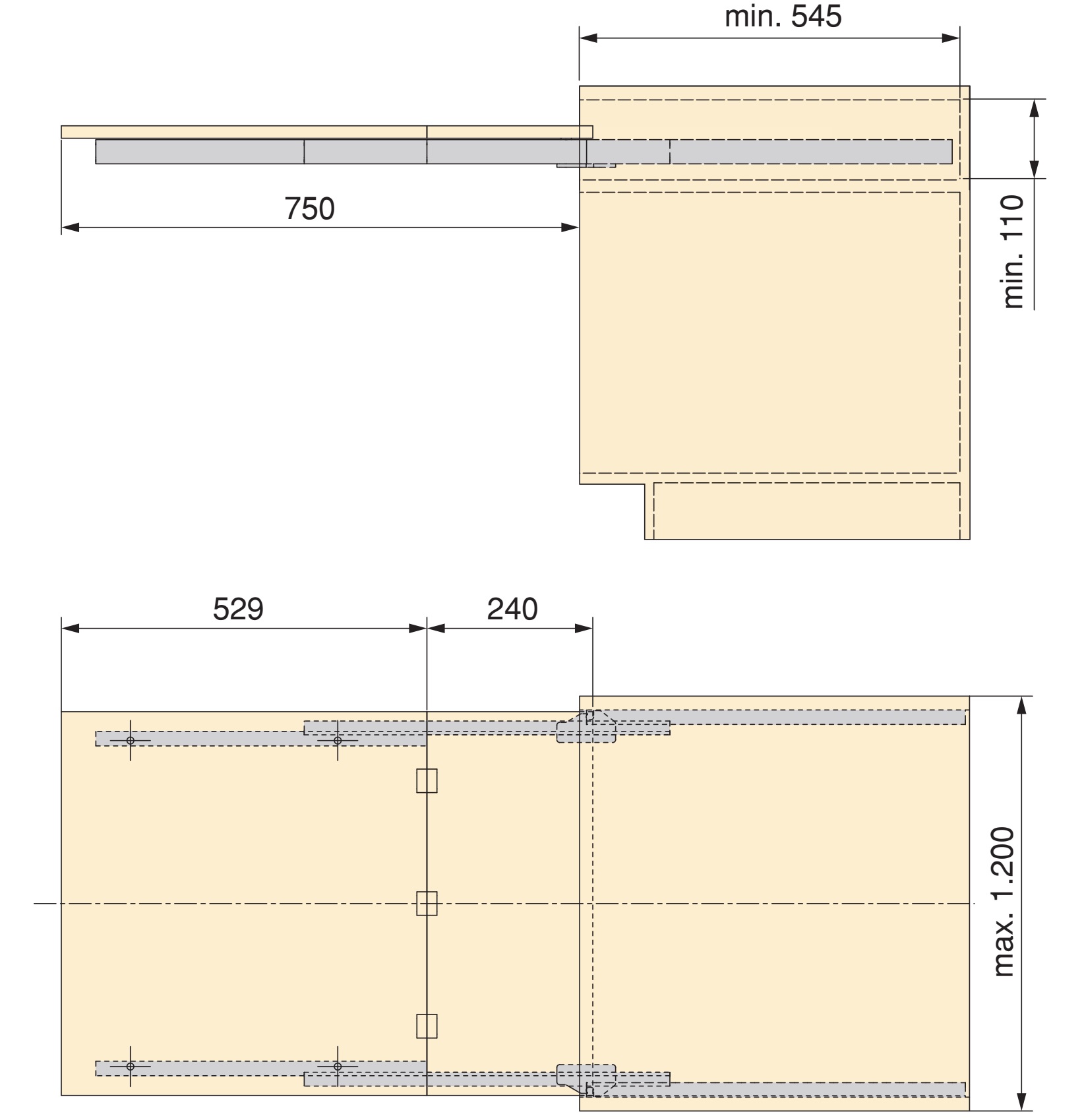

For further dimensions and details see technical drawing.

Included in delivery:

• 1 piece table pull-out 2046369 made of robust aluminium alloy, stainless steel look, anodized
• Please note that no fastening screws are included in the scope of delivery

Additional information:

• Download assembly instructions.

Manufacturer's reference numbers:

• Article identification number: 2046369
• GTIN number (EAN, UPS): 1111

Manufacturer: EMUCA
