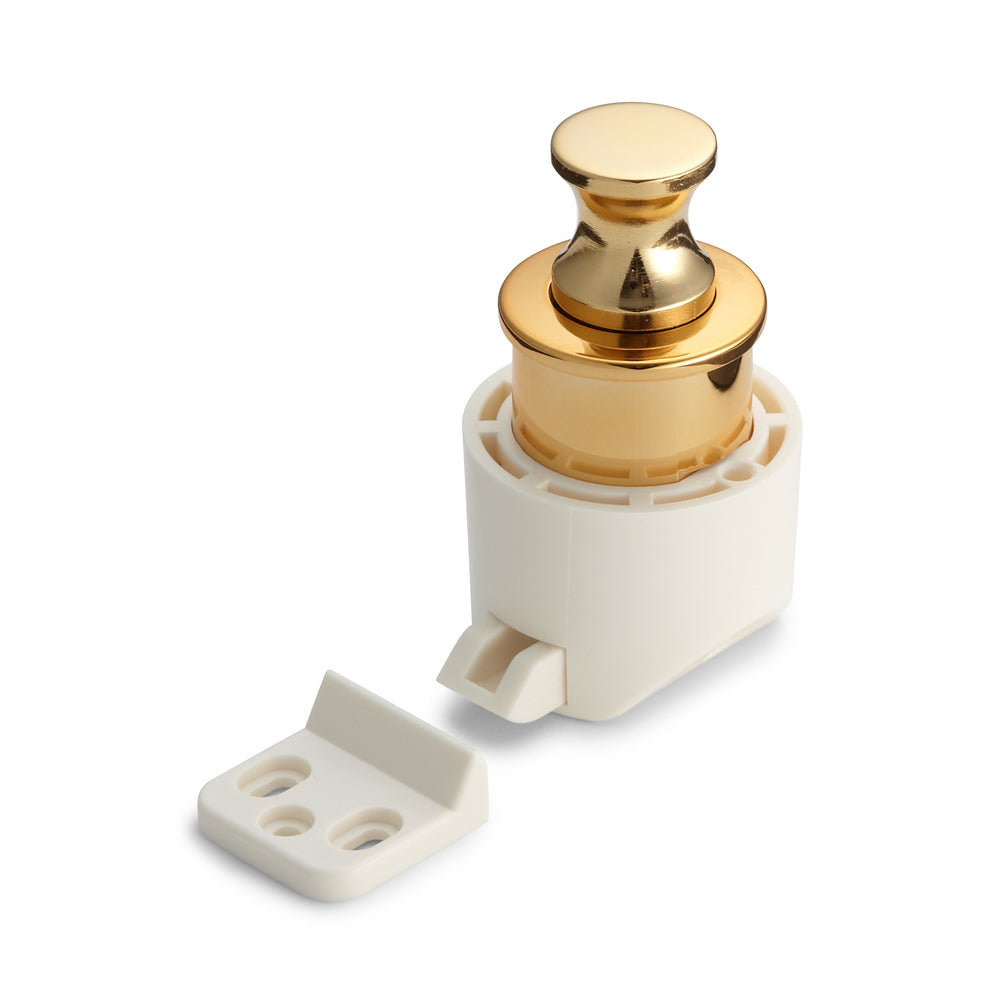

High-quality snap fastener with handle function, made of zinc alloy, surface: gold-colored, glossy polished, PKL-08/GA and PKLW. Solid snap fastener for caravans, yachts, and much more, from Sugatsune / LAMP® (Japan).

Exclusive snap fastener PKL-08/GA and PKLW, made of solid zinc alloy (ZDC), surface: gold-colored, shiny polished

Application:

Solid push button for caravans, yachts and much more.

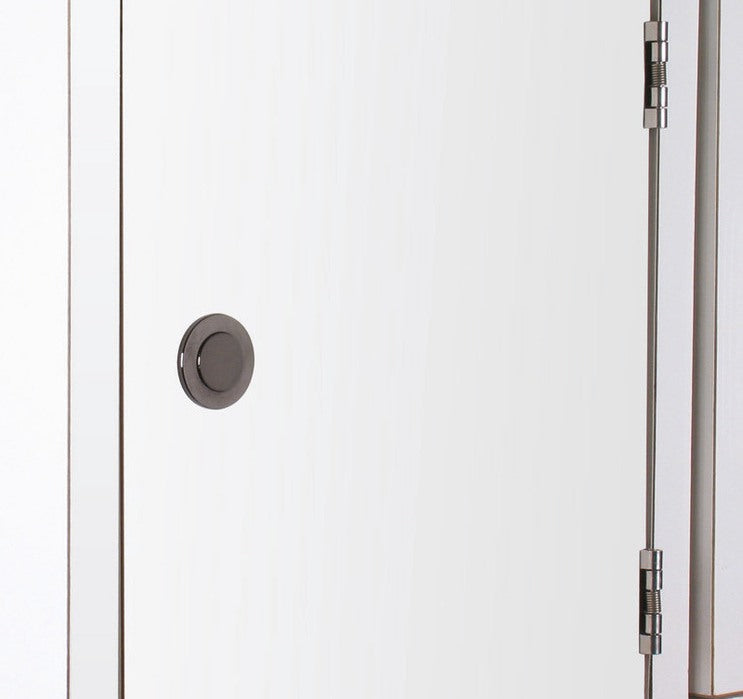

The high-quality push-button closure PKL-08/GA and PKLW is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

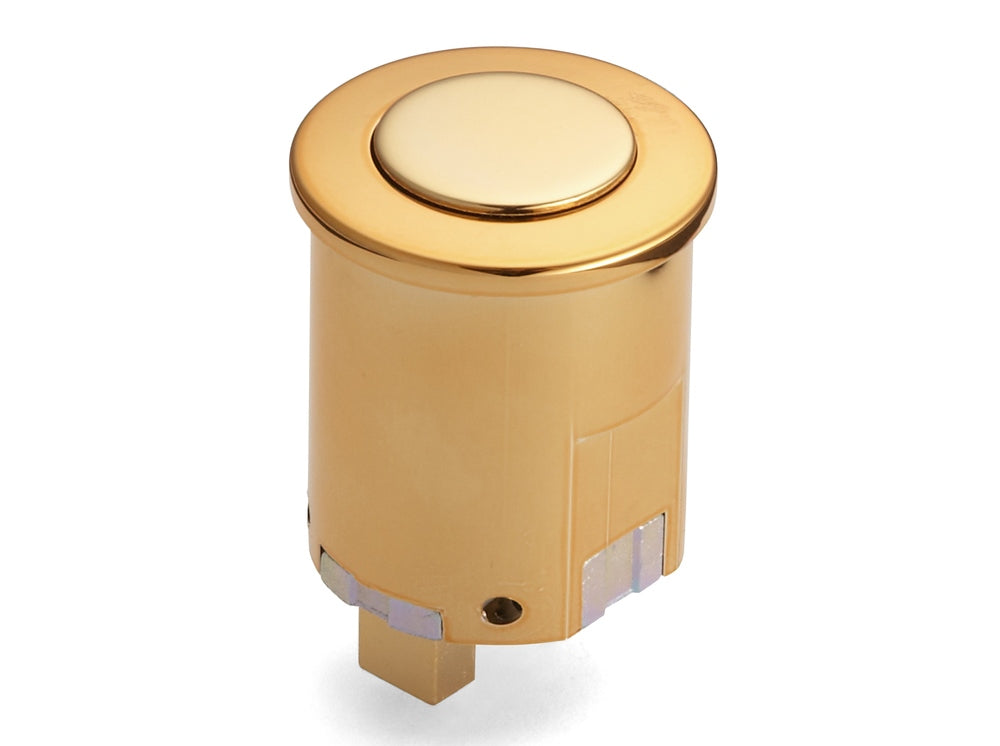

When closed, the push button is recessed and thus protects against collisions.

The push button PKL-08/GA and PKLW is suitable for door thicknesses between 15 mm (19/32″) and 30 mm (1-3/16″).

Also possible to install from a door thickness of 11 mm (7/16″) using the optional spacer PKL-Spacer/WHT (the spacer PKL-Spacer/WHT is not included in the scope of delivery, please order separately).

To open the furniture door, the handle of the push-button lock PKL-08/GA and PKLW must be pressed and thus released.

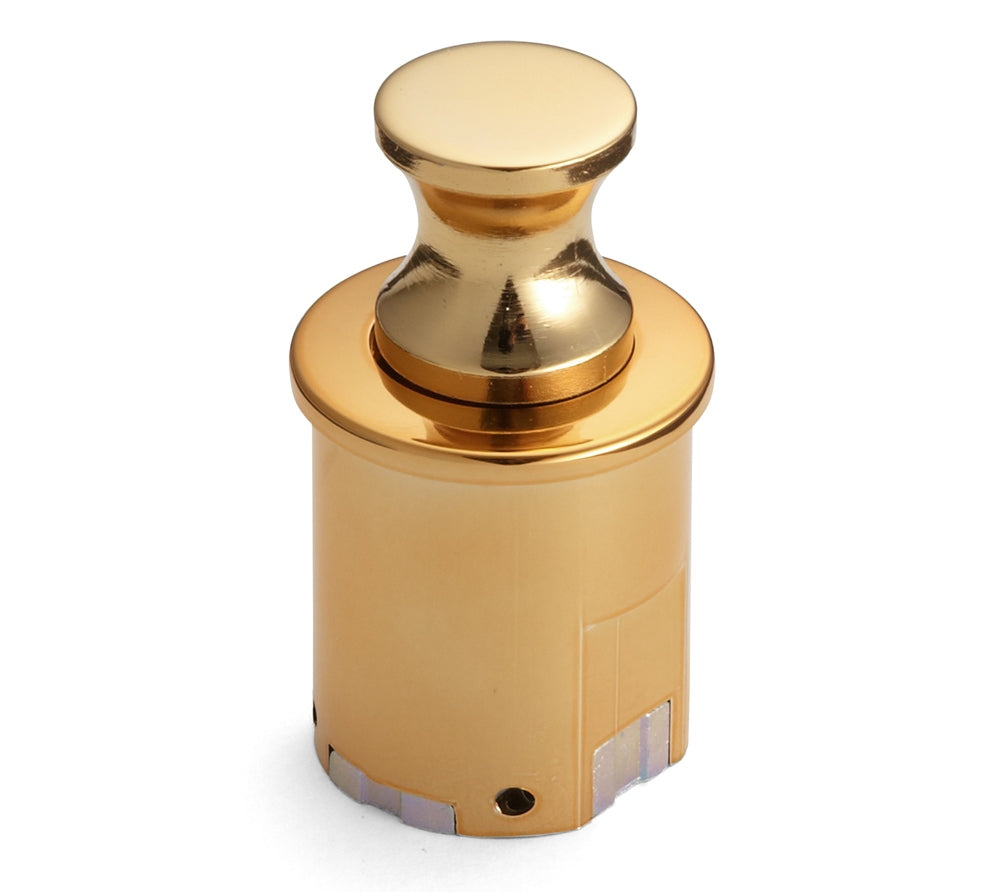

The push button PKL-08/GA and PKLW serves as a practical handle when opened.

These features make the PKL-08/GA and PKLW snap fasteners ideal for private boats, aircraft, mobile homes and caravans.

The high-quality snap fasteners PKL-08/GA and PKLW are ideal for, among others:

• private plane
• Caravan
• Boat
• Motorhome
• Superyacht
• Camper Van
• Caravan
• yacht

Material:

• The snap fasteners PKL-08/GA and PKLW are made of solid zinc alloy (ZDC)
• Zinc die-casting is a durable and versatile material for furniture fittings that impresses with its high strength
• The ability to cast it into aesthetically pleasing shapes makes it ideal for high-quality furniture fittings and accessories
• In addition, ZDC is corrosion-resistant and recyclable

Surface:

• Gold-colored, shiny polished
• Gold-colored surfaces give rooms a luxurious and elegant character that radiates warmth and exclusivity
• They reflect light in a subtle way, creating a welcoming atmosphere.
• They can also be combined in a variety of ways with different colors and materials to emphasize modern or classic designs.
• The snap fasteners PKL-08/GA and PKLW appear solid and extremely high-quality

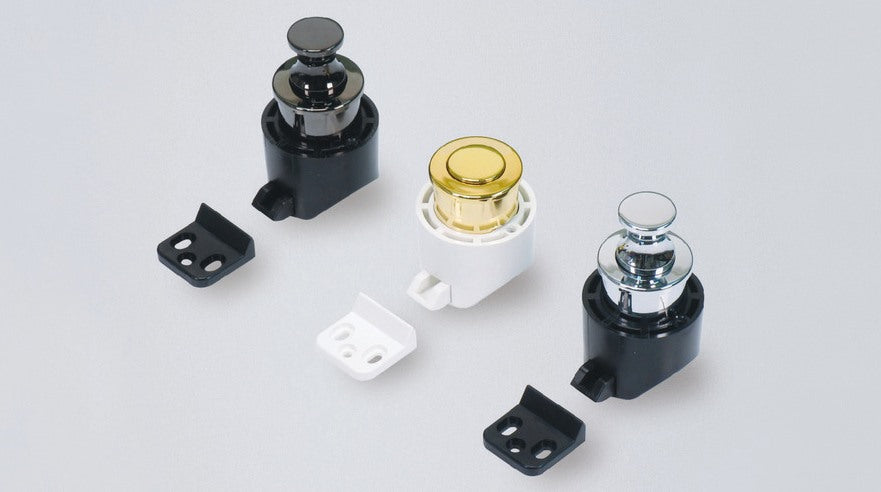

• Available in three surface colors: gold, chrome and black nickel

Assembly:

• The mounting is carried out using the six screws included in the delivery (screws: three round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm).

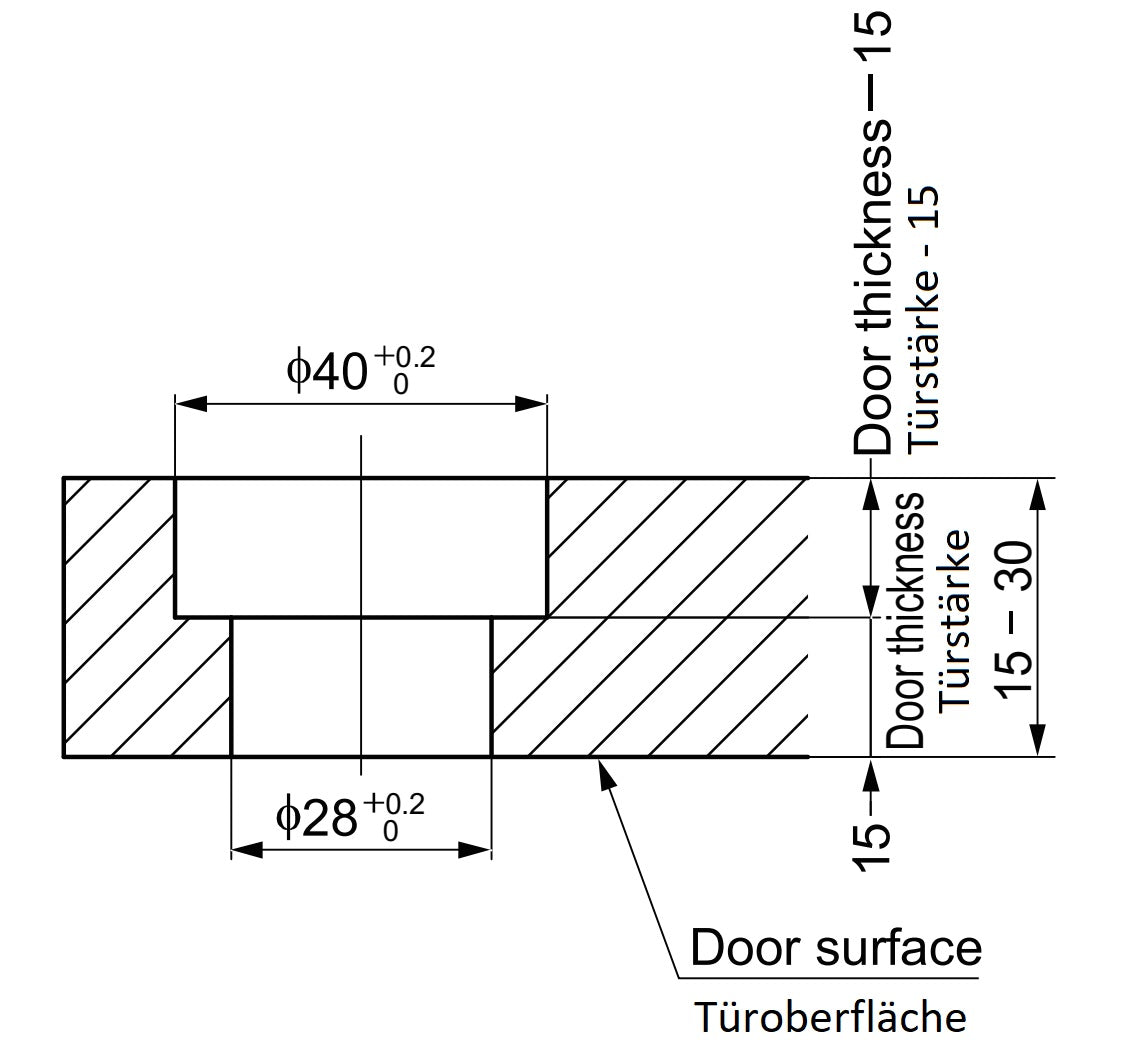

• For mounting, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the hole is 34 mm (1-11/32″)
• The push button PKL-08/GA and PKLW is inserted into the front and the housing is screwed on from the back using the supplied screw

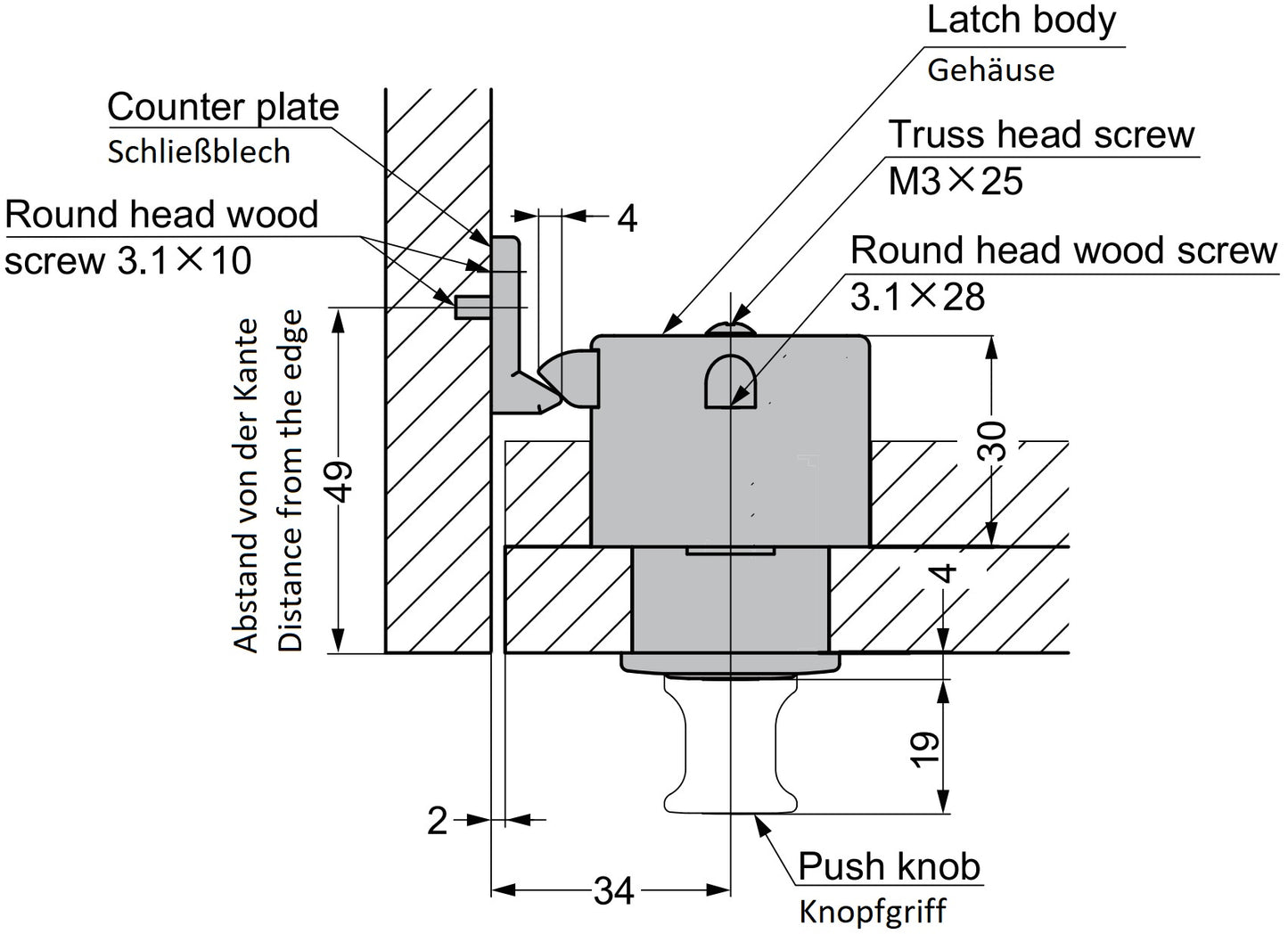

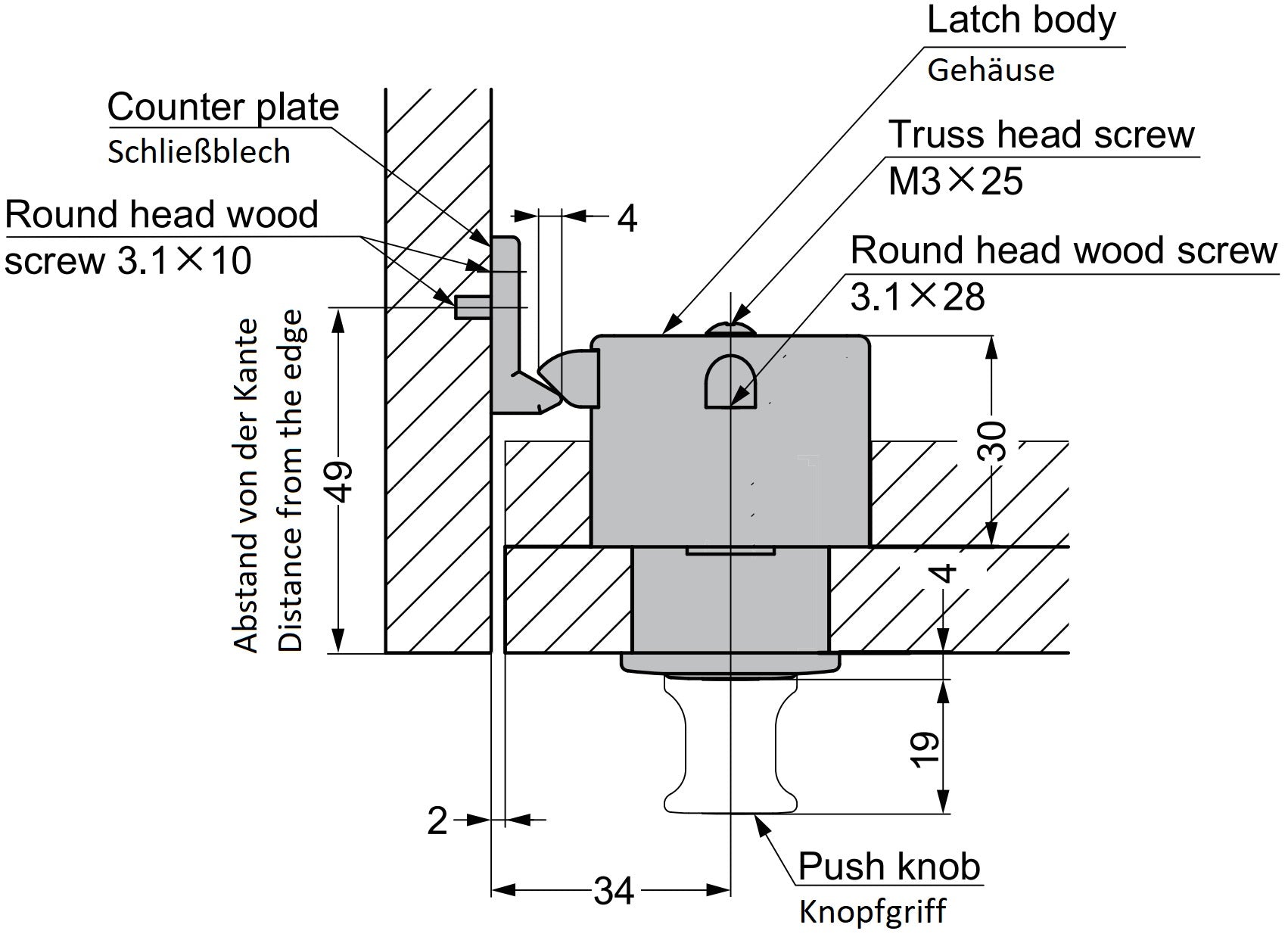

• The strike plate is then attached to the cabinet side using the supplied screws. The vertical distance between the door edge and the strike plate is 49 mm (1-59/64") (see assembly drawing for further details).

Characteristics:

• Weight: 89 g
• Load capacity: 10 kg (23 lbs)
• Size: 31 mm (1-7/32″)
• Available in three surface colors: gold, chrome and black nickel
• easy to assemble
• practical
• stable
• Elaborately finished surface
• Exclusive, high-quality look
• Suitable for inset and overlay furniture doors
• gold-colored, shiny polished
• zinc alloy
• ZDC
• zinc die-casting
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Diameter of the snap fastener: ⌀31 mm (1-7/32″)

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece snap fastener PKL-08/GA and PKLW made of solid zinc alloy, gold-colored, shiny polished
• Six screws: three round-head wood screws 3.1 x 10 mm, two round-head wood screws 3.1 x 28 mm and one truss-head screw M3 x 25 mm made of stainless steel
• 1 piece housing
• 1 piece counterpart

Additional Information:

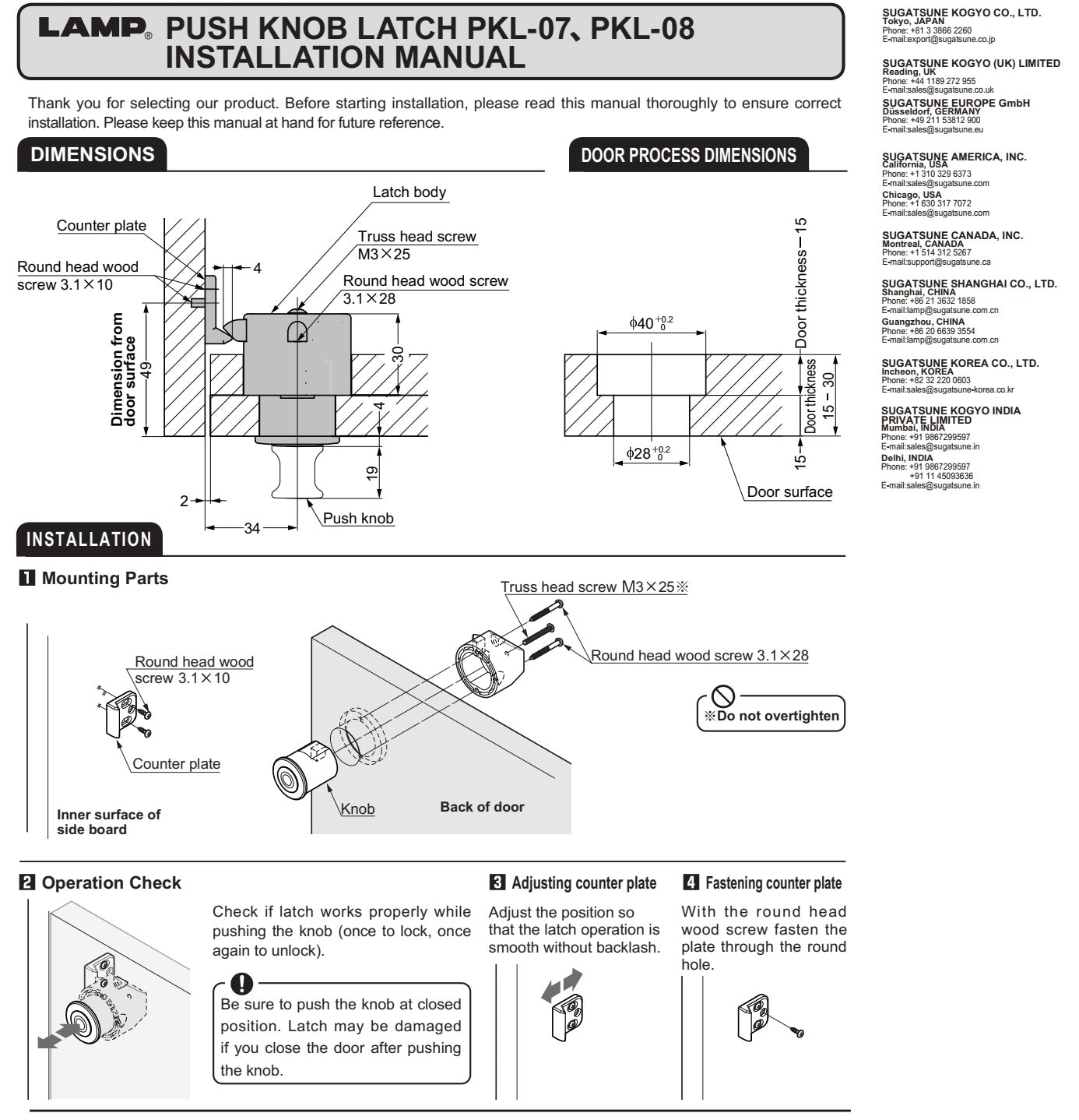

• Download assembly instructions

Manufacturer reference number:

• Article number: 140-019-792 and 140-012-822
• Item number: PKL-08/GA and PKLW
• EAN number: 4510932057479 and 4510932000185

Manufacturer: Sugatsune / LAMP® (Japan)
