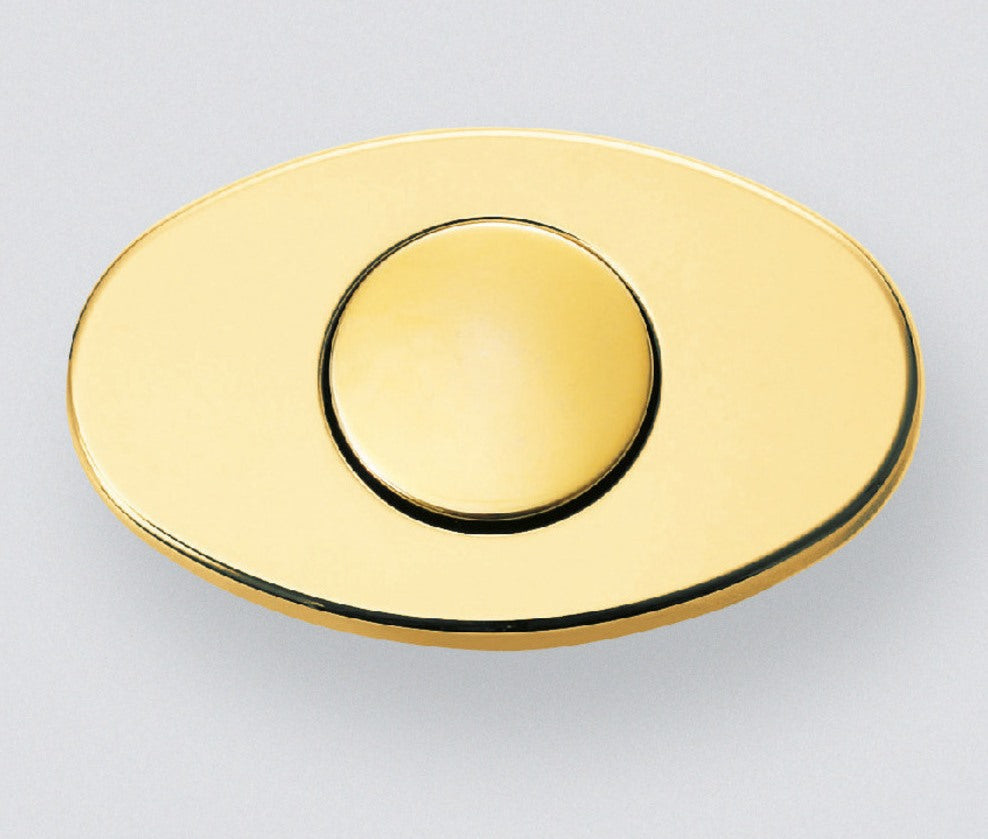

High-quality snap fastener with handle function, made of zinc alloy (ZDC), surface: gold-colored, glossy polished, design: oval, DPL-OV-G. Solid snap fastener for RVs, boats, and much more, from Sugatsune / LAMP® (Japan)

Exclusive snap fastener DPL-OV-G, made of solid zinc alloy (ZDC), surface: gold-colored, shiny polished, design: oval

Application:

Solid push button for motorhomes, boats and much more.

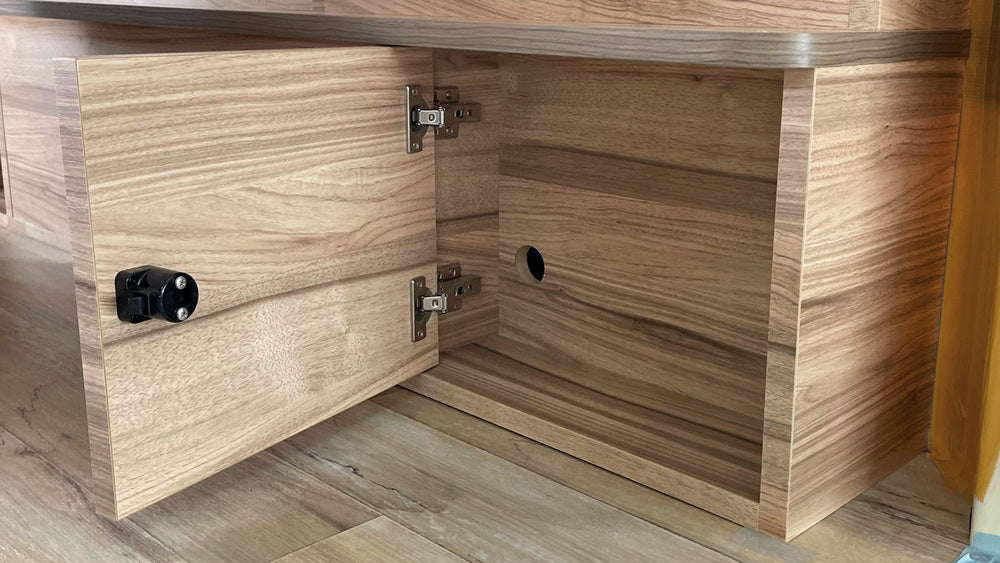

The high-quality push-button closure DPL-OV-G is a furniture handle with a locking function and, when recessed, ensures that furniture or cabinet doors do not open accidentally while driving or flying.

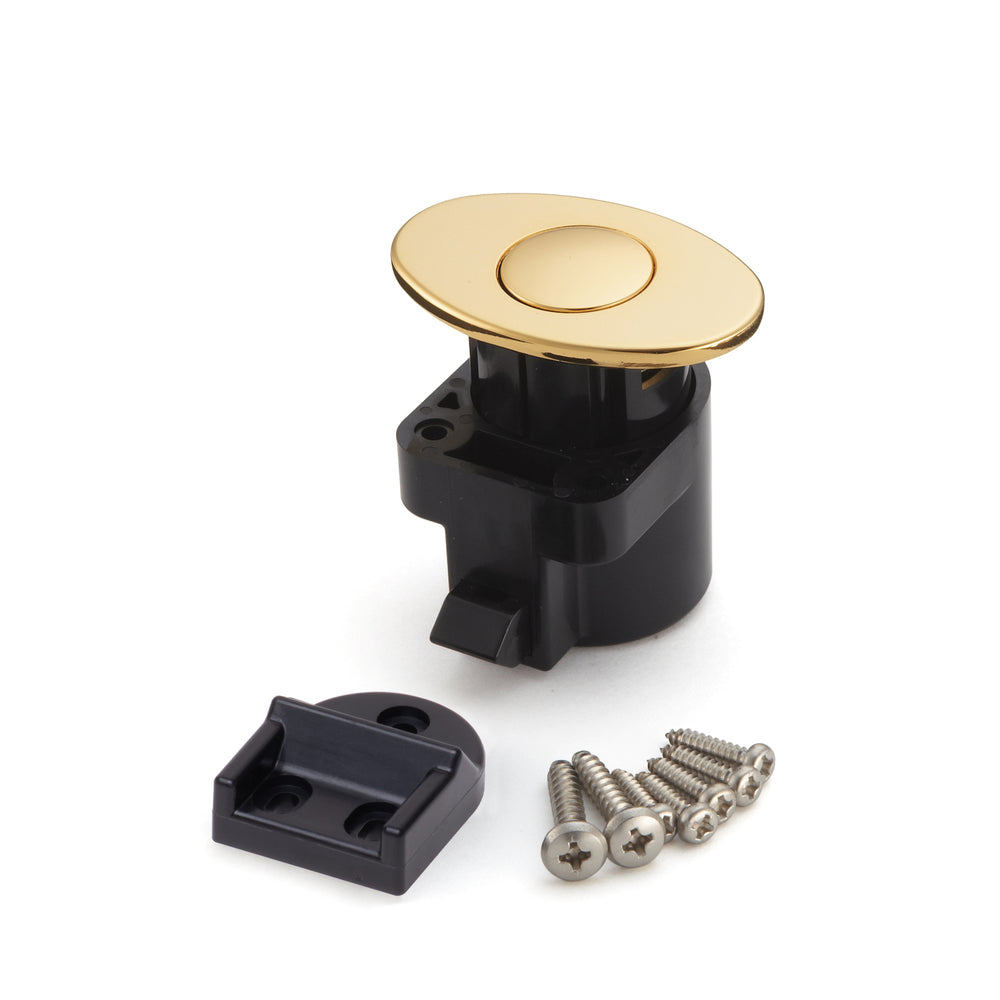

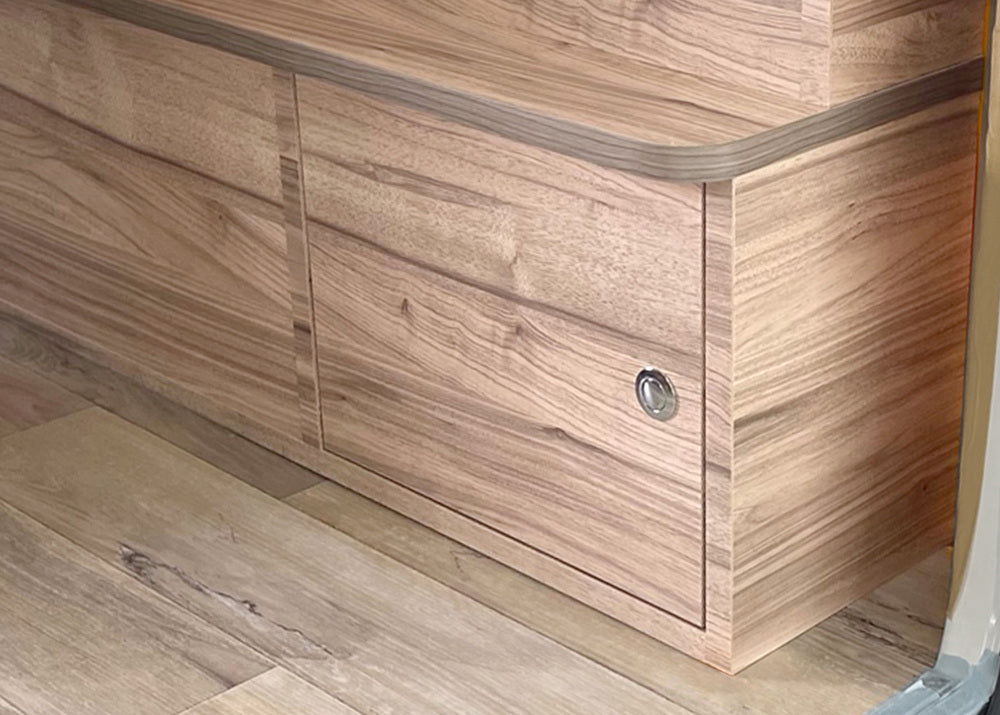

When closed, the push button is recessed and thus protects against collisions.

To open the furniture door, the handle of the push-button lock DPL-OV-G must be pressed and thus released.

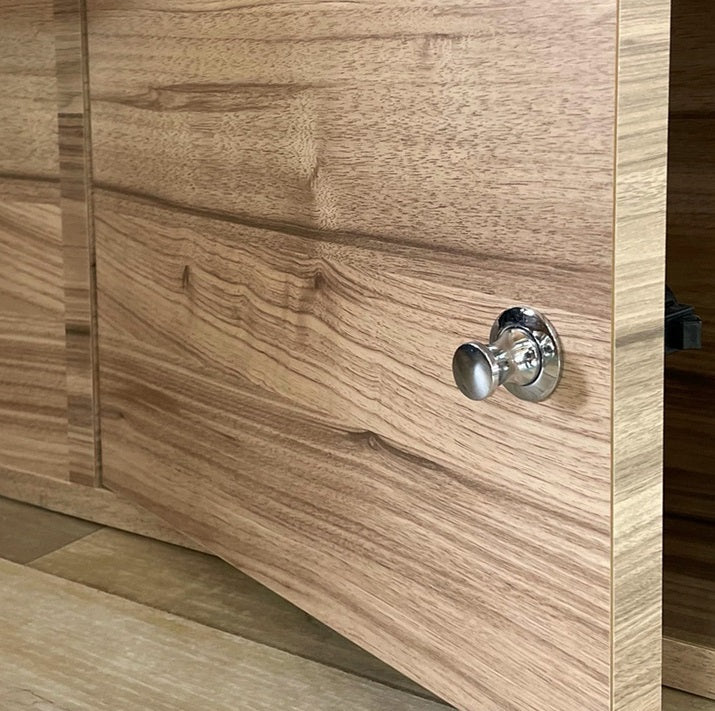

The push button DPL-OV-G serves as a practical handle when opened.

These features make the DPL-OV-G snap fastener ideal for private aircraft, motorhomes and caravans.

The DPL-OV-G push button is suitable for doors with a thickness of 15 mm (19/32") to 25 mm (63/64"). The high-quality DPL-OV-G push button fasteners are ideal for, among other things, the following:

• Caravan
• private plane
• yacht
• Caravan
• Motorhome
• boat

Material:

• The DPL-OV-G snap fasteners are made of solid zinc alloy (ZDC)

Surface:

• Gold-colored, shiny polished
• Gold-colored surfaces give rooms a luxurious and elegant character that radiates warmth and exclusivity
• They reflect light in a subtle way, creating a welcoming atmosphere.
• They can also be combined in a variety of ways with different colors and materials to emphasize modern or classic designs.
• The snap fasteners DPL-OV-G appear solid and extremely high-quality

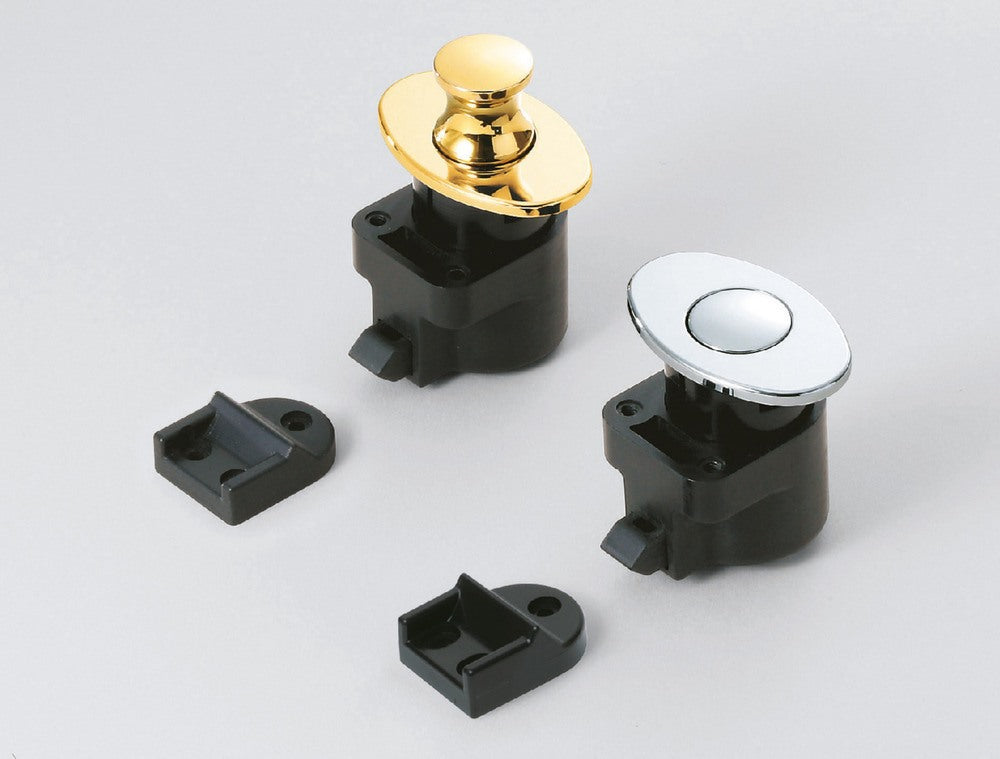

• Available in two surface colors: gold and chrome

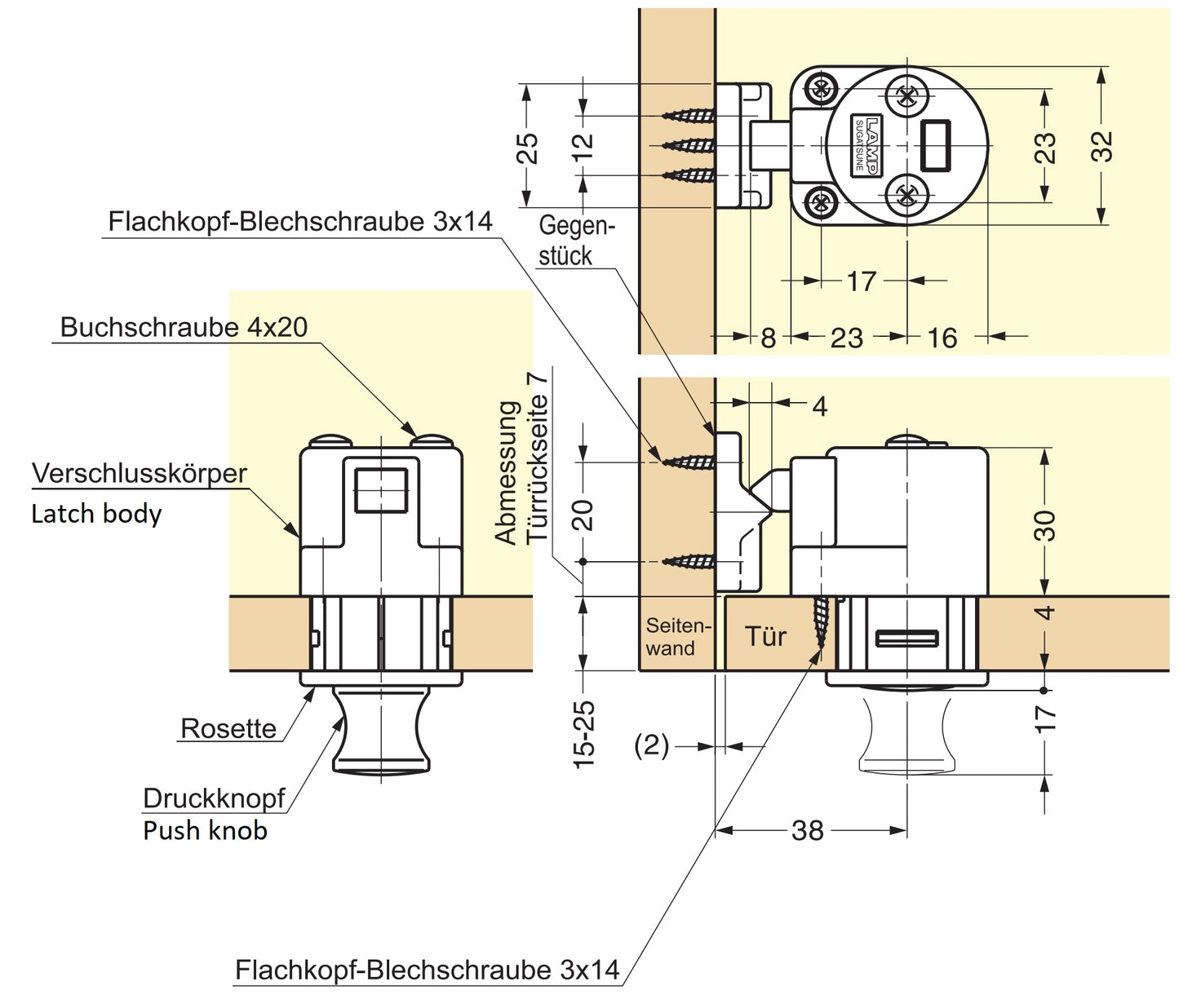

Assembly:

• The mounting is carried out using the seven screws included in the delivery (screws: two 4 x 20 mm self-tapping lens head screws and five 3 x 14 mm flat head sheet screws).

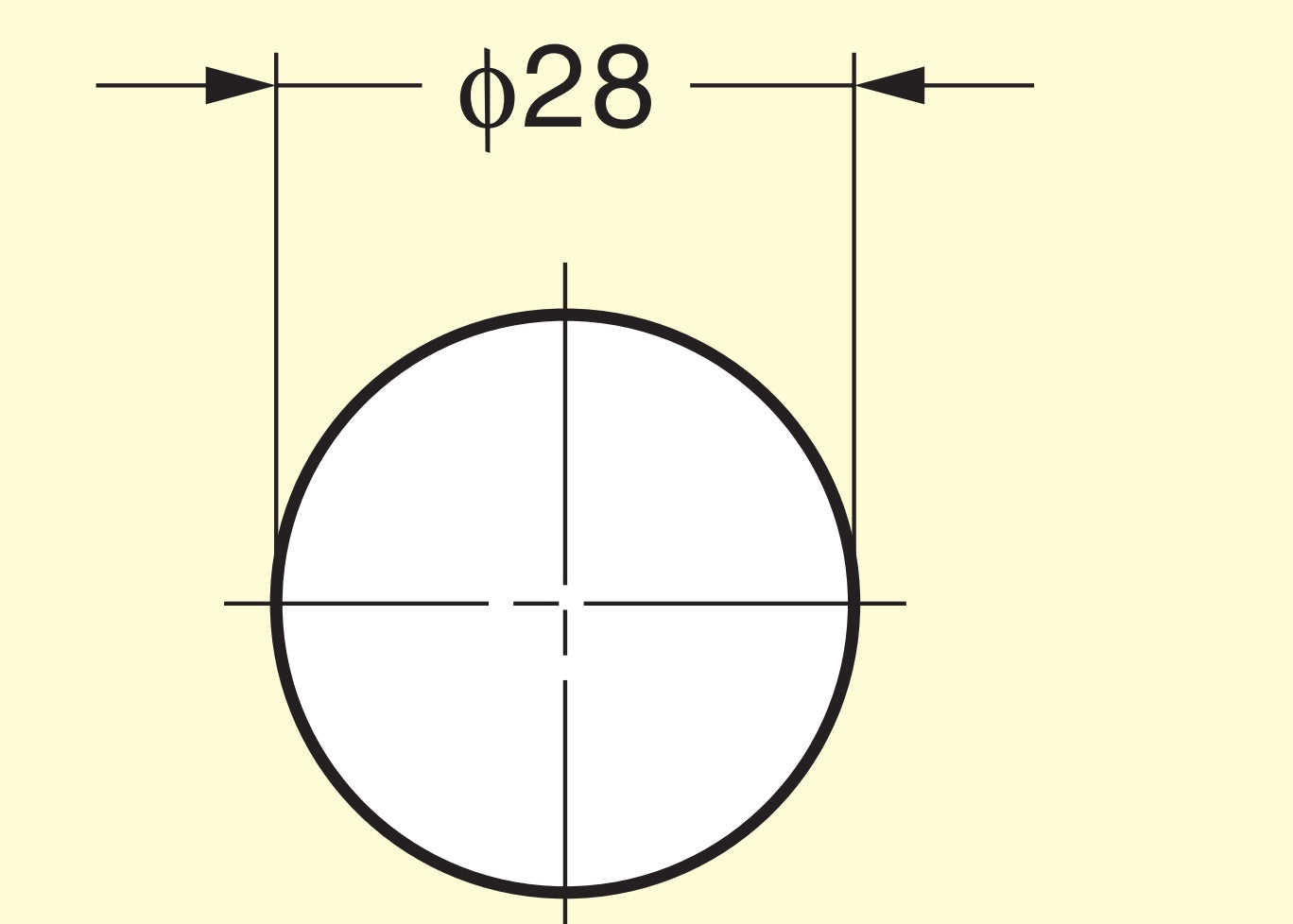

• For mounting, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the hole is 38 mm (1-1/2″)
• The push button DPL-OV-G is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the body side using the screws provided (for further details see assembly drawing ).

Characteristics:

• Design: oval
• Weight: 72 g
• Load capacity: 10 kg (23 lbs)
• Size: 32 mm (1-17/64″)
• Available in two surface colors: gold and chrome
• easy to assemble
• practical
• stable
• Elaborately finished surface
• Exclusive, high-quality look
• gold-colored, shiny polished
• zinc alloy
• ZDC
• high brand quality from Sugatsune / LAMP®

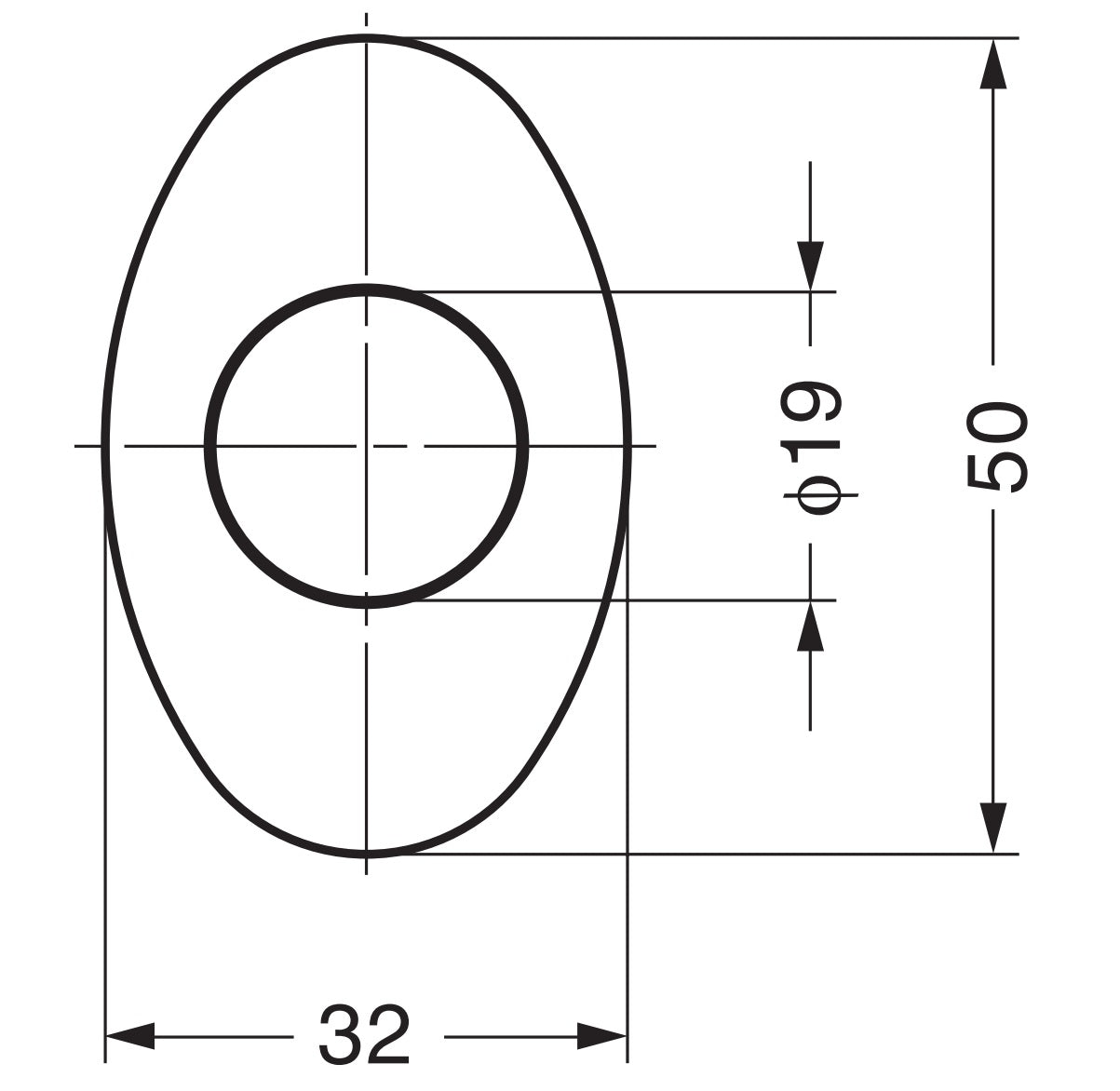

The dimensions:

• Diameter of the snap fastener: ⌀32 mm (1-17/64″)
• Diameter of the push button: ⌀19 mm (3/4″)
• Lock housing length: 30 mm (1-3/16″)

For further dimensions and details see technical drawing .

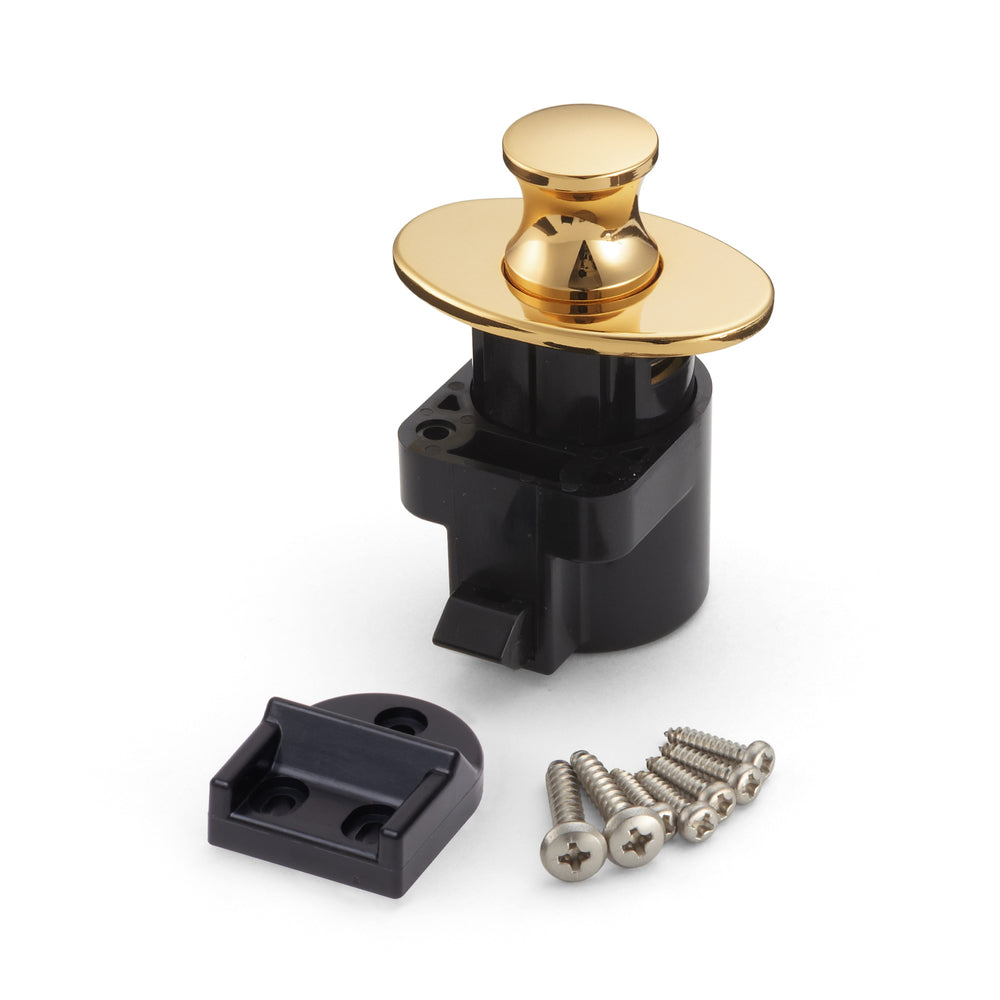

Included in delivery:

• 1 piece snap fastener DPL-OV-G made of solid zinc alloy, gold-colored, shiny polished, design: oval
• Seven screws: two 4 x 20 mm self-tapping lens head screws and five 3 x 14 mm stainless steel flat head sheet screws

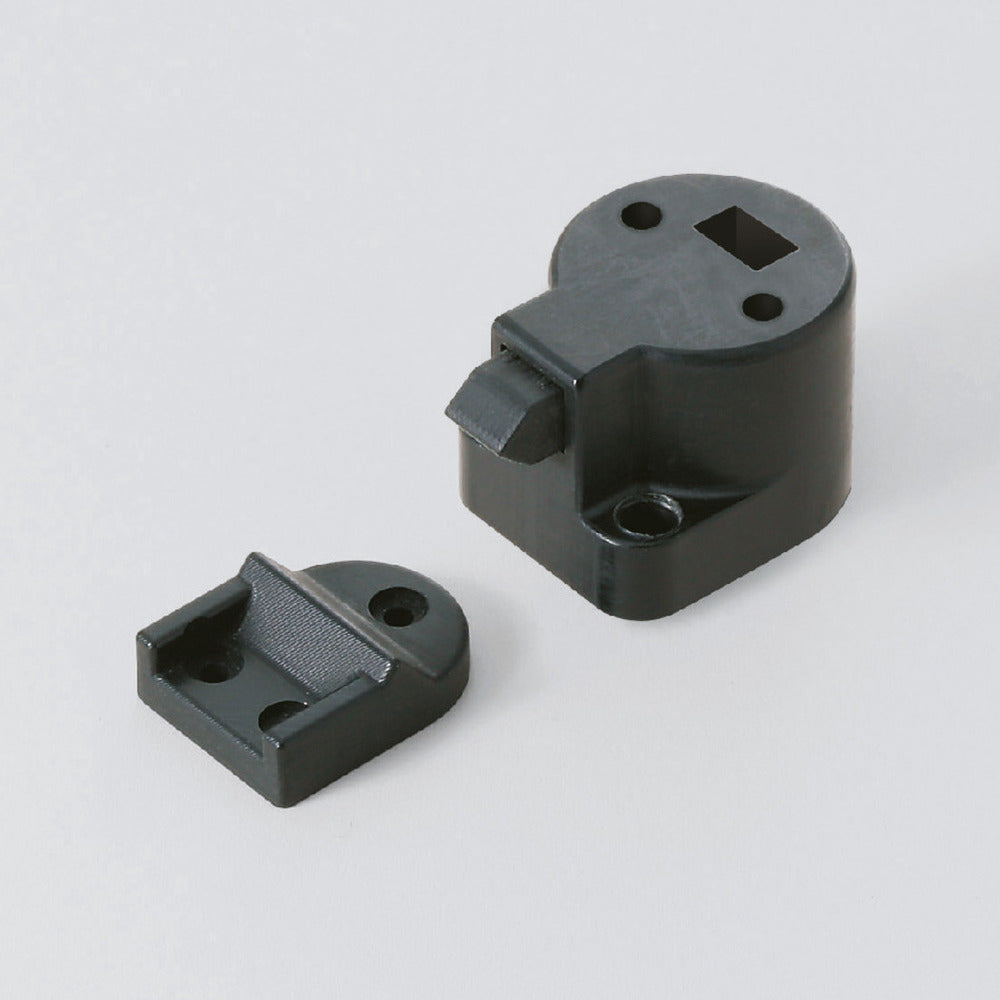

• 1 piece housing
• 1 piece counterpart

Watch product video:

Additional Information:

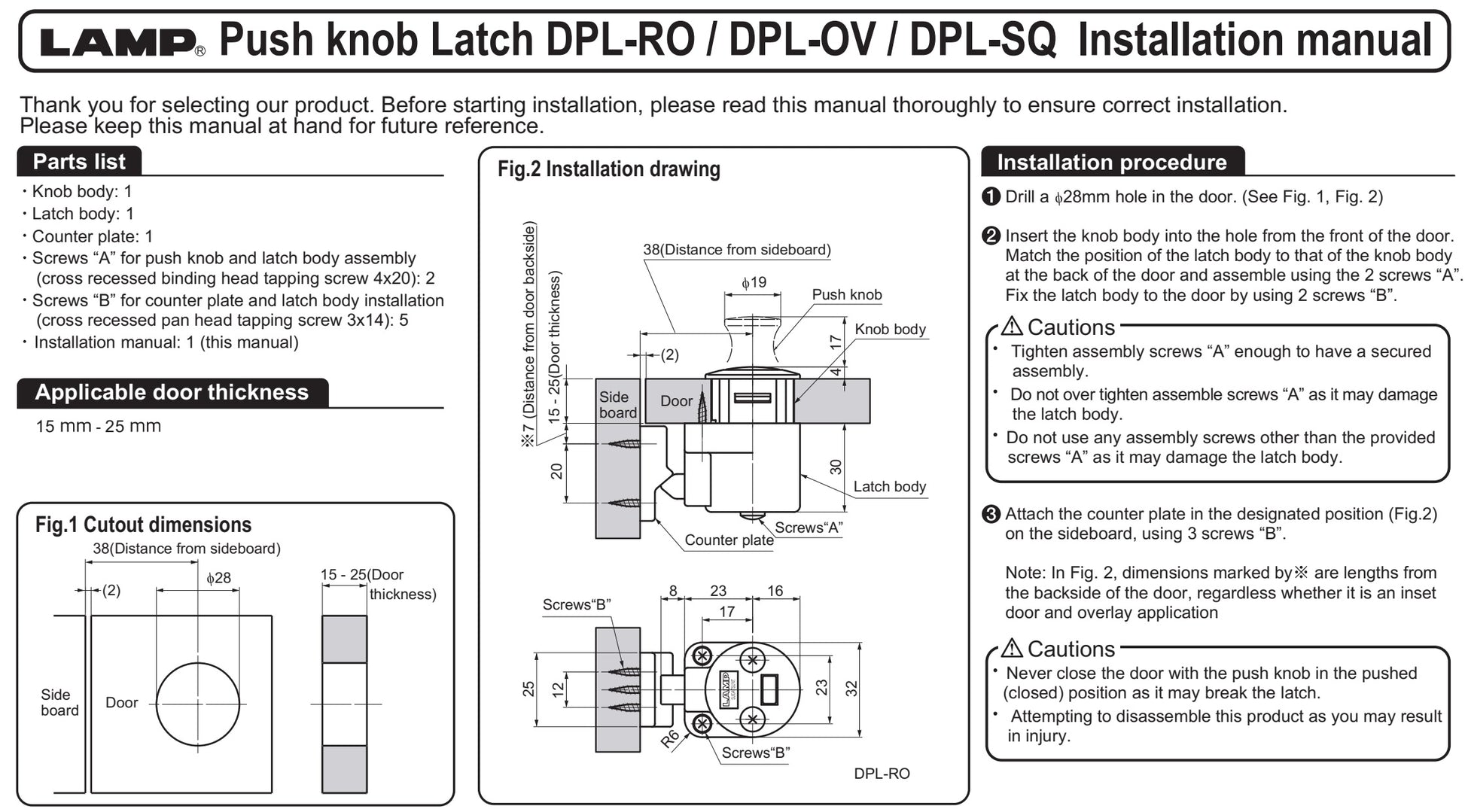

• Download assembly instructions

Manufacturer reference number:

• Article number: 140-014-734
• Item number: DPL-OV-G
• EAN number: 4510932016766

Manufacturer: Sugatsune / LAMP® (Japan)
