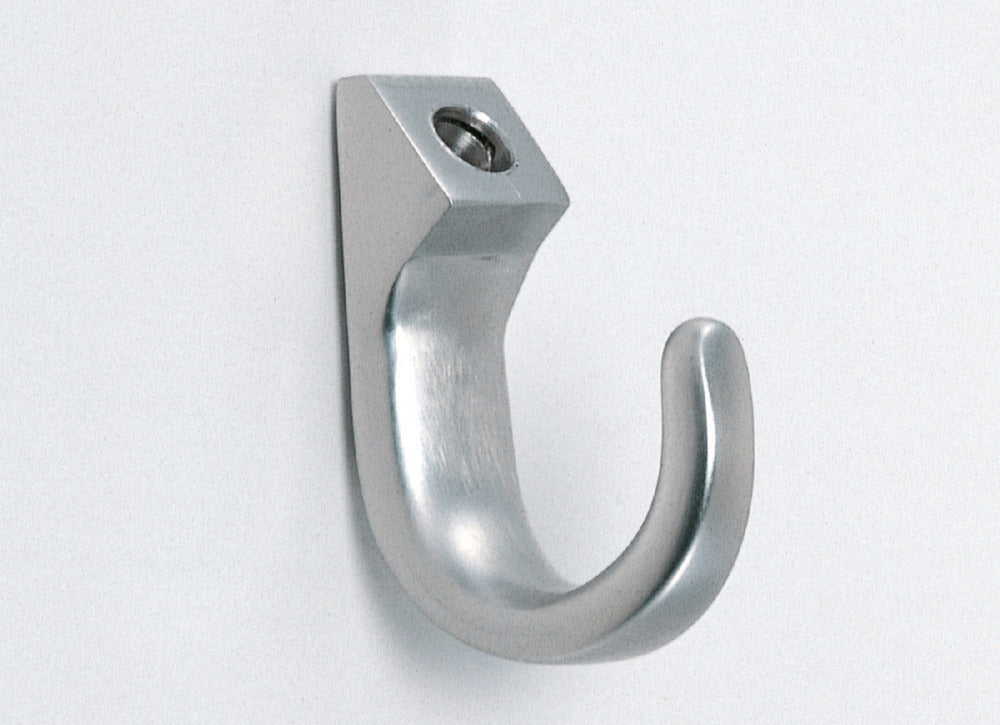

High-quality stainless steel hooks for quick, tool-free installation on plasterboard or drywall. Stainless steel hooks PF-22 and PF-30 from Sugatsune / LAMP® (Japan)

Practical high-quality hook made of stainless steel SUS304 PF-22 and PF-30 from Sugatsune / LAMP® (Japan)

Application: The special feature of the stainless steel hook PF is that it can be attached quickly and without tools to a plasterboard wall or wall made of plasterboard or plasterboard. To attach it, the supplied pin is pushed by hand through the opening in the hook into the plasterboard. [caption id="attachment_16082" align="alignnone" width="420"] Sugatsune PF-22 and PF-30 stainless steel hooks. Application example[/caption] Together with the pin on the back of the hook, this ensures a secure hold of up to 2 kg in weight. The high-quality stainless steel hook PF from Sugatsune / LAMP® (Japan) is available in two different sizes: PF-22 (height 30 mm) and PF-30 (height 35 mm). Perfect for humid environments, can also be used on ships, caravans and boats. Also suitable for bathrooms, saunas, swimming pools, laboratories and medical areas. Includes stainless steel pin for easy installation and long service life. Once installed, the hook does not move because it is securely held in place by two pins. Assembly: For quick and easy installation on plasterboard, the stainless steel hook PF has a sharp pin on the back. First, the hook is pressed firmly into the plasterboard with this pin on its back. Then the included stainless steel pin is firmly inserted into the opening on the hook by hand - done! The sharp stainless steel pin penetrates the plasterboard with almost no resistance. The stainless steel pin must be pressed into the hook so that the pin head sinks into the opening. To dismantle the hook, pull it diagonally upwards out of the wall by hand and then install it in another location. Included in delivery:

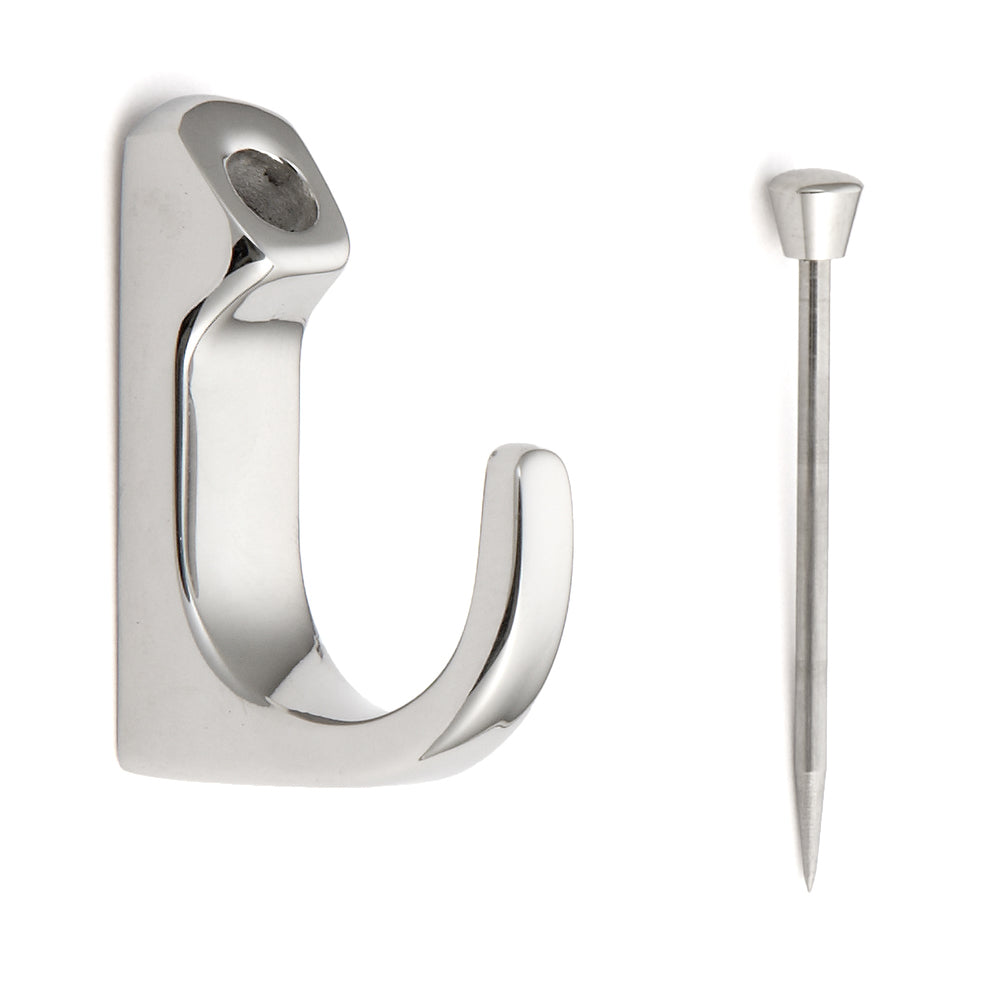

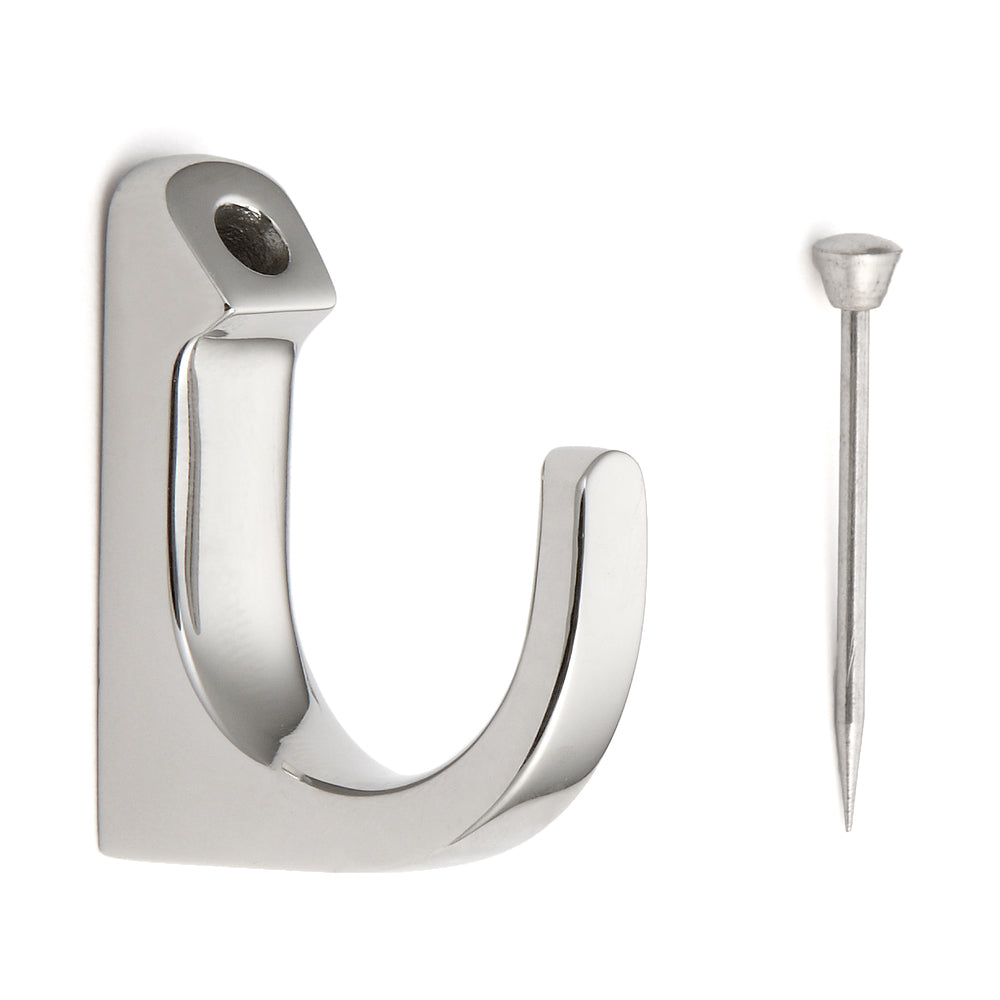

• 1 piece stainless steel hook PF (PF-22 or PF-30)

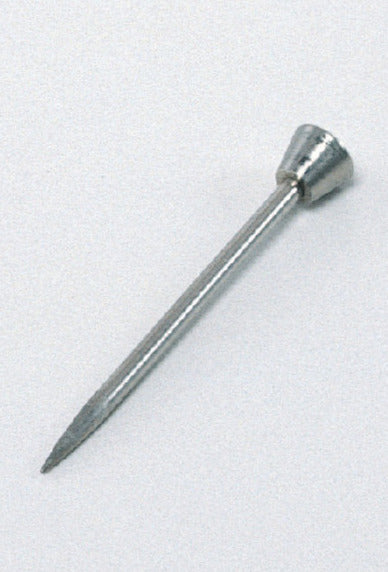

• 1 piece stainless steel pin

Material:

• Housing: stainless steel V2A, SUS304

Surface:

• Color: Stainless steel, glossy

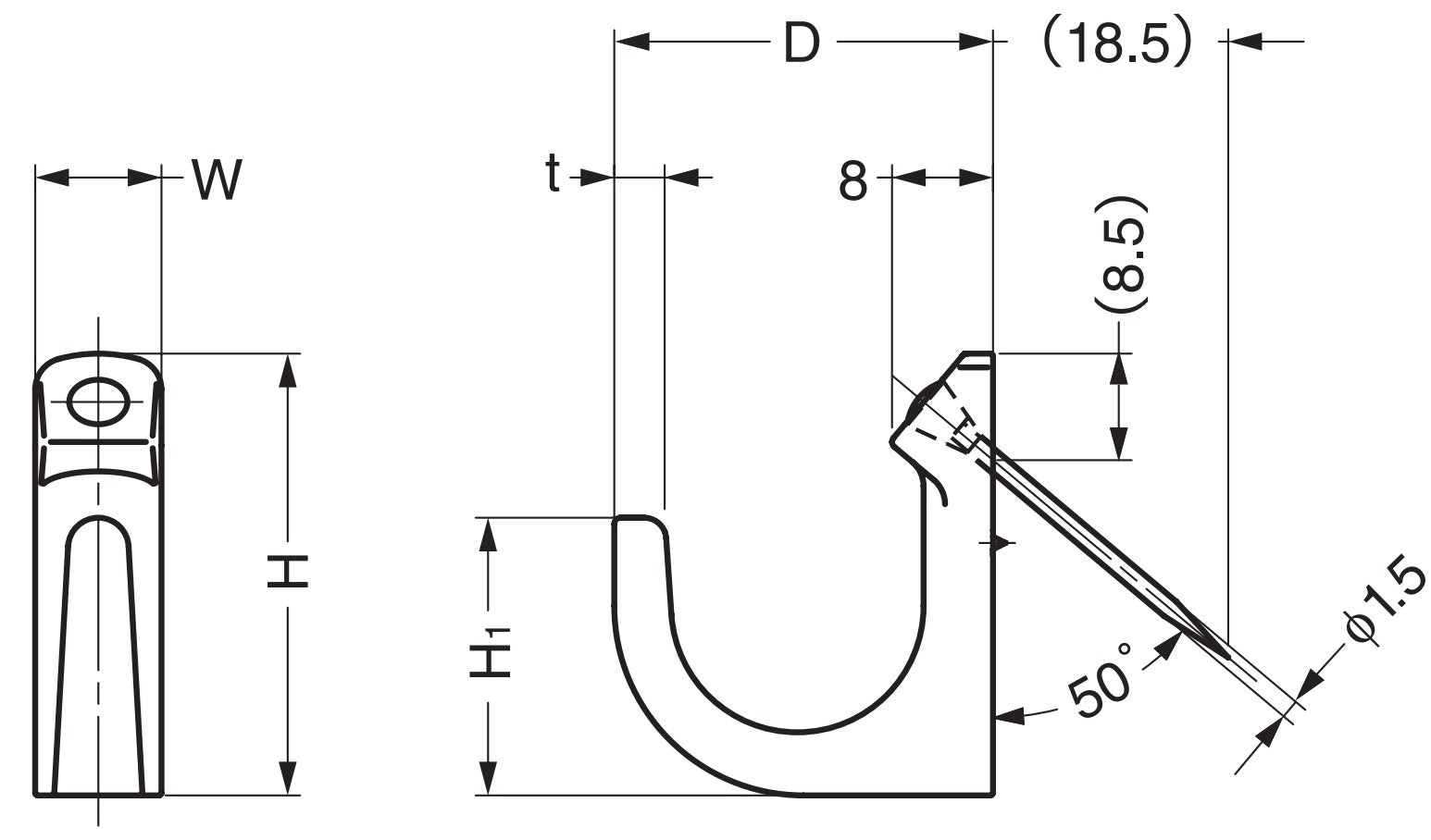

Dimensions, see drawing (mm): For values ​​of W, P, H, H ₁ , A, D and D ₁ see table below. [caption id="attachment_16097" align="alignnone" width="420"] Sugatsune PF-22 and PF-30 stainless steel hooks. Technical drawing[/caption]

type	D	W	H	H1	t
PF-22	22	9	30	16	3
PF-30	30	10	35	22	4

Technical data:

type	Load capacity, N	Load capacity, kp	Weight
PF-22	19.6	2	13 g
PF-30	19.6	2	23 g

Manufacturer reference number:

Article name	Article number
PF-22	110-020-500
PF-30	110-020-501

Manufacturer: SUGATSUNE / LAMP® (Japan)
