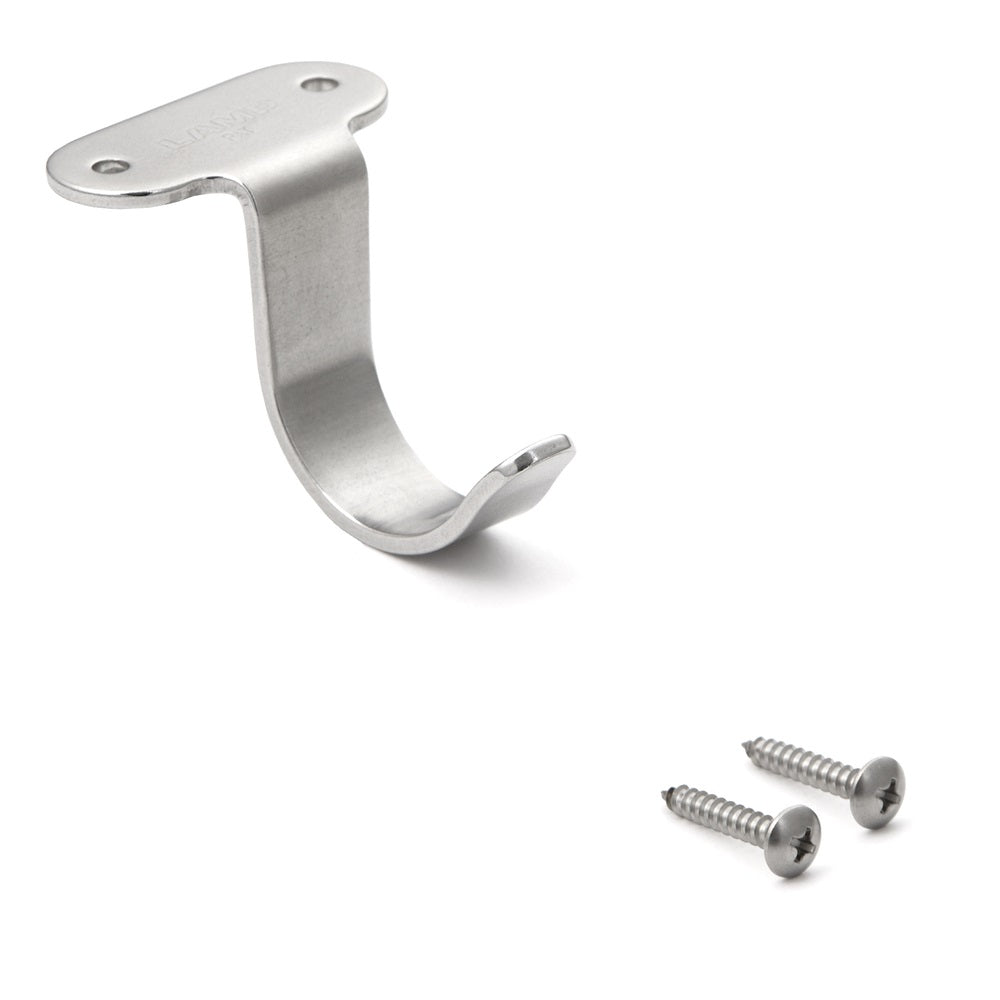

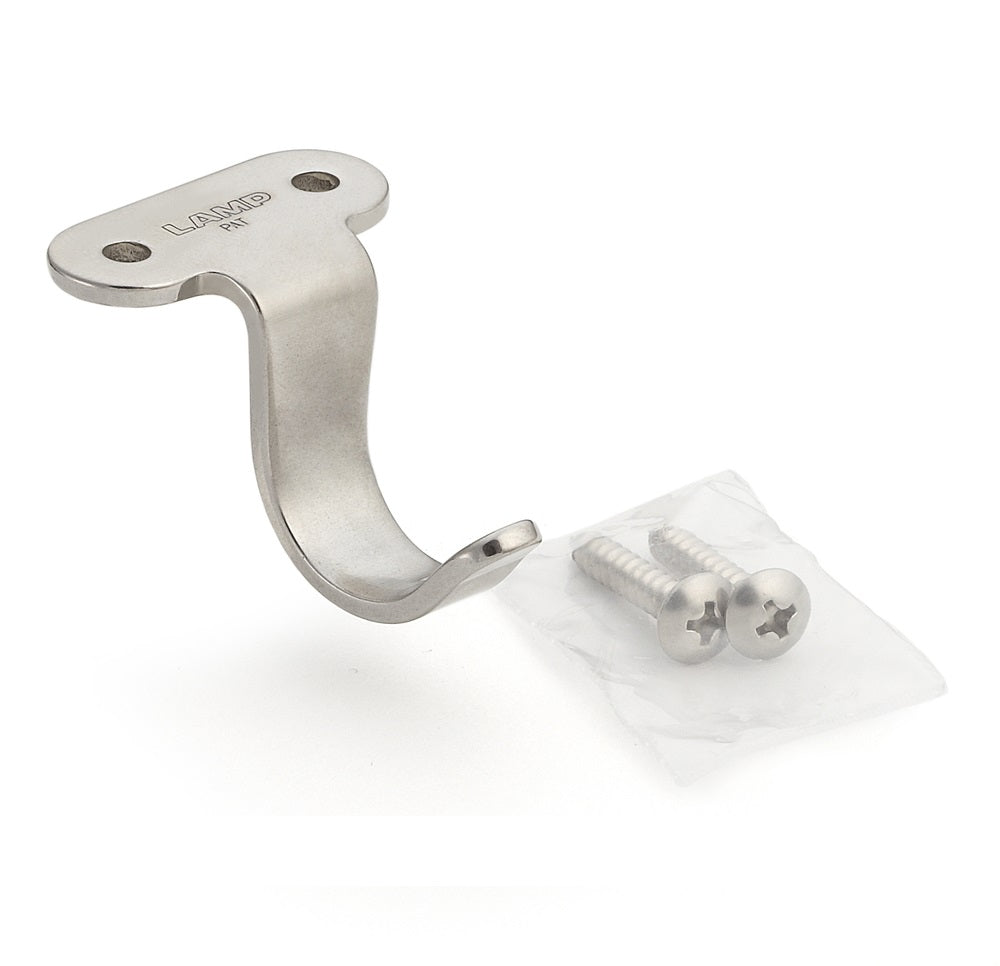

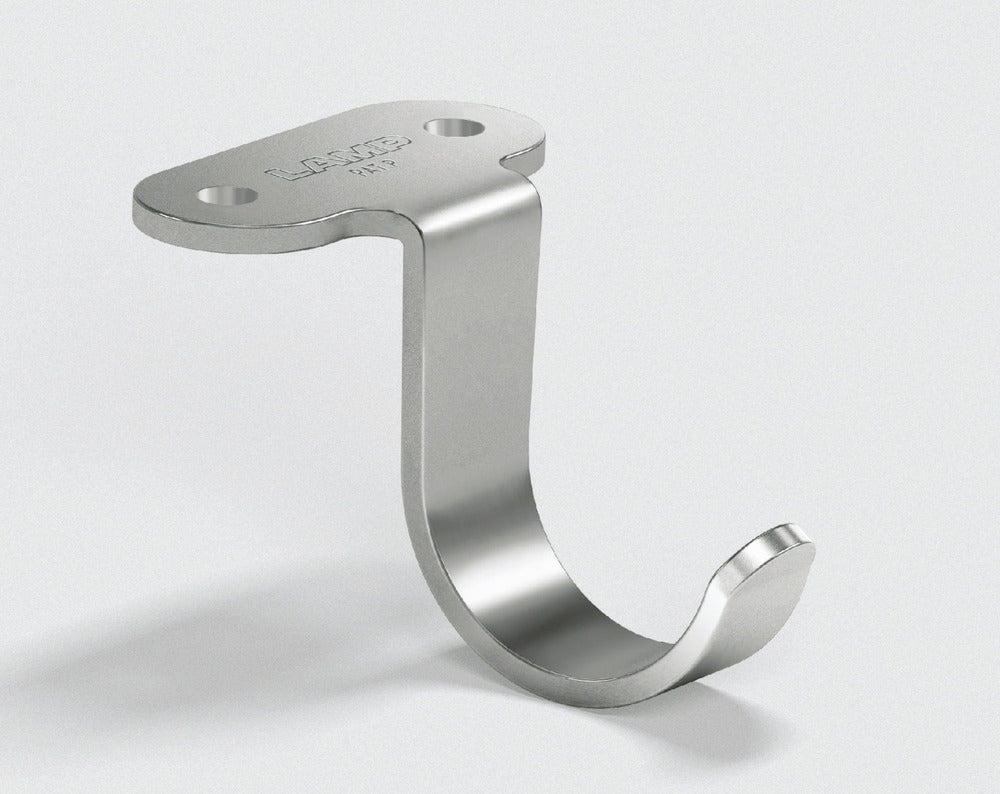

High-quality stainless steel hook for mounting above or below the tabletop or shelf. Stainless steel hooks HJU-30S and HJU-50S from Sugatsune / LAMP® (Japan)

High-quality hook HJU made of stainless steel (V2A or SUS304) for mounting above or below the table top

Application: The high-quality stainless steel hook HJU from Sugatsune / LAMP® (Japan) is available in two different sizes HJU-30S (25 mm) and HJU-50S (38.5 mm). It has a wide surface to make it easier to hang items. What is particularly noteworthy is that thanks to its universal attachment, this hook can be installed both under and above a surface (e.g. table surface or shelf). Perfect for humid environments, can also be used on ships, caravans and boats. Also suitable for bathrooms, saunas, swimming pools, laboratories and medical areas. Includes stainless steel screws for easy installation and long service life. Assembly: The quality HJU hook made of corrosion-resistant V2A stainless steel can be mounted above a table top, or under the top panel or cover of a cupboard. The assembly is carried out using the truss head screws included in the delivery. The truss head wood screws are also made of stainless steel. Included in delivery:

• 1 piece stainless steel hook HJU (HJU-30S or HJU-50S)
• 2 stainless steel screws ( truss head wood screws, self-tapping 3.5 × 20 )

Material:

• Housing: stainless steel V2A, SUS304

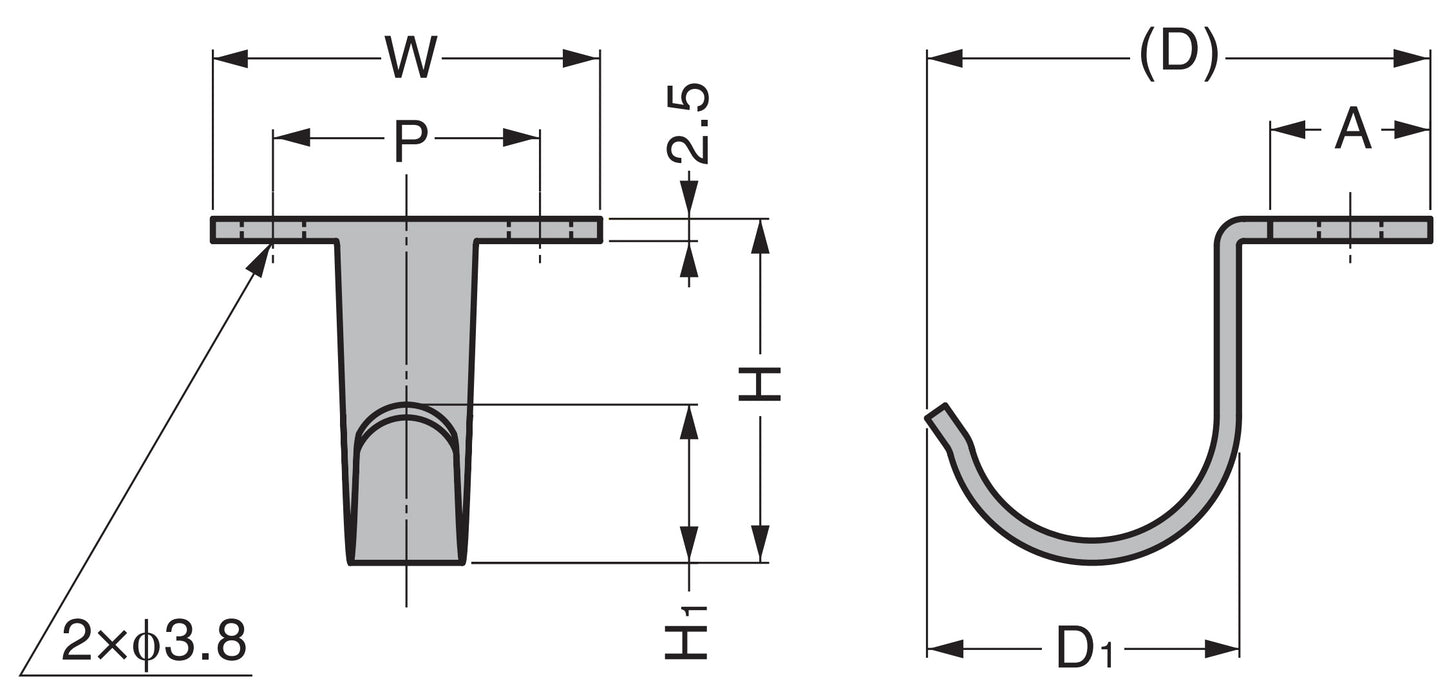

Surface: Color: stainless steel, matte Dimensions, see drawing (mm): For values ​​of W, P, H, H ₁ , A, D and D ₁ see table below. [caption id="attachment_16058" align="alignnone" width="517"] Drawing: Stainless steel hooks 110-017-524 (HJU-30S) and 110-017-525 (HJU-50S) from SUGATSUNE / LAMP® (Japan)[/caption]

type	W	P	H	A, H 1	D	D1
HJU-30S	32.5	20	25	13	42	25.5
HJU-50S	43.5	30	38.5	18	59	37.5

Technical data:

type	Load capacity, N	Load capacity, kp	Weight
HJU-30S	98	10	15 g
HJU-50S	98	10	30 g

Manufacturer reference number:

Article name	Article number
HJU-30S	110-017-524
HJU-50S	110-017-525

Manufacturer: SUGATSUNE / LAMP® (Japan)
