High-quality, black-coated stainless steel hook for under-counter installation. Stainless steel hooks HJ-20SBL, HJ-30SBL, and HJ-50SBL from Sugatsune / LAMP® (Japan)

High-quality hook HJ, black coated, made of stainless steel (V2A or SUS304) for under-table installation

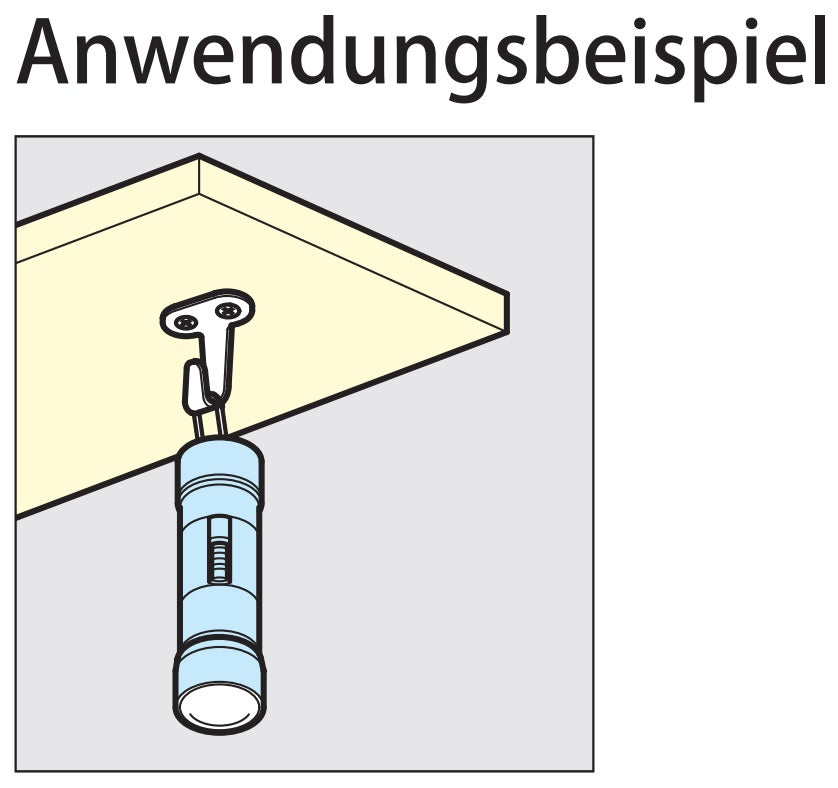

High-quality stainless steel hook from Sugatsune / LAMP® (Japan) available in three different sizes HJ-20SBL, HJ-30SBL or HJ-50SBL. In trendy black for exclusive interiors. Perfect for humid environments, can also be used on ships and boats. Also suitable for bathrooms, saunas, swimming pools, laboratories and medical areas. Includes stainless steel screws for easy installation and long service life. Assembly: The quality HJ hook made of corrosion-resistant V2A stainless steel can be mounted under a table top, or under the top panel or cover of a cupboard. The assembly is carried out using the countersunk head wood screws included in the delivery. The raised countersunk head wood screws are also made of stainless steel and are coated black to match the hook. Included in delivery:

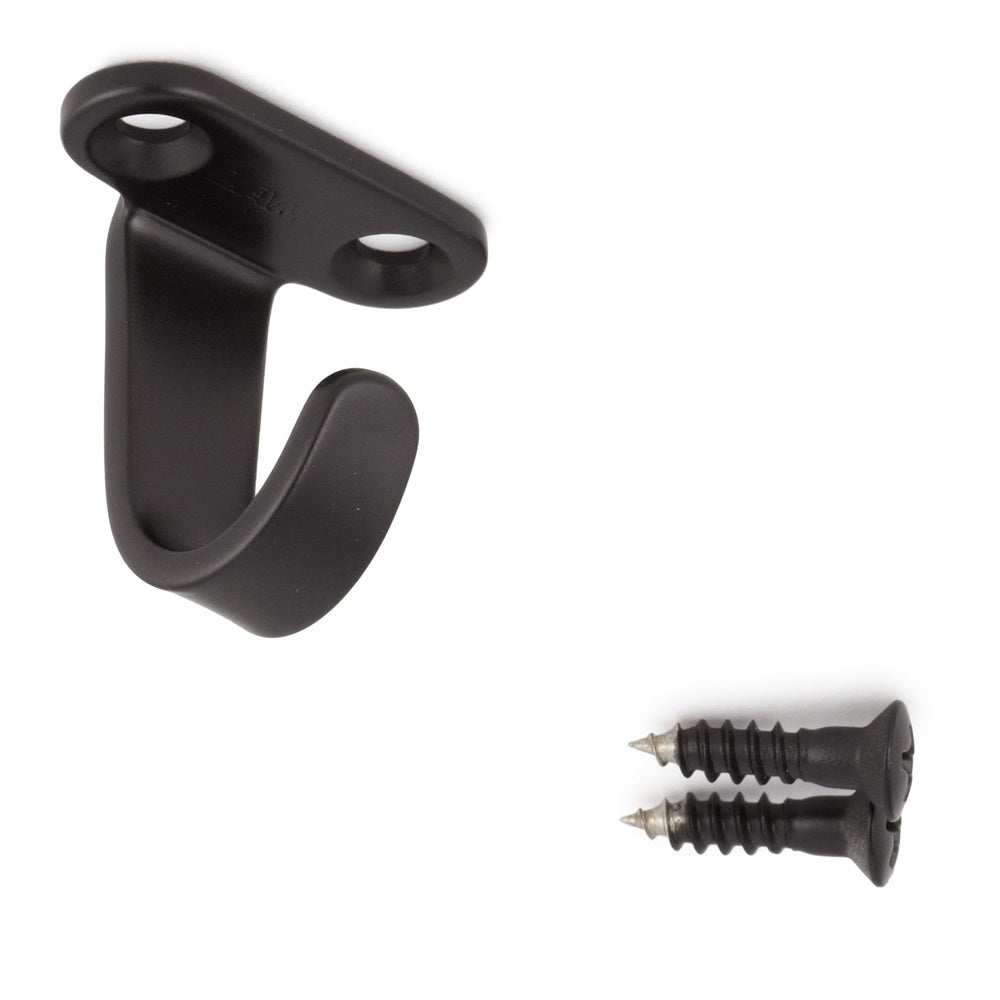

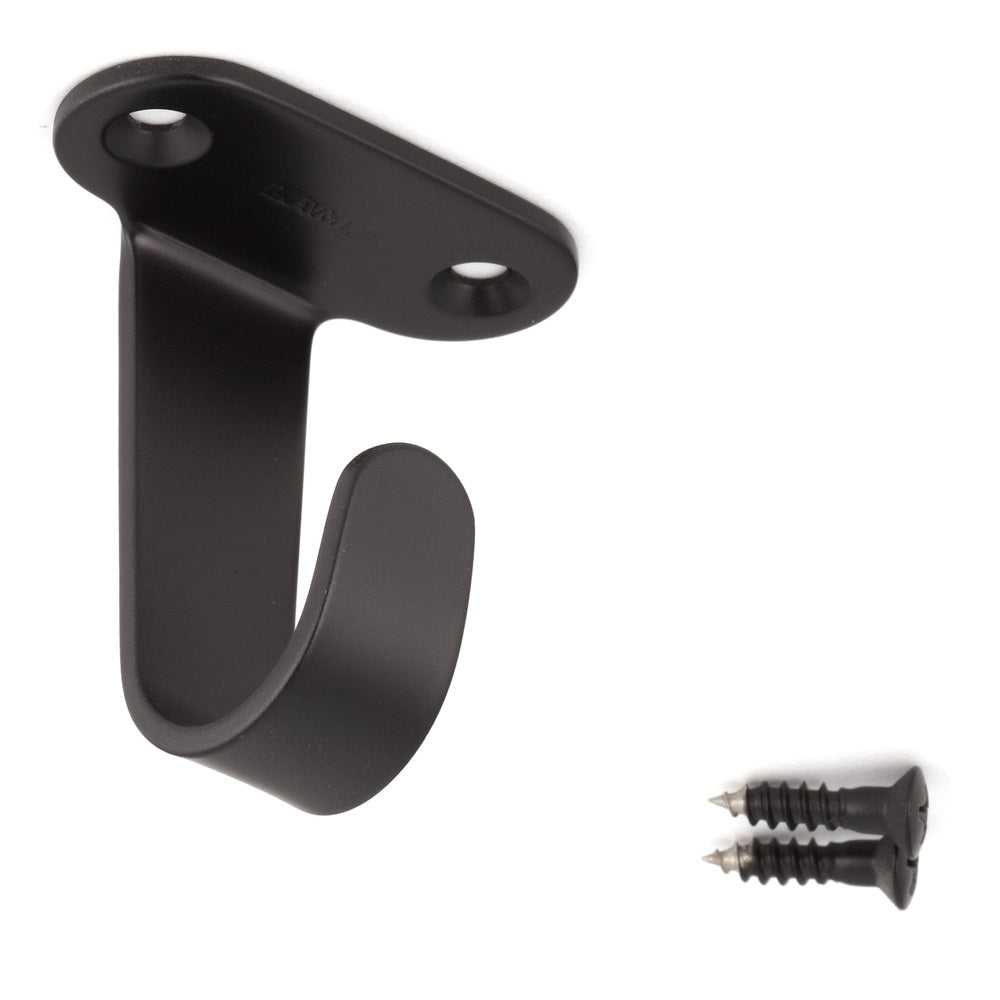

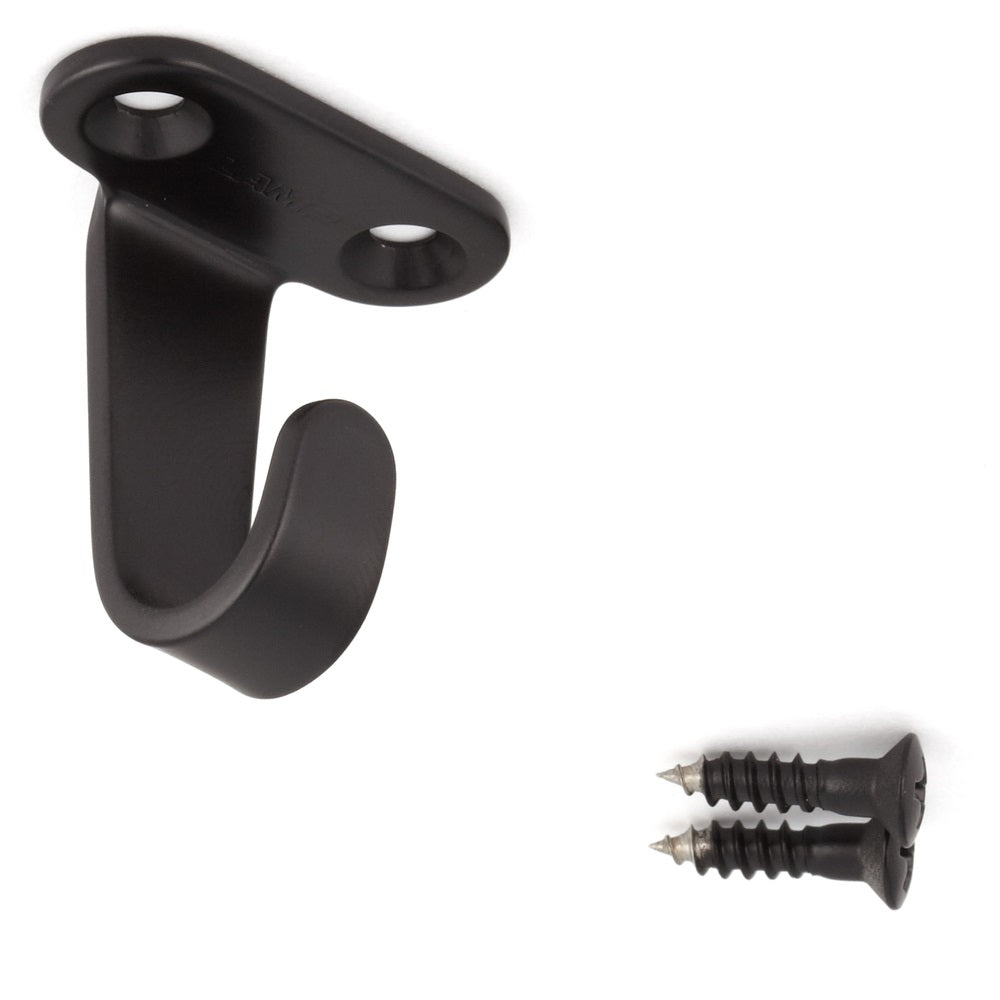

• 1 piece stainless steel hook HJ (HJ-20S, HJ-30S or HJ-50S), black coated
• 2 stainless steel screws (countersunk head wood screws), black coated

Material:

• Housing: stainless steel V2A, SUS304

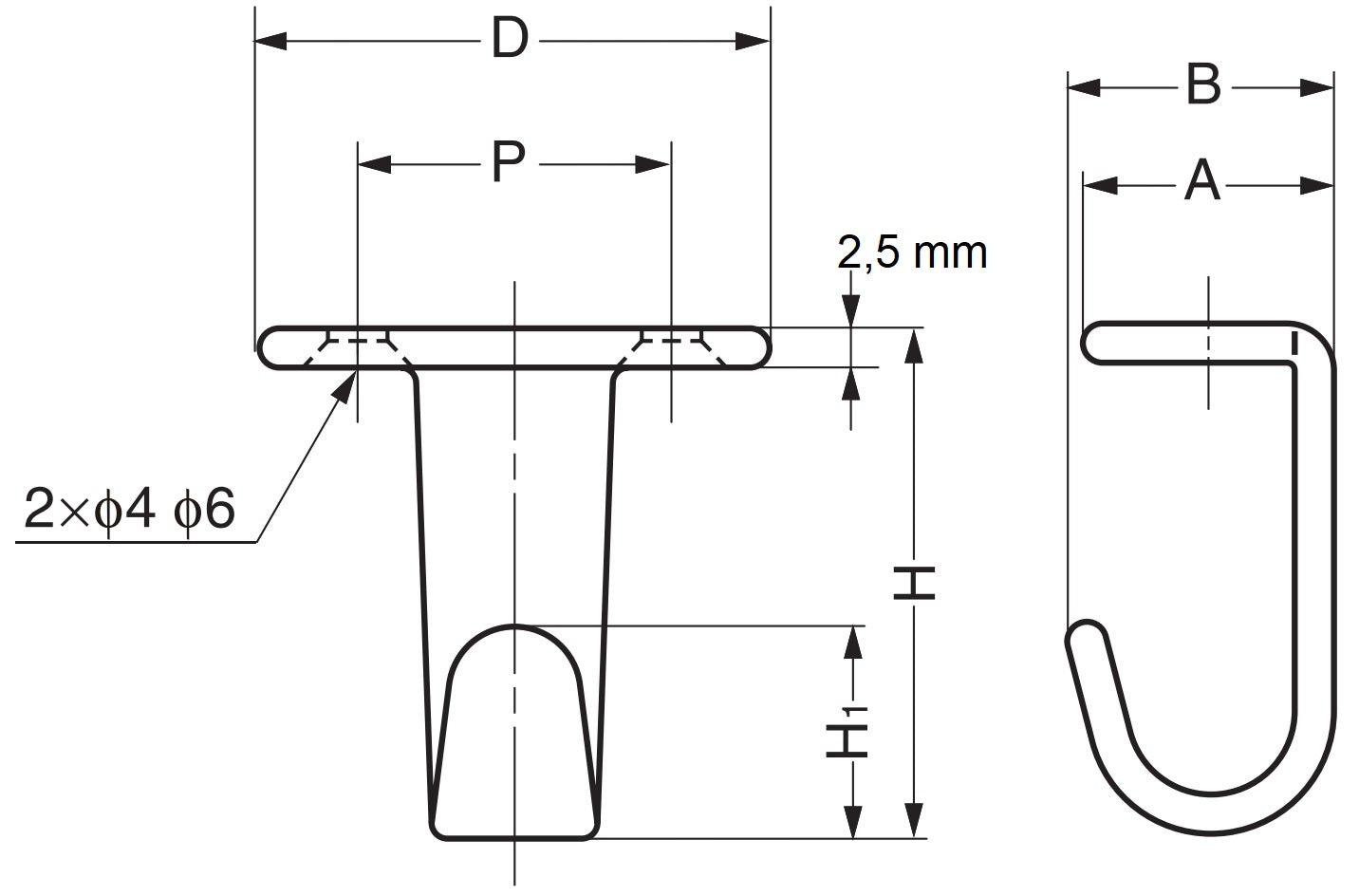

Surface: Color: black Dimensions, see drawing (mm): For values ​​D, P, H, H ₁ , A and B see table below. [caption id="attachment_15953" align="alignnone" width="313"] Drawing of the hook made of stainless steel SUS304 hj-20sbl ( 110-028-963 ), hj-30sbl ( 110-028-964 ) and hj-50sbl ( 110-028-965 ) from SUGATSUNE / LAMP® (Japan)[/caption]

type	D	P	H	H1	A	B
HJ-20SBL	28	18	27	11	13	17
HJ-30SBL	32.5	20	33	13.5	16	17
HJ-50SBL	43.5	30	47	19.6	21	22

Technical data:

type	Load capacity, N	Load capacity, kp	Weight
HJ-20SBL	98	10	11 g
HJ-30SBL	78.4	8	15 g
HJ-50SBL	98	10	30 g

Manufacturer: SUGATSUNE / LAMP® (Japan)
