FASTENI

High-quality flap stay with cable pull, load capacity: 14 kg (31 lbs), grey, 1010621 for furniture flaps, cabinet flaps, desk flaps, bar flaps

Name: High-quality flap stay with cable pull, load capacity: 14 kg (31 lbs), grey, 1010621 for furniture flaps, cabinet flaps, desk flaps, bar flaps
Brand: FASTENI
SKU: E.MCW.14
Price: 32.94 EUR
Availability: InStock

€32,94 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

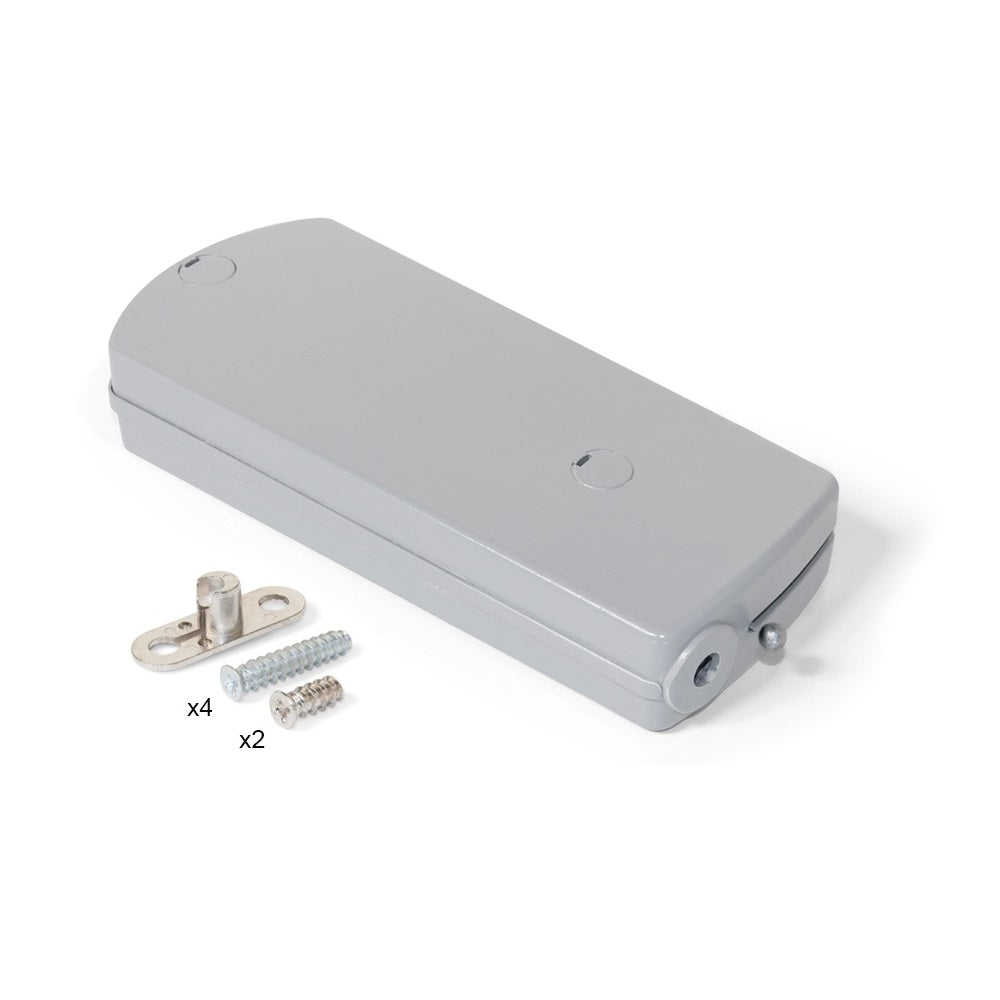

High-quality flap stay, made of metal and robust plastic (metal and plastic), surface: gray, 1010621, load capacity: 14 kg (31 lbs)

Application:

Robust cable flap stay for furniture flaps, cabinet flaps, desk flaps, bar flaps and much more.

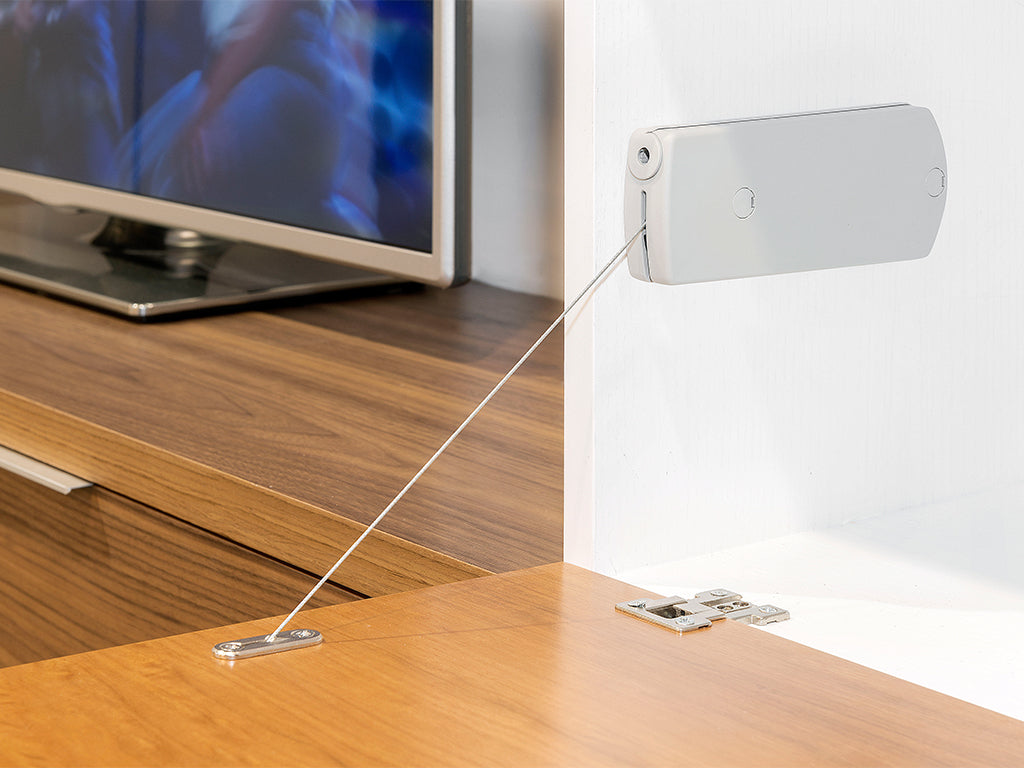

High-quality flap stay with cable pull, 1010621, from EMUCA, load capacity: 14 kg (31 lbs), gray. Application example on a bar flap

The flap stay 1010621 (Microwinch) is a compact flap stay for downward opening furniture flaps and works with a durable steel cable.

When opening, the mechanism brakes the downward movement of the flap, preventing it from falling uncontrolled.

The end position of the opened flap can be adjusted so that the opening path can be adapted to furniture and use.

The 14 kg (31 lbs) braking force version is designed for flap heights from 210 to 480 mm (8-17/64″ - 18-57/64″); the permissible combination of flap height, flap weight, and number of mechanisms is determined according to the selection table.

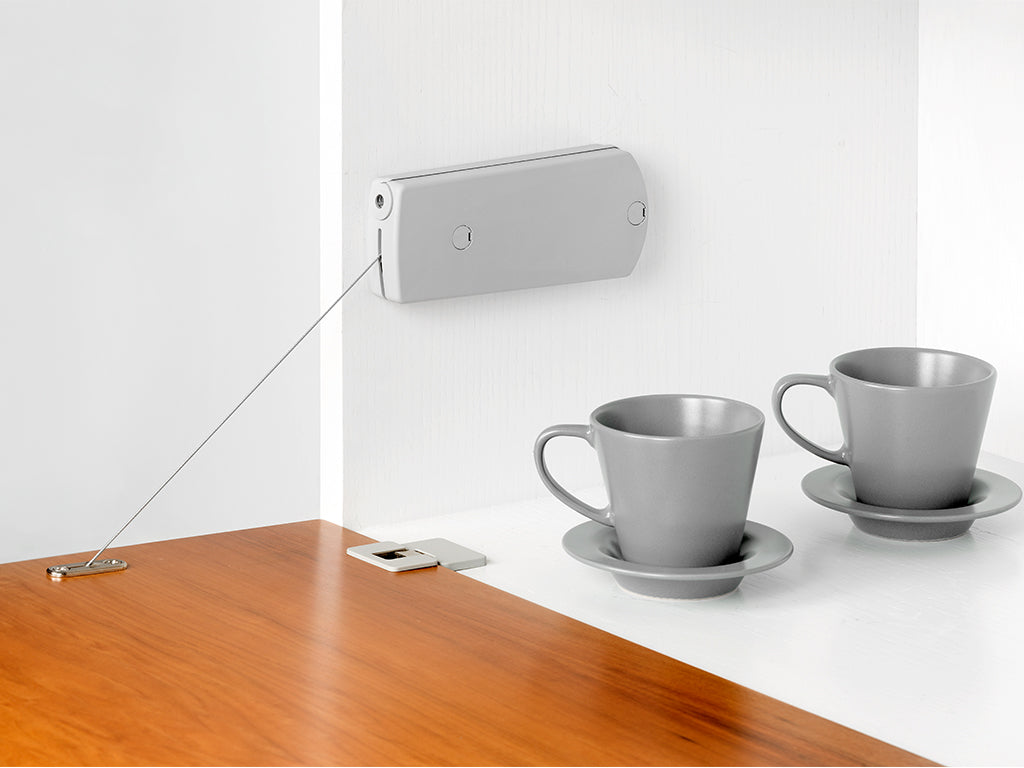

High-quality flap stay with cable pull, 1010621, from EMUCA, load capacity: 14 kg (31 lbs), gray. Application example in kitchen furniture

Since the cable flap stay 1010621 can be mounted horizontally or vertically as well as right or left, it can also be used flexibly in shallower furniture carcasses.

The combination of steel and plastic ensures a compact, robust construction and makes the fitting particularly suitable for living room, office and cabinet furniture.

The high-quality cable flap stays 1010621 are ideal for, among other things:

Living room furniture
Office furniture
Wall cabinets
Sideboards
Furniture flaps
Cabinet flaps
Desk flaps
Bar flaps

Material:

The cable flap stays 1010621 are made of metal and robust plastic (metal and plastic)
Steel cable
The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

Gray
Gray offers a versatile and elegant base that combines well with other colors and materials and creates a calm, timeless atmosphere in both modern and classic rooms
In addition, gray has the ability to highlight accents in a room without dominating itself, making it ideal for creating harmonious and balanced interiors

Installation:

Fastening is done using the six screws (Euro screws) included in the scope of delivery

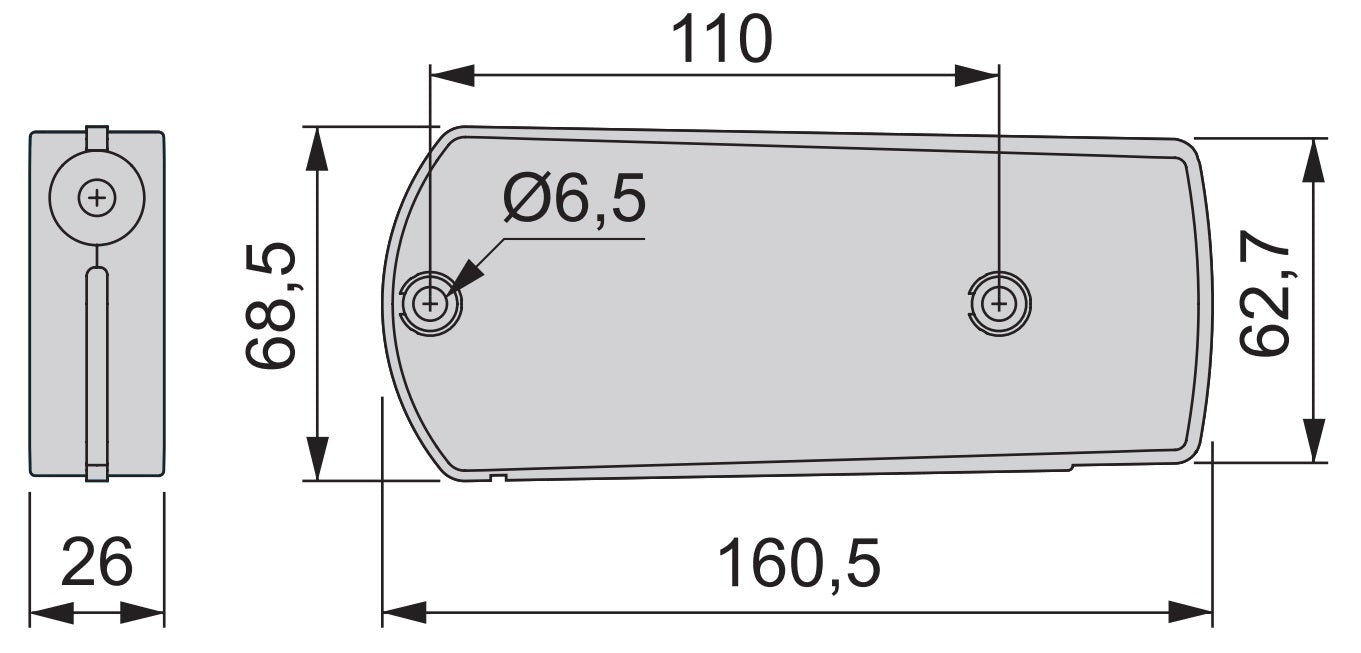

The cable flap stay 1010621 has 2 mounting holes with ⌀6.5 mm at a distance of 110 mm; the separate flap connection also has two mounting points

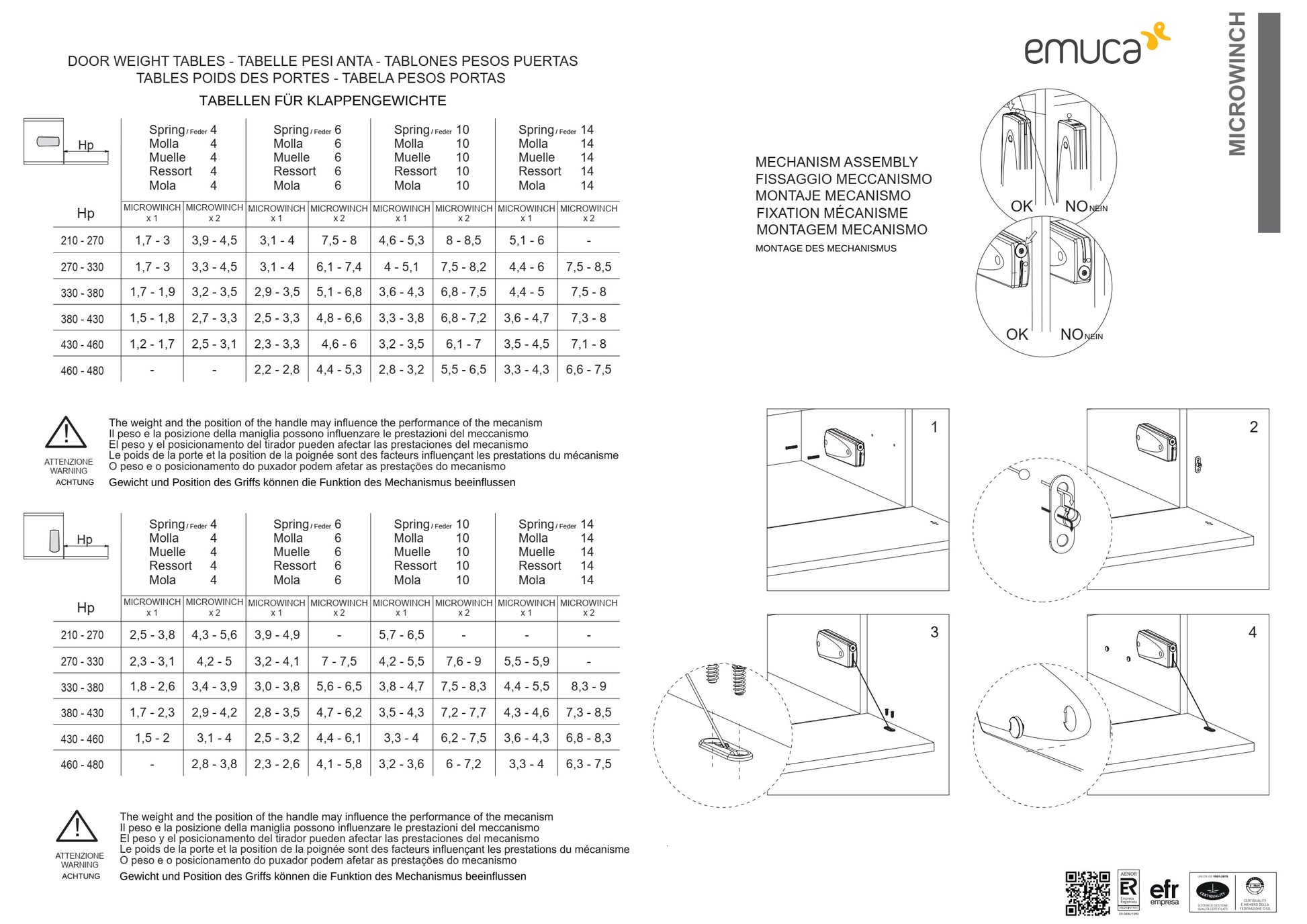

First, the appropriate number of mechanisms for the flap height and flap weight must be determined using the selection table

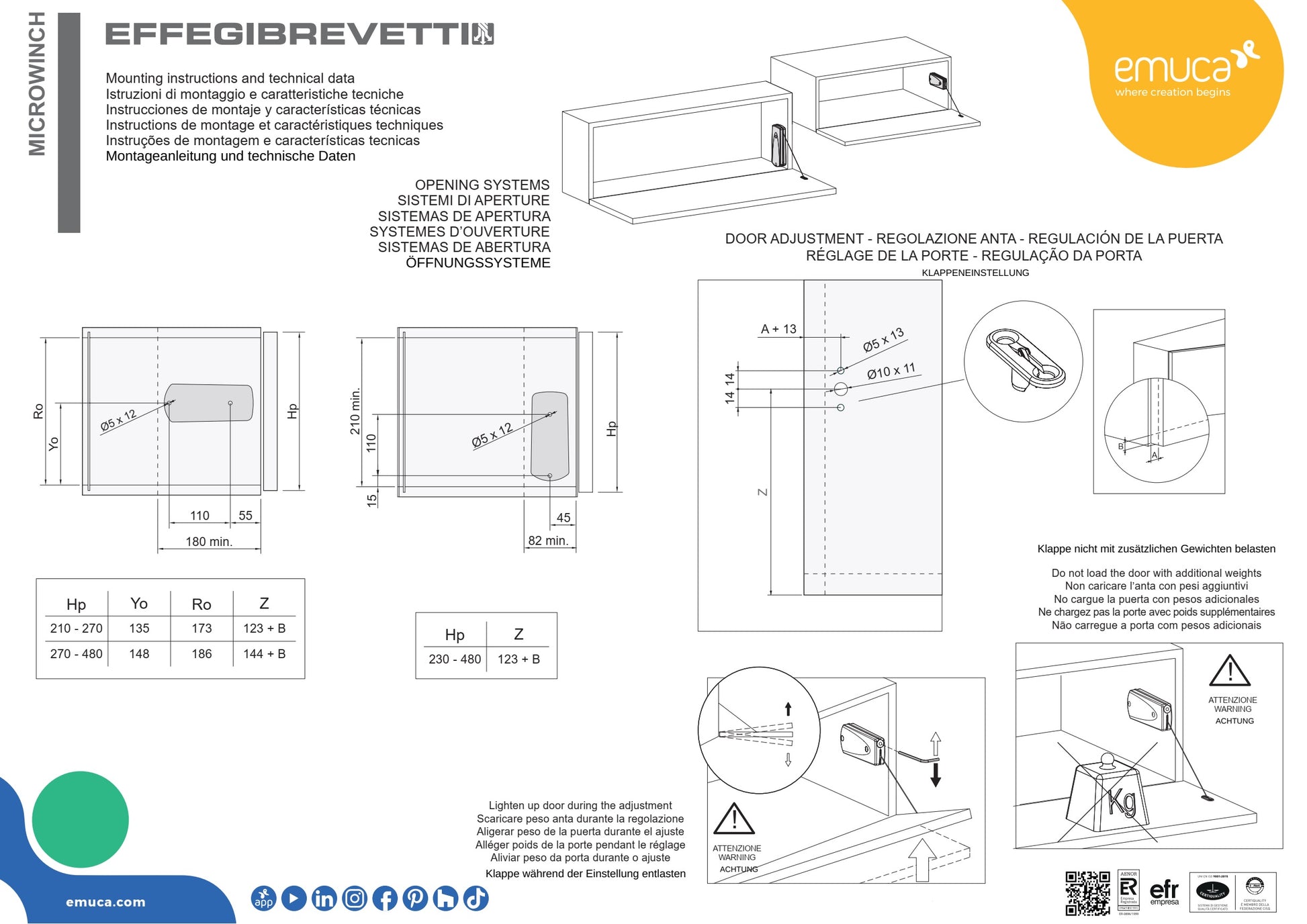

Then the mounting points on the cabinet side are marked according to the desired horizontal or vertical installation position and pre-drilled for the mechanism with ⌀5 mm x 12 mm
For a wooden or wood-based panel flap, two holes with ⌀5 mm (13/64″) x 13 mm and the central mounting hole with ⌀10 mm x 11 mm are made for the flap connection
The flap stay and the flap connection are then mounted with the intended mounting screws

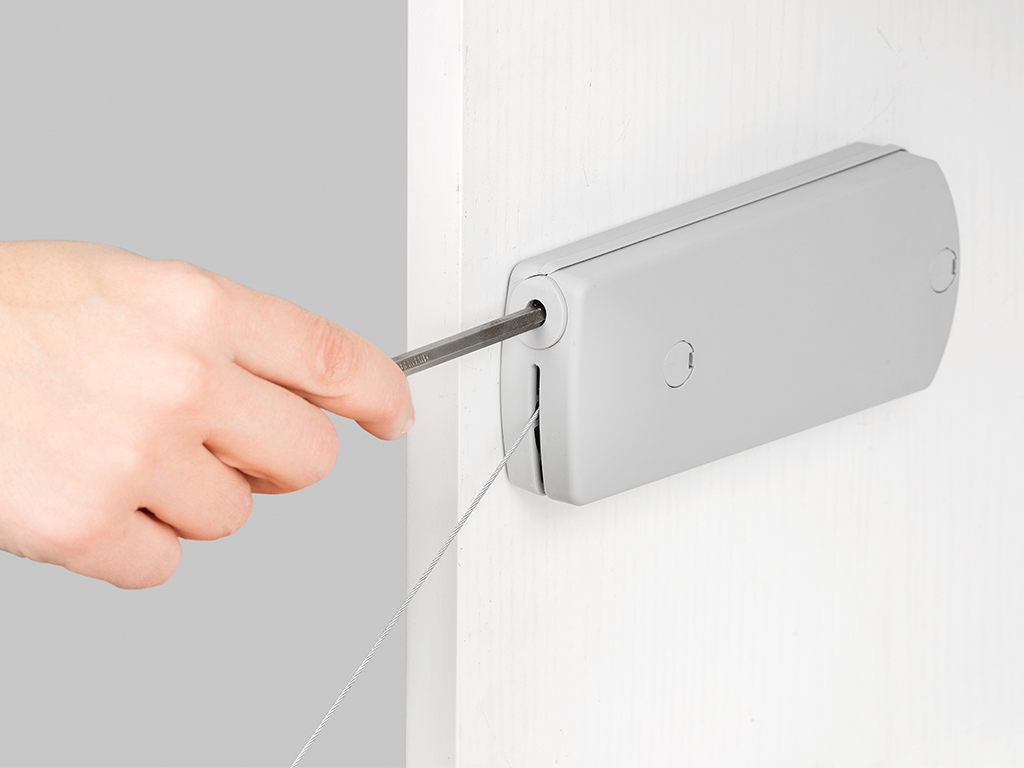

Then the steel cable is connected to the flap connection and checked for correct operation. Finally, the open end position is adjusted, whereby the flap should be relieved during adjustment (for more details, see mounting drawing)
