Robust Lid Stay, made of metal and robust plastic (metal and plastic), surface: black, HDS-30HL-BL (180-104-083), Version: left

Application:

Stable lid stay for upward-opening flaps, kitchen furniture and much more.

Version: left. Only the left side is included in the scope of delivery.

The lid stay HDS-30HL-BL (HDS-30HL-BL) is a soft-down lid stay for upward-opening wooden furniture flaps.

It slows down the closing movement of the flap, thereby preventing hard slamming.

The integrated catch mechanism securely holds the flap in the closed position on the cabinet.

In the open position, the fitting supports a stable end position at an opening angle of 80°.

The heavy-duty H-version is designed for flaps with a torque of 24.5 to 29.4 N·m per pair, making it suitable for larger or heavier upward-opening flaps.

The fitting can be combined with a piano hinge, flap hinge, or suitable cup hinge and enables controlled, high-quality flap movement in furniture construction.

The high-quality lid stays HDS-30HL-BL (180-104-083) are ideally suited for, among other things:

• Furniture flaps
• Wooden flaps
• Cabinet flaps
• Wall cabinets
• Hanging cabinets
• Living room furniture
• Upward-opening flaps
• Kitchen furniture

Material:

• The lid stays 180-104-083 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• Furthermore, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Black
• Black surfaces exude timeless elegance and can help to make a room appear more luxurious and stylish
• While furnishing styles may change, black always remains a safe choice that can be easily adapted to new trends
• Black surfaces can be used in various rooms, be it in the kitchen, living room or office
• Lever arm of the lid stay: nickel-plated

Mounting:

• Fastening is done using the six screws included in the scope of delivery (self-tapping pan head screw 3.5 x 15 mm)
• First, the torque of the flap must be calculated and checked so that the version matches the weight and height of the flap
• Then, the hinges must be correctly mounted, and the flap must open and close smoothly before installing the lid stay

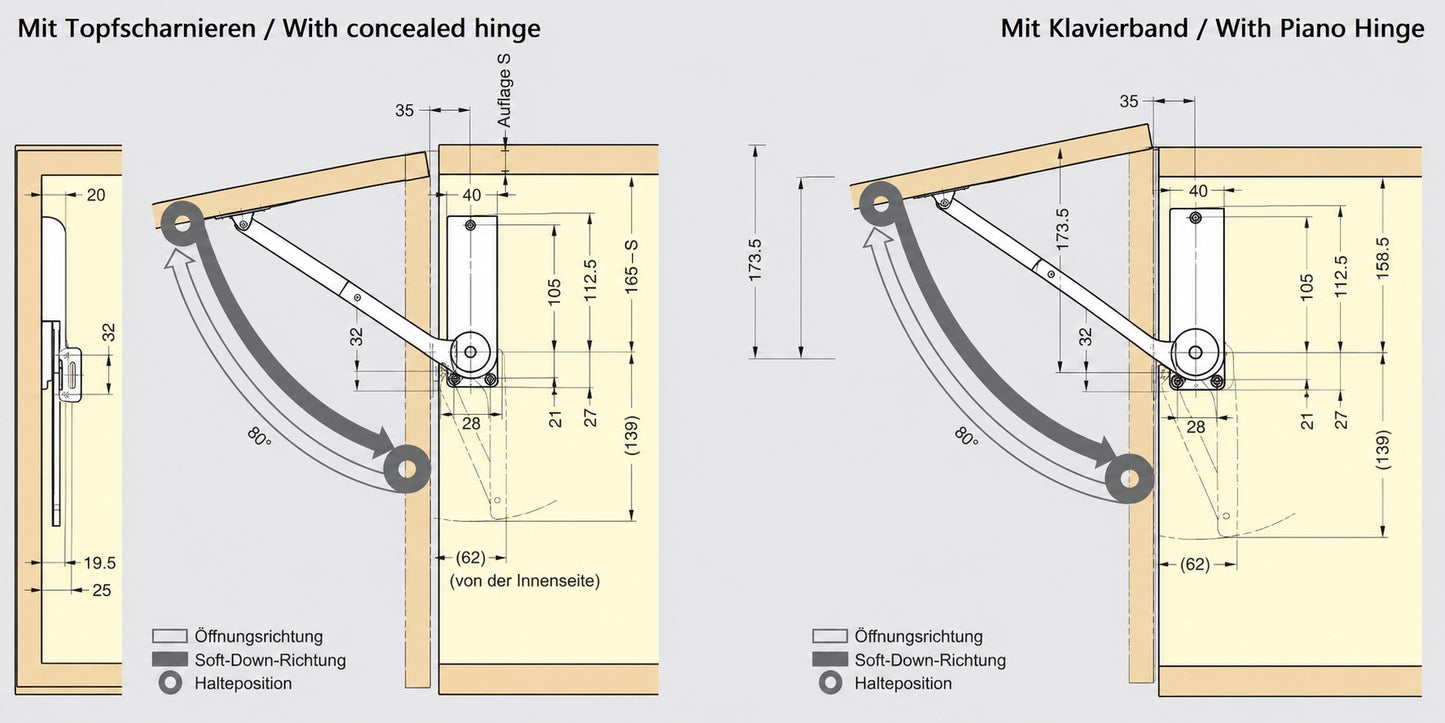

• The lid stay HDS-30HL-BL is attached to the left cabinet side panel according to the mounting drawing with screws ⌀ 3.5 x 15 mm
• The lid stay has 3 mounting holes. The distance between the mounting holes is 126 mm (4-61/64″) and 28 mm (1-7/64″)
• The distance between the center of the fitting and the inner front edge is 35 mm (1-3/8″)
• The mounting plate is first pre-fixed on the flap via the slotted hole
• Then, the flap is opened and closed so that the position of the mounting plate can be adjusted to ensure smooth and even movement
• Finally, the mounting plate is firmly screwed in via the round holes and all screws are checked for a secure fit. The distance between the mounting holes is 32 mm (1-17/64″) (for further details, see mounting drawing)

Features:

• Version: left
• Weight: 300 g
• Load capacity (carrying capacity): 14.7 N (1.5 kp)
• Size: 140 mm (5-33/64″)
• Easy to mount
• Practical
• Stable
• Model H for heavy flaps
• For upward-opening wooden flaps
• Soft-down function during closing
• Integrated damper against slamming
• Integrated catch mechanism for closed position
• Holding function in fully open position
• Tested for 50,000 opening and closing cycles
• Opening angle 80°
• Suitable for piano hinge, flap hinge or cup hinge
• Torque range 24.5 to 29.4 N·m per pair
• Black
• Robust
• High brand quality from Sugatsune / LAMP®

Dimensions:

• Length of the lid stay: 140 mm (5-33/64″)
• Width: 40 mm (1-37/64″)
• Depth: 20 mm (25/32″)

For further dimensions and details, see technical drawing.

Included in delivery:

• 1 piece lid stay HDS-30HL-BL (180-104-083) made of metal and robust plastic, black
• 6 pieces self-tapping pan head screw 3.5 x 15 mm

Additional information:

• Download mounting instructions.

Manufacturer's reference numbers:

• Item identification number: 180-104-083
• Article number: HDS-30HL-BL
• GTIN number (EAN, UPS): 4510932024259

Manufacturer: Sugatsune / LAMP® (Japan)
