Robust flap stay, made of metal and robust plastic (metal and plastic), surface: black, HDS-30KL-BL (180-104-079), version: left

Application:

Sturdy flap stay for upward-opening flaps, kitchen furniture, and much more.

Version: left. Only the left side is included.

The flap stay HDS-30KL-BL (180-104-079) is a soft-down flap stay for upward-opening wooden furniture flaps.

It slows down the closing movement of the flap, thereby preventing it from slamming shut.

The integrated latch mechanism securely holds the flap in the closed position on the cabinet body.

In the open position, the fitting supports a stable end position at an opening angle of 80°.

This version has a torque of 13.7 to 19.5 N·m per pair, suitable for small and light upward-opening flaps.

The fitting can be combined with a piano hinge, flap hinge, or suitable cup hinge and enables controlled, high-quality flap movement in furniture construction.

The high-quality flap fittings HDS-30KL-BL (180-104-079) are ideally suited for, among other things:

• Furniture flaps
• Wooden flaps
• Cabinet flaps
• Wall cabinets
• Hanging cabinets
• Home furniture
• Upward-opening flaps
• Kitchen furniture

Material:

• The flap fittings 180-104-079 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Black
• Black surfaces exude timeless elegance and can help to make a room appear more luxurious and stylish
• While interior styles may change, black always remains a safe choice that can easily adapt to new trends
• Black surfaces can be used in various rooms, be it in the kitchen, living room, or office
• Lever arm of the flap fitting: nickel-plated

Mounting:

• Attachment is done using the six screws included (self-tapping pan head screw 3.5 x 15 mm)
• First, the torque of the flap must be calculated and checked so that the version matches the weight and height of the flap
• Then, the hinges must be correctly mounted, and the flap must open and close smoothly before installing the flap stay
• The flap stay HDS-30KL-BL is attached to the left cabinet side panel according to the mounting drawing with screws ⌀ 3.5 x 15 mm
• The flap stay has 3 mounting holes. The distance between the mounting holes is 126 mm (4-61/64″) and 28 mm (1-7/64″)
• The distance between the center of the fitting and the inner front edge is 35 mm (1-3/8″)
• The mounting plate is first pre-fixed to the flap via the slotted hole
• Then, the flap is opened and closed so that the position of the mounting plate can be adjusted to ensure smooth and even movement
• Finally, the mounting plate is screwed firmly into place via the round holes, and all screws are checked for a secure fit. The distance between the mounting holes is 32 mm (1-17/64″) (for more details, see mounting drawing)

Features:

• Version: left
• Weight: 276 g
• Load capacity (carrying capacity): 9.75 N (1 kp)
• Size: 140 mm (5-33/64″)
• Torque 13.7 to 19.5 N·m per pair, for small and light upward-opening flaps
• Easy to assemble
• Practical
• Stable
• For upward-opening wooden flaps
• Soft-down function when closing
• Integrated damper against slamming
• Integrated latch mechanism for closed position
• Holding function in fully open position
• Tested for 50,000 opening and closing cycles
• Opening angle 80°
• Suitable for piano hinge, flap hinge or cup hinge
• Black
• Robust
• High brand quality from Sugatsune / LAMP®

Dimensions:

• Length of the flap fitting: 140 mm (5-33/64″)
• Width: 40 mm (1-37/64″)
• Depth: 20 mm (25/32″)

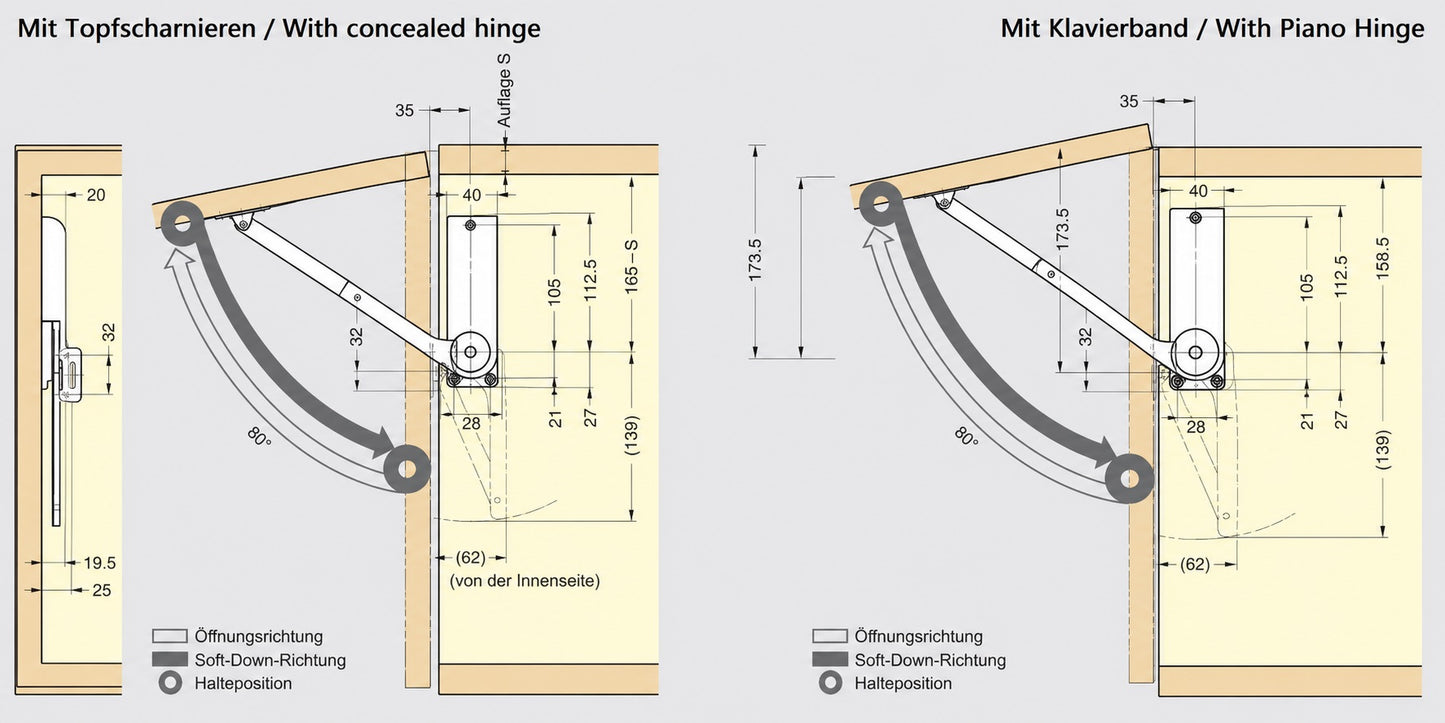

For further dimensions and details, see technical drawing.

Included in delivery:

• 1 piece flap stay HDS-30KL-BL (180-104-079) made of metal and robust plastic, black
• 6 pieces self-tapping pan head screw 3.5 x 15 mm

Additional information:

• Download assembly instructions.

Manufacturer's reference numbers:

• Item ID number: 180-104-079
• Article number: HDS-30KL-BL
• GTIN number (EAN, UPS): 4510932024174

Manufacturer: Sugatsune / LAMP® (Japan)
