High-quality siphon cutout, made of plastic, anthracite grey, 3011923 for vanity unit, kitchen cabinet, bathroom cabinet, siphon, drain

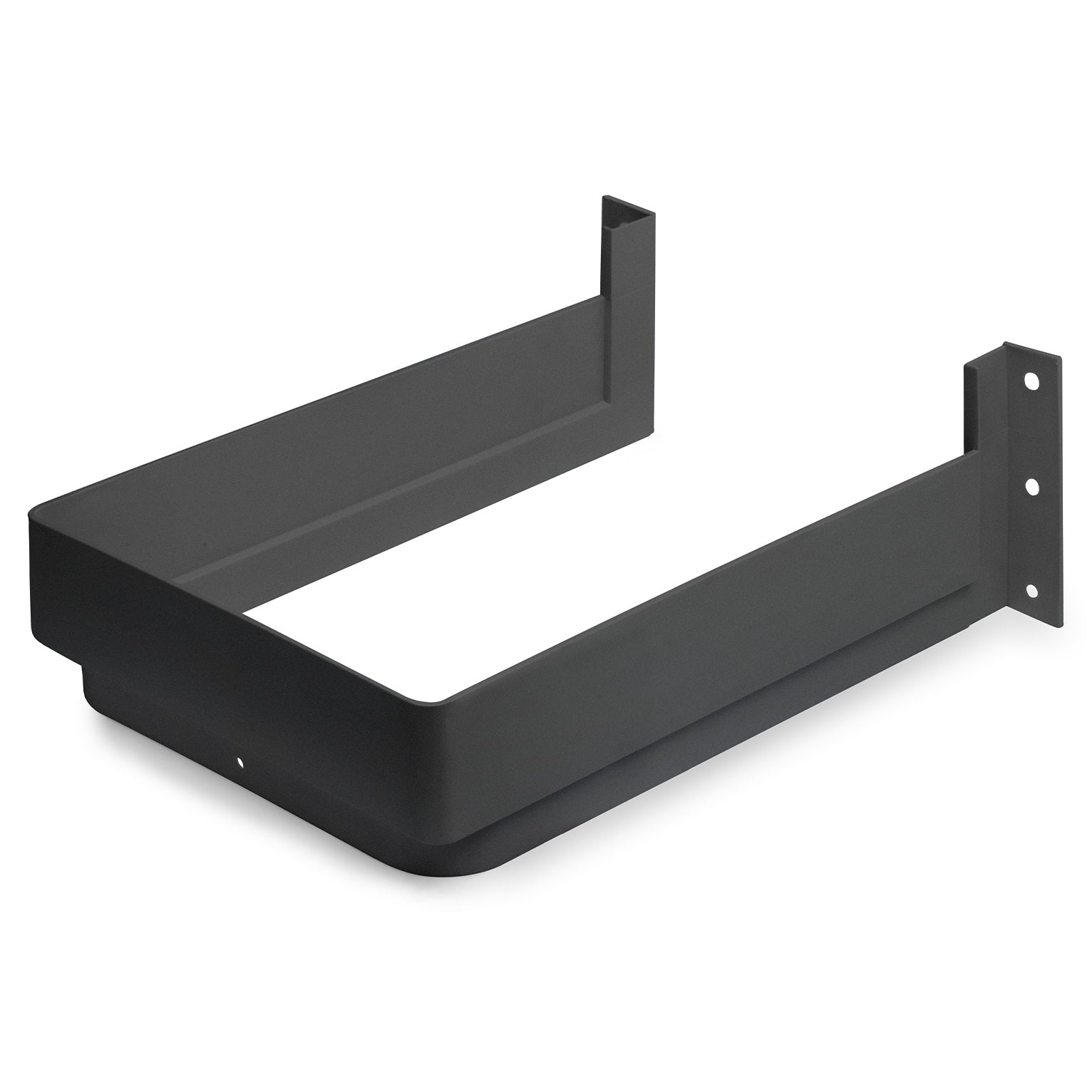

High-quality siphon cutout, made of robust plastic, surface: anthracite grey, 3011923

Application:

Rectangular siphon protector for vanity units, kitchen cabinets, bathroom cabinets, siphons, drains and much more.

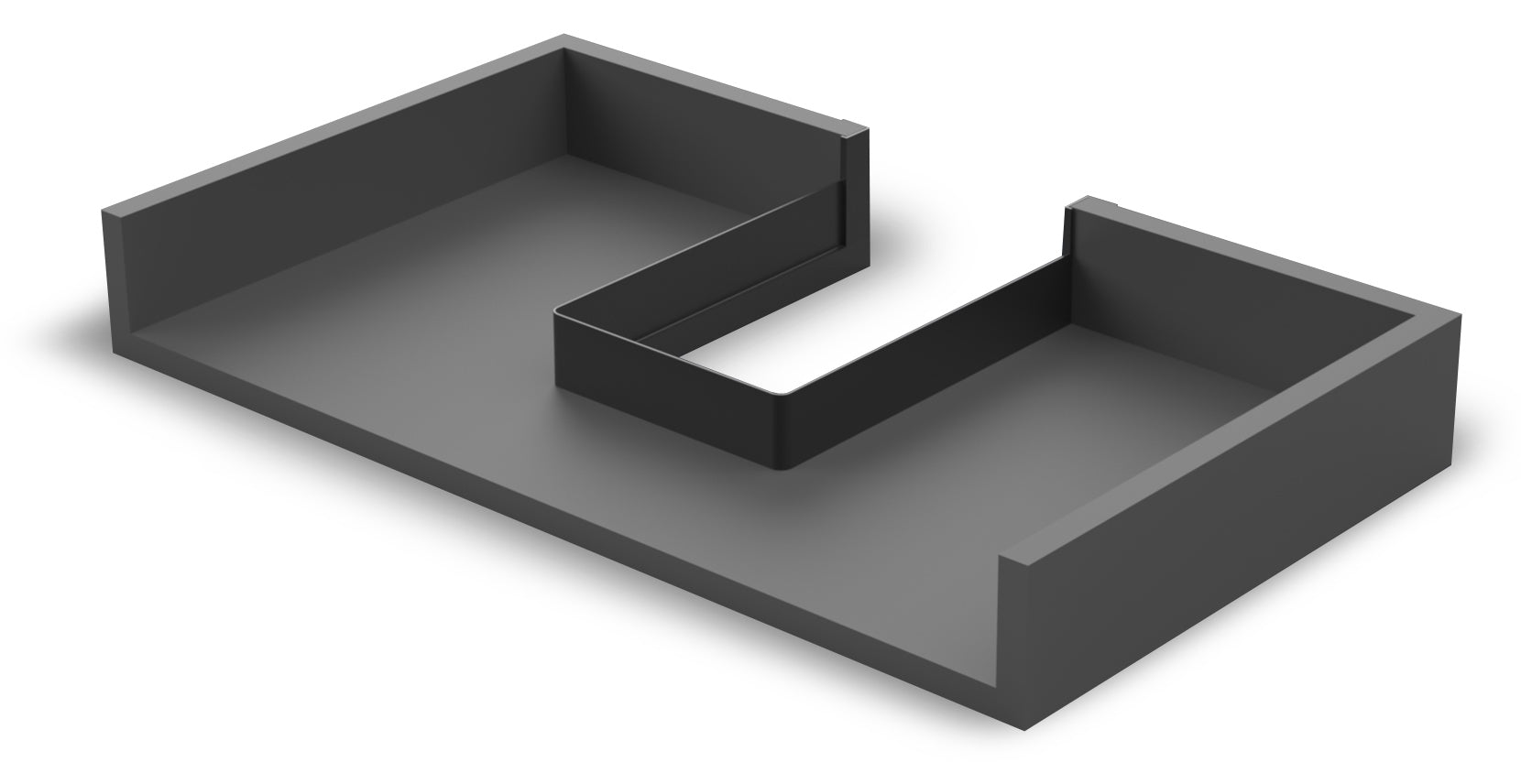

The slim, rectangular siphon cutout 3011923 made of plastic transforms drawers under washbasins or sinks into fully usable storage space.

The shape of the siphon cover 3011923 encloses the siphon so that no valuable depth is lost.

The siphon cutout 3011923 is suitable for drawers with a minimum depth of 250 mm (9-27/32″).

Robust, easy-to-clean material protects the furniture from moisture and chemicals.

The precise shape of the siphon cover 3011923 fits flush into drawers and maintains a tidy appearance.

Thanks to screw mounting, the siphon cutout 3011923 can be quickly retrofitted and just as easily replaced if necessary.

The high-quality siphon covers 3011923 are ideal for, among others:

• Drawer
• Base cabinet
• Storage space
• Furniture construction
• Internal pull-out
• Vanity unit
• kitchen cabinet
• bathroom cabinet
• siphon
• Sequence

Material:

• The siphon covers 3011923 are made of robust plastic
• Plastic is lightweight and allows easy assembly of components and furniture fittings without compromising stability
• It is corrosion-resistant and is therefore particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
• In addition, the flexible formability of plastic allows for a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines

Surface:

• Anthracite gray
• Anthracite grey fittings and components appear modern and discreet at the same time, allowing them to be harmoniously integrated into various living styles
• The insensitive surface conceals fingerprints and minor signs of wear

Assembly:

• Fastening is done with countersunk chipboard screws 3.5 x 16 mm (not included)

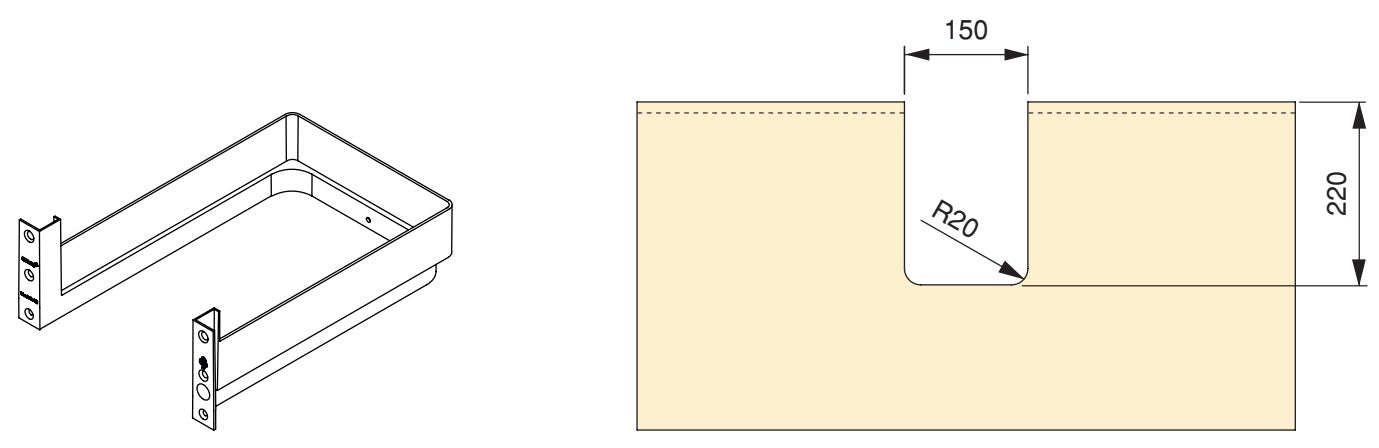

• To attach the siphon cover 3011923, a cutout with a depth of 220 mm (8-21/32″) and a width of 150 mm (5-29/32″) must be made in the drawer bottom.
• The siphon protection 3011923 is screwed to the drawer back panel from the inside (for further details see assembly drawing )

Characteristics:

• Weight: 111 g
• Size: 246 mm (9-11/16″)
• Available in grey, anthracite grey and white
• easy to assemble
• practical
• stable
• Minimum drawer depth: 250 mm (9-27/32″)
• Made of impact-resistant plastic
• Flows around standard siphons
• Optimizes the drawer depth under the sink
• Light weight, no additional load on the drawer
• Easy cleaning with mild cleaners
• Installation in just a few minutes without special tools
• anthracite gray
• robust
• high brand quality from UMAXO®

The dimensions:

• Depth of the siphon cover 3011923: 246 mm (9-11/16″)
• Width: 186 mm (7-21/64″)
• Frame height: 56 mm (2-13/64″)
• Inner height of the frame: 40 mm (1-37/64″)

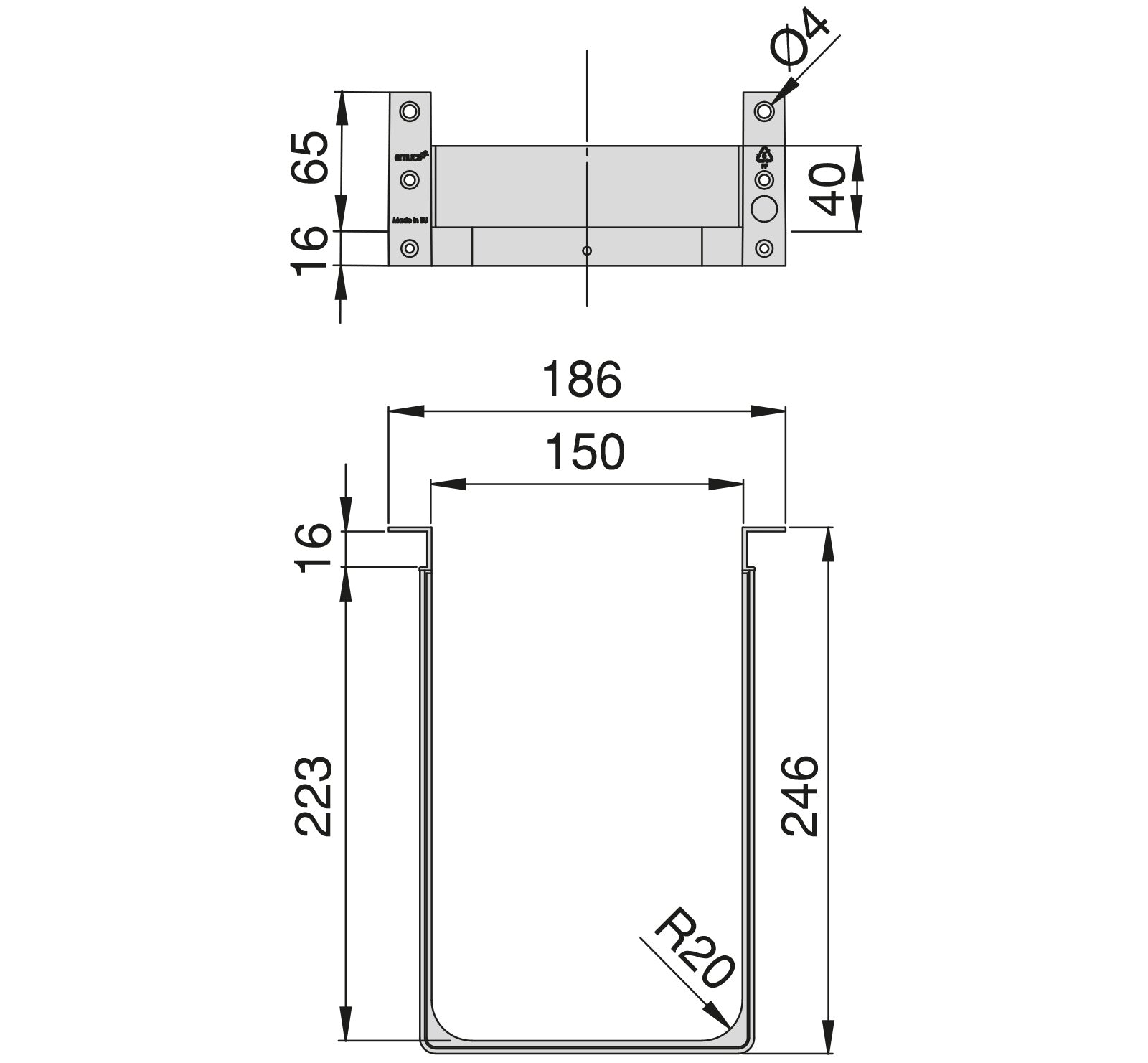

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece siphon cutout 3011923 made of robust plastic, anthracite grey

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article number: 3011923
• EAN number: 8432393300757

Manufacturer: EMUCA
