2 pieces Ankor GT-B flap hinge, removable, made of zinc alloy with cover caps, surface: grey 1010821. Zinc alloy bar compartment hinge for wooden flaps, furniture flaps, wooden lids, bar compartments and much more, by EMUCA

2 flap hinges made of solid zinc alloy with cover caps, surface: grey, 1010821

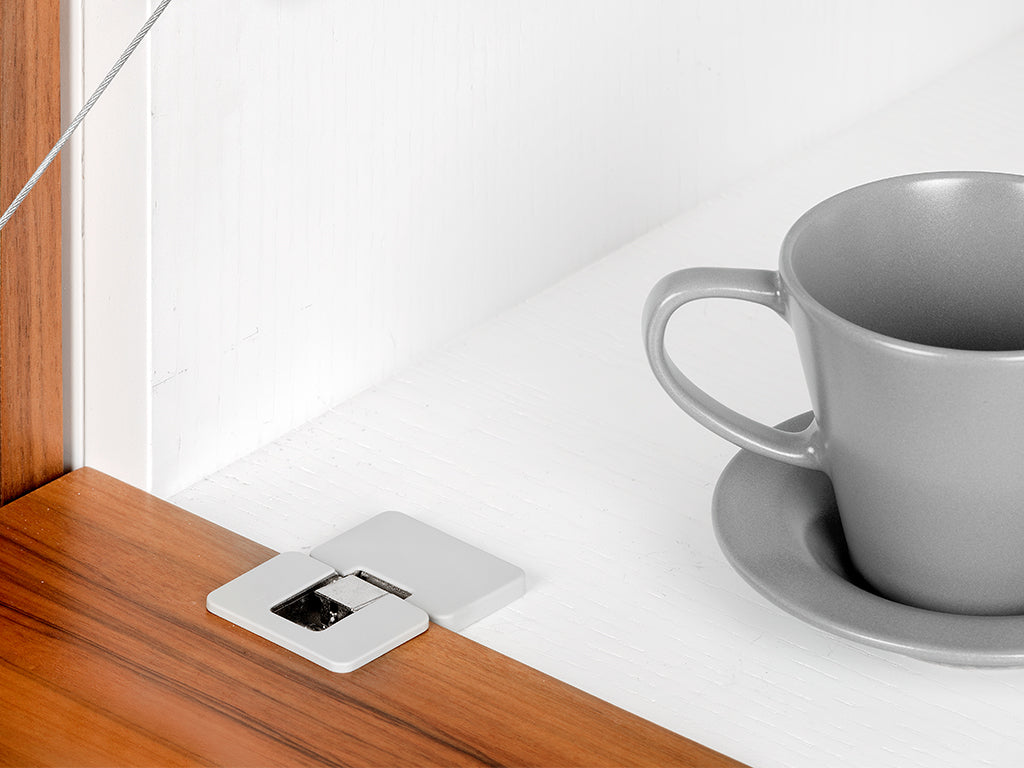

Application: Zinc alloy bar compartment hinge for wooden flaps, furniture flaps, wooden lids, bar compartments and much more. [caption id="attachment_122038" align="alignnone" width="420"] Ankor GT-B removable zinc alloy flap hinge with cover caps, grey finish, from EMUCA. Application[/caption] Furniture hinge for screwing, flap holder, inset hinge, bar compartment hinge for wooden flaps, wooden lids and furniture flaps. Stable installation and secure fit thanks to two fastening screws each in the base and flap sections. The flap hinges have a rectangular shape and a modern design. They have a Zamak cover that covers the adjustment screw and the locking screw, ensuring an impeccable look Subsequent flap installation possible by separately mounting the base and flap sections. The flap hinges have three-dimensional adjustment options: lateral, vertical and frontal. For use with flap support or lid holder only.

• Home furniture
• Office furniture
• wooden flaps
• Furniture flaps
• wooden lid
• Bar compartment

Material:

• The high-quality flap hinges 1010821 are made of solid zinc alloy (ZDC)

Surface:

• Gray

Assembly:

• The inlet hinge 1010821 for inlet consists of two parts: base part and flap part
• Before installation, mounting holes with a diameter of Ø26 mm (1-1/32″) must be pre-drilled in the flap and the body base
• The distance between the center of the drill holes and the edge must be 26 mm (1-1/32″)
• The depth of the mounting hole in the base part is at least 14 mm (35/64″)
• The depth of the mounting hole in the flap part is at least 15 mm (19/32″)
• The two parts of the flap hinge are inserted into the pre-drilled mounting holes and fastened with the screws (not included)
• To attach a compartment flap, at least two flap hinges 1010821 are required (for further details see assembly drawing ).

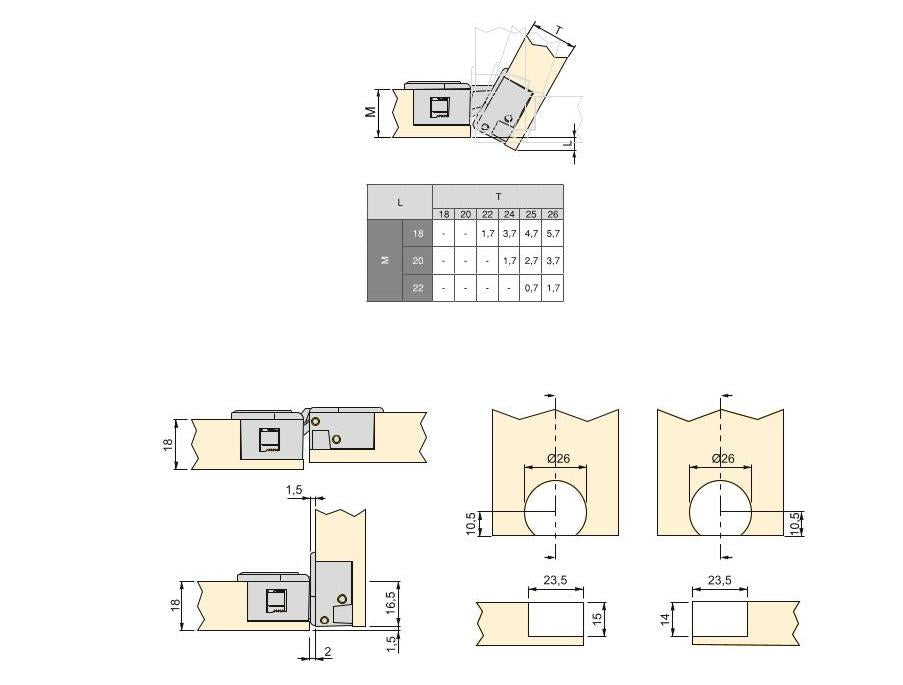

[caption id="attachment_122051" align="alignnone" width="420"] Ankor GT-B removable zinc alloy flap hinge with cover caps, grey finish, from EMUCA. Assembly drawing[/caption] Characteristics:

• Weight: 72.1 g
• Size: 54 mm (2.2″)
• Opening angle: 90°
• Bore: Ø26 mm (1-1/32″)
• Drilling depth: 14 mm (35/64″) and 15 mm (19/32″)
• Removable
• Stable
• Solid
• Robust
• Gray
• High brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• The complete length of the flap hinge (assembled): 54 mm (2-1/8″)
• Width: 38 mm (1-1/2″)
• The distance between the screw holes: 27 mm (1-1/16″)
• Length of the fixing pin: 14 mm (35/64″)

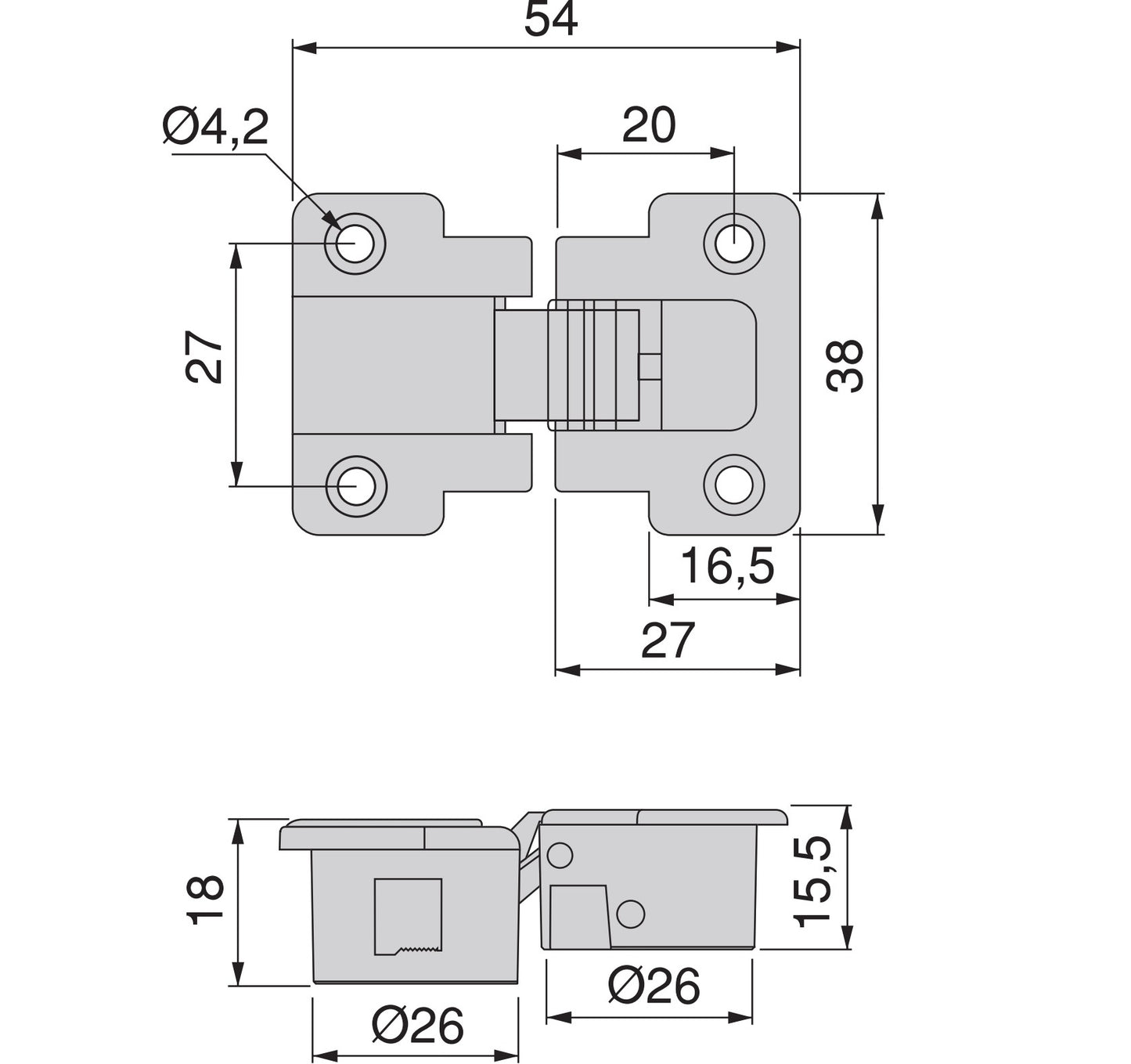

[caption id="attachment_122064" align="alignnone" width="420"] Ankor GT-B removable zinc alloy flap hinge with cover caps, grey finish, from EMUCA. Technical drawing[/caption] Included in delivery:

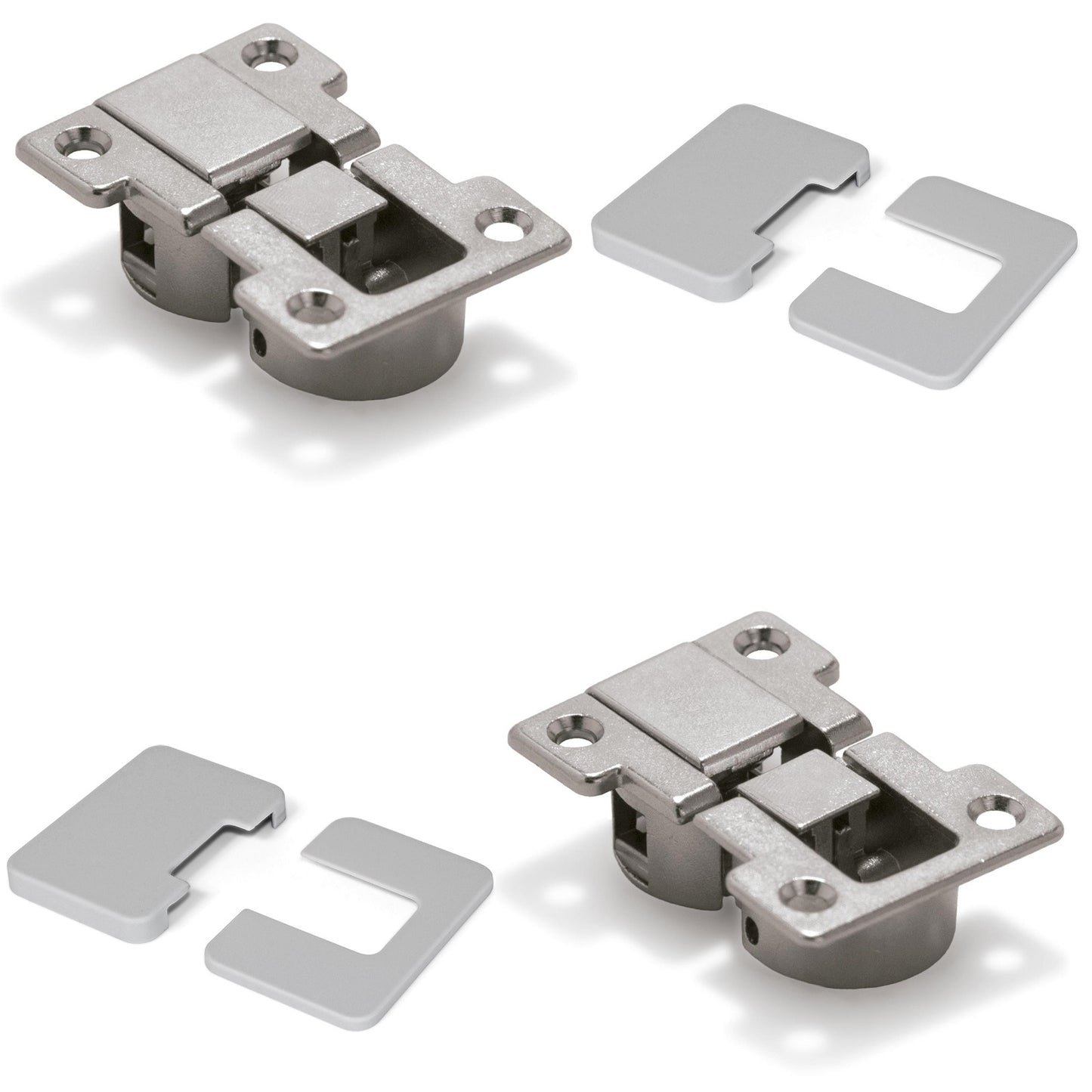

• 2 pieces flap hinge 1010821 made of solid zinc alloy (consisting of flap part and body part), grey
• 2 pieces of die-cast zinc cover caps for the adjustment screws
• 2 pieces plastic cover cap for flap part
• 2 pieces plastic cover cap for body part

Manufacturer reference number:

• Article number: 1010821
• EAN number: 8432393100715

Manufacturer: EMUCA
