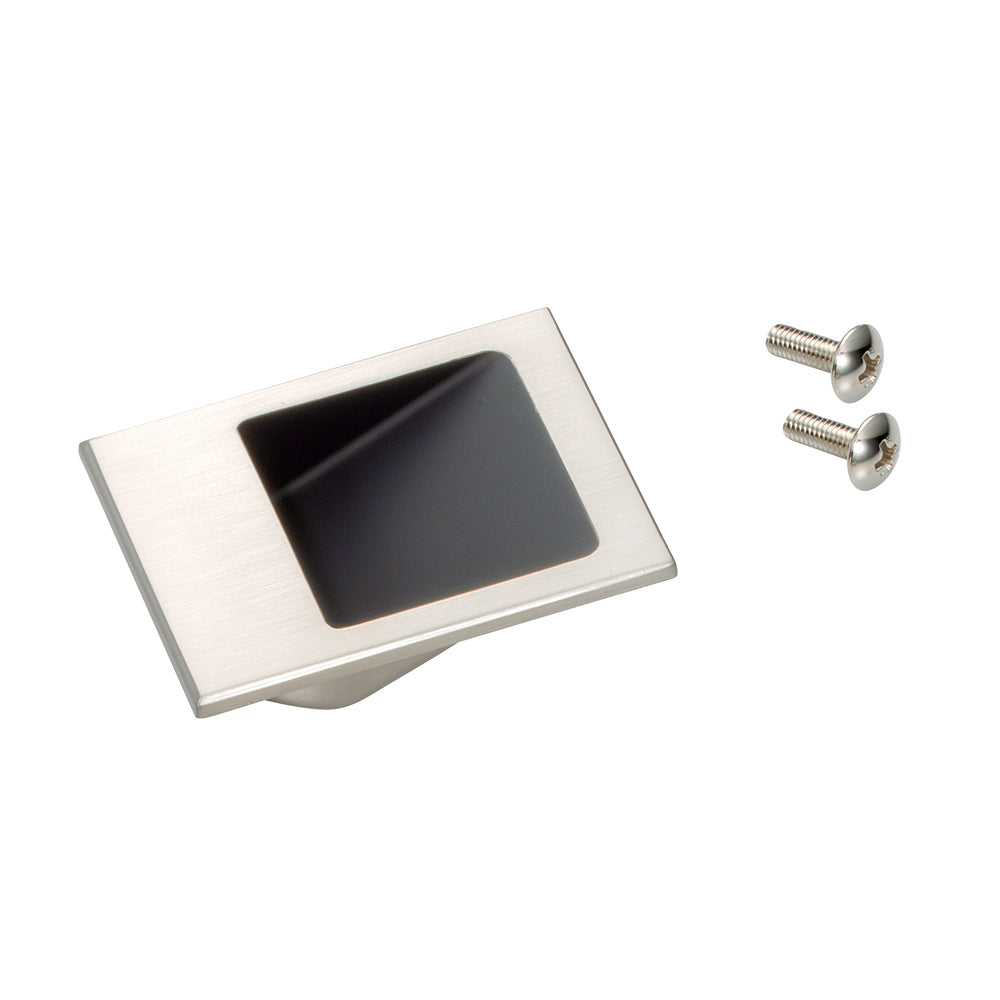

Small, high-quality recessed finger pull, made of solid zinc alloy, white bronze finish, 55 mm (2.2") HH-DN-40WB. Recessed pull HH-DN-40WB for sheet metal fronts, wooden fronts, drawers, cabinets, and office furniture, from Sugatsune / LAMP® (Japan)

High-quality small handle shell made of solid zinc alloy, surface: white bronze HH-DN-40WB

Application: Recessed handle HH-DN-40WB for sheet metal fronts, wooden fronts, drawers, cabinets, office furniture. Small, sturdy shell handle made of metal that can also be used very well with one finger. When used with the HH-DN-BKT bracket, the finger grip can also be installed in housings and furniture made of sheet metal. The HH-DN-40WB recessed grip can be installed in both sheet metal and wood. The high-quality handle shells HH-DN-40WB are ideal for, among others:

• Sheet metal fronts
• wooden fronts
• Drawers
• Cabinets
• Office furniture
• Living room cabinet
• kitchen furniture
• bedroom furniture

Material:

• The high-quality handle shells HH-DN-40WB are made of solid zinc alloy (ZDC)
• Inner casing: plastic (HIPS), black

Surface:

• white bronze

Assembly:

• The mounting is done using the screws included in delivery (truss head screw M4 x 12 mm (for mounting on wood))
• For installation, a cutout in the front with the dimensions (L3 x H3) 46 mm (1-13/16″) x 36 mm (1-27/64″) must be made
• Furthermore, when mounting in the wood, two holes must be drilled with a distance of 32 mm (1-17/64″) for the screws
• When mounting in sheet metal, the spacer HH-DN-BKT must be used (please order separately)
• When mounting in wood, the fixing holes must be made according to the drawing (for further details see assembly drawing )

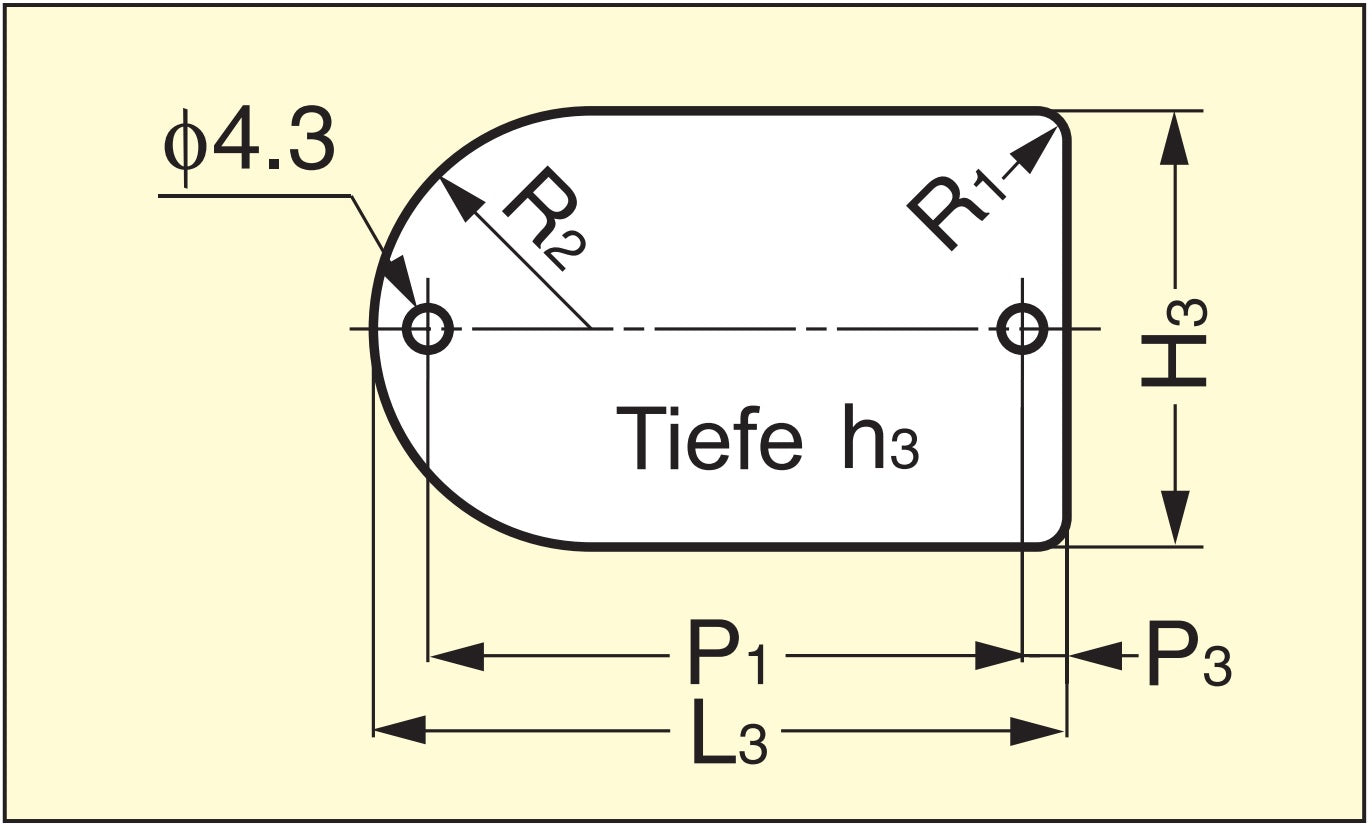

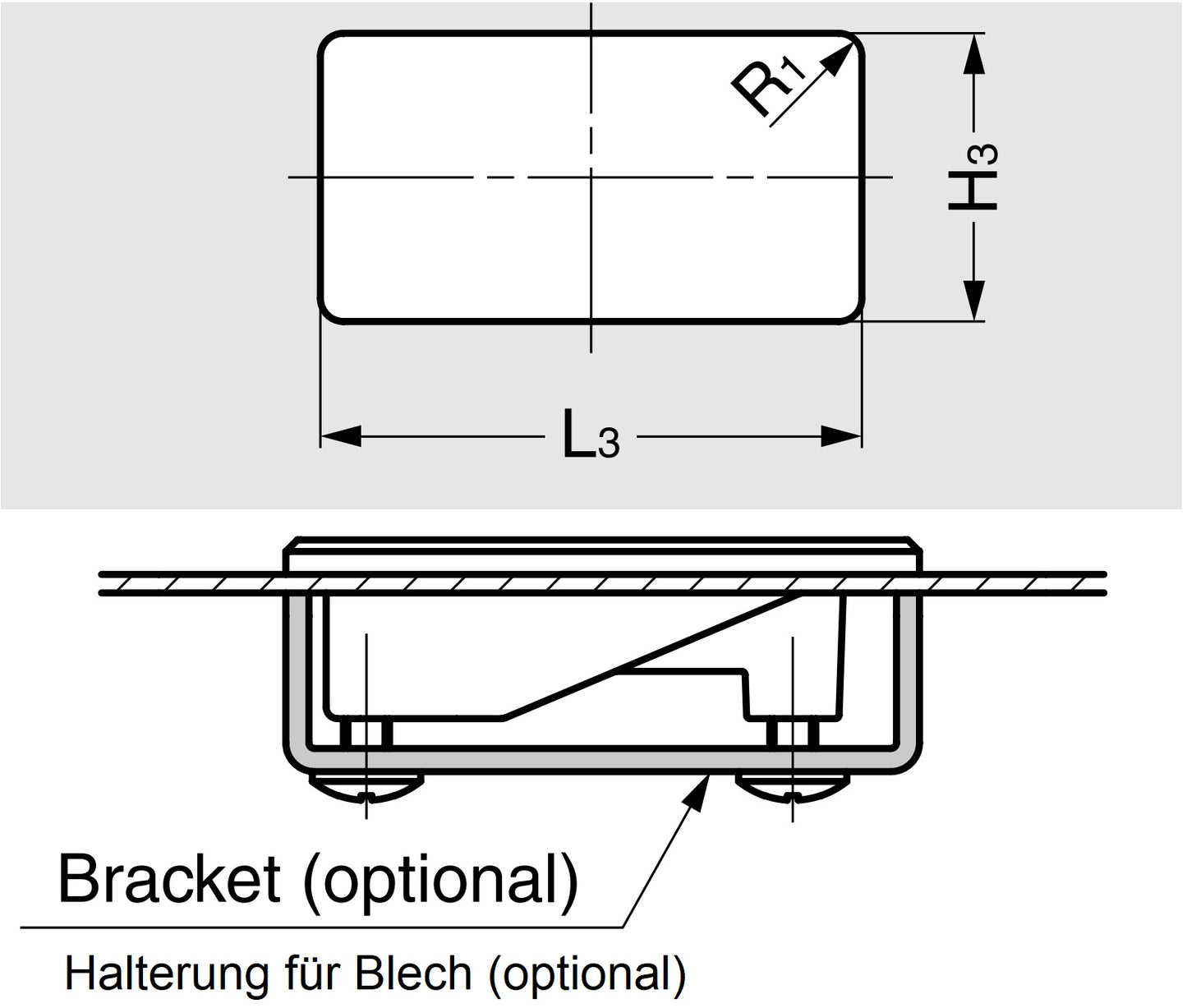

[caption id="attachment_107456" align="alignnone" width="420"] Small, high-quality finger grip, made of solid zinc alloy, white bronze finish, HH-DN-40WB, 55 mm, by Sugatsune, white bronze. Assembly drawing[/caption] [caption id="attachment_107474" align="alignnone" width="420"] Small, high-quality finger grip, made of solid zinc alloy, white bronze finish, HH-DN-40WB, 55 mm, by Sugatsune, white bronze. Mounted in sheet metal.[/caption] Characteristics:

• Weight: 35 g
• Size: 55 mm (2.2″)
• Elaborately processed
• Ergonomic
• Stable
• Solid
• Robust
• white bronze
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Height of the grip (L1): 55 mm (2-11/64″)
• Width (H1): 40 mm (1-37/64″)
• Distance between mounting holes (P1): 32 mm (1-17/64″)
• Height of the grip area (L2): 31.5 mm (1-15/64″)
• Width of the grip area (H2): 31.5 mm (1-15/64″)

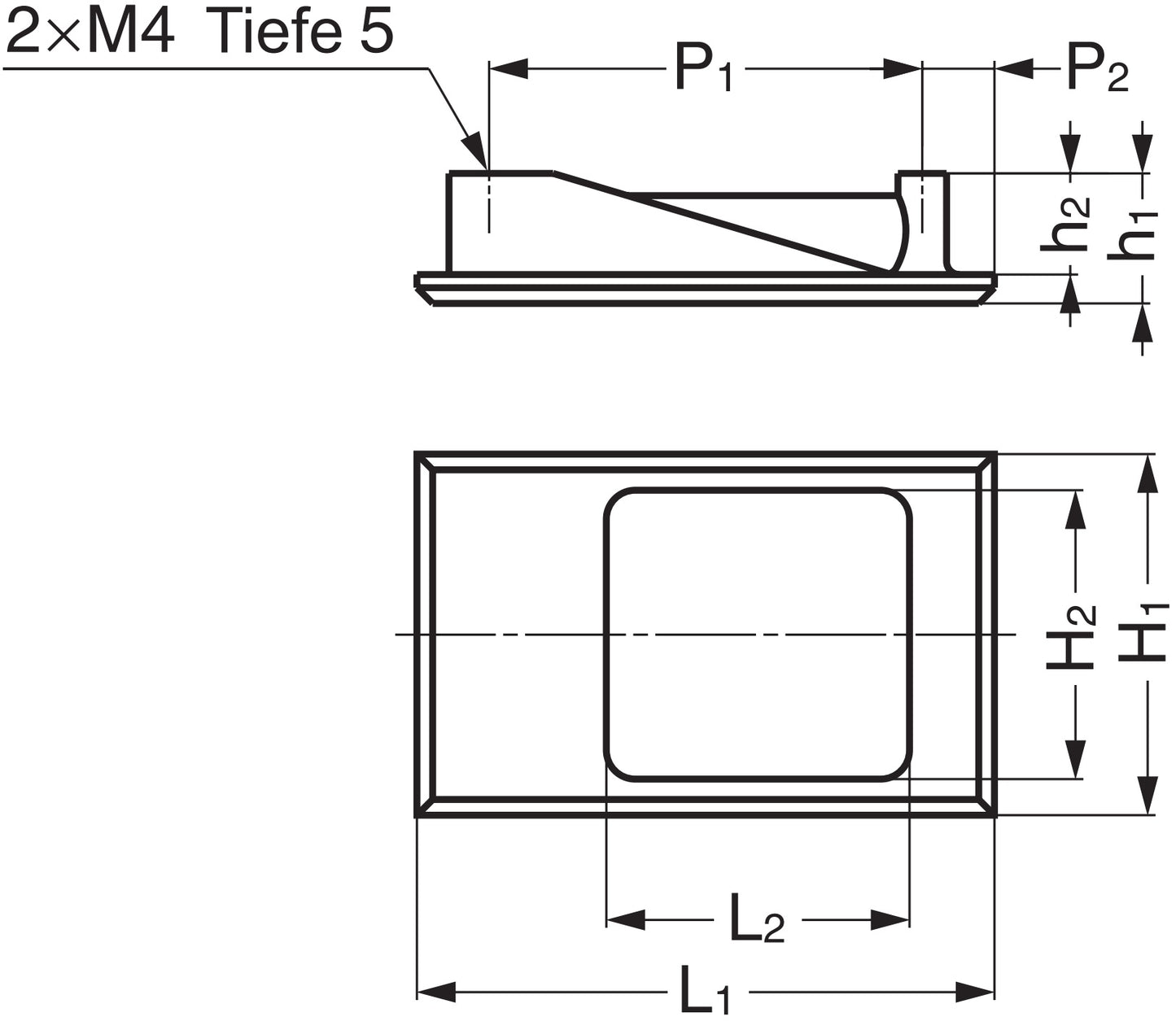

[caption id="attachment_107492" align="alignnone" width="420"] Small, high-quality finger grip, made of solid zinc alloy, white bronze finish, HH-DN-40WB, 55 mm, by Sugatsune, white bronze. Technical drawing[/caption] Included in delivery:

• 1 piece handle shell HH-DN-40WB made of solid zinc alloy, white bronze
• 2 pcs. truss head screws M4 x 12 mm (for mounting on wood)

Manufacturer reference number:

• Article number: 100-014-085
• Item number: HH-DN-40WB
• EAN number: 4510932010078
• Old article number: 5103-55

Manufacturer: Sugatsune / LAMP® (Japan)
