Tiomos Mirro complete mirror hinge set, including mounting plate for glass and mirror, mounting plate for wooden wall and cover cap, made of solid die-cast zinc, surface: nickel-plated, F029140325

Application:

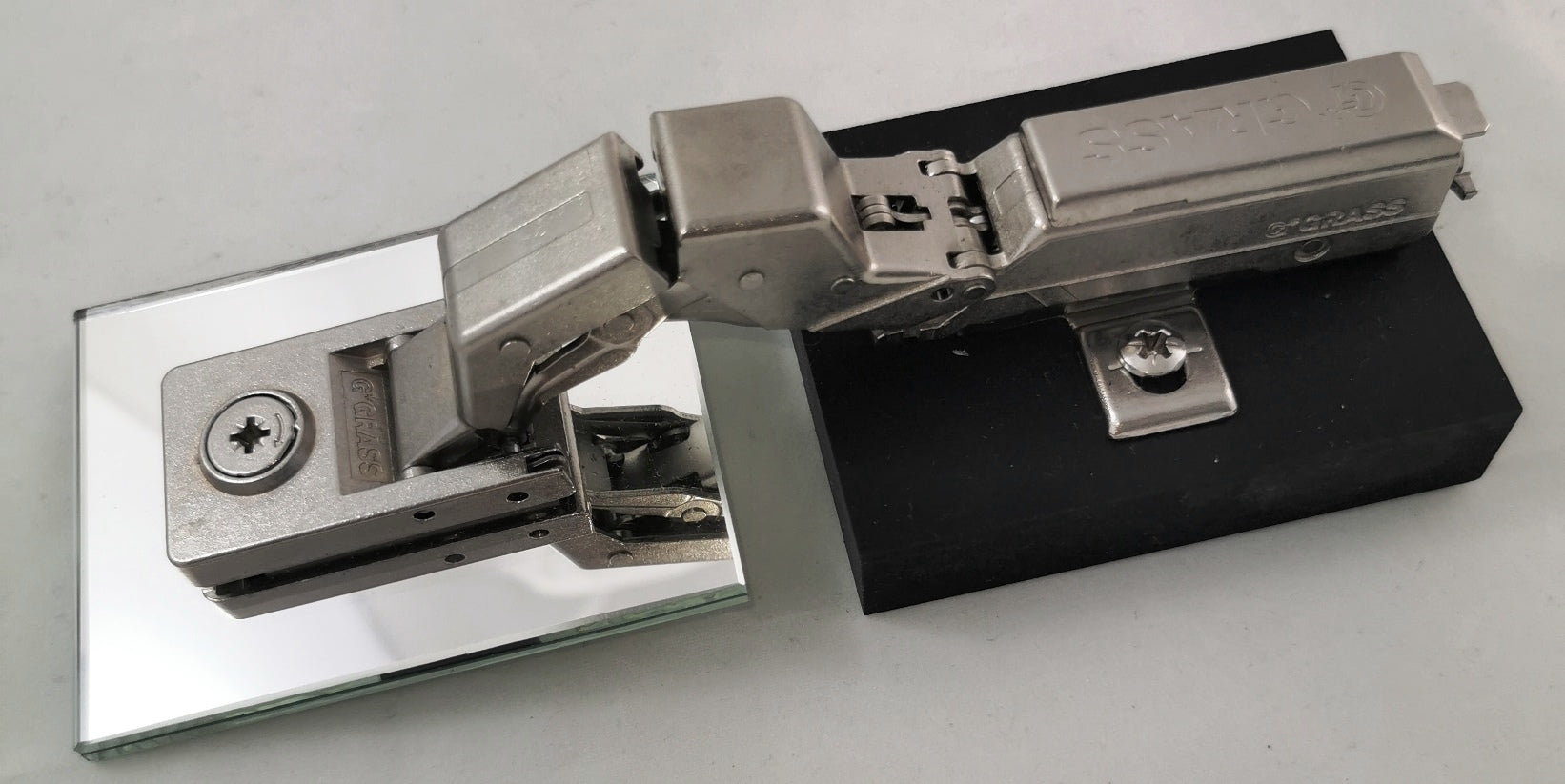

Glass hinge for glass doors, mirrored doors and much more.

The mirror hinge F029140325 can be used as a replacement for a defective Tiomos Mirro glass hinge from the manufacturer GRASS.

Mounting without drilling into the glass by gluing a Zamak adapter to the door side.

The hinge is connected to the adapter via an integrated eccentric.

The hinge system has 4 adjustment options: support adjustment (lateral adjustment): ±2 mm, depth adjustment: +3/-2 mm, height adjustment ±2 mm and a damping system integrated into the hinge arm that can be adjusted without tools.

Click-On: tool-free mounting of the door to the cabinet. 125° opening angle, for door overlays up to 19 mm.

With locking mechanism and soft-close damping - the door closes quietly and is held closed by an integrated spring.

The high-quality glass hinges F029140325 are ideally suited for, among other things:

• Substitute
• repair
• Glass door
• Mirror door

Material:

• The glass hinges F029140325 are made of solid die-cast zinc.
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that appear durable and valuable.
• Thanks to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use.

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms.
• They offer an elegant, glossy look that appears modern and timeless at the same time.
• Furthermore, they are easy to care for, as they make dirt and fingerprints less visible and are easy to clean.

Assembly:

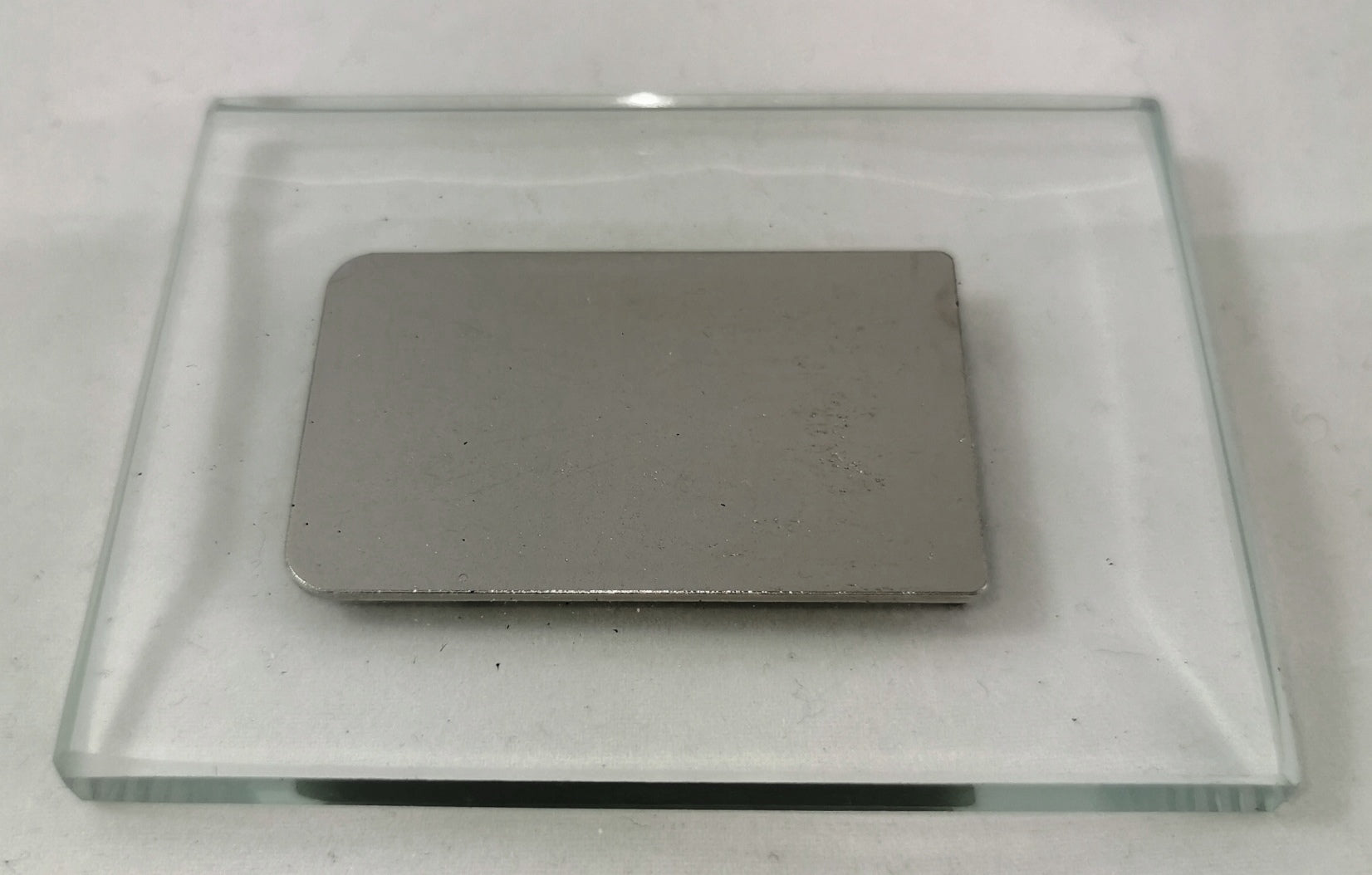

• First, the Zamak adapter is glued to the glass or mirror door. Please use a suitable adhesive and follow the adhesive manufacturer's instructions.
• Next, the hinge is connected to the adapter and secured via the integrated eccentric.
• Then the mounting plate is attached to the cabinet wall.

Characteristics:

• Weight: 200 g
• easy to assemble
• practical
• stable
• Opening angle: 125°
• With locking mechanism (with spring)
• Door mounting to the body: Click-on, tool-free
• Door overhang: up to 19 mm.
• Support adjustment (lateral adjustment): ±2 mm
• Depth adjustment: +3 / -2 mm
• Height adjustment ±2 mm
• Soft-close damping: integrated into the hinge arm
• Soft-close damping adjustment: 3 levels, tool-free
• nickel-plated
• Zamak
• Zinc die-casting
• High brand quality from UMAXO®

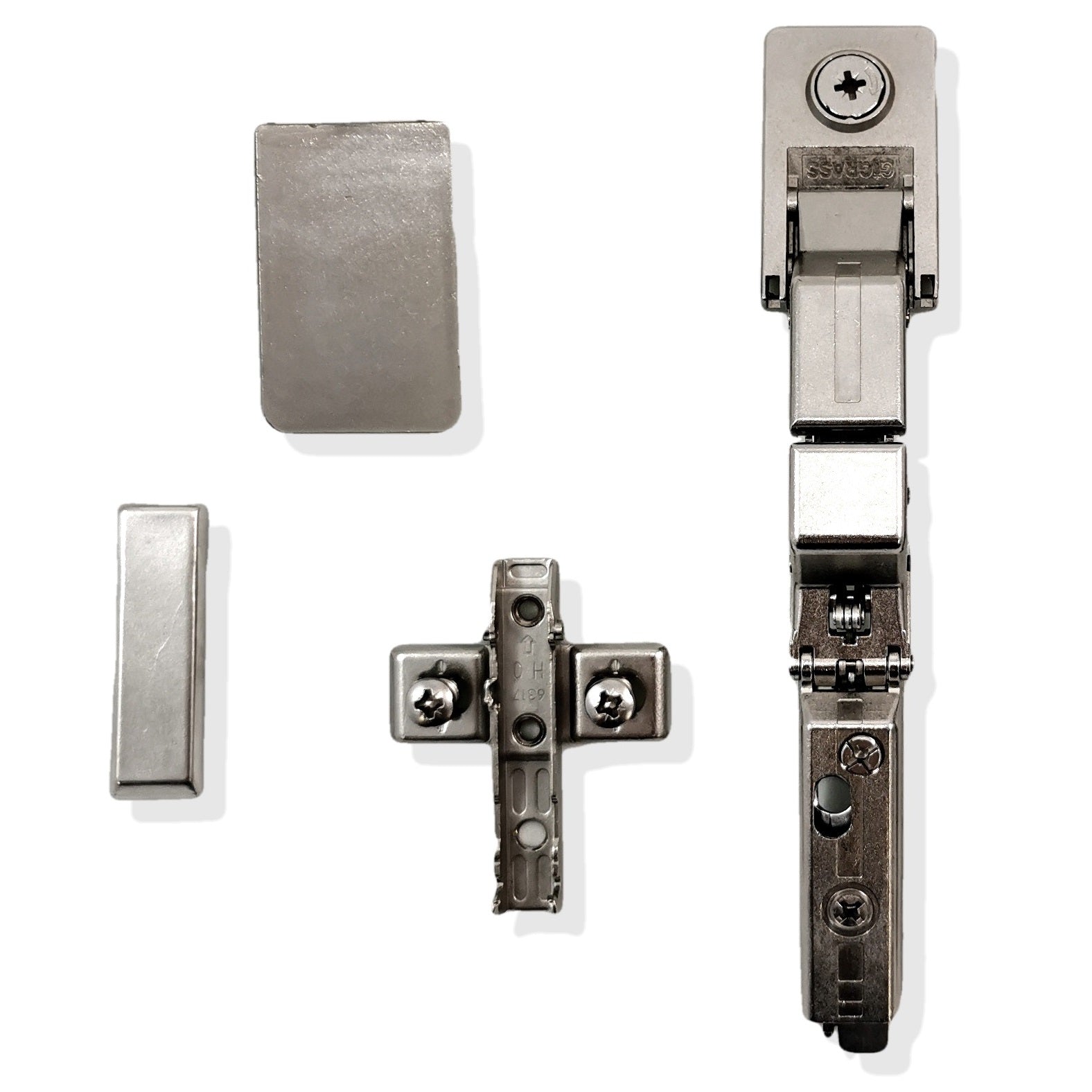

Included in the delivery:

• 1 set of mirror hinges F029140325 made of solid die-cast zinc, nickel-plated
• 1 piece mounting plate for glass and mirrors for gluing (Zamak adapter)
• 1 cross-shaped mounting plate for cabinet body
• 1 piece cover cap for hinge arm
• Please note that no mounting screws are included.

Watch the product video:

Manufacturer's reference number:

• Article number: F029140325 (alternatively: F029140325217)
• GTIN number (EAN, UPS): 9003012994078

Manufacturer: GRASS
