Lange Einlassgriffmuschel zum Ablängen aus Aluminiumlegierung, Oberfläche: eloxiert, 300 mm (11,9″) XLA-HHA300. Einlassgriff XLA-HHA300 für Holzschränke, Metallschränke, Elektrogeräte, Industriemaschinen, von Sugatsune / LAMP® (Japan)

High-quality recessed handle made of robust aluminum alloy, surface: anodized, XLA-HHA300

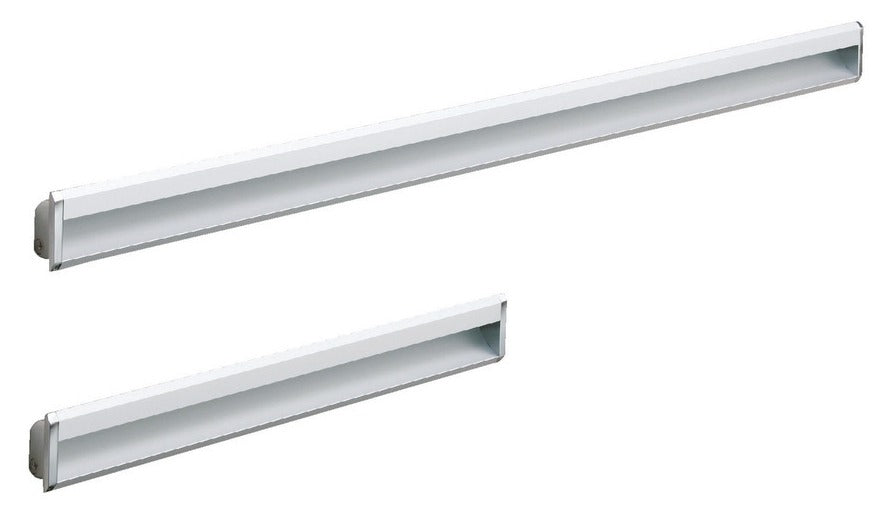

Application: Recessed handle XLA-HHA300 for wooden cabinets, metal cabinets, electrical appliances, industrial machines. [caption id="attachment_111849" align="alignnone" width="420"] Long recessed pull handle for cutting to length, made of aluminum alloy, surface: anodized, XLA-HHA300, 300 mm, by Sugatsune[/caption] The high-quality inlet handles XLA-HHA300 can be shortened to the appropriate length. The inlet handle XLA-HHA300 is ideal for, among other things:

• Office furniture
• industrial plants
• wooden cabinets
• Metal cabinets
• Electrical appliances
• industrial machinery

Material:

• The high-quality inlet handles XLA-HHA300 are made of aluminum alloy (aluminum)

Surface:

• Anodized

Assembly:

• The fastening is carried out using the screws included in delivery (truss head screw M4 x 10 mm)
• The fastening screws are also made of stainless steel
• For installation, a cutout in the front with the length (C) 297 mm (11-11/16″) and the width 31 mm (1-7/32″) must be made
• The depth of the cutout should be 15 mm
• For mounting in the sheet metal, 4 pieces of screw brackets XLA-HHA40B should be used
• The mounting holes are 100 mm (3-15/16″) or 50 mm (1-31/32″) apart (for further details see assembly drawing )

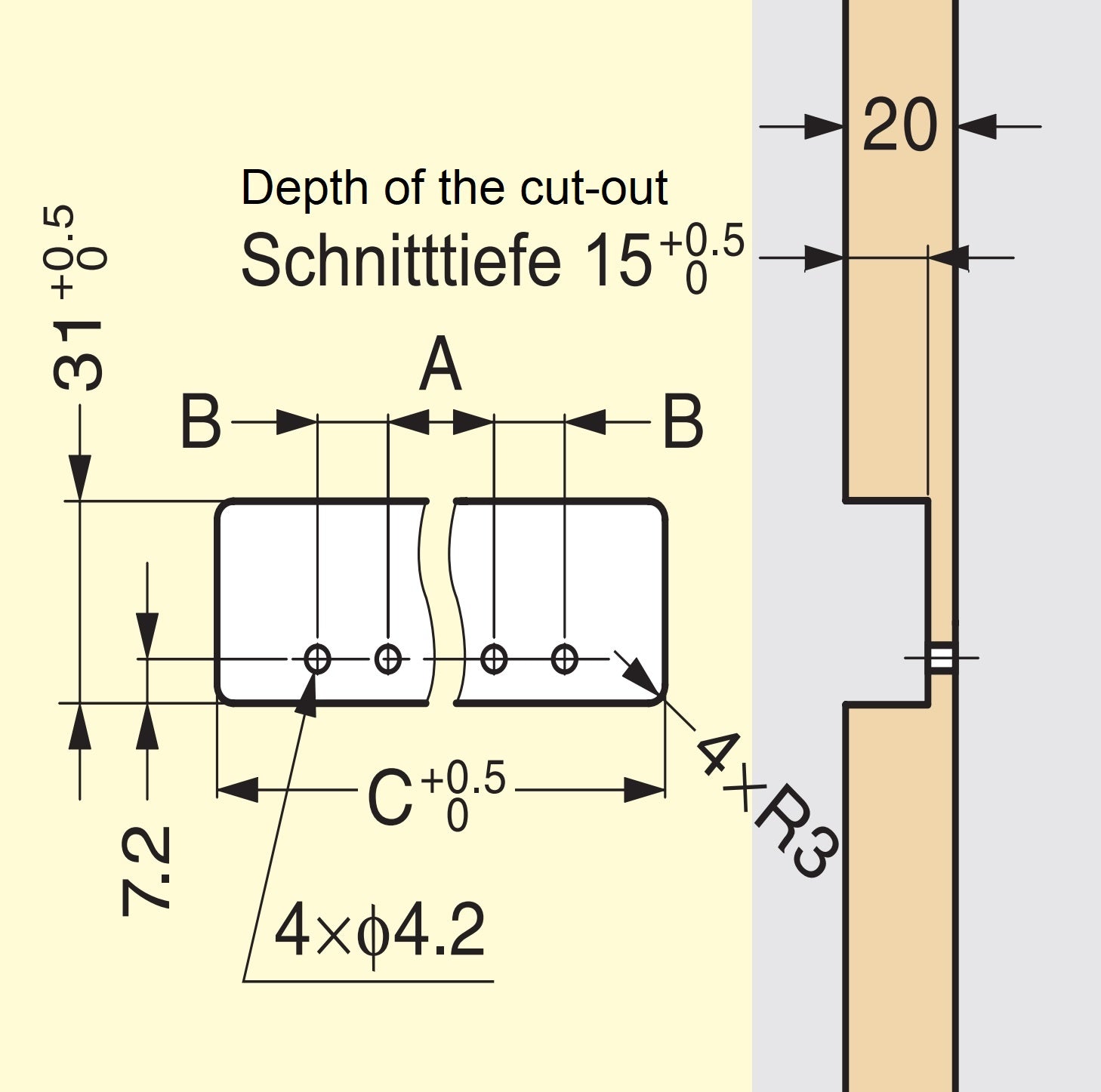

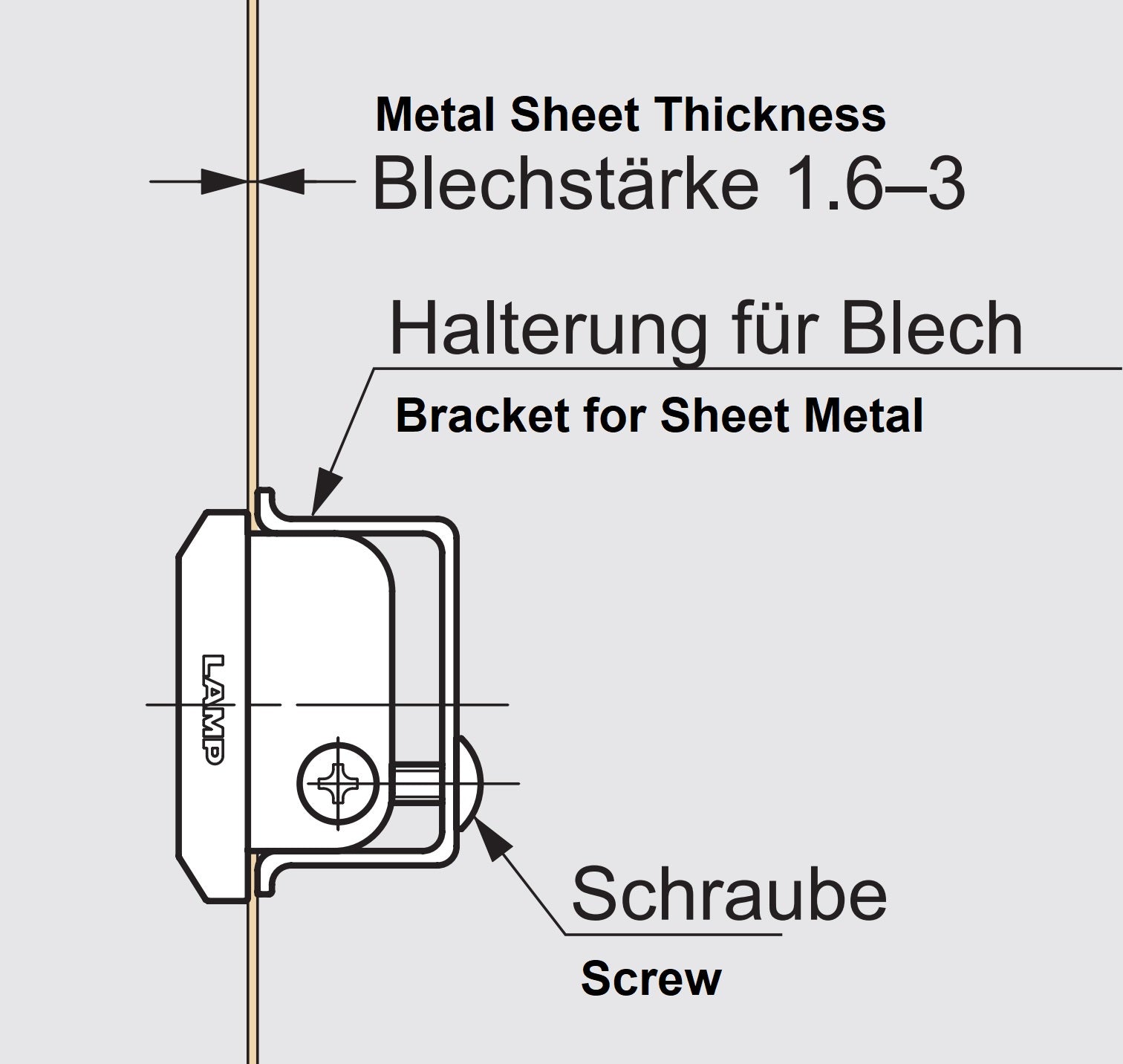

[caption id="attachment_111867" align="alignnone" width="420"] Long recessed pull handle for cutting to length, made of aluminum alloy, anodized finish, XLA-HHA300, 300 mm, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_111885" align="alignnone" width="420"] Long recessed pull handle for cutting to length, made of aluminum alloy, anodized finish, XLA-HHA300, 300 mm, from Sugatsune. Mounting in sheet metal.[/caption] Characteristics:

• Weight: 140 g
• Size: 300 mm (11.9″)
• Elaborately processed
• Ergonomic
• Stable
• Robust
• Anodized
• High brand quality from Sugatsune / LAMP®

The dimensions: For further dimensions and details see technical drawing .

• Length of the inlet handle (L): 300 mm (11-13/16″)
• Width: 40.8 mm (1-39/64″)
• Depth of the grip area: 14.5 mm (37/64″)

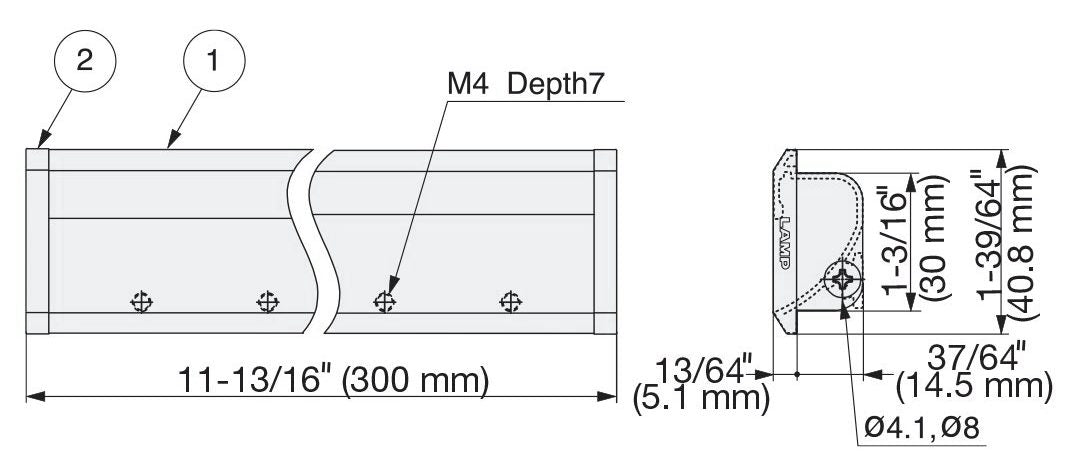

[caption id="attachment_111903" align="alignnone" width="420"] Long recessed pull handle for cutting to length, made of aluminum alloy, anodized finish, XLA-HHA300, 300 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

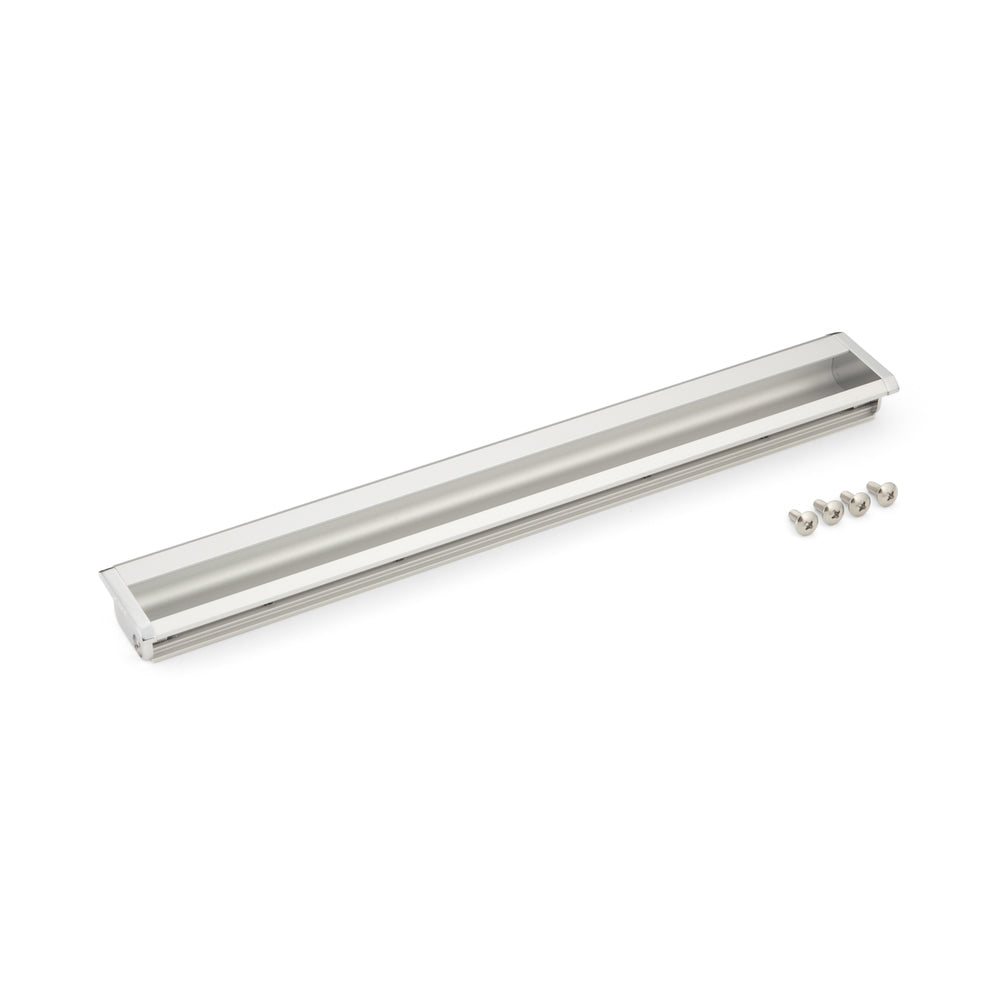

• 1 piece inlet handle XLA-HHA300 made of robust aluminum alloy, anodized
• 4 pieces of truss head screws M4 x 10 mm made of stainless steel

Manufacturer reference number:

• Article number: 100-010-190
• Item number: XLA-HHA300
• EAN number: 4510932040396

Manufacturer: Sugatsune / LAMP® (Japan)
