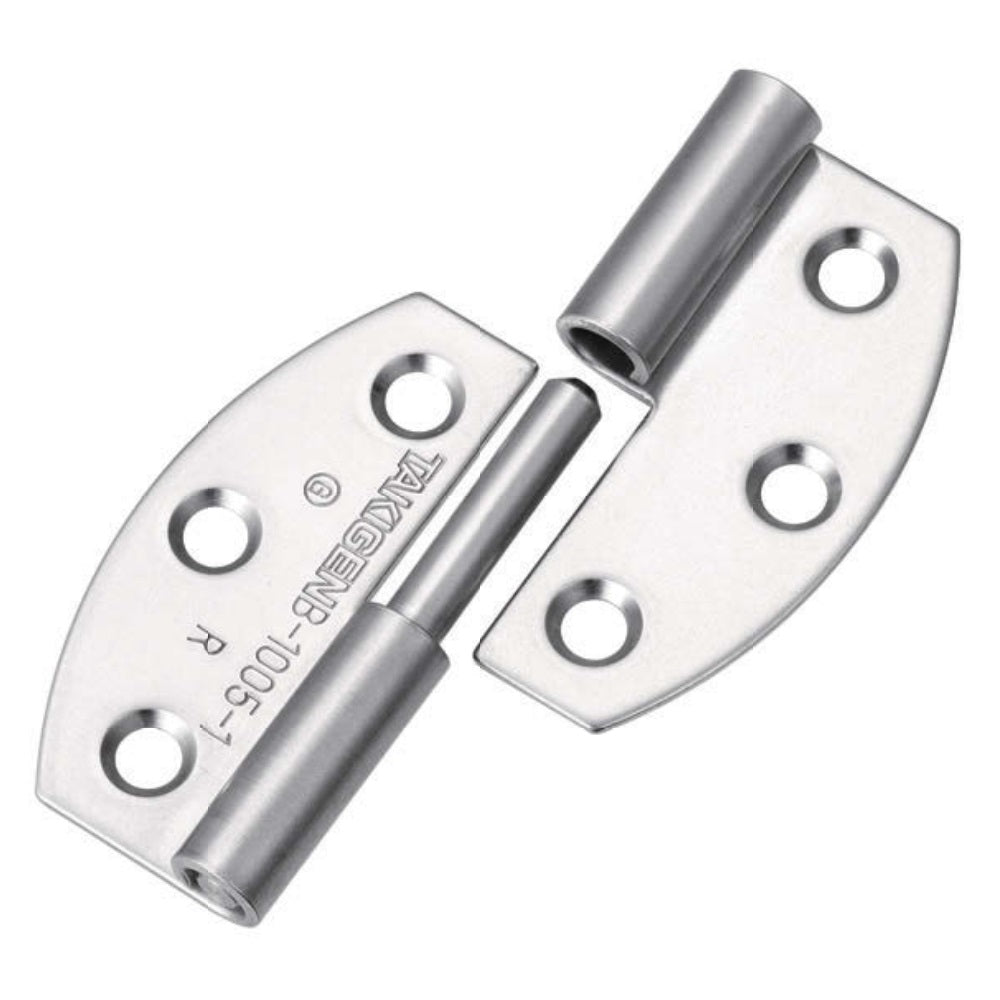

2 high-quality lift-off hinges made of SUS304 stainless steel, surface: glossy polished, 31 mm (1.3"), right-hand version, B-1005-3-R. High-quality V2A lift-off hinges for humid environments, ships, outdoor kitchens, and much more, from TAKIGEN (Japan).

2 lift-off hinges made of stainless steel (V2A), surface: glossy polished, B-1005-3-R

Application: High-quality hinge made of V2A for humid environments, ships, outdoor kitchens and much more. Thanks to the removal function of the B-1005-3-R lift-off hinge, the door can be easily removed after installation by lifting it up. The door can then be quickly reinstalled in its original position. The lift-off hinges B-1005-3-R are only suitable for vertical use. The high-quality lift-off hinges B-1005-3-R have a simple design and are ideal for, among others:

• Outdoor furniture
• Bathroom furniture
• Cruise ships
• Caravan
• yachts
• Medical field
• humid environment
• ships
• outdoor kitchen

Material:

• The lift-off hinges B-1005-3-R are made of stainless steel (V2A)

Surface:

• Shiny polished

Assembly:

• The mounting is done with M2.5 screws (not included)
• One part of the hinge is attached to the door and one part to the wall or the furniture body
• Thanks to the removal function of the B-1005-3-R Lift-Off hinge, the door can be mounted very quickly in the desired location

Characteristics:

• Version: right
• Weight: 5 g
• Load capacity: 2 kg
• Size: 31 mm (1.3″)
• high quality
• stable
• robust
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from TAKIGEN®

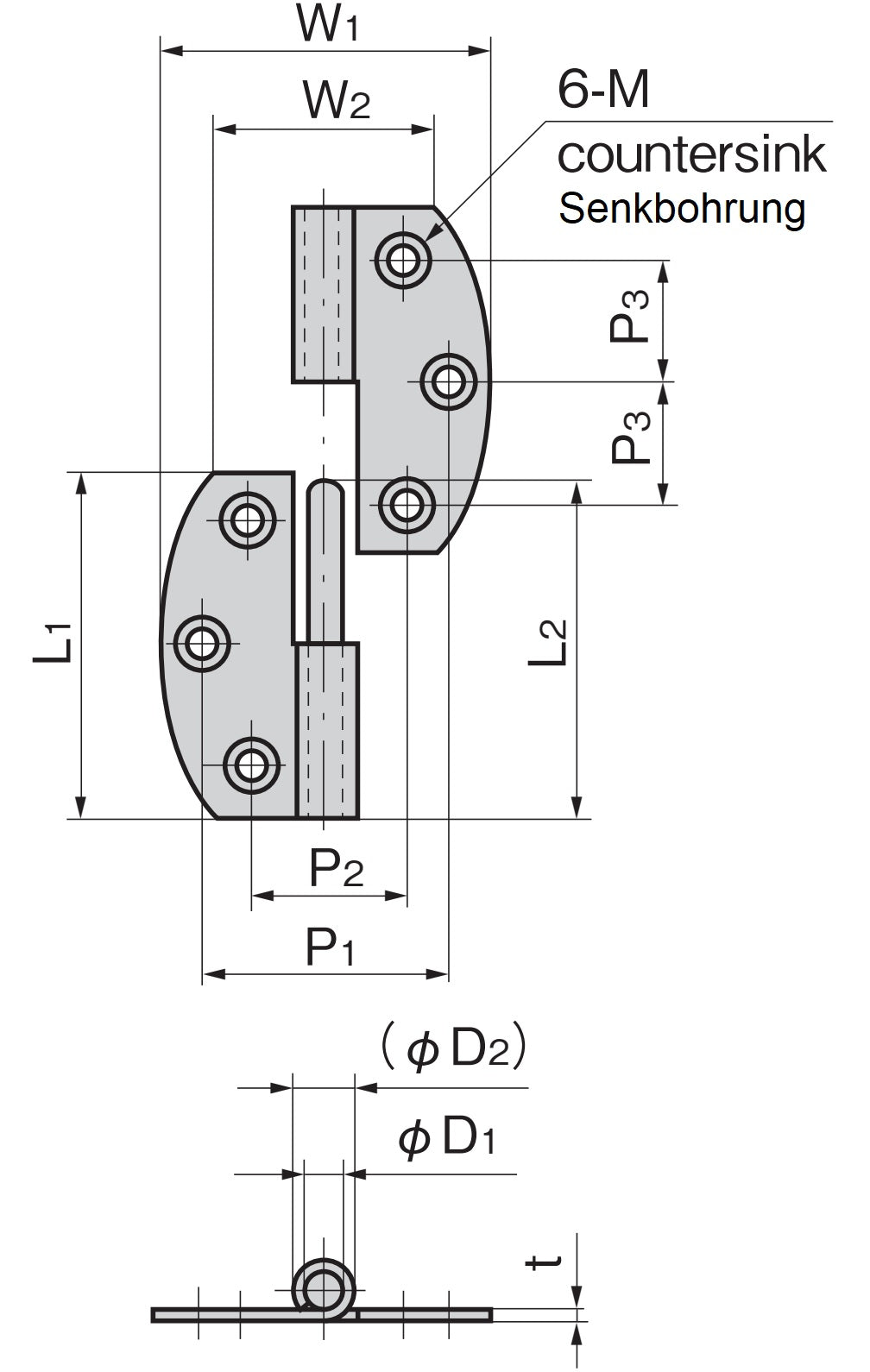

For further dimensions and details see technical drawing . The dimensions:

• Length of the lift-off hinge (L1): 31 mm (1-7/32″)
• Width (W1): 28 mm (1-7/64″)
• Material thickness (t): 0.8 mm (1/32″)
• Diameter of the axle (⌀D2): ⌀3.8 mm (5/32″)
• Distance between mounting holes (P3): 12.5 mm (31/64″)
• The drawing shows the right version of the hinge. The left version of the lift-off hinge has the same dimensions as the right version.

[caption id="attachment_123566" align="alignnone" width="266"] High-quality lift-off hinge made of SUS304 stainless steel, B-1005-3-R, 31 mm, from TAKIGEN, glossy polished. Technical drawing[/caption] Included in delivery:

• 2 pieces Lift-Off hinge B-1005-3-R made of stainless steel, shiny polished

Manufacturer reference number:

• Article number: 10574
• Item number: B-1005-3-R

Manufacturer: TAKIGEN (Japan)
