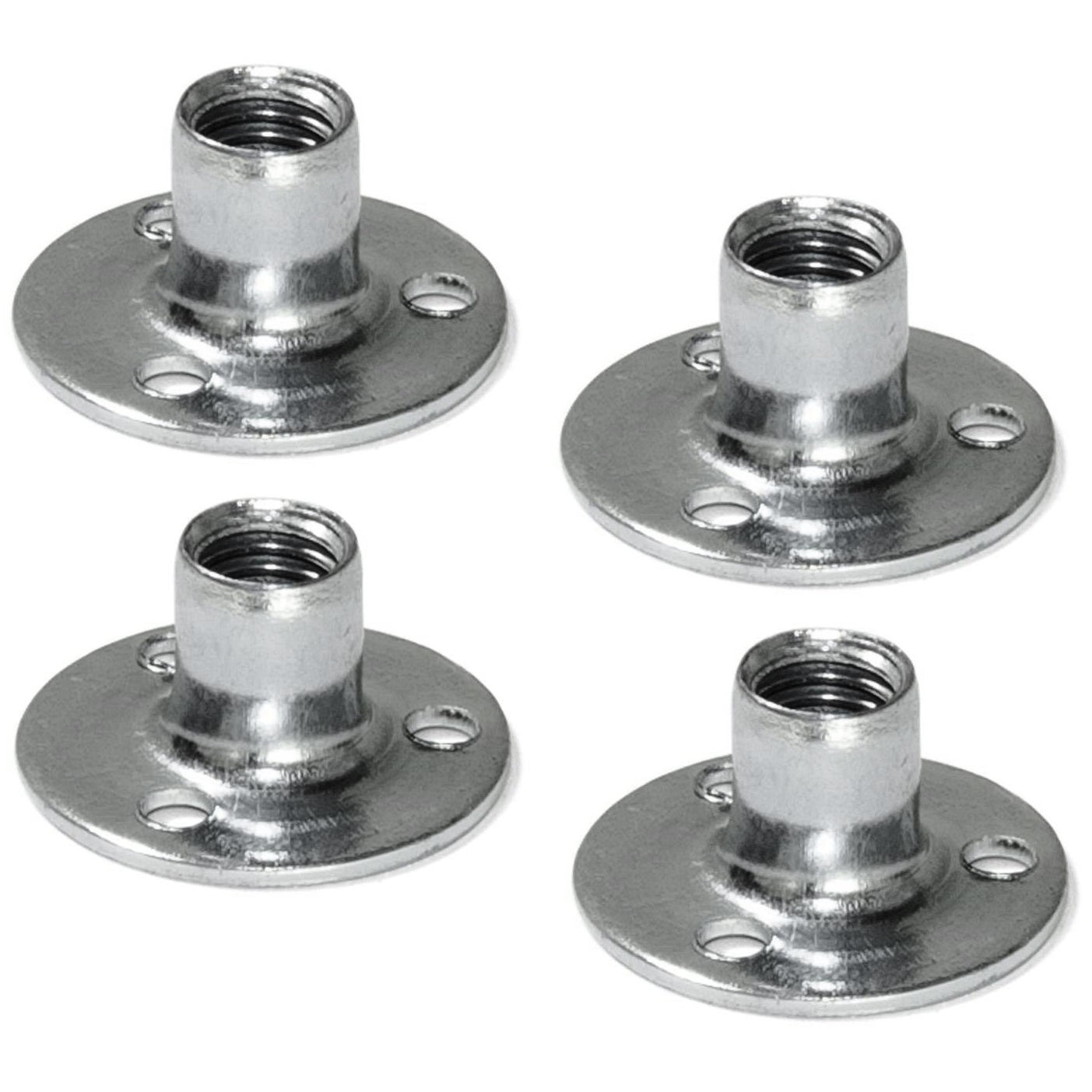

Mounting plate with M10 thread, mounting plate 5044605, 29 mm (1.2"). Screw-on plate for furniture feet, cabinet legs, sofa feet, leveling feet, appliance feet, articulated feet, adjustable feet, and machine feet, by EMUCA

Mounting plate with M10 thread, screw-on plate 5044605

Application: Screw-on plate for furniture feet, cabinet legs, sofa feet, leveling feet, appliance feet, articulated feet, adjustable feet, machine feet. The screw-on plate is used to attach furniture feet, leveling feet, etc. under furniture, sofas, appliances, machines, etc. Also suitable for replacing defective furniture feet or sofa feet. The galvanized surface protects the mounting plates from rust and corrosion. The high-quality mounting plates 5044605 are ideal for:

• Furniture feet
• Cabinet legs
• Sofa feet
• Leveling feet
• Device feet
• Articulated feet
• Adjustable feet
• Adjustable feet
• Machine feet

Material: Steel Surface:

• Galvanized

Assembly:

• The attachment is done with 3.5 mm screws (not included)

Characteristics:

• Size: 29 mm (1.2″)
• Around
• Robust
• Made of steel
• Galvanized
• High brand quality from UMAXO®

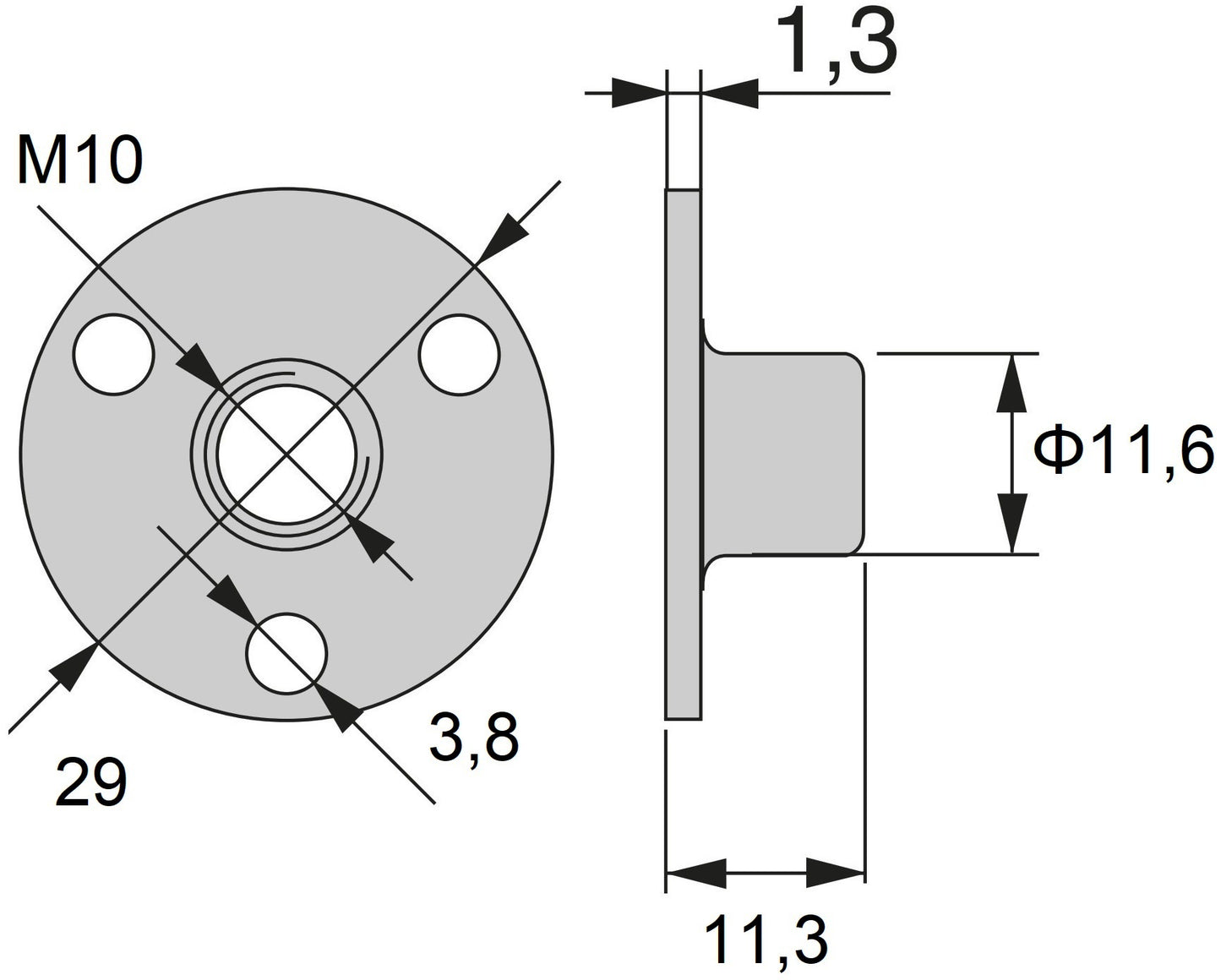

Dimensions: For further dimensions and details see technical drawing .

• Mounting plate diameter: Φ29 mm (1-5/32″)
• Height: 11.3 mm (14/32″)
• Thread: M10
• Mounting hole diameter: Φ3.8 mm (5/32″)
• Diameter of the upper part: Φ11.6 mm (15/32″)

[caption id="attachment_54700" align="alignnone" width="420"] Mounting plate with M10 thread, fixing plate 5044605, 29 mm, from EMUCA, galvanized. Technical drawing[/caption] Included in delivery:

• 4 pieces mounting plate 5044605

Manufacturer reference number:

• Article number: 5044605
• EAN number: 8432393111568

Manufacturer: EMUCA
