2 pieces of corrosion-resistant, robust mounting brackets, made of solid stainless steel, load capacity: 10 kg, surface: satin matte, 45 mm (1.8"), SU-45S. Shelf brackets for shelves, trays, and much more, from Sugatsune / LAMP® (Japan)

2 pieces of 3 mm thick mounting brackets, made of solid stainless steel (SUS304, V2A), surface: satin matt, SU-45S, size: 45 mm (1.8")

Application: Shelf brackets for shelves, trays and much more. [caption id="attachment_147327" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SU-45S, 45 mm, from Sugatsune, load capacity: 10 kg, satin finish. Available in three sizes: 30 mm, 45 mm, and 60 mm, and with two finishes: satin finish and high gloss polish. The SU-45S mounting brackets are made of solid 3 mm (1/8″) thick SUS304 stainless steel. The SU-45S shelf brackets combine high load capacity with excellent corrosion resistance. The SU-45S shelf bracket is very stable, has an excellent load capacity of 10 kg, and a support surface length of 45 mm (1.8″). [caption id="attachment_147337" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SU-45S, 45 mm, from Sugatsune, load capacity: 10 kg, satin finish. Application example[/caption] The high-quality SU-45S mounting brackets are ideal for, among other things:

• partition
• shelf
• yachts
• boats
• ships
• Outdoor area
• shelf
• shelf

Material:

• The SU-45S mounting brackets are made of solid stainless steel (SUS304, V2A)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive polished or satin finish that is both modern and easy to maintain

Surface:

• Satin matt
• Matte surfaces are less sensitive to fingerprints and dirt, making them easier to maintain
• They also give objects a modern, elegant look and harmonize well with different materials and colors

Assembly:

• The fastening is carried out using the screws included in delivery (raised countersunk head screw 3.1 x 20 mm)
• The fastening screws are also made of stainless steel
• The mounting brackets SU-45S have four mounting holes with a diameter of ⌀3.5 mm (9/64″), with countersunk

Characteristics:

• Weight: 23 g
• Load capacity: 10 kg (for two pieces)
• Size: 45 mm (1.8″)

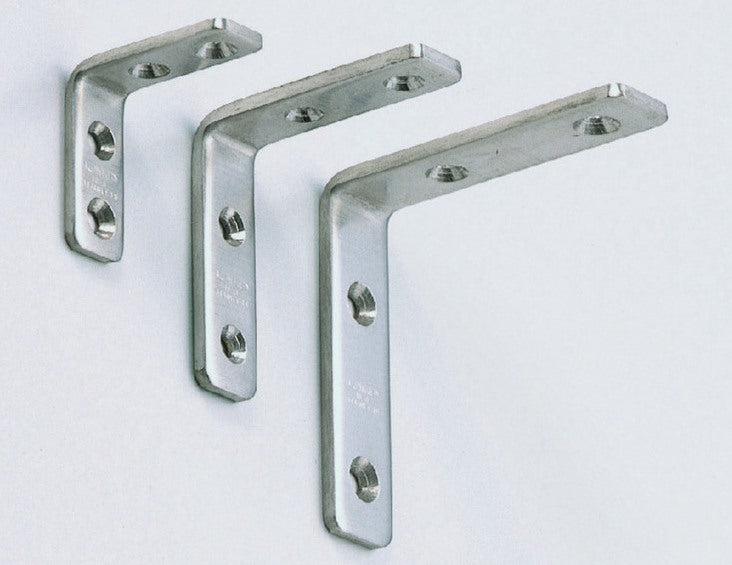

• Available in three sizes: 30 mm, 45 mm and 60 mm, and with two finishes: satin matt and glossy polished
• easy to assemble
• practical
• stable
• Material thickness: 3 mm (1/8″)
• satin matt
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Height of the mounting bracket: 45 mm (1.8″)
• Width: 13 mm (33/64″)
• Depth: 45 mm (1.8″)
• Material thickness: 3 mm (1/8″)

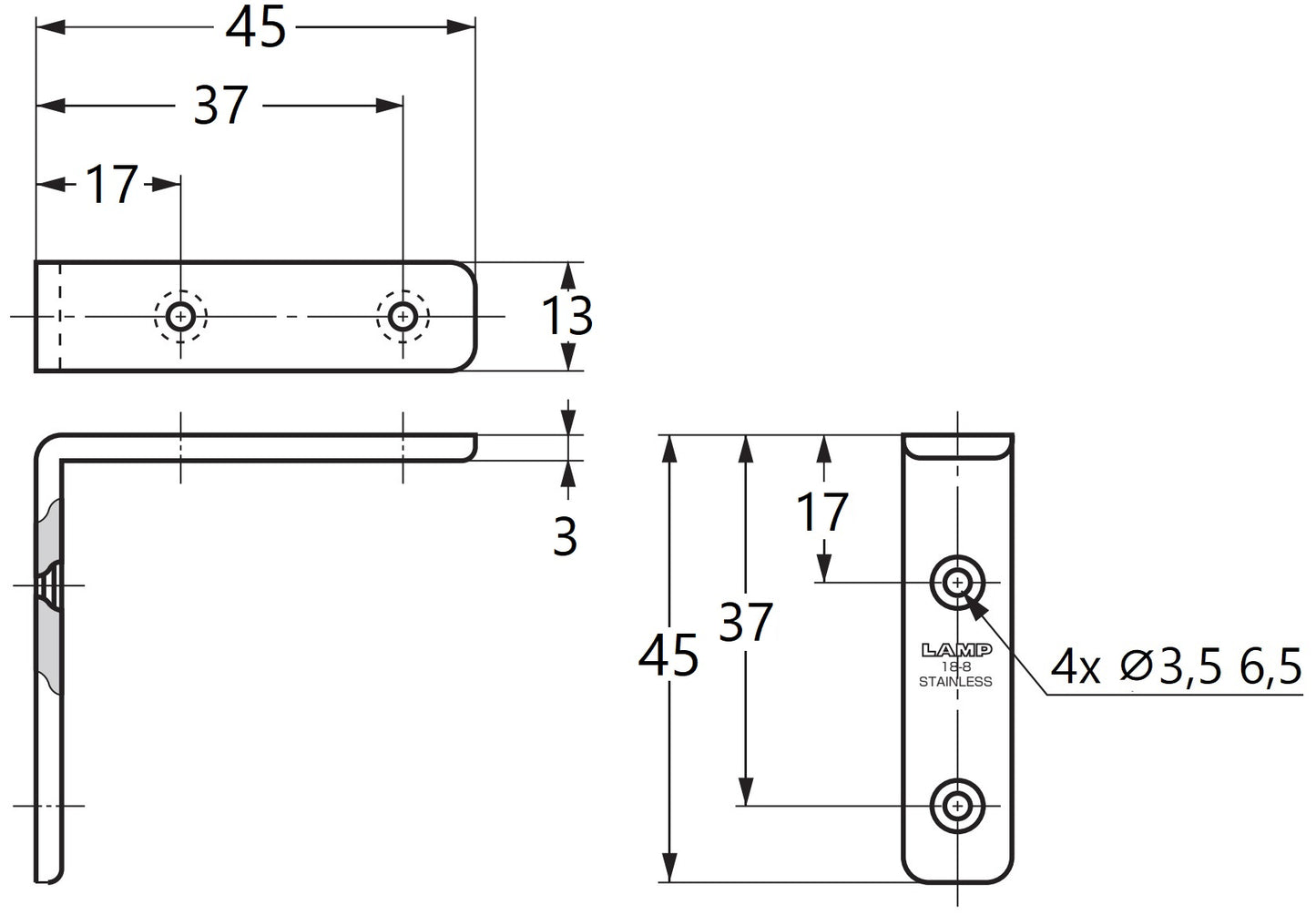

[caption id="attachment_147347" align="alignnone" width="420"] Corrosion-resistant, robust mounting bracket, SU-45S, 45 mm, from Sugatsune, load capacity: 10 kg, satin finish. Technical drawing[/caption] Included in delivery:

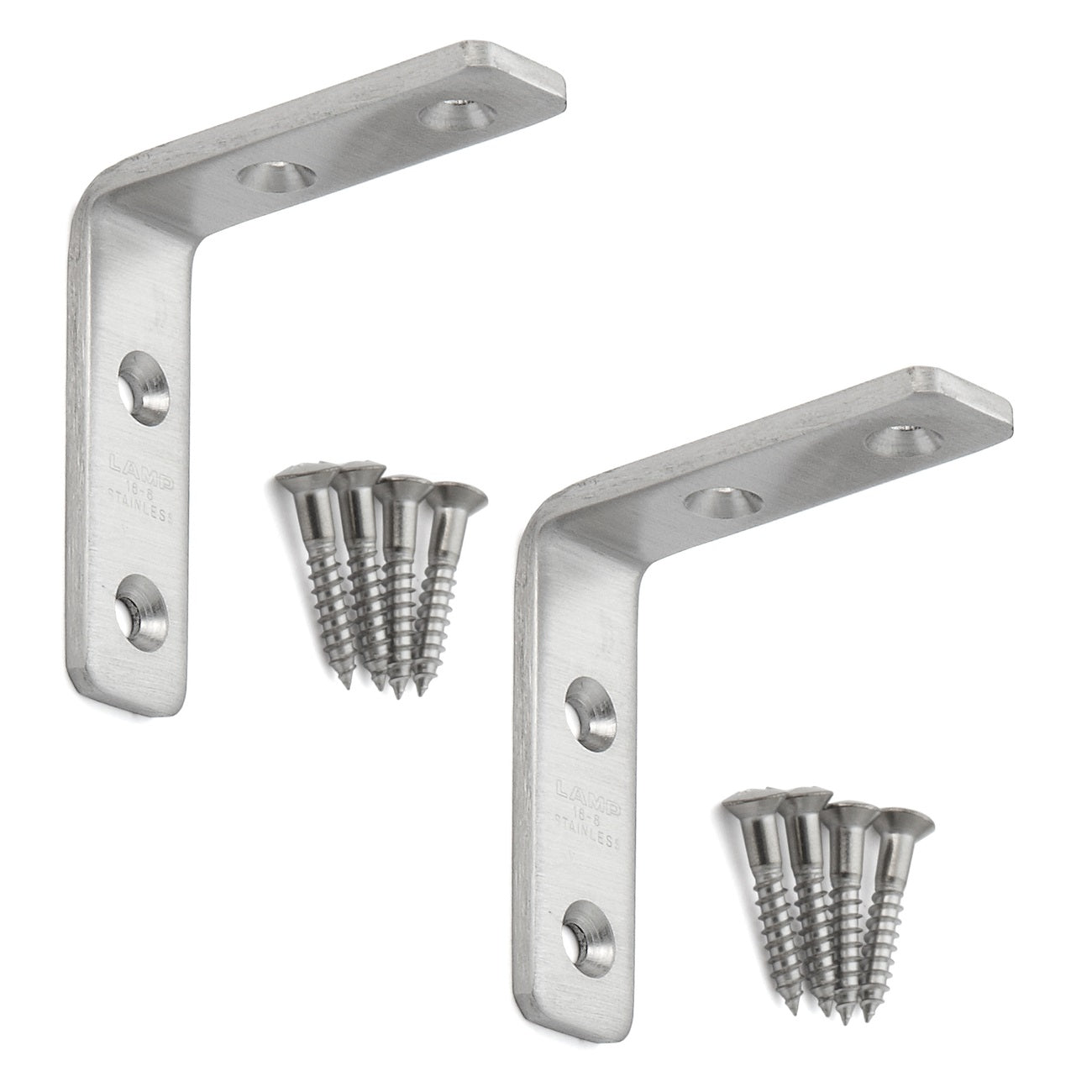

• two mounting brackets SU-45S made of solid stainless steel, satin matt
• 4 pieces of raised countersunk head screws 3.1 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 120-030-071
• Item number: SU-45S
• EAN number: 4510932005227

Manufacturer: Sugatsune / LAMP® (Japan)
