Mounting bracket, 50 mm (2"), NF-50D. Mounting clamp for sheet metal mounting, Sugatsune / LAMP. Folding hook, NF-60D, NF-R52, NF-R77, NF-K52, NF-K77, from Sugatsune / LAMP® (Japan).

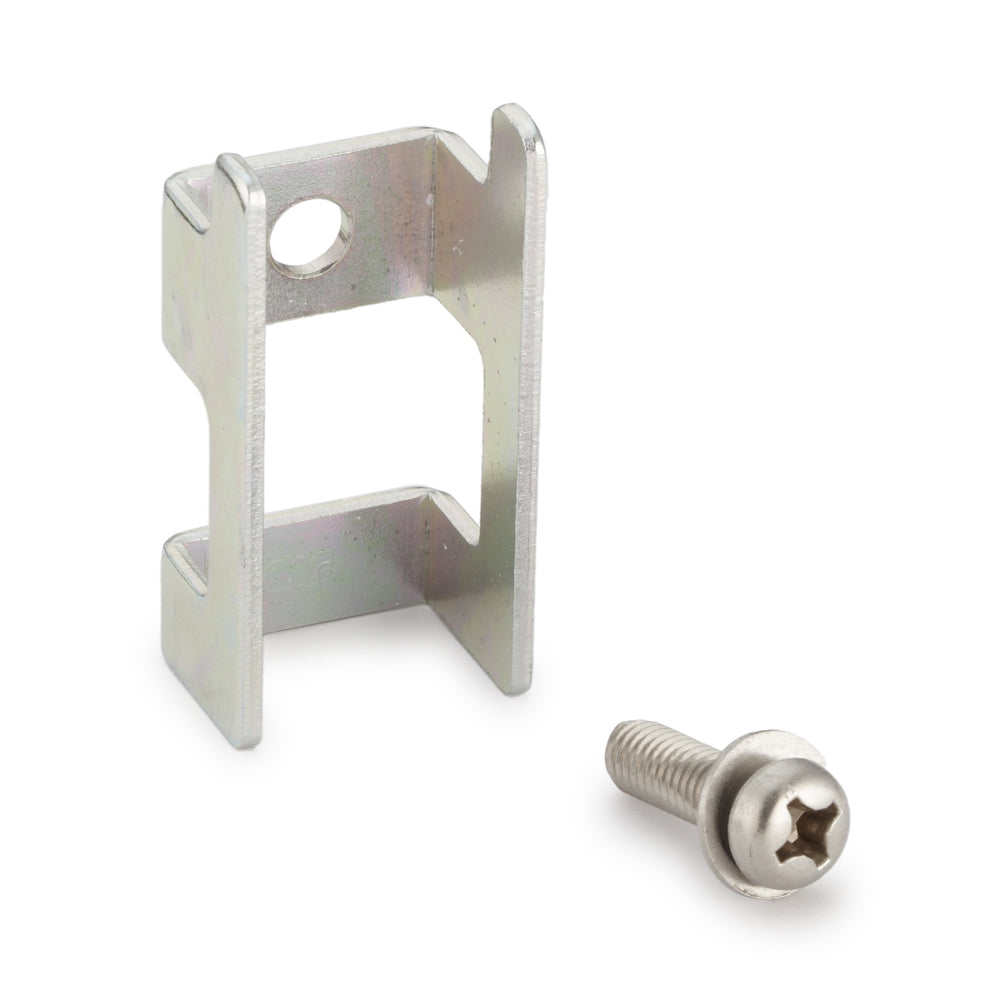

Mounting bracket, made of robust steel, surface: zinc chromate, NF-50D, size: 50 mm (2")

Application: Mounting clamp for sheet metal mounting, Sugatsune / LAMP folding hook, NF-60D, NF-R52, NF-R77, NF-K52, NF-K77. The mounting bracket NF-50D can be used for mounting in metal sheets with a thickness of at least 0.8 mm. [caption id="attachment_131740" align="alignnone" width="420"] Mounting bracket, NF-50D, 50 mm, from Sugatsune. Application[/caption] The maximum metal thickness of the wall can be up to 1.6 mm (up to 4.0 mm for the NF-60D). The high-quality NF-50D mounting brackets have a simple and practical design and are ideal for, among other things:

• Sheet metal furniture
• Metal cabinets
• Metal housing
• Sheet metal assembly
• Sugatsune / LAMP folding hook
• NF-60D
• NF-R52
• NF-R77
• NF-K52
• NF-K77

Material:

• The NF-50D mounting brackets are made of robust steel

Surface:

• Zinc chromate

Assembly:

• The mounting is done using the screws included in delivery (M4 x 14 mm flat head screw)
• The fastening screws are made of stainless steel
• The mounting bracket NF-50D has a mounting hole with a diameter of 6.4 mm (1/4″) for mounting in metal sheet
• The folding hook must be inserted into the cutout in the sheet metal from the front for screwing
• Then the mounting bracket is mounted on the back of the folding hook and screwed in place (for further details see assembly drawing ).

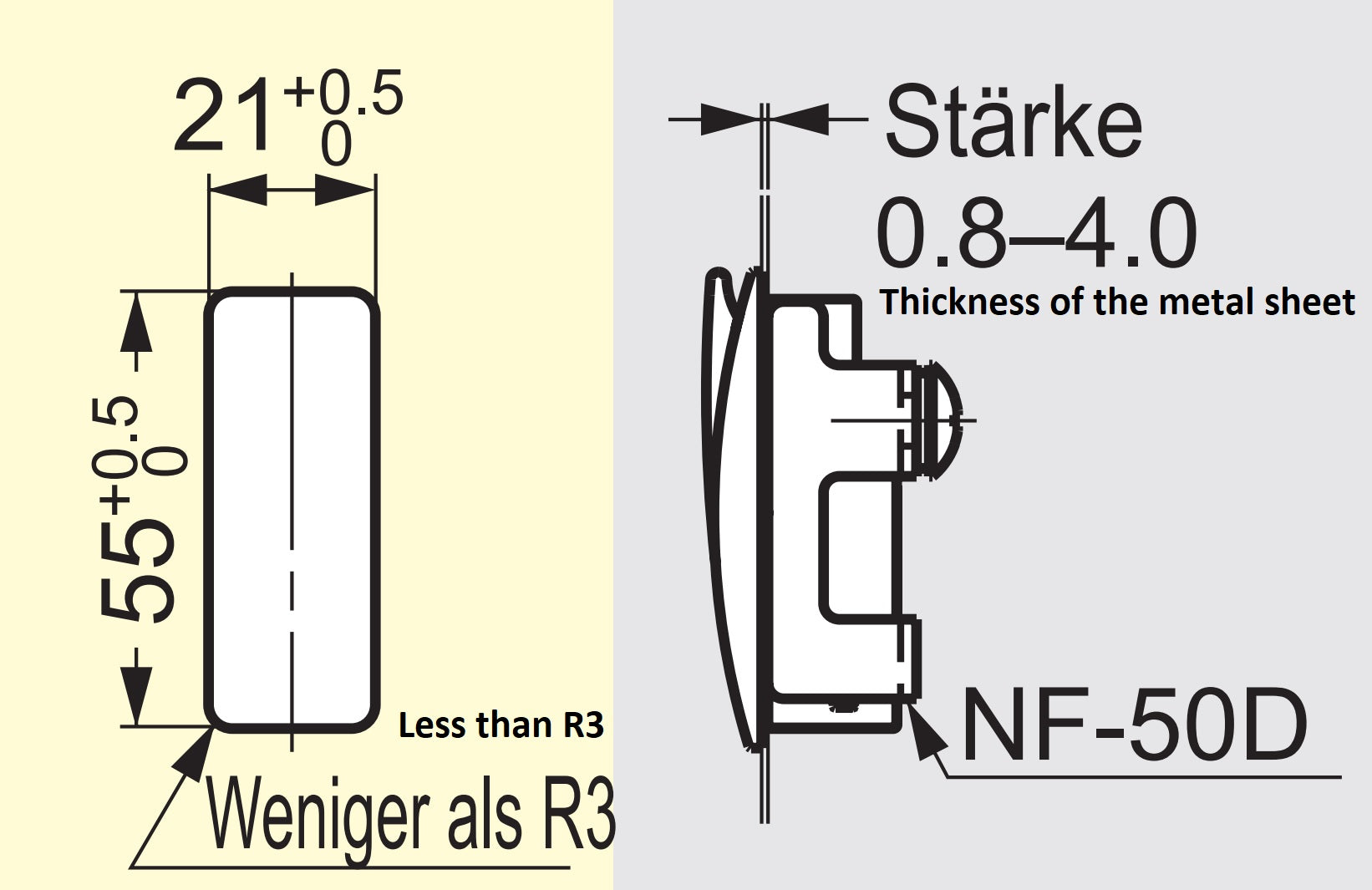

[caption id="attachment_131752" align="alignnone" width="420"] Mounting bracket, NF-50D, 50 mm, from Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 25 g
• Size: 50 mm (2″)
• high load capacity
• stable
• Zinc chromate
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

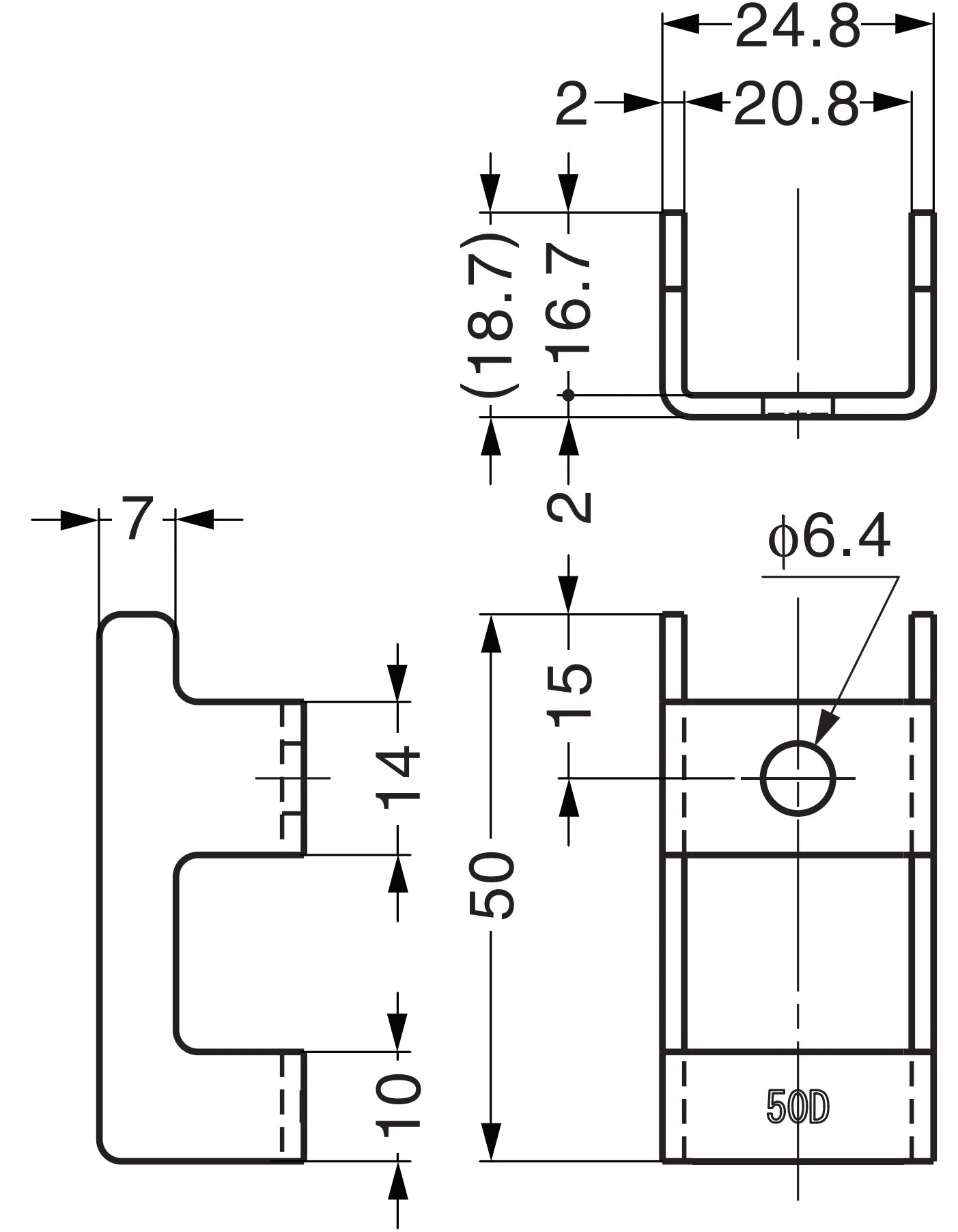

For further dimensions and details see technical drawing . The dimensions:

• Length of mounting bracket: 50 mm (1-31/32″)
• Width: 24.8 mm (31/32″)
• Depth: 18.7 mm (47/64″)
• Material thickness: 2 mm (5/64″)

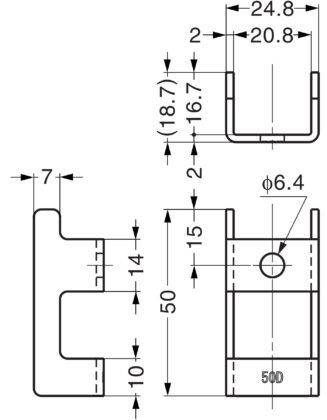

[caption id="attachment_131764" align="alignnone" width="327"] Mounting bracket, NF-50D, 50 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

• 1 piece mounting bracket NF-50D made of robust steel, zinc chromate
• 1 piece M6 x 20 mm flat head screw made of stainless steel

Manufacturer reference number:

• Article number: 110-024-599
• Item number: NF-50D
• EAN number: 4510932045216

Manufacturer: Sugatsune / LAMP® (Japan)
