High-quality square spring-loaded folding hook for recessed installation, finish: chrome-plated, 64 mm (2.6"), NF-K64-CR. Square folding hook with automatic closing, for tiny houses, mobile homes, yachts, and much more, from Sugatsune / LAMP® (Japan)

High-quality square spring-loaded folding hook for recessed installation, finish: chrome-plated, 64 mm (2.6"), NF-K64-CR. Square folding hook with automatic closing, for tiny houses, mobile homes, yachts, and much more, from Sugatsune / LAMP® (Japan)

Regular price €39,99 EUR
Regular price Sale price €39,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

High-quality square spring-loaded hook, made of solid zinc alloy (ZDC), surface: chrome-plated, NF-K64-CR, size: 64 mm (2.6")

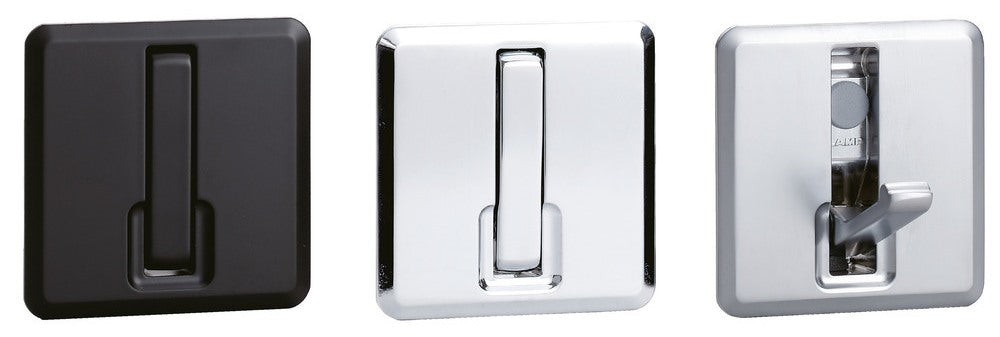

Application: Square folding hook with automatic closing, for tiny houses, mobile homes, yachts and much more. [caption id="attachment_131375" align="alignnone" width="420"] High-quality square spring-loaded hook for flush mounting, NF-K64-CR, 64 mm, from Sugatsune, chrome-plated. Application[/caption] The NF-K64-CR spring-loaded hooks close automatically when hanging items are removed. This ensures greater security. Furthermore, the hook with automatic closing remains unobtrusive and contributes to the minimalist design of the interior. The folding hook with automatic closing NF-K64-CR is perfect for wall mounting in wood and also in sheet metal. The NF-K64-CR spring hook has excellent load-bearing capacity and durability and is suitable for hanging various objects. The NF-K64-CR folding hook with automatic closing has a well-finished surface (color: chrome-plated) that withstands daily scratches. The tip of the NF-K64-CR folding hook has a curvature that prevents the hanging objects from accidentally falling off. The high-quality spring-loaded hooks NF-K64-CR have a simple and robust design and are ideal for, among others:
  • Caravan
  • Train
  • bus
  • wardrobe
  • boat
  • Airplane
  • Seat in the public sector
  • cinema seat
  • Theater seat
  • Tiny house
  • Motorhome
  • yacht
Material:
  • The spring hooks NF-K64-CR are made of solid zinc alloy (ZDC)
Surface:
  • Chrome-plated
Assembly:
  • The spring hook NF-K64-CR has a mounting hole with a diameter of ⌀4.5 mm, with countersink for mounting in wooden panel
  • The folding hook NF-K64-CR also has an additional mounting hole thread M4 for mounting in the metal sheet
  • For mounting in the wood panel or sheet metal, a cutout with the dimensions 55 mm (2-11/64″) x 16 mm (5/8″) must be made
  • For mounting in the wooden panel, the depth of the cutout should be at least 15 mm (19/32″)
  • The L.NF-50 mounting bracket is available for mounting in sheet metal
  • Recommended screws: For wood mounting (thickness 25–29 mm): 4 x 15 mm Phillips flat-head self-tapping screws. For wood mounting (thickness 30 mm and above): 4 x 20 mm Phillips self-tapping screws (see assembly drawing for further details).

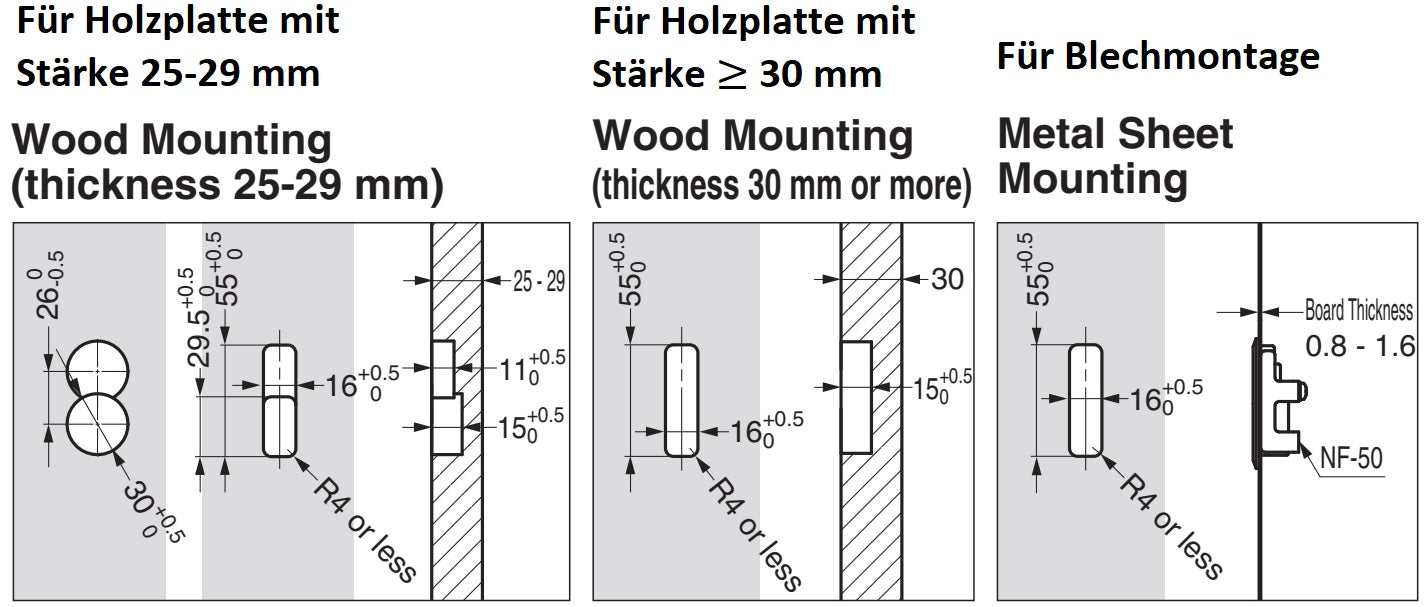

[caption id="attachment_131387" align="alignnone" width="420"] High-quality square spring-loaded hook for flush mounting, NF-K64-CR, 64 mm, from Sugatsune, chrome-plated. Installation drawing[/caption] Characteristics:
  • Weight: 95 g
  • Load capacity: 196 N (20 kp)
  • Size: 64 mm (2.6″)
  • square
  • to let in
  • with automatic closing
  • high quality
  • high load capacity
  • no sharp edges
  • rounded hook ends
  • robust
  • stable
  • Chrome-plated
  • zinc alloy
  • ZDC
  • zinc die-casting
  • high brand quality from Sugatsune / LAMP®
For further dimensions and details see technical drawing . The dimensions:
  • Length and width of the folding hook: 64 mm (2-33/64″)
  • Depth of the hook bend when open: 34.2 mm (1-11/32″)
  • Width of the hook bend: 10 mm (25/64″)

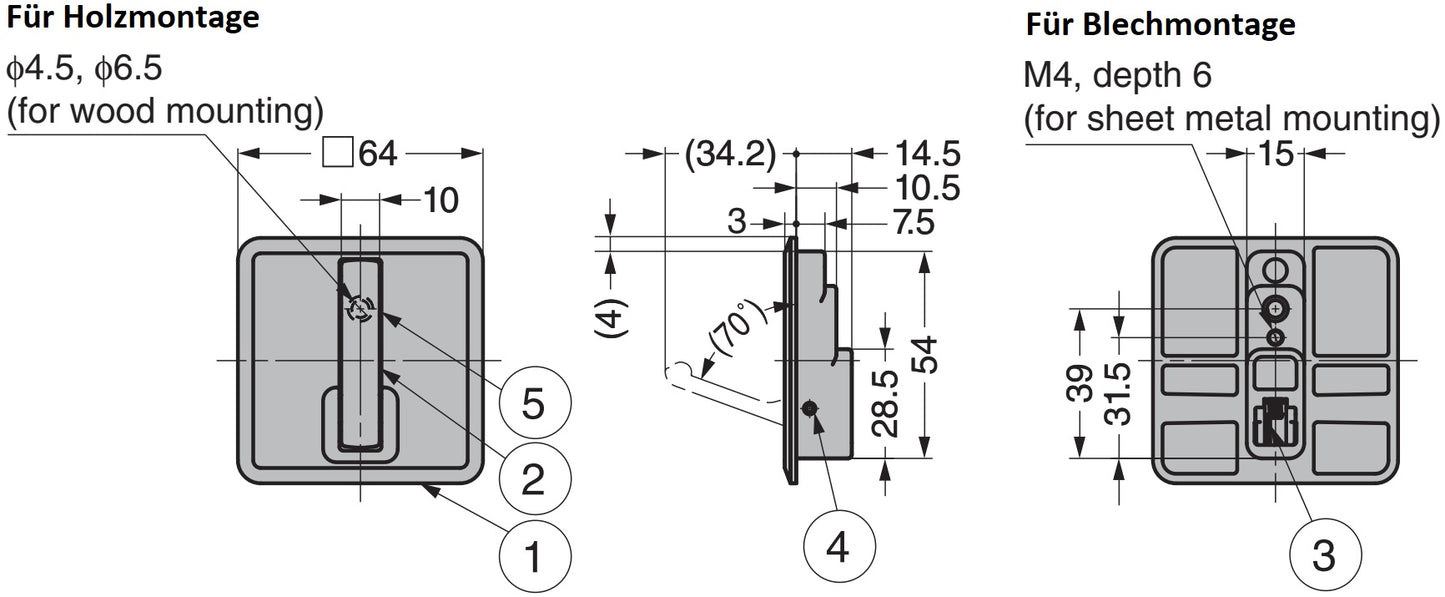

[caption id="attachment_131399" align="alignnone" width="420"] High-quality square spring-loaded hook for flush mounting, NF-K64-CR, 64 mm, from Sugatsune, chrome-plated. Technical drawing[/caption] Included in delivery:
  • 1 piece spring hook NF-K64-CR made of solid zinc alloy, chrome-plated
Watch product video: Manufacturer reference number:
  • Article number: 110-041-187
  • Item number: NF-K64-CR
  • EAN number: 4510932179492
Manufacturer: Sugatsune / LAMP® (Japan) SUGATSUNE, The manufacturer of the brand LAMP®
