Hochwertiger quadratischer Federklapphaken zum Einlassen, Oberfläche: verchromt, satiniert matt, 64 mm (2,6″), NF-K64-SCR. Quadratischer Klapphaken mit Schließautomatik, für Tinyhouse, Wohnmobil, Yacht und viel mehr, von Sugatsune / LAMP® (Japan)

High-quality square spring-loaded hook, made of solid zinc alloy (ZDC), surface: chrome-plated, satin matt, NF-K64-SCR, size: 64 mm (2.6")

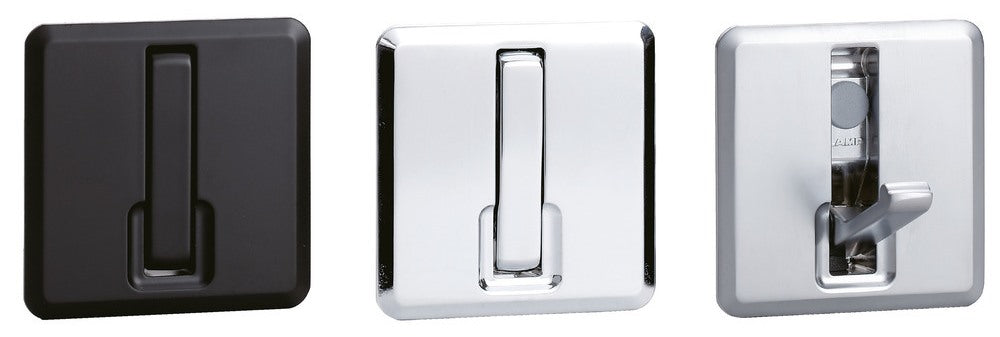

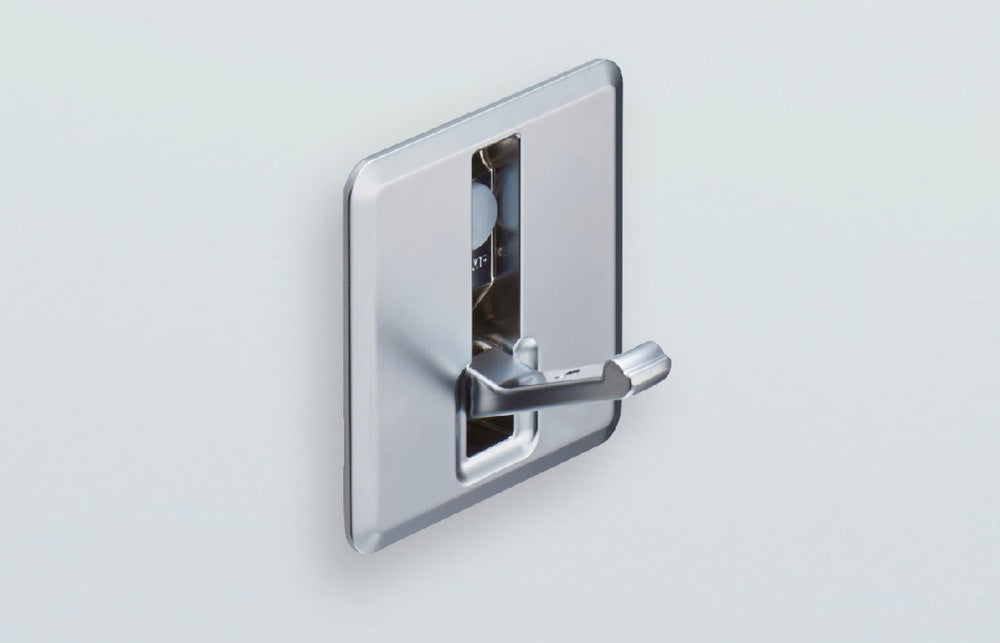

Application: Square folding hook with automatic closing, for tiny houses, mobile homes, yachts and much more. [caption id="attachment_131249" align="alignnone" width="420"] High-quality square spring-loaded hook for recessed installation, NF-K64-SCR, 64 mm, from Sugatsune, chrome-plated, satin finish. Application[/caption] The NF-K64-SCR spring-loaded folding hooks close automatically when hanging items are removed. This ensures greater security. Furthermore, the folding hook with automatic closing remains unobtrusive and contributes to the minimalist design of the interior. The folding hook with automatic closing NF-K64-SCR is perfect for wall mounting in wood and also in sheet metal. The NF-K64-SCR spring hook has excellent load-bearing capacity and durability and is suitable for hanging various objects. The NF-K64-SCR folding hook with automatic closing has a well-finished surface (color: chrome-plated, satin matt) that withstands daily scratches. The tip of the NF-K64-SCR folding hook has a curvature that prevents the hanging objects from accidentally falling off. The high-quality spring-loaded hooks NF-K64-SCR have a simple and robust design and are ideal for, among other things:

• Caravan
• Train
• bus
• wardrobe
• boat
• Airplane
• Seat in the public sector
• cinema seat
• Theater seat
• Tiny house
• Motorhome
• yacht

Material:

• The spring hooks NF-K64-SCR are made of solid zinc alloy (ZDC)

Surface:

• Chrome-plated, satin matt

Assembly:

• The spring hook NF-K64-SCR has a mounting hole with a diameter of ⌀4.5 mm, with countersink for mounting in wooden panel
• The folding hook NF-K64-SCR also has an additional mounting hole thread M4 for mounting in the metal sheet
• For mounting in the wood panel or sheet metal, a cutout with the dimensions 55 mm (2-11/64″) x 16 mm (5/8″) must be made
• For mounting in the wooden panel, the depth of the cutout should be at least 15 mm (19/32″)
• The L.NF-50 mounting bracket is available for mounting in sheet metal
• Recommended screws: For wood mounting (thickness 25–29 mm): 4 x 15 mm Phillips flat-head self-tapping screws. For wood mounting (thickness 30 mm and above): 4 x 20 mm Phillips self-tapping screws (see assembly drawing for further details).

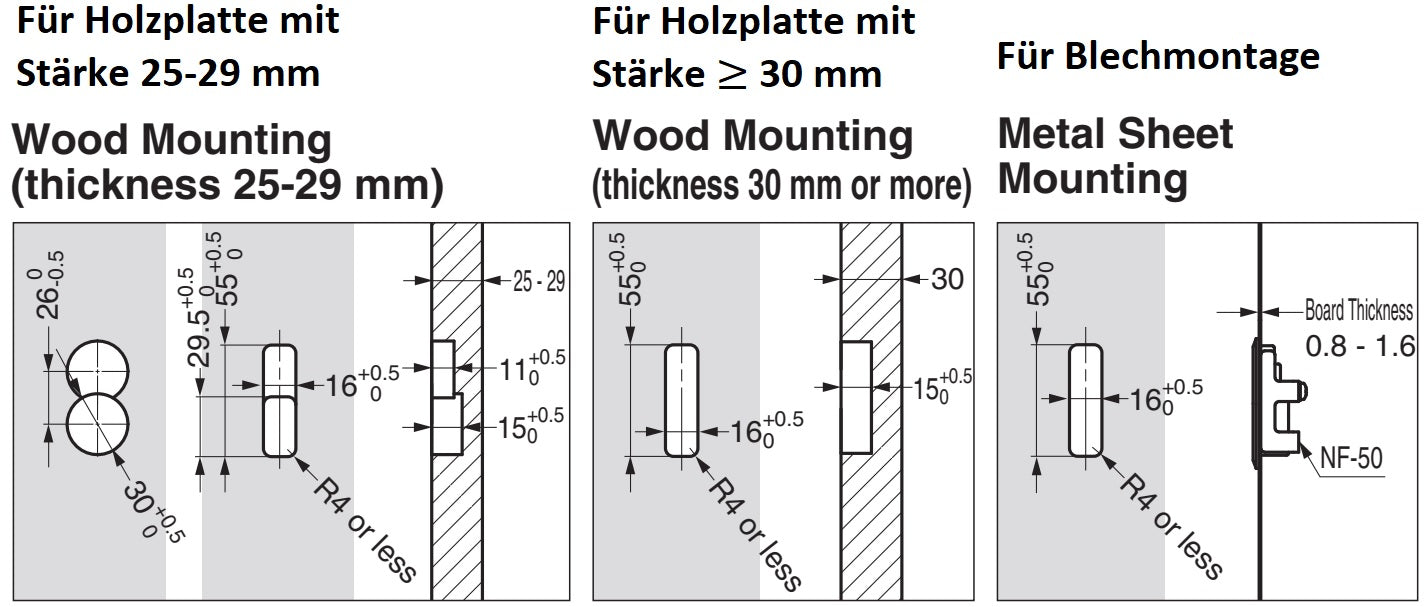

[caption id="attachment_131261" align="alignnone" width="420"] High-quality square spring-loaded hook for recessed installation, NF-K64-SCR, 64 mm, from Sugatsune, chrome-plated, satin finish. Installation drawing[/caption] Characteristics:

• Weight: 95 g
• Load capacity: 196 N (20 kp)
• Size: 64 mm (2.6″)
• square
• to let in
• with automatic closing
• high quality
• high load capacity
• no sharp edges
• rounded hook ends
• robust
• stable
• Chrome-plated, satin matt
• zinc alloy
• ZDC
• zinc die-casting
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Length and width of the folding hook: 64 mm (2-33/64″)
• Depth of the hook bend when open: 34.2 mm (1-11/32″)
• Width of the hook bend: 10 mm (25/64″)

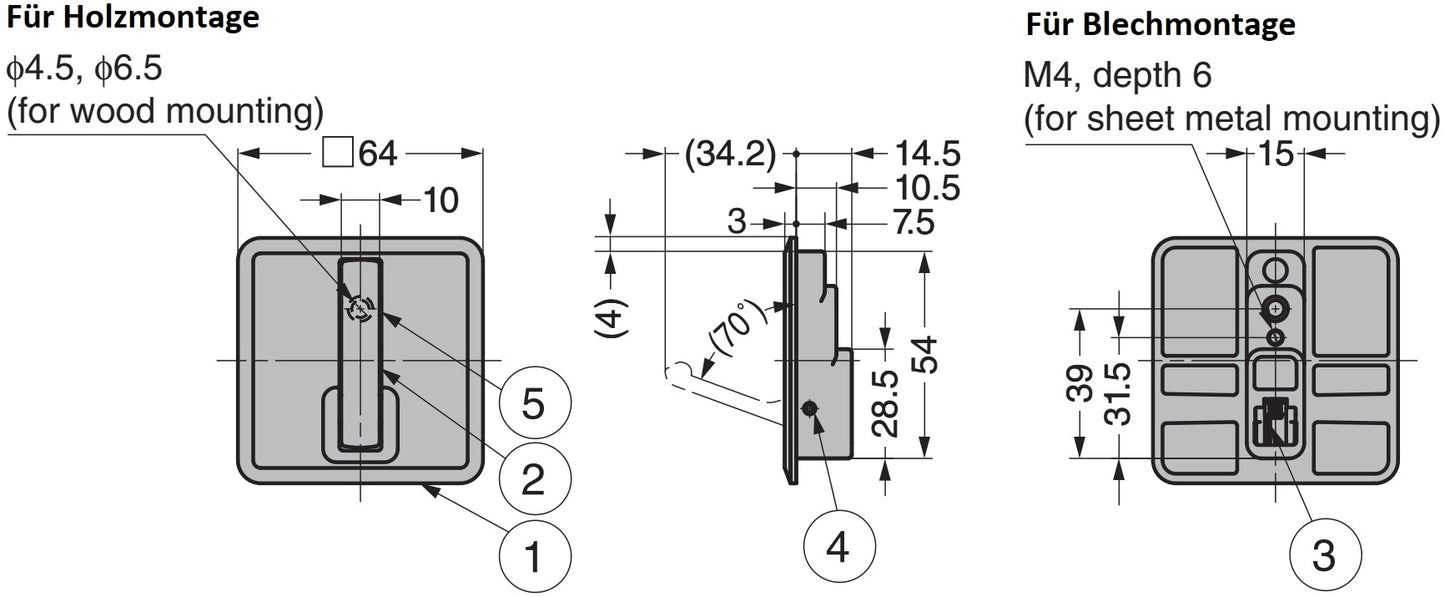

[caption id="attachment_131285" align="alignnone" width="420"] High-quality square spring-loaded hook for flush mounting, NF-K64-SCR, 64 mm, from Sugatsune, chrome-plated, satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece spring hook NF-K64-SCR made of solid zinc alloy, chrome-plated, satin matt

Watch product video: Manufacturer reference number:

• Article number: 110-041-186
• Item number: NF-K64-SCR
• EAN number: 4510932179485

Manufacturer: Sugatsune / LAMP® (Japan)
