4 rectangular screw-on plates with M8 thread, mounting plate, made of solid zinc alloy, 60 mm (2.4"), AD-561. Mounting plate, for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet, and much more, from Sugatsune / LAMP® (Japan)

4 pieces rectangular screw plate with M8 thread and three mounting holes, screw plate, made of solid zinc alloy (ZDC), surface: zinc chromate, yellow, AD-561, size: 60 mm (2.4")

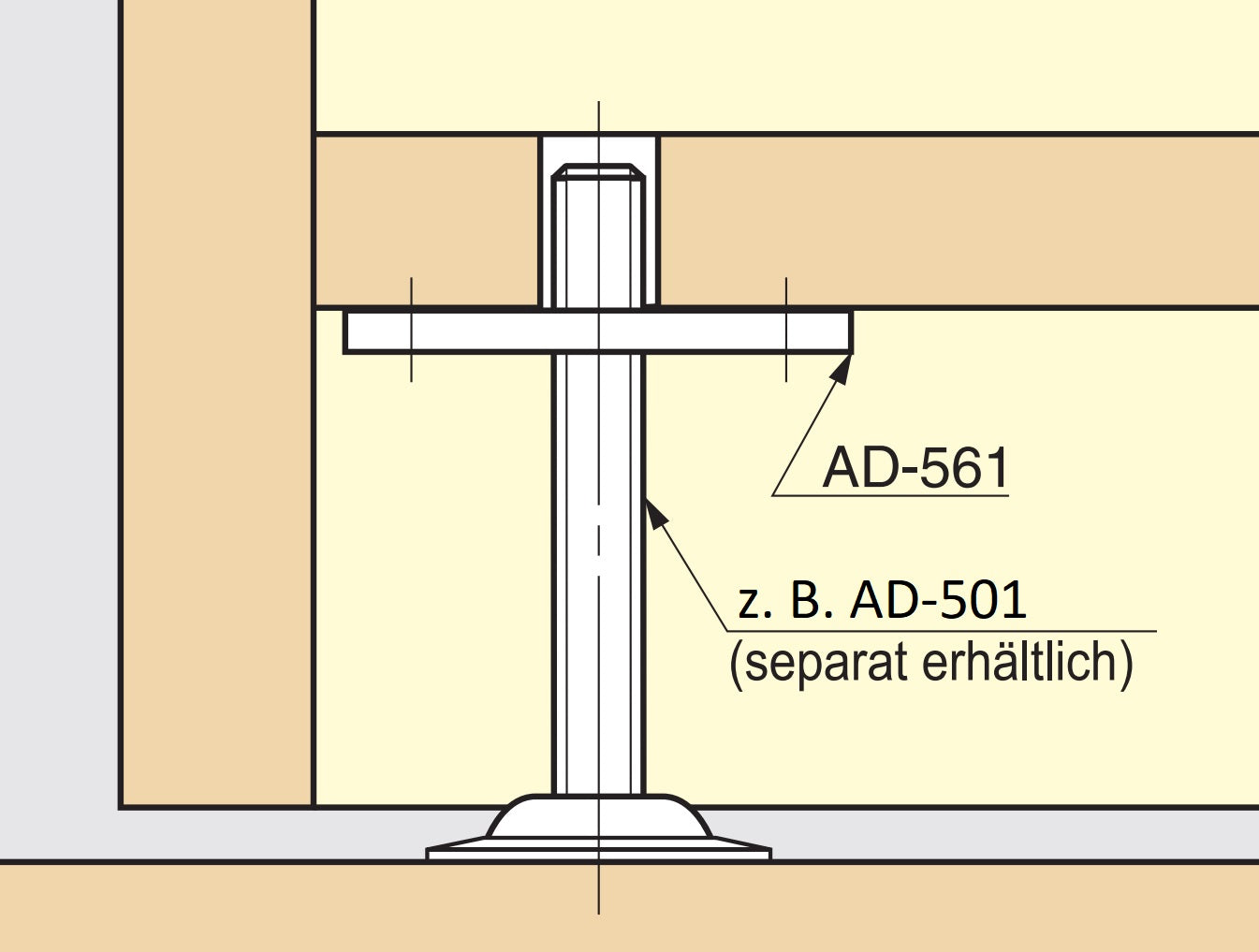

Application: Mounting plate for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet and much more. The AD-561 mounting plate is used to attach furniture feet, leveling feet, etc. under furniture, sofas, appliances, machines, etc. [caption id="attachment_132849" align="alignnone" width="420"] Rectangular mounting plate with M8 thread, mounting plate, AD-561, 60 mm, from Sugatsune. Application[/caption] Also suitable for replacing defective furniture feet, furniture casters or sofa feet. The galvanized surface of the screw plate protects it from rust and corrosion. The high-quality screw-on plates 200-140-068 are ideal for:

• Device feet
• Leveling feet
• Cabinet casters
• Articulated feet
• Adjustable feet
• Adjustable feet
• Roll container
• Furniture feet
• Furniture casters
• Machine feet
• Cabinet legs
• Sofa feet

Material:

• The AD-561 mounting plates are made of solid zinc alloy (ZDC)

Surface:

• Zinc chromate, yellow

Assembly:

• The mounting plate has two mounting holes with a diameter of ⌀5.4 mm (7/32″) and is attached to the lower surface of the furniture with three screws (not included).
• The distance between the mounting holes is 40 mm (1-37/64″)
• A hole with a diameter of ⌀8 mm (5/16″) must be drilled in the body base
• The furniture feet or castors, which are equipped with a screw, are then screwed into the thread of the mounting plate AD-561 and tightened

Characteristics:

• Weight: 30 g
• Size: 60 mm (2.4″)
• with M8 thread
• Shape: rectangular
• with two mounting holes
• stable
• Zinc chromate, yellow
• zinc alloy
• ZDC
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Length of the mounting plate: 60 mm (2-23/64″)
• Width: 20 mm (25/32″)
• Thread: M8
• Mounting hole diameter: 5.4 mm (7/32″)
• Material thickness (t): 2.9 mm (7/64″)

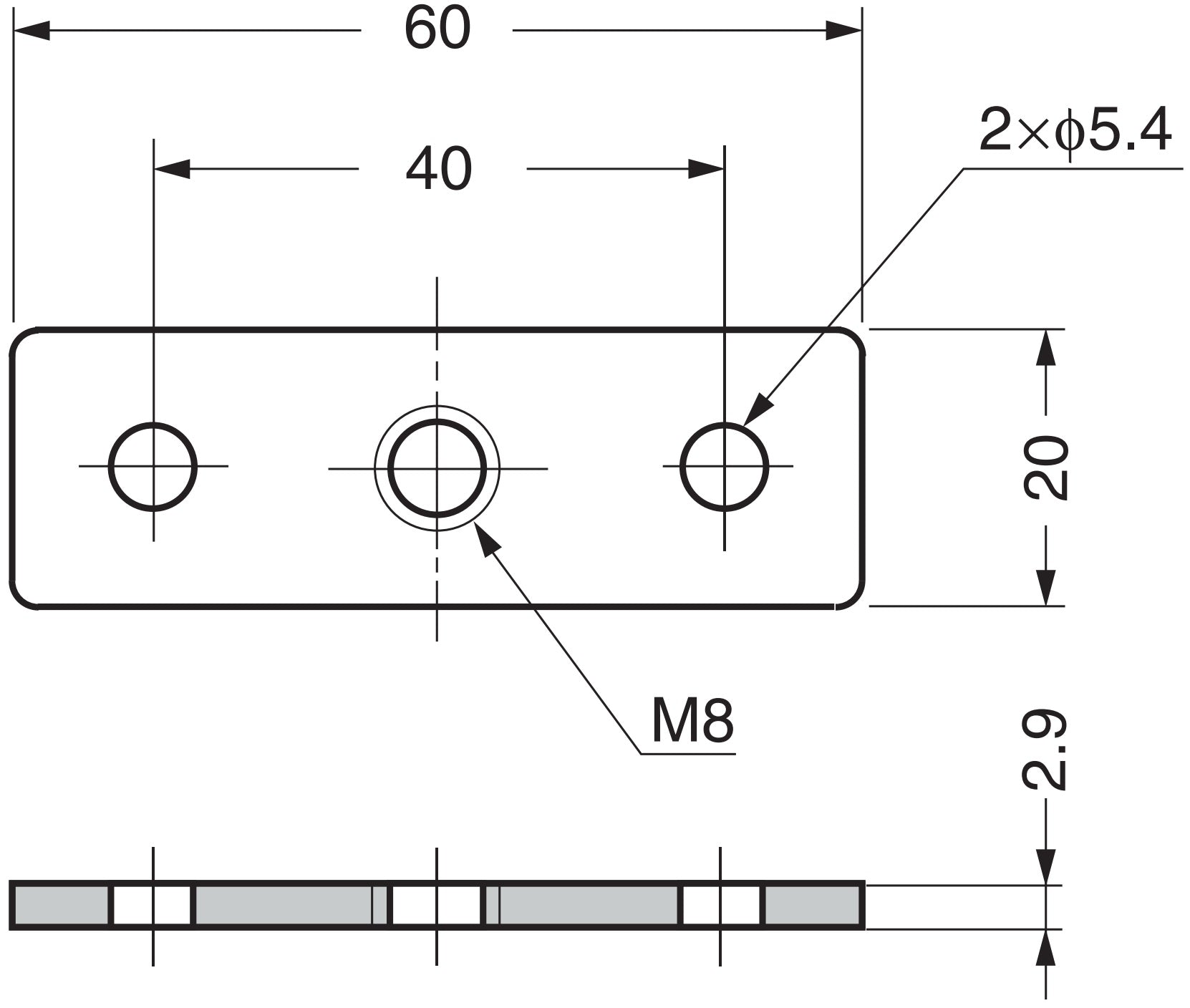

[caption id="attachment_132861" align="alignnone" width="420"] Rectangular mounting plate with M8 thread, mounting plate, AD-561, 60 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

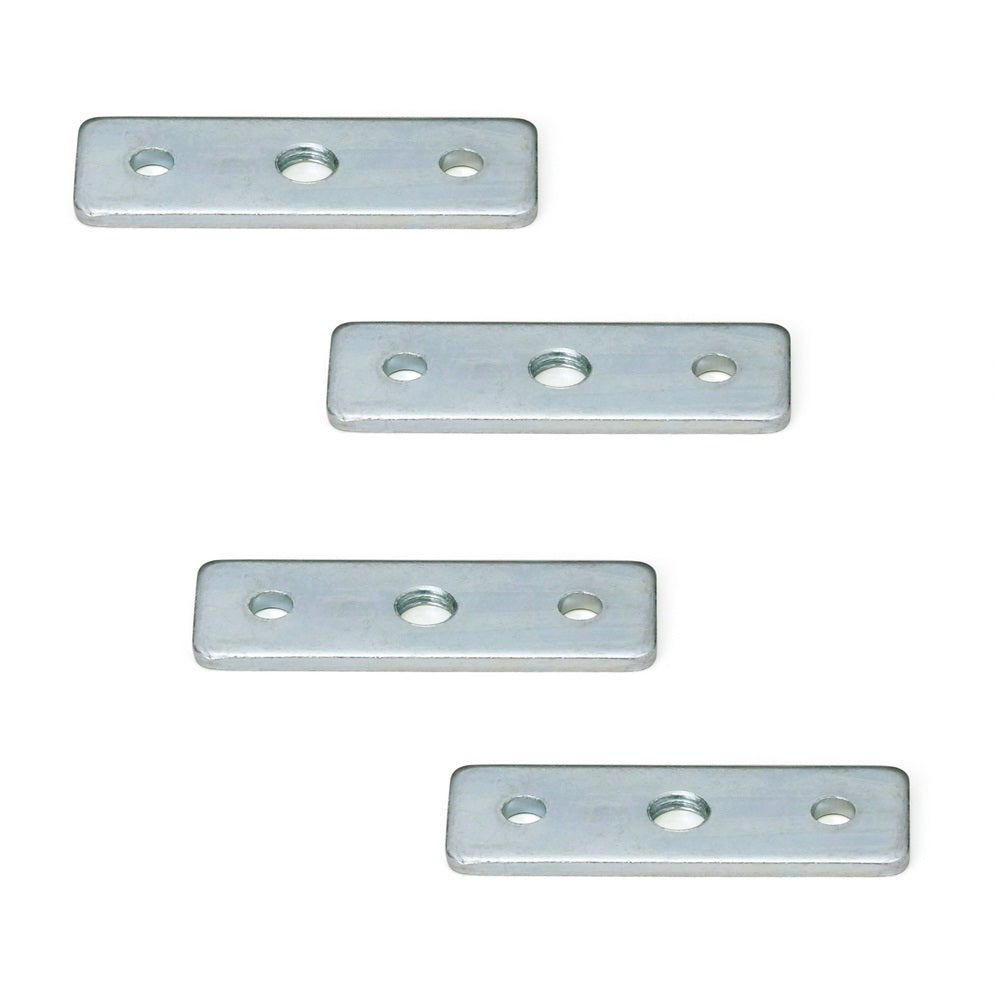

• 4 pieces screw plate AD-561 made of solid zinc alloy, zinc chromate, yellow

Manufacturer reference number:

• Article number: 200-140-068
• Item number: AD-561
• EAN number: 4510932840101

Manufacturer: Sugatsune / LAMP® (Japan)
