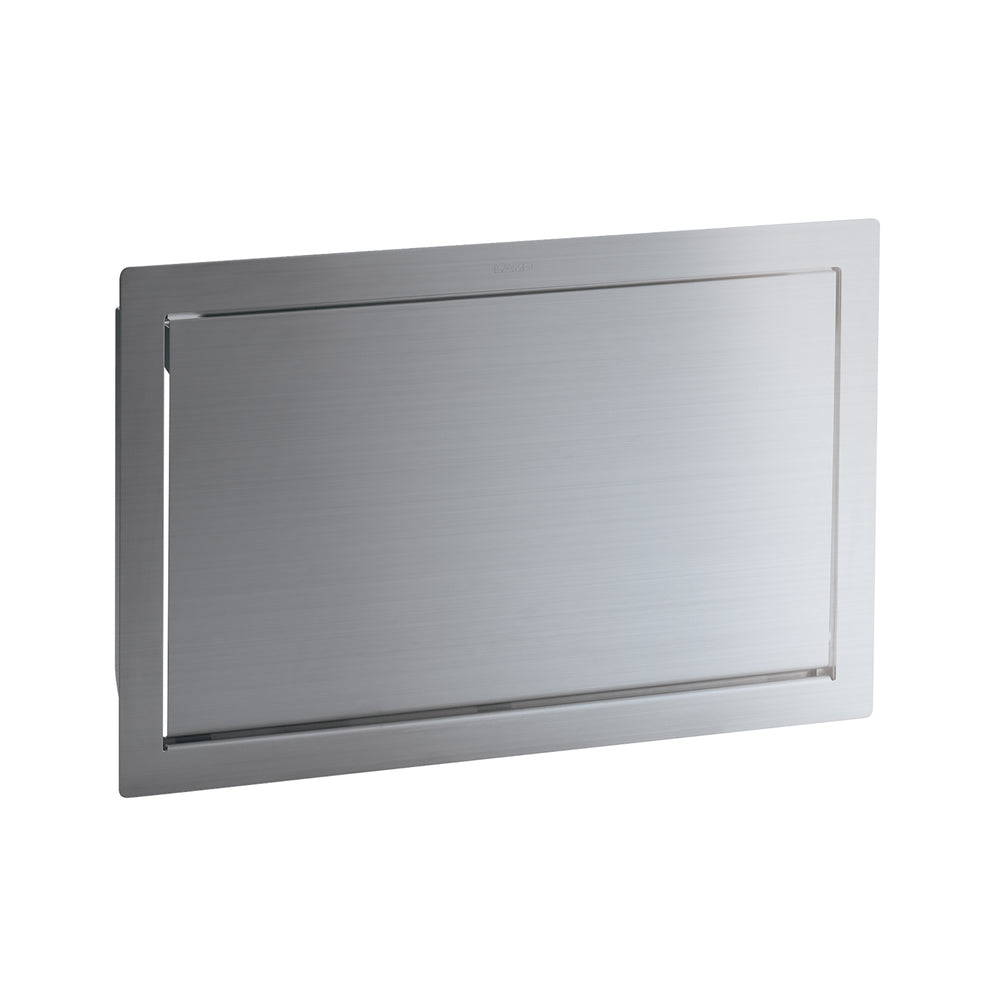

High-quality rectangular trash flap for vertical installation, with soft-close mechanism, made of stainless steel, satin finish, 400 mm (15.8"), AZ-GD400-HL. Stainless steel trash flap for catering and much more, from Sugatsune / LAMP® (Japan)

High-quality rectangular self-closing garbage flap for vertical installation, with soft-close damper, made of stainless steel (V2A), surface: satin matt, AZ-GD400-HL, size: 400 mm (15.8")

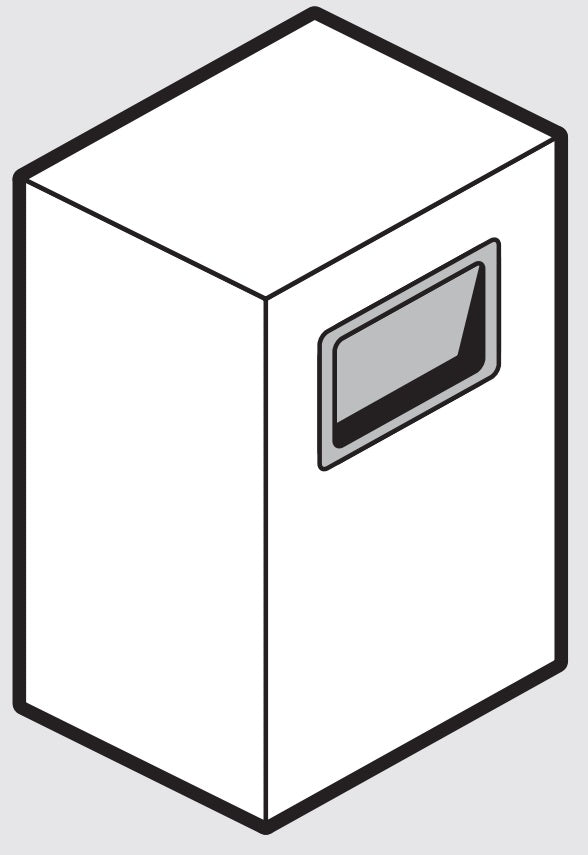

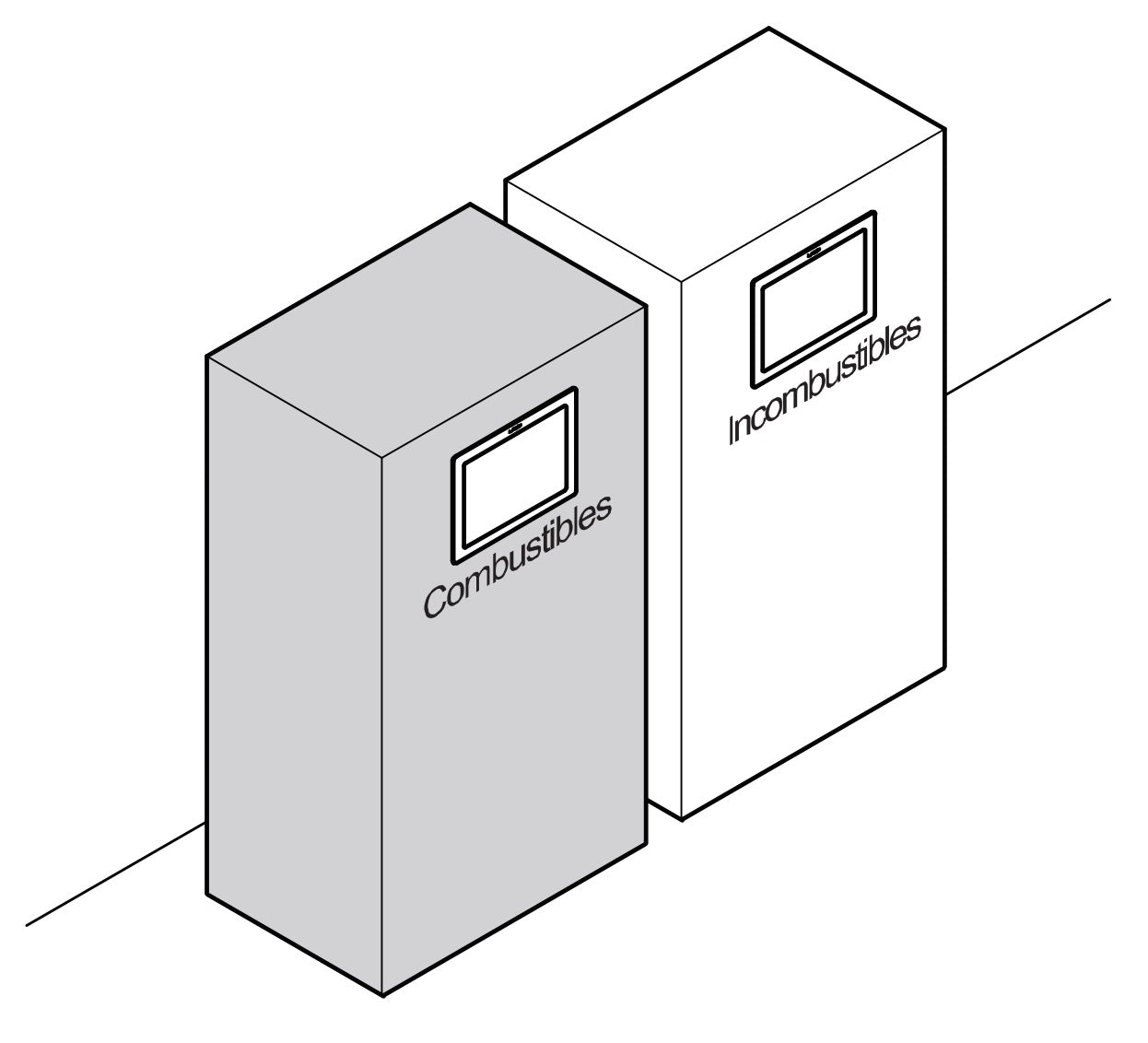

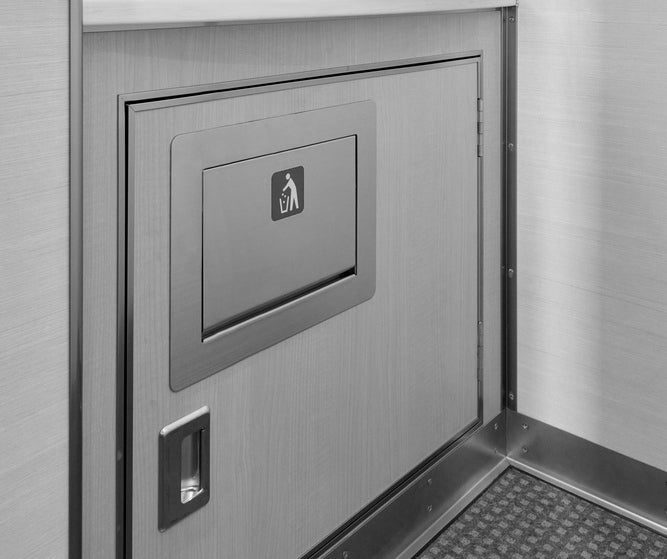

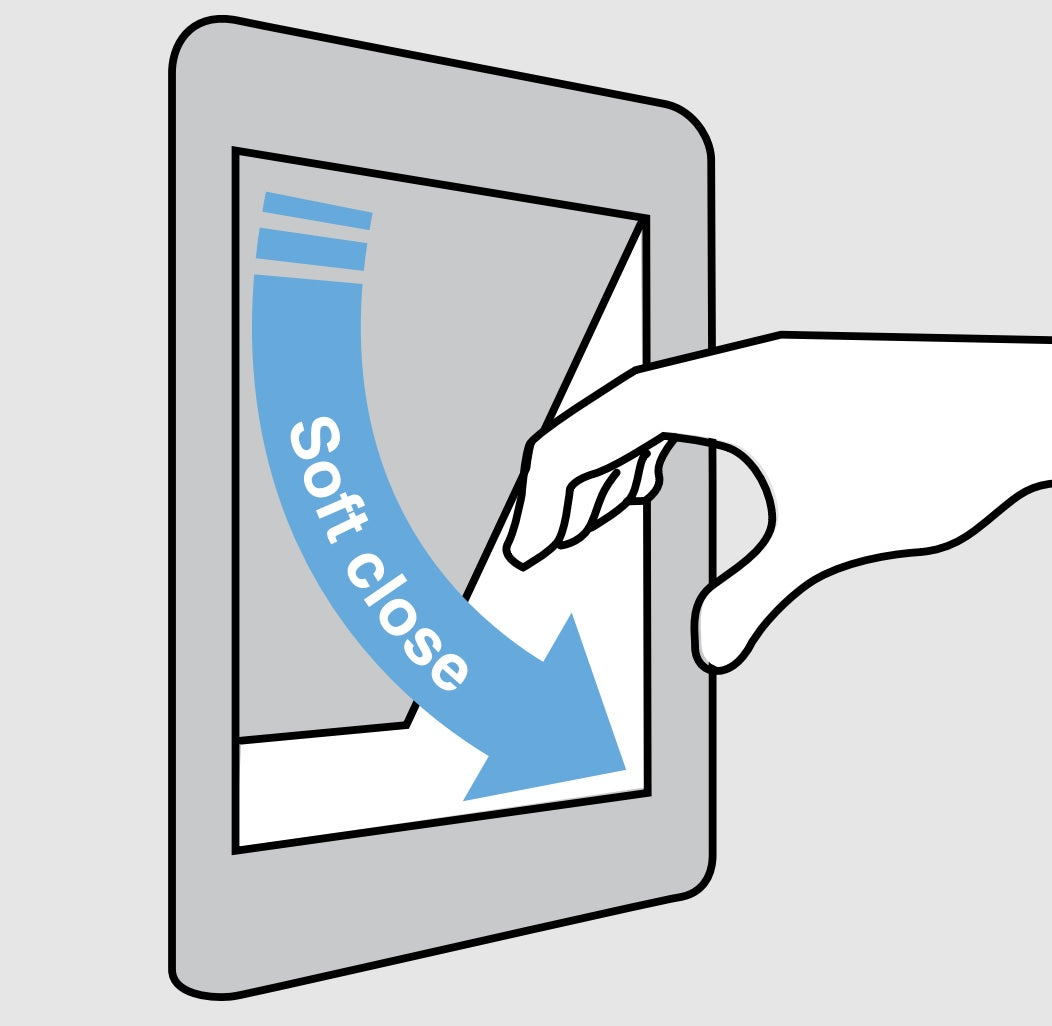

Application: Stainless steel garbage flap, for catering and much more. The high-quality garbage flap AZ-GD400-HL made of rust-proof V2A stainless steel (SUS304) for vertical installation with self-closing has a closing damper. [video width="420" height="1080" mp4="https://furniton.de/wp-content/uploads/rechteckige-muellklappe-senkrechte-montage-soft-close-edelstahl-sus304-satiniert-matt-400-mm-sugatsune-lamp-umaxo-az-gd400-hl-210-041-314.mp4"][/video] The soft-close damper ensures that the stainless steel waste flap closes gently and silently. The AZ-GD400-HL garbage flap has a rectangular shape and is elaborately crafted. The edges are softened and rounded to avoid injuries during use. [caption id="attachment_135596" align="alignnone" width="420"] High-quality rectangular trash flap for vertical installation, with soft-close, AZ-GD400-HL, 400 mm, from Sugatsune, satin finish. Soft-close function[/caption] The stainless steel waste flap AZ-GD400-HL can also be used in humid areas, such as in medical areas, laboratories, bathrooms, saunas, etc. Overall, the AZ-GD400-HL garbage flaps make a very high-quality impression. The AZ-GD400-HL stainless steel trash flap is designed for indoor use. The recommended room temperature is 0°C - 40°C. At temperatures below freezing, the flap may close too slowly. [caption id="attachment_135607" align="alignnone" width="420"] High-quality rectangular trash flap for vertical installation, with soft-close, AZ-GD400-HL, 400 mm, from Sugatsune, satin finish. Application example: Public facility[/caption] The installation must be vertical so that the garbage flap closes optimally. The stainless steel AZ-GD400-HL through-trash can be used to throw in laundry, used towels, garbage, etc. The wide opening and the 90° opening angle make it easier to throw in items. To get even more enjoyment out of the AZ-GD400-HL through-pass flap, we recommend using the optional AZ-SLP230 stainless steel baffle. The stainless steel baffle AZ-SLP230, when used with the stainless steel waste flap AZ-GD400-HL, ensures that items are safely directed directly into the container (not included). [caption id="attachment_135618" align="alignnone" width="420"] High-quality rectangular garbage flap for vertical installation, with soft-close, AZ-GD400-HL, 400 mm, from Sugatsune, satin finish. Use in combination with the AZ-SLP230 baffle. The high-quality AZ-GD400-HL garbage flaps are ideal for, among other things:

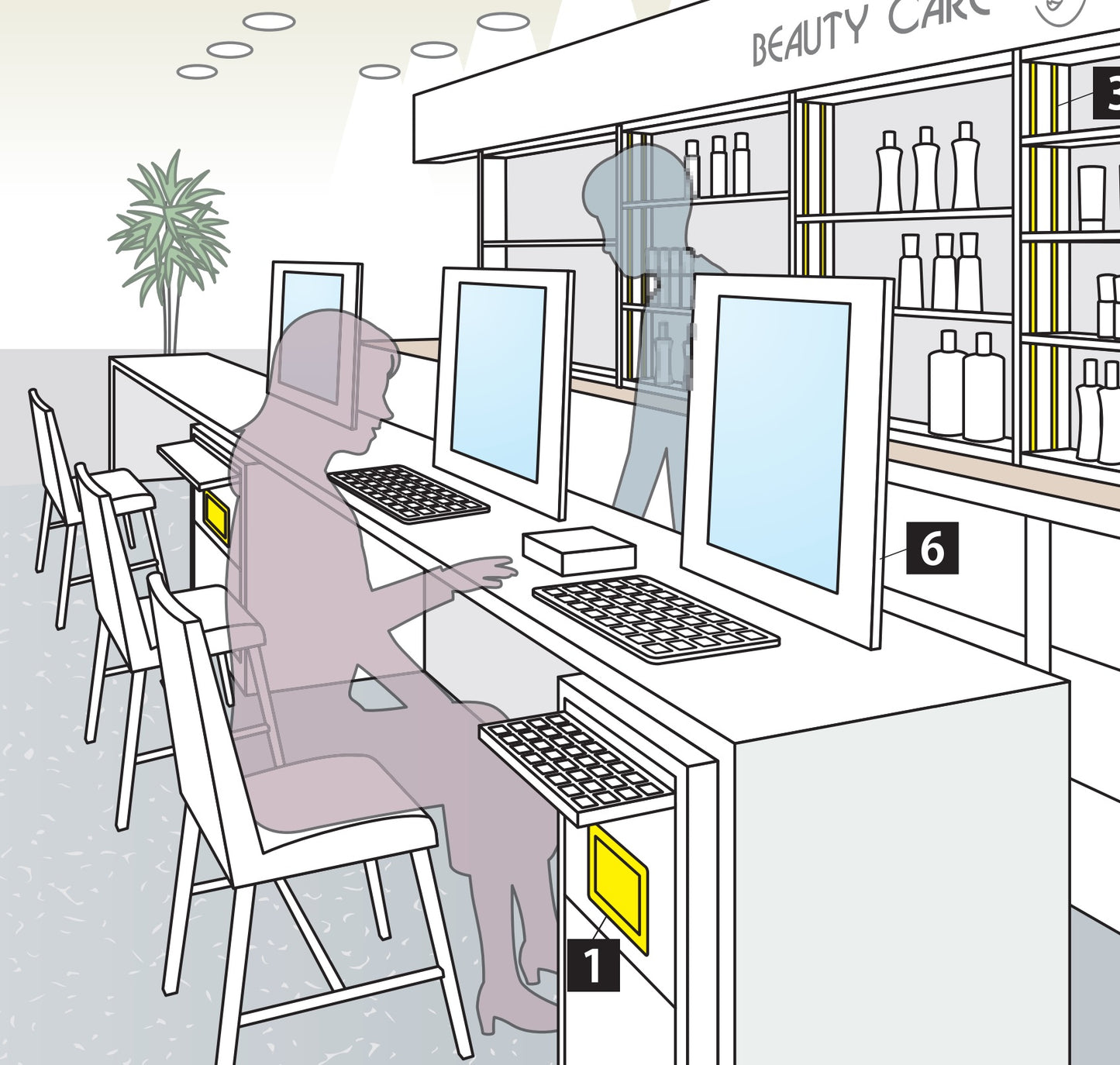

• System catering
• Shopfitting
• Catering
• doctor's office
• professional kitchen
• Beauty salon
• Drugstore furniture
• Hospital furniture
• kitchen furniture
• gastronomy

Material:

• The garbage flaps AZ-GD400-HL are made of stainless steel (V2A)

Surface:

• Satin matt

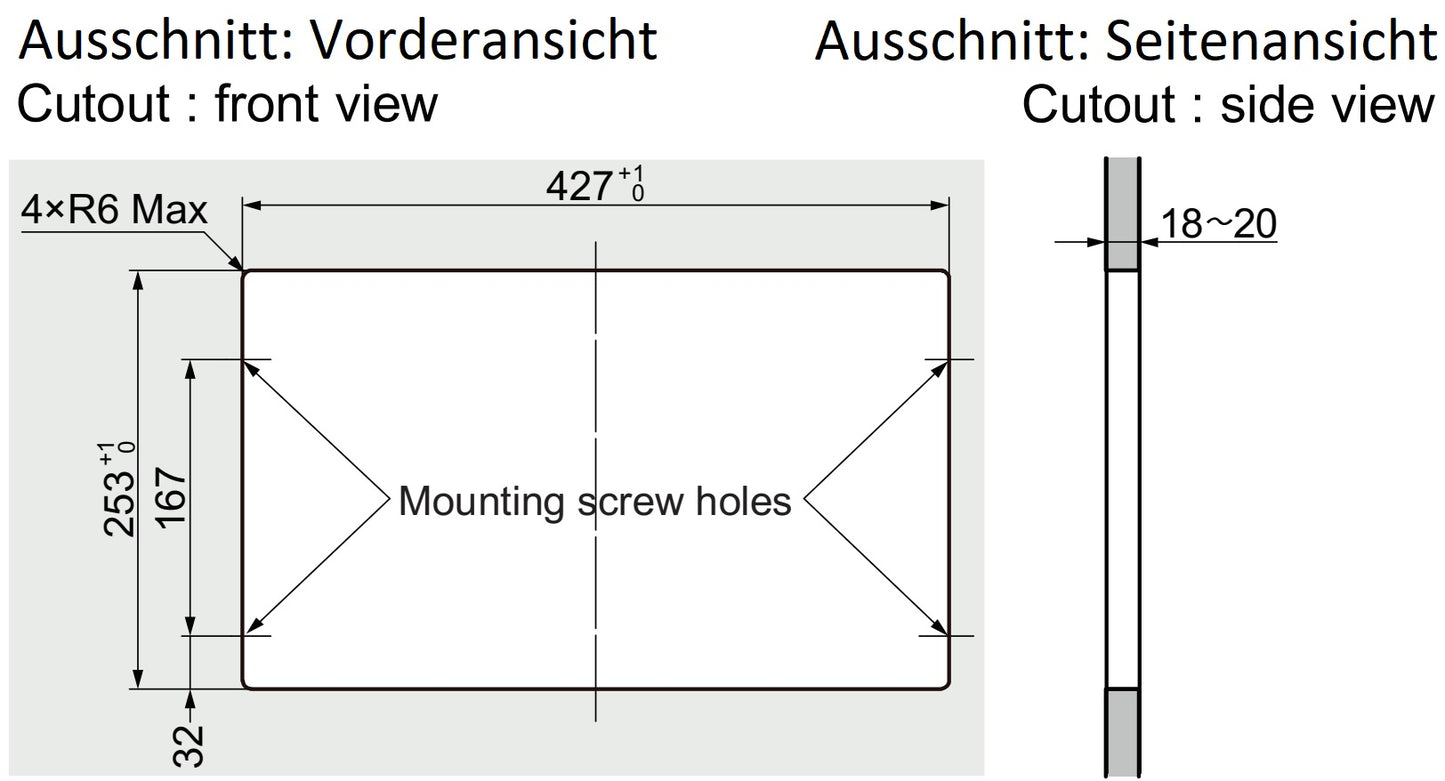

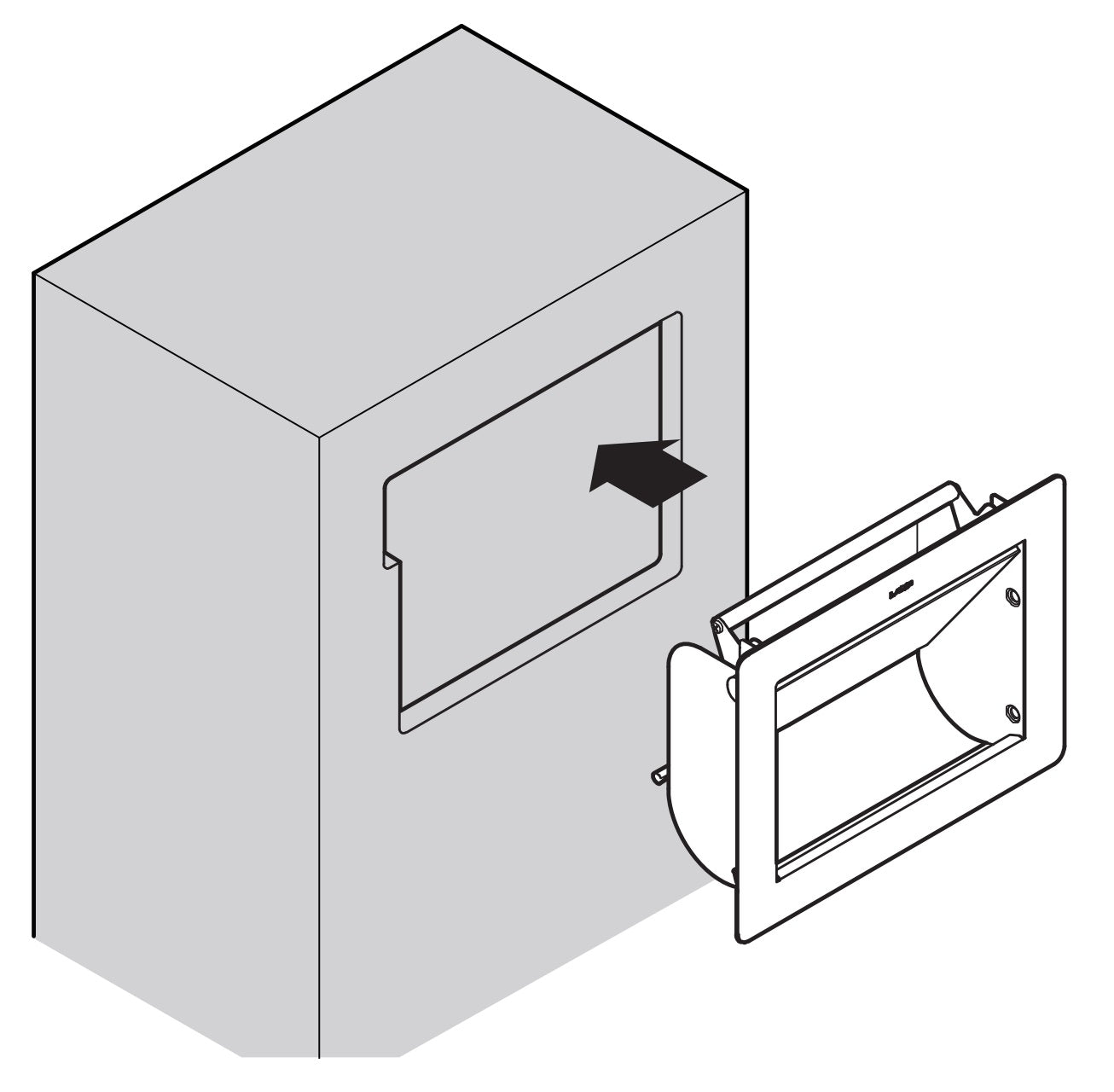

Assembly: [caption id="attachment_135629" align="alignnone" width="420"] High-quality rectangular trash flap for vertical installation, with soft-close, AZ-GD400-HL, 400 mm, from Sugatsune, satin finish. Installation[/caption]

• For insertion, the through-feed is mounted on a vertical surface
• Note: the AZ-GD400-HL garbage flap is not suitable for horizontal or recessed installation – please use the corresponding other variants (see below)
• To install the AZ-GD400-HL waste flap, a cutout measuring 427 mm (16-13/16″) x 253 mm (9-61/64″) must be made in the body wall.
• The AZ-GD400-HL stainless steel trash flap has four mounting holes. The distance between the holes is 167 mm (6-37/64") (see installation drawing for further details).

[caption id="attachment_135640" align="alignnone" width="420"] High-quality rectangular trash flap for vertical installation, with soft-close, AZ-GD400-HL, 400 mm, from Sugatsune, satin finish. Installation drawing[/caption] Characteristics:

• Weight: 2236 g
• Size: 400 mm (15.8″)
• for vertical installation
• self-closing
• with soft-close damper
• With clamp protection plates to ensure trouble-free operation
• Operating temperature of the stainless steel waste flap: 0° C – 40° C
• Closing mechanism: the lid is returned to the vertical position by the counterweight
• elaborately processed
• high quality
• satin matt
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Garbage flap dimensions: 450 mm (17-23/32″) x 270 mm (10-5/8″)
• Internal dimensions: 400 mm (15-3/4″) x 220 mm (8-21/32″)
• Opening angle of the flap: 90°
• Depth of the throughput: 100 mm
• Edge material thickness: 253 mm (9-61/64″)

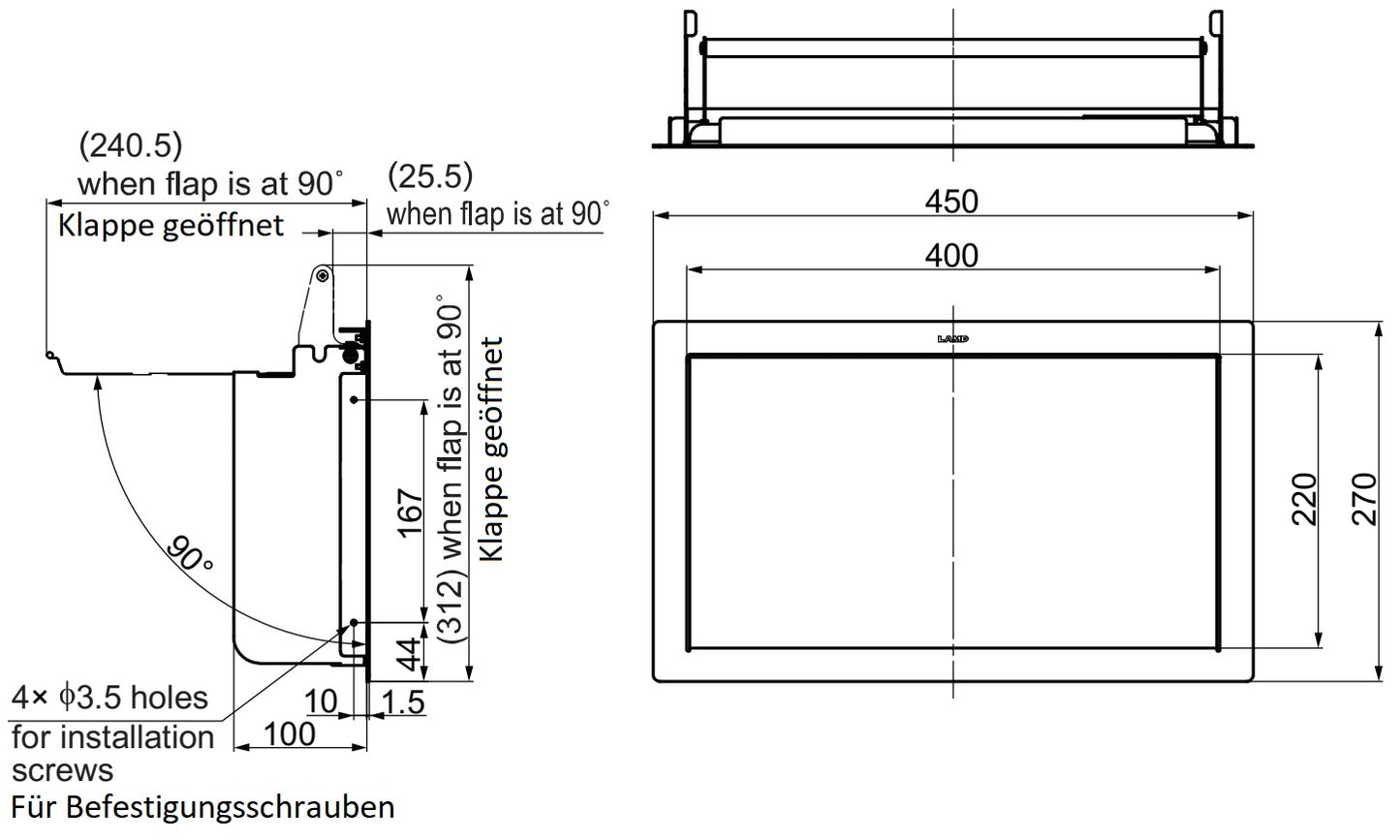

[caption id="attachment_135651" align="alignnone" width="420"] High-quality rectangular trash flap for vertical installation, with soft-close, AZ-GD400-HL, 400 mm, from Sugatsune, satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece garbage flap AZ-GD400-HL made of stainless steel, satin matt

Watch product video: Additional Information:

• • Download assembly instructions

Manufacturer reference number:

• • • Article number: 210-041-314
    • Item number: AZ-GD400-HL
    • EAN number: 4510932180276

Manufacturer: Sugatsune / LAMP® (Japan)
