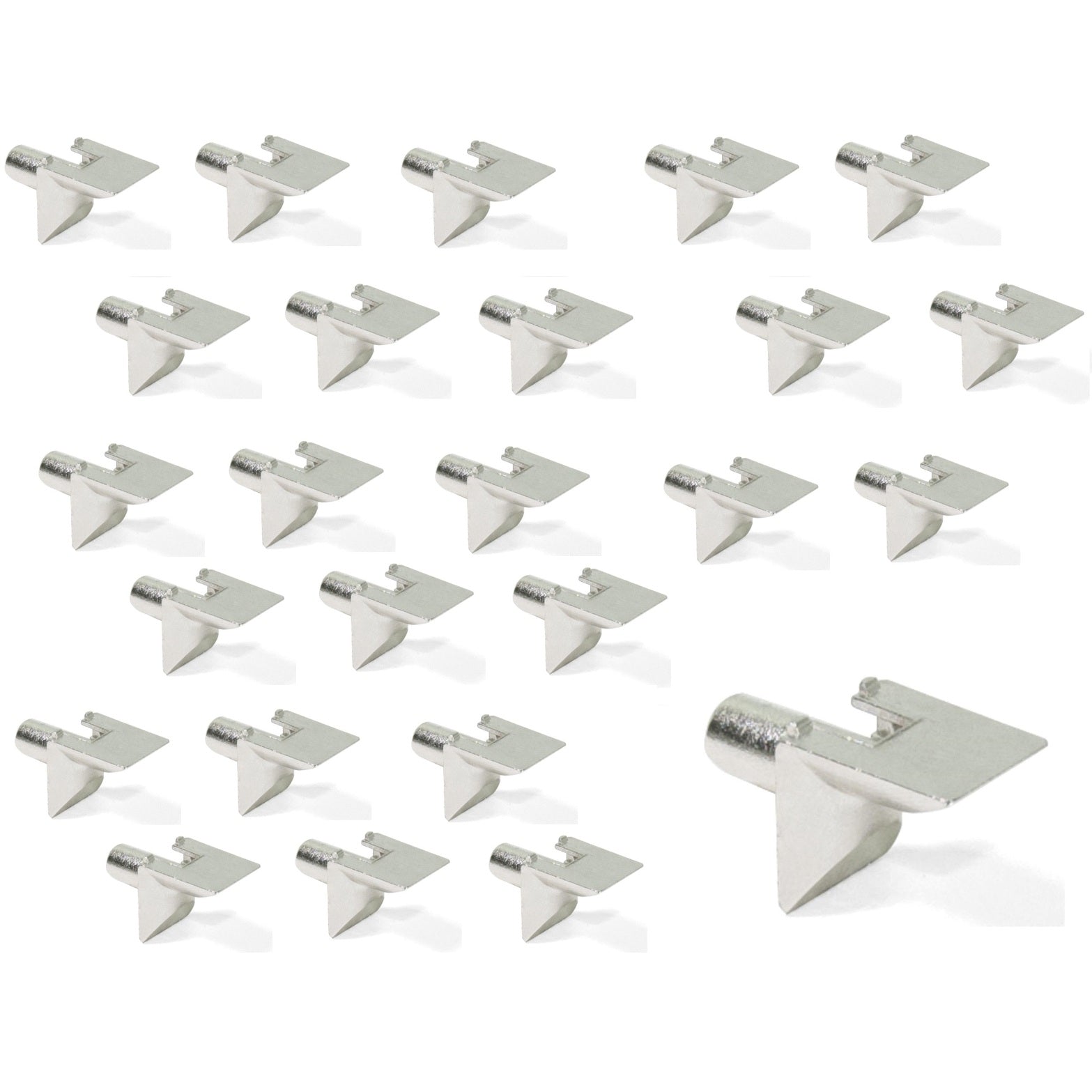

25 pieces of zinc alloy shelf supports, surface: nickel-plated, 5 mm (0.2") 8114207. Shelf supports 8114207 for hole row, shelves, compartments, cabinet shelves, shelves, cabinets, shelves, by EMUCA

25 pieces of high-quality shelf supports made of solid zinc alloy, surface: nickel-plated, 8114207

Application: Shelf support 8114207 for hole row, shelves, compartment floors, cabinet floors, shelves, cabinets, racks. The high-quality shelf supports 8114207 are highly resilient and durable. The shelf supports have a rectangular shape to optimally support shelves. They are ideal for furniture with Ø5 mm hole rows or drill holes with a diameter of Ø5 mm (13/64″). The shelf supports 8114207 have additional pointed fastening pins at the ends for better locking of the shelves. The shelf support 8114207 is ideal for, among other things:

• row of holes
• Shelves
• Shelves
• Cabinet shelves
• Shelves
• Cabinets
• shelves

Material:

• The high-quality shelf supports 8114207 are made of zinc alloy (ZDC)

Surface:

• Nickel-plated

Assembly:

• The shelf support 8114207 is inserted into a hole with a diameter of Ø5 mm (13/64″)
• The depth of the hole must be at least 8.5 mm (21/64″)
• The shelf is placed on the flat surface of the shelf support
• The mounting hole (center) must be positioned 4 mm (5/32″) below the desired position of the shelf (for further details see assembly drawing )

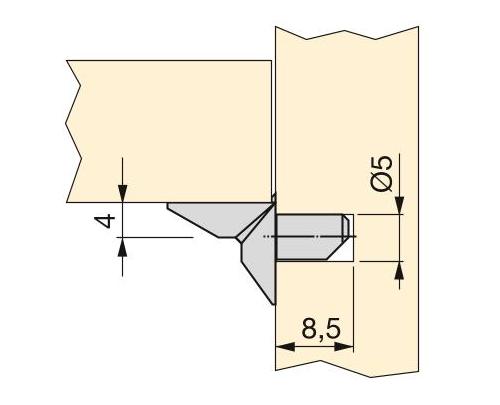

[caption id="attachment_115107" align="alignnone" width="420"] Shelf support made of zinc alloy, nickel-plated finish, 5 mm, from EMUCA. Assembly drawing[/caption] Characteristics:

• Weight: 2.85 g
• Size: 5 mm (0.2″)
• Reliable
• Stable
• Robust
• Nickel-plated
• High brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• The support surface of the shelf support: 12.5 mm (31/64″) x 10 mm (25/64″)
• Depth: 11.5 mm (29/64″)
• Length of the fixing pin: 8 mm (5/16″)

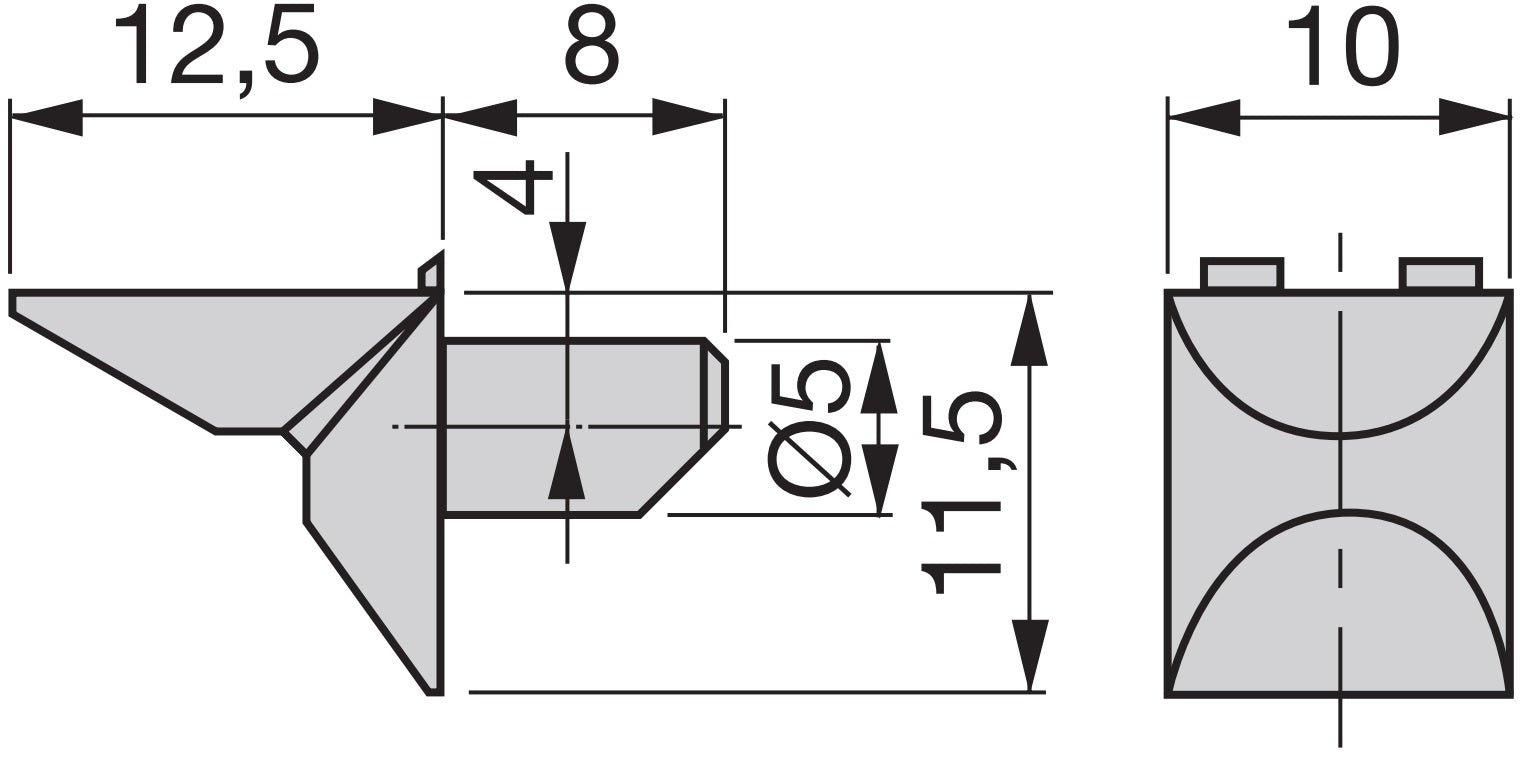

[caption id="attachment_115121" align="alignnone" width="420"] Shelf support made of zinc alloy, nickel-plated finish, 5 mm, from EMUCA. Technical drawing[/caption] Included in delivery:

• 25 pieces shelf supports 8114207 made of solid zinc alloy, nickel-plated

Manufacturer reference number:

• Article number: 8114207
• EAN number: 8432393121178

Manufacturer: EMUCA
