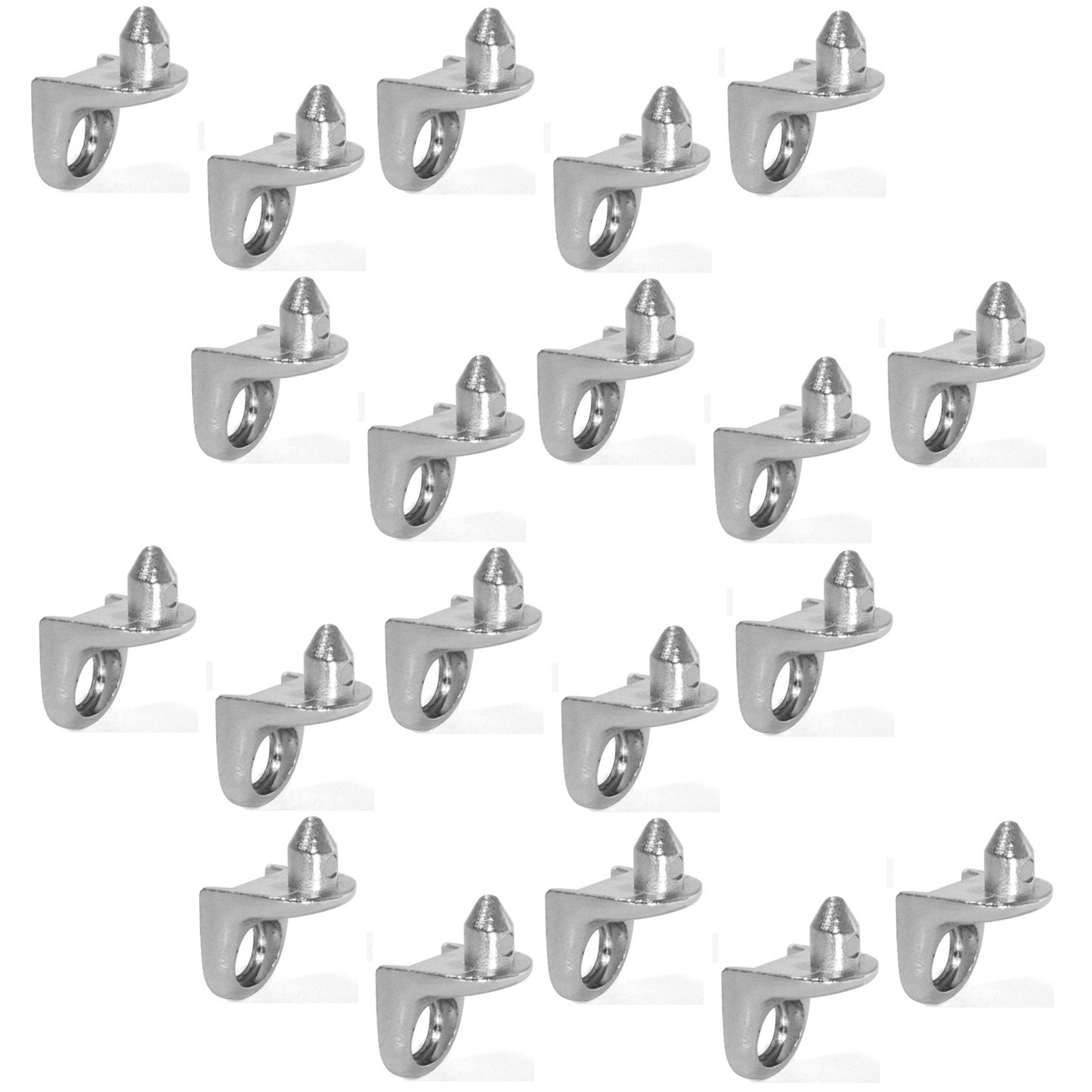

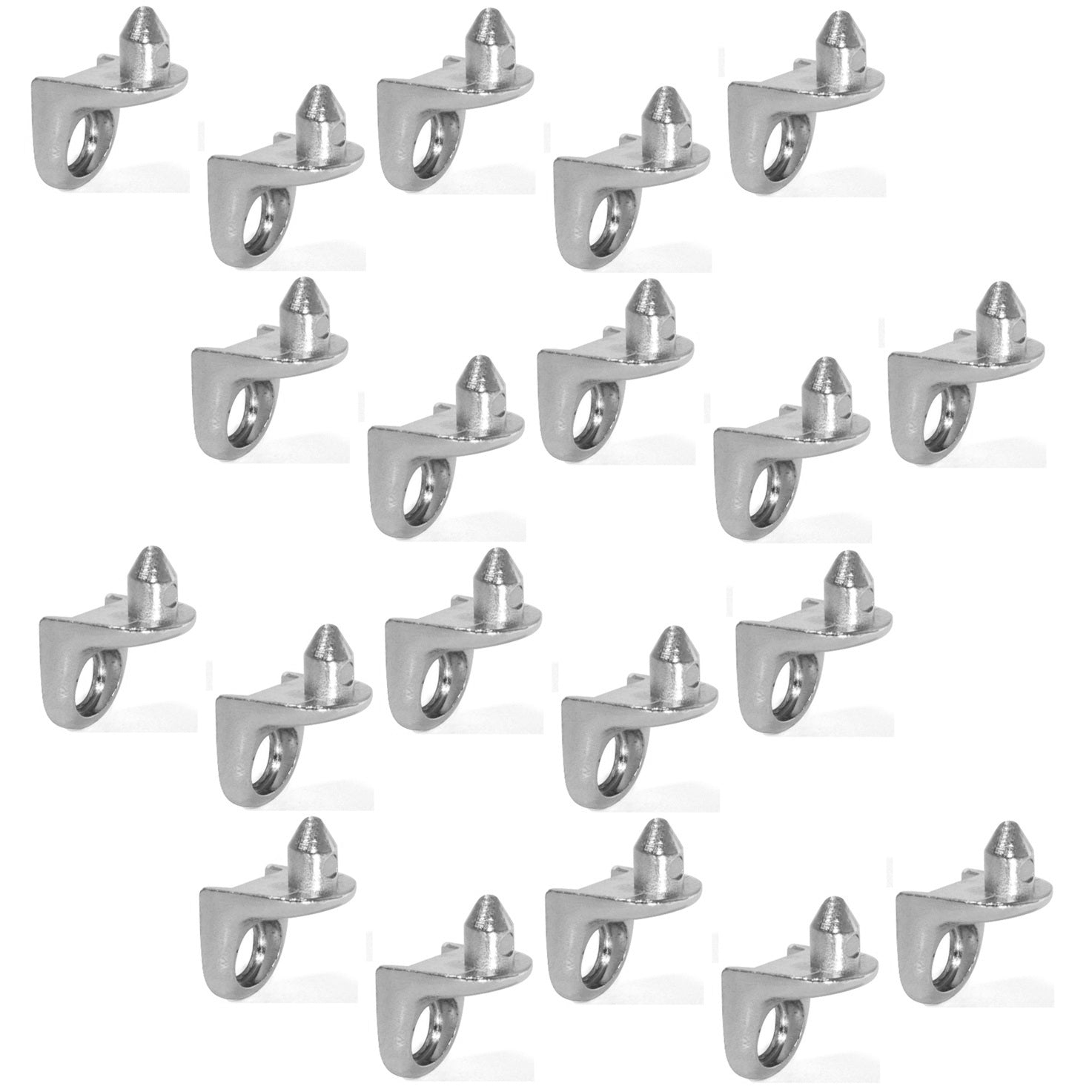

Pack of 20 zinc alloy shelf supports, nickel-plated finish 8014107. Zinc alloy shelf supports for shelves, cabinet shelves, shelves, cabinets, racks and much more, by EMUCA

20 pieces shelf supports made of solid zinc alloy, surface: nickel-plated, 8014107

Application: Zinc alloy shelf supports for shelves, compartment floors, cabinet floors, shelves, cabinets, racks and much more. The high-quality shelf supports 8014107 are highly resilient and durable. The shelf supports have a rectangular shape to optimally support shelves. For better locking of the shelves, the shelf supports 8014107 have an additional fastening pin on the upper surface with a diameter of Ø5 mm (13/64″) and a length of 7.5 mm (19/64″). The shelf support 8014107 is ideal for, among other things:

• office cabinet
• bedroom furniture
• Home furniture
• Shelves
• Shelves
• Cabinet shelves
• Shelves
• Cabinets
• shelves

Material:

• The high-quality shelf supports 8014107 are made of solid zinc alloy (ZDC)

Surface:

• Nickel-plated

Assembly:

• The shelf support 8014107 is screwed to the cabinet wall
• A mounting hole with a diameter of 5 mm (13/64″) and a drilling depth of 8 mm (5/16″) must be pre-drilled in the shelf
• The distance between the mounting hole and the edge of the shelf should be 10 mm (25/64″)
• The shelf is placed with the mounting hole on the mounting pin of the shelf support
• The mounting hole on the cabinet wall must be positioned 7.5 mm (19/64″) below the desired position of the shelf (for further details see assembly drawing )

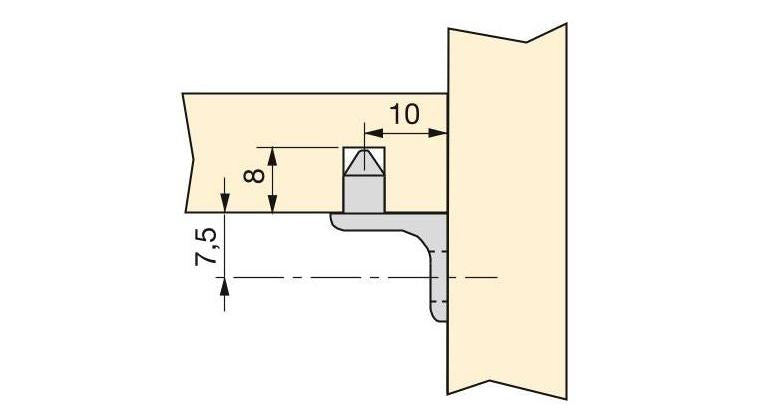

[caption id="attachment_121708" align="alignnone" width="420"] Shelf support made of zinc alloy, nickel-plated finish, from EMUCA. Assembly drawing[/caption] Characteristics:

• Weight: 3.7 g
• Size: 5 mm (0.2″)
• Stable
• Solid
• Robust
• Nickel-plated
• High brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• The support surface of the shelf support: 14 mm (35/64″) x 12 mm (15/32″)
• Length of the fixing pin: 7 mm (9/32″)

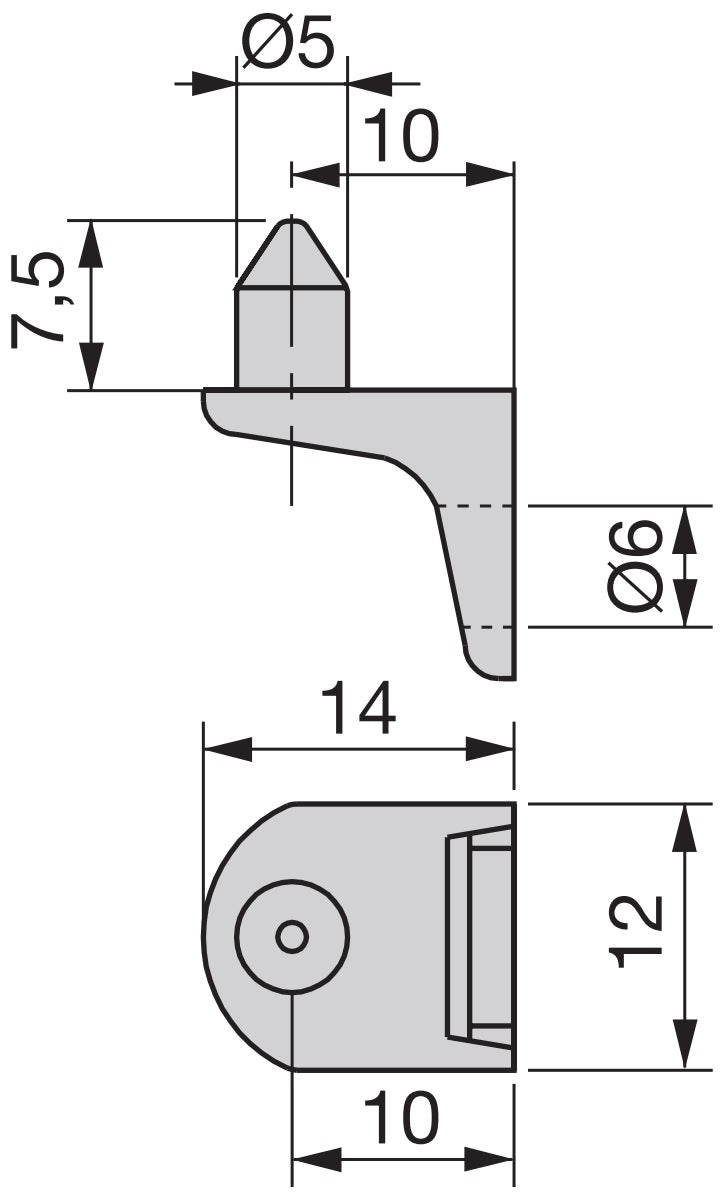

[caption id="attachment_121721" align="alignnone" width="255"] Shelf support made of zinc alloy, nickel-plated finish, from EMUCA. Technical drawing[/caption] Included in delivery:

• 20 pieces shelf supports 8014107 made of solid zinc alloy, nickel-plated

Manufacturer reference number:

• Article number: 8014107
• EAN number: 8432393119571

Manufacturer: EMUCA
