Ringförmiger Edelstahl-Klappgriff SUS304, 38 mm (1,5″) 980641. Ringförmiger Edelstahl-Klappgriff aus rostfreiem Edelstahl V2A, glänzend poliert, für Revisionsklappe, Revisionstür, feuchte Umgebung, Schiff, Caravan von Sugatsune / LAMP® (Japan)

Ring-shaped stainless steel folding handle made of stainless steel V2A (SUS304) 980641

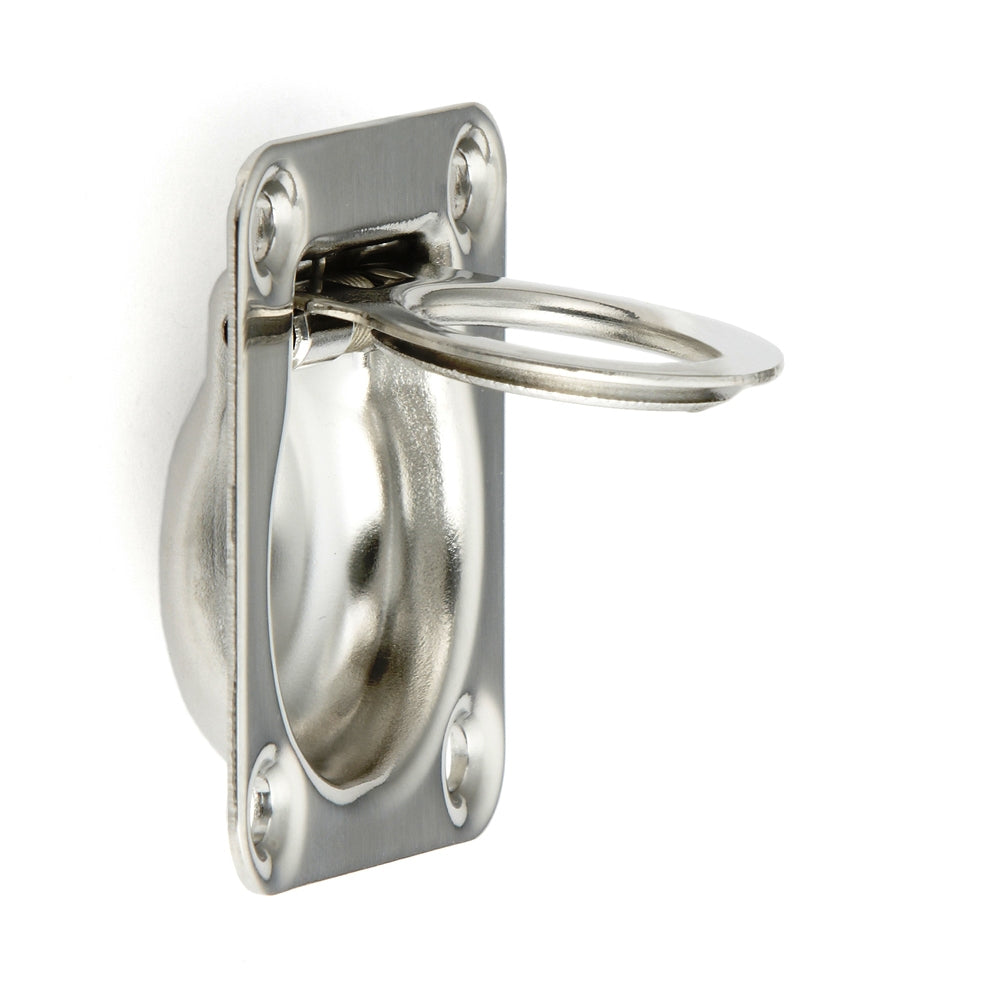

Application: [caption id="attachment_46403" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980641 (38 mm), mirror polished. Application[/caption] Ring-shaped stainless steel folding handle made of V2A stainless steel, shiny polished, for inspection hatch, inspection door, damp environment, ship, caravan. The folding handles are perfect for applications where the handle needs to remain hidden. They can be mounted both vertically and horizontally The ring-shaped stainless steel folding handles 980641 are folded closed by the built-in spring when not in use. When folded, the ring handles are flush with the surface. The ring-shaped stainless steel folding handles 980641 have a simple and elegant design and can be used in a variety of ways. The high-quality 980641 ring-shaped stainless steel folding handles are ideal for:

• Inspection hatch
• inspection door
• humid environment
• Ship
• Caravan
• cruise ship
• yacht
• boat
• Outdoor area
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: The rust-proof folding ring handles 980641 are made of solid high-quality SUS304 stainless steel. Foldable ring handle made of SUS316 stainless steel is also ideal for use in swimming pools, shipbuilding, etc. Surface:

• Shiny polished

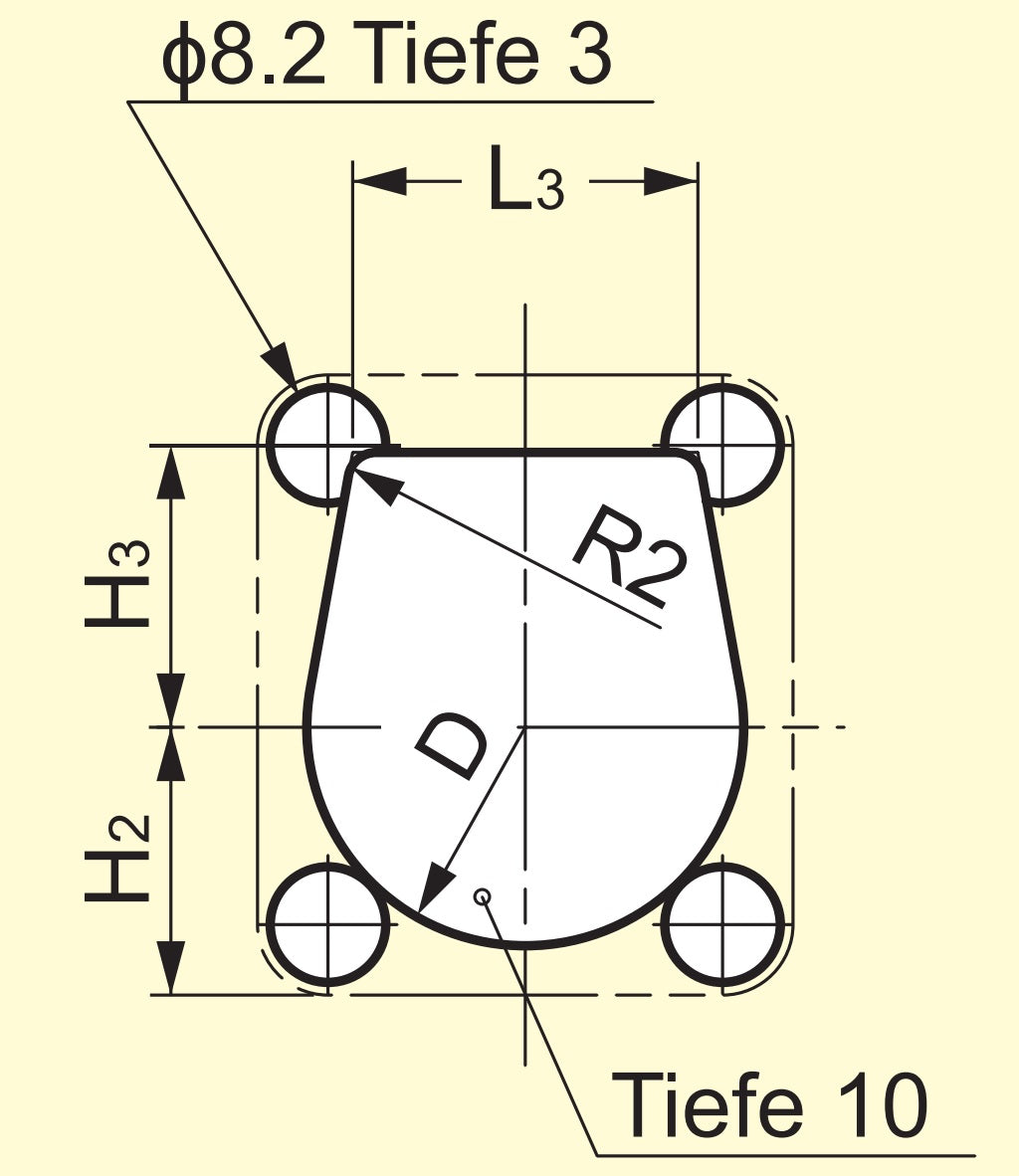

Assembly: [caption id="attachment_46416" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980641 (38 mm), glossy polished. Assembly drawing[/caption]

• The ring-shaped stainless steel folding handles 980641 are for recessing
• The mounting is done using the screws included in delivery (3 × 16 mm)
• The fastening screws are also made of stainless steel
• For installation, a cutout with a depth of at least 10.5 mm (13/32″) must be made on the door
• Four drill holes with a diameter of 8.2 mm and a depth of 3 mm must also be prepared

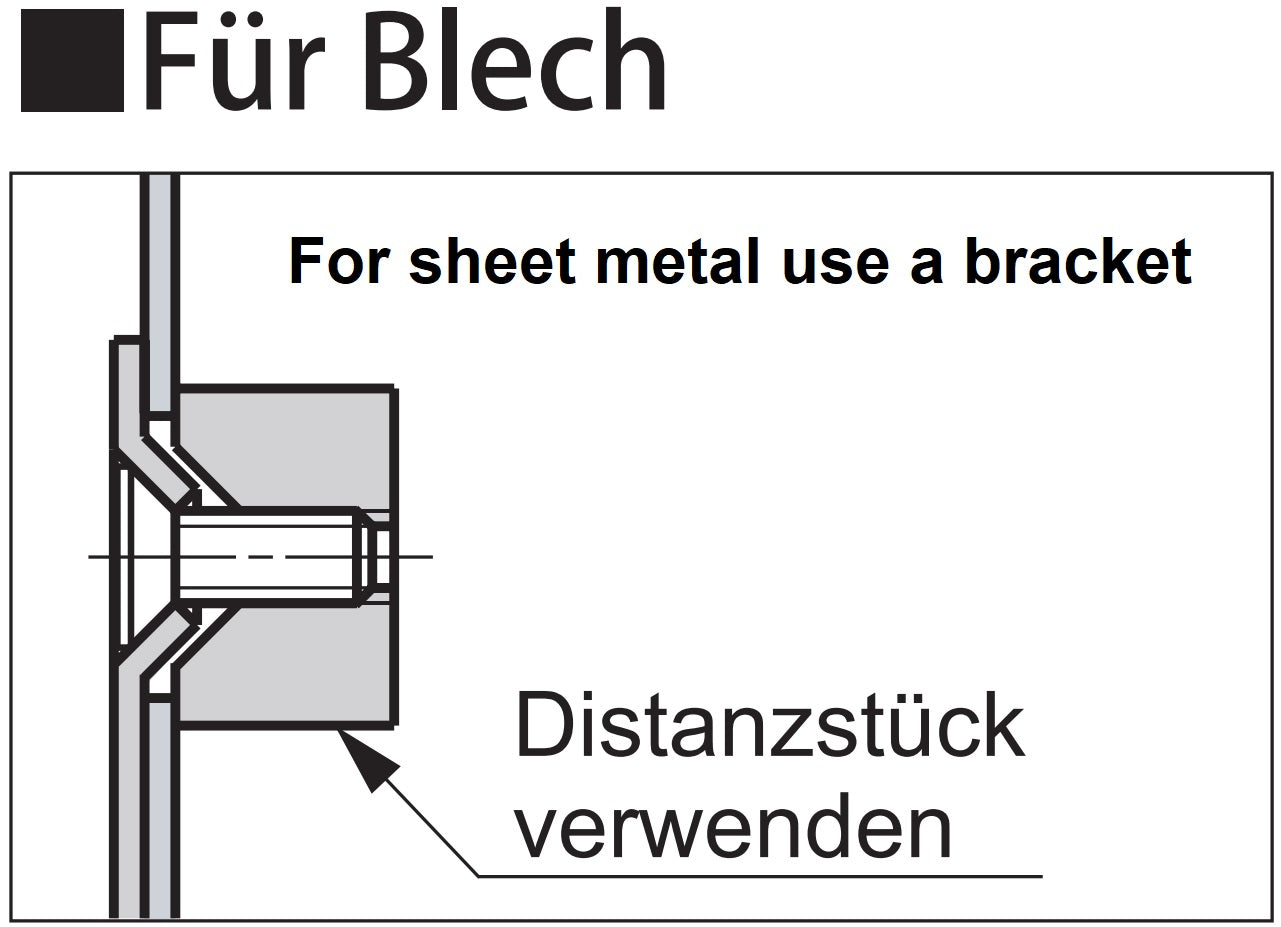

• The ring-shaped stainless steel folding handles 980641 can also be installed in sheet metal using a spacer and four M3 self-tapping screws. These are not included in the scope of delivery (see assembly drawing for further details).

[caption id="attachment_46429" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980641 (38 mm), glossy polished. Mounted in sheet metal.[/caption] Characteristics:

• Weight: 21 g
• Load capacity: 196 N (20 kp)
• Size: 38 mm (1.5″)
• Shape: round
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Material thickness: 1 mm

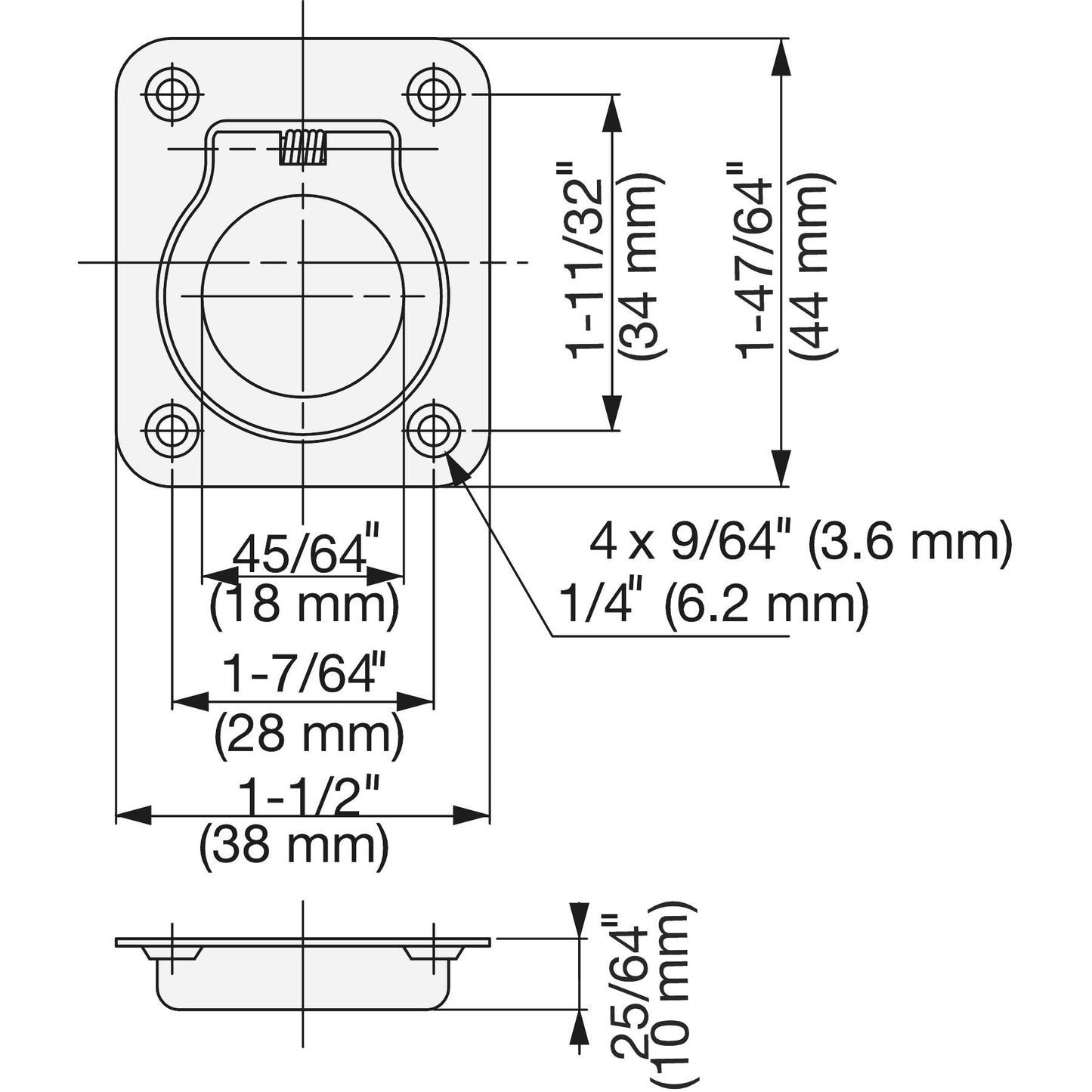

Dimensions: For further dimensions and details see technical drawing .

• Size of the ring-shaped stainless steel folding handle: 44 mm (1-23/32″)
• Width: 38 mm (1-16/32″)
• Diameter of the handle area: Φ18 mm (23/32″)
• Distance between mounting holes: 28 mm (1-3/32″) horizontally and 34 mm (1-11/32″) vertically

[caption id="attachment_46442" align="alignnone" width="420"] Sugatsune's ring-shaped SUS304 stainless steel folding handle, 980641 (38 mm), glossy polished. Technical drawing[/caption] Included in delivery:

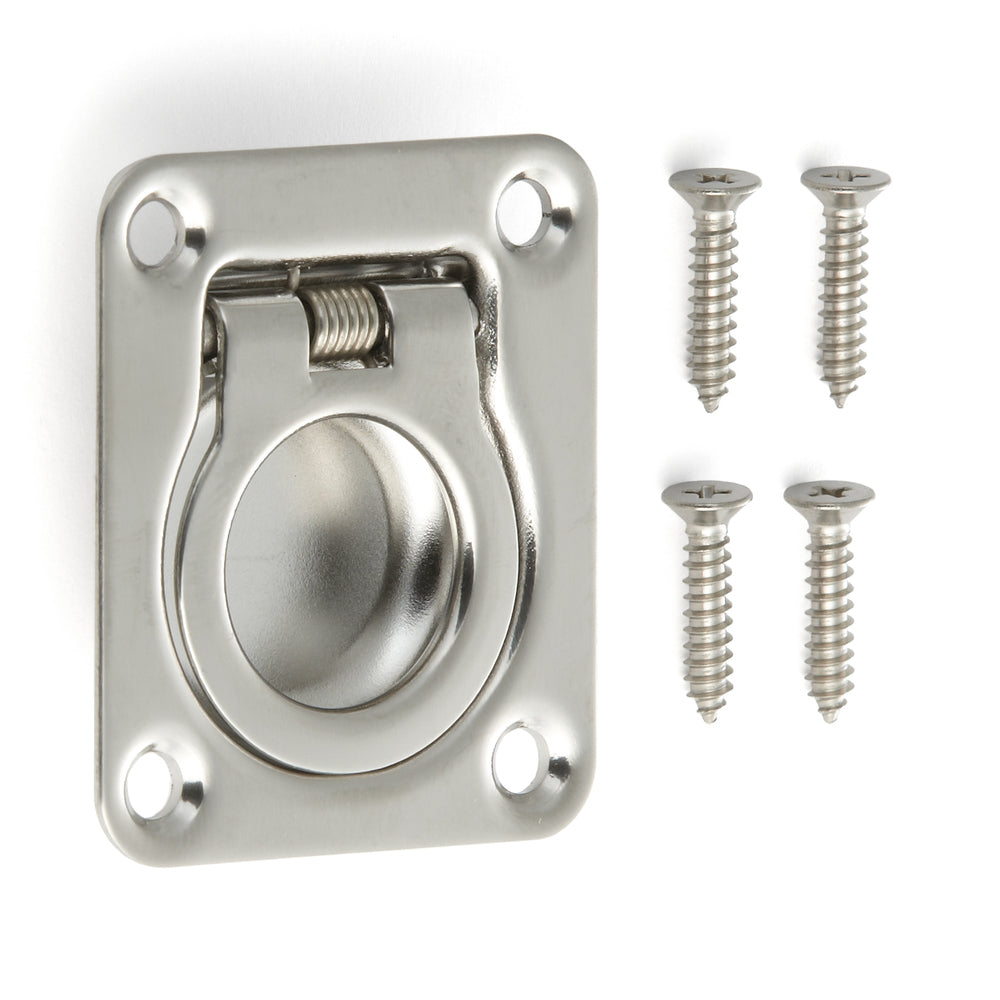

• 1 piece ring-shaped stainless steel folding handle 980641 made of stainless steel SUS304 (V2A)
• 4 x 3 × 16 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-011-737
• Article name: 980641
• EAN number: 4510932011020

Manufacturer: SUGATSUNE / LAMP® (Japan)
