Ring-shaped folding handle made of brass, finish: white bronze, satin matte, 38 mm (1.5") 587-50WB. Ring handle 587-50WB for motorhomes, boats, inspection hatches, and access doors, by Sugatsune / LAMP® (Japan)

High-quality ring-shaped folding handle made of solid and robust brass, surface: white bronze, satin matt, 587-50WB

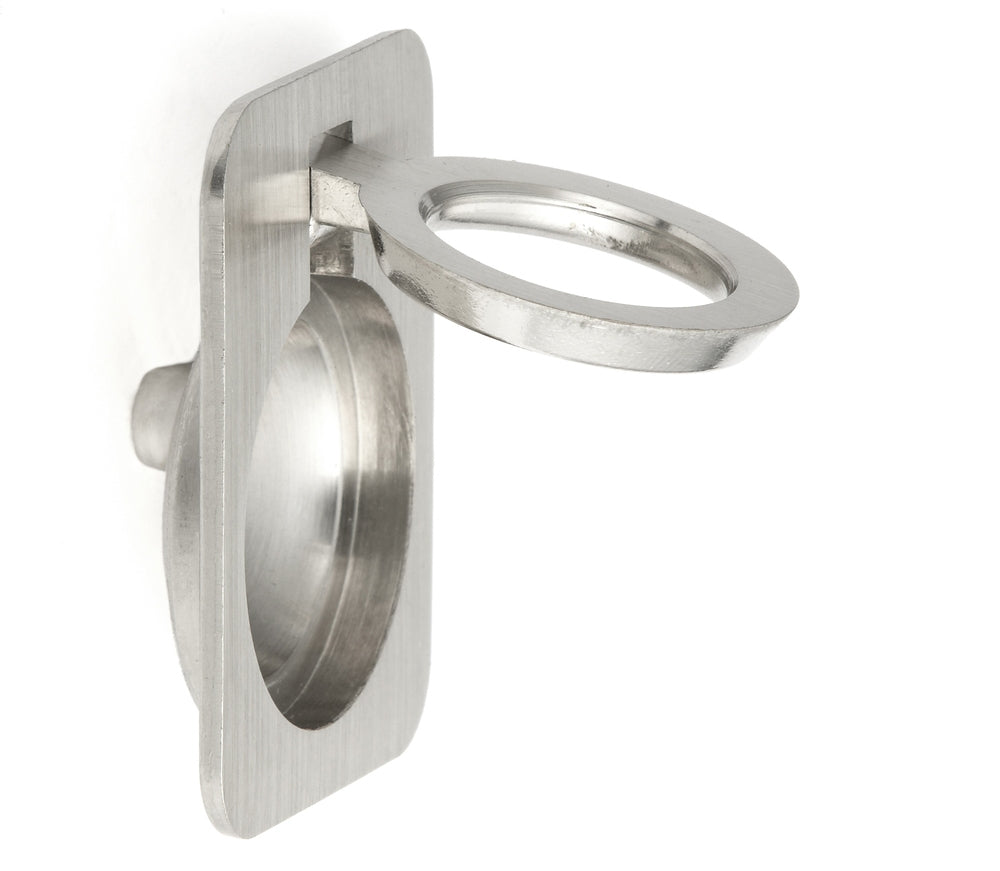

Application: Ring handle 587-50WB for motorhome, boat, inspection hatch, inspection door. [caption id="attachment_113900" align="alignnone" width="420"] Ring-shaped folding handle made of brass, finish: white bronze, satin matte, 587-50WB, 38 mm, by Sugatsune. Application[/caption] The high-quality ring-shaped folding handles 587-50WB are perfect for applications where the handle needs to remain hidden. They can be mounted both vertically and horizontally. The ring-shaped folding handles 587-50WB have a simple and elegant design and can be used in a variety of ways. The ring handle 587-50WB is ideal for, among other things:

• yacht
• Motorhome
• boat
• Inspection hatch
• inspection door

Material:

• The high-quality ring-shaped folding handles 587-50WB are made of brass

Surface:

• White bronze, satin matt

Assembly:

• The ring-shaped folding handles 587-50WB are for flush mounting
• The fastening is carried out using the screws included in delivery (M4 x 25 truss head screw)
• For installation, a 51 mm (2-1/64″) x 38 mm (1-1/2″) cutout must be made on the door
• The depth of the cutout must be at least 15 mm (19/32″) mm (for further details see assembly drawing )

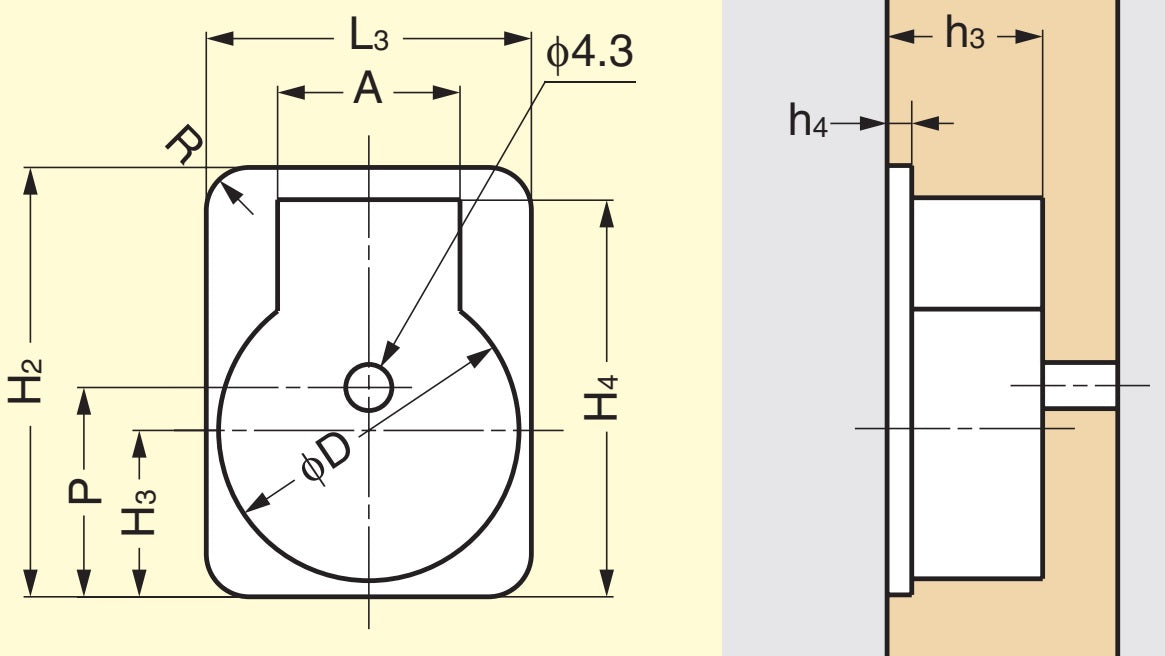

[caption id="attachment_113914" align="alignnone" width="420"] Ring-shaped folding handle made of brass, finish: white bronze, satin matte, 587-50WB, 38 mm, by Sugatsune. Assembly drawing[/caption] Characteristics:

• Weight: 59 g
• Size: 38 mm (1.5″)
• ring-shaped
• Material thickness: 2.5 mm (3/32″)
• Reliable
• Stable
• Robust
• White bronze, satin matt
• High brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Length of the ring-shaped folding handle (H1): 51 mm (2-1/64″)
• Width (L): 38 mm (1-1/2″)
• Depth (h1): 14 mm (35/64″)
• Diameter of the grip ring (L1): Φ30.5 mm (1-13/64″)
• Diameter of the grip area (L2): Φ21 mm (53/64″)

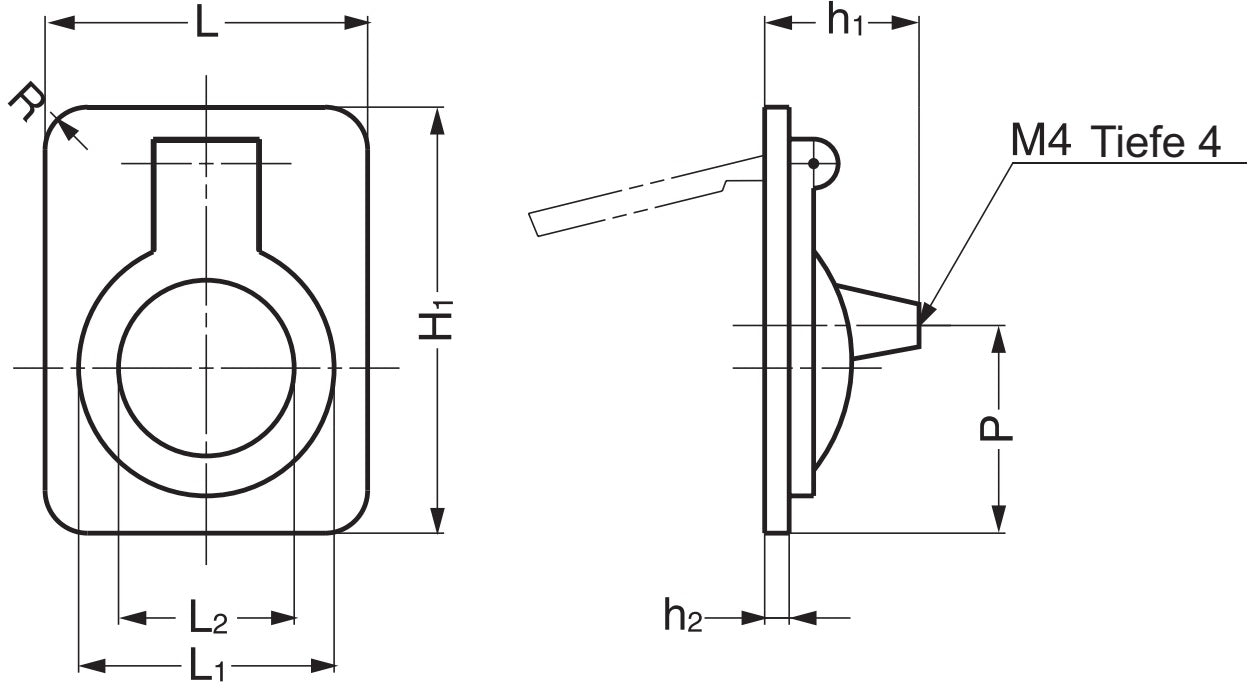

[caption id="attachment_113928" align="alignnone" width="420"] Ring-shaped folding handle made of brass, finish: white bronze, satin matte, 587-50WB, 38 mm, by Sugatsune. Technical drawing[/caption] Included in delivery:

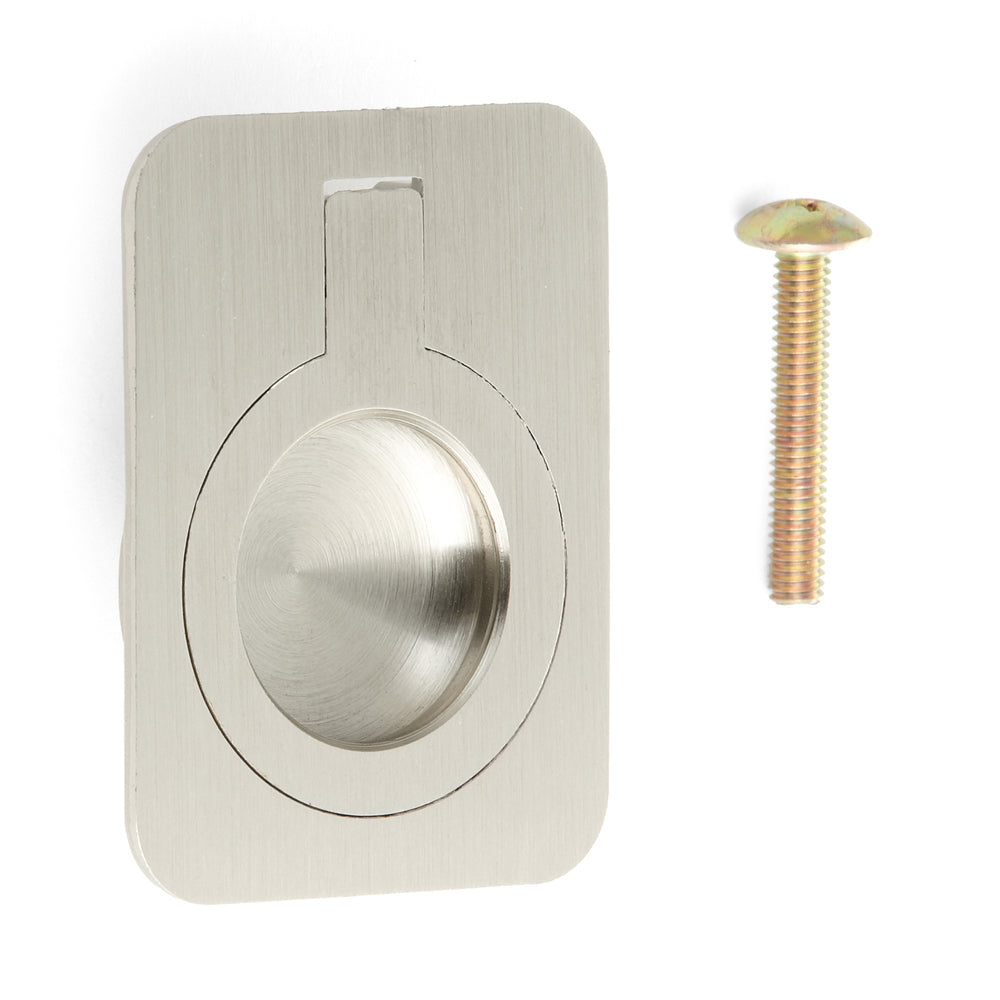

• 1 piece ring-shaped folding handle 587-50WB made of solid and robust brass, white bronze, satin matt
• 1 piece M4 x 25 truss head screw made of steel

Manufacturer reference number:

• Article number: 100-016-014
• Item number: 587-50WB
• EAN number: 4510932010887

Manufacturer: Sugatsune / LAMP® (Japan)
