4 round mounting plates with M10 thread, made of solid zinc alloy, 28 mm (1.2"), AD-555-28-M10. Mounting plate for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet, and much more, from Sugatsune / LAMP® (Japan).

4 pieces round screw-on plate with M10 thread and three mounting holes, screw-on plate, made of solid zinc alloy (ZDC), surface: zinc chromate, AD-555-28-M10, size: 28 mm (1.2")

Application: Mounting plate for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet and much more. The AD-555-28-M10 mounting plate is used to attach furniture feet, leveling feet, etc. under furniture, sofas, appliances, machines, etc. Also suitable for replacing defective furniture feet, furniture casters or sofa feet. The galvanized surface of the screw plate protects it from rust and corrosion. The high-quality screw-on plates 200-140-076 are ideal for:

• Device feet
• Leveling feet
• Cabinet casters
• Articulated feet
• Adjustable feet
• Adjustable feet
• Roll container
• Furniture feet
• Furniture casters
• Machine feet
• Cabinet legs
• Sofa feet

Material:

• The screw plates AD-555-28-M10 are made of solid zinc alloy (ZDC)

Surface:

• Zinc chromate

Assembly:

• The screwing plate has three mounting holes with a diameter of (⌀d2) ⌀3.2 mm (1/8″) and is attached to the lower surface of the furniture with three screws (not included in delivery)
• The furniture feet or castors, which are equipped with a screw, are then screwed into the thread of the mounting plate AD-555-28-M10 and tightened

Characteristics:

• Weight: 15 g
• Size: 28 mm (1.2″)
• with M10 thread
• around
• with three mounting holes
• stable
• Zinc chromate
• zinc alloy
• ZDC
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the mounting plate (⌀D): ⌀28 mm (1-7/64″)
• Height (H): 9 mm (23/64″)
• Thread (d1): M10
• Diameter of the mounting holes (⌀d2): ⌀3.2 mm (1/8″)
• Distance between the center point and the mounting hole (⌀P): ⌀20 mm (25/32″)
• Material thickness (t): 2.7 mm (7/64″)

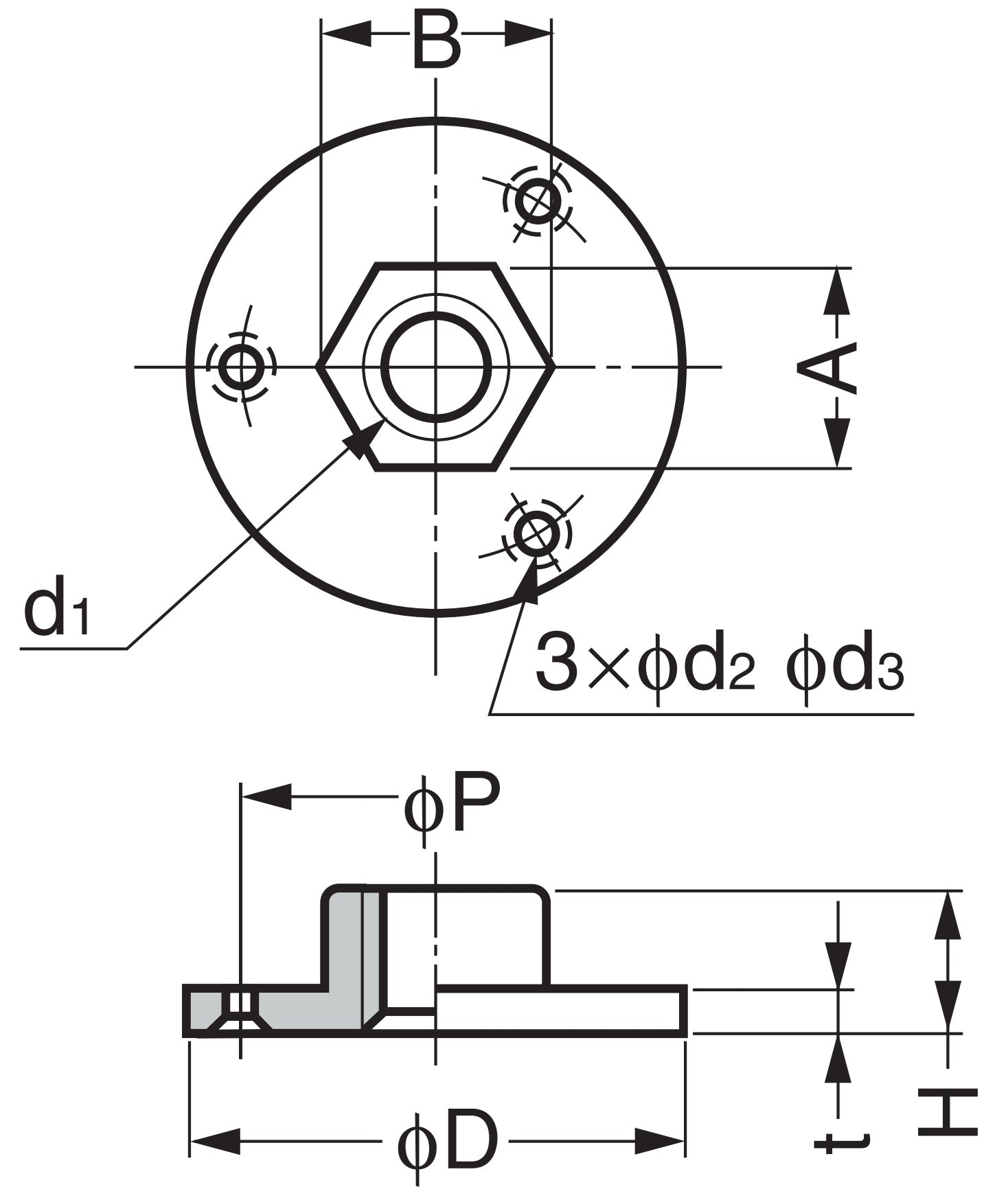

[caption id="attachment_132608" align="alignnone" width="353"] Round mounting plate with M10 thread, mounting plate, AD-555-28-M10, 28 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

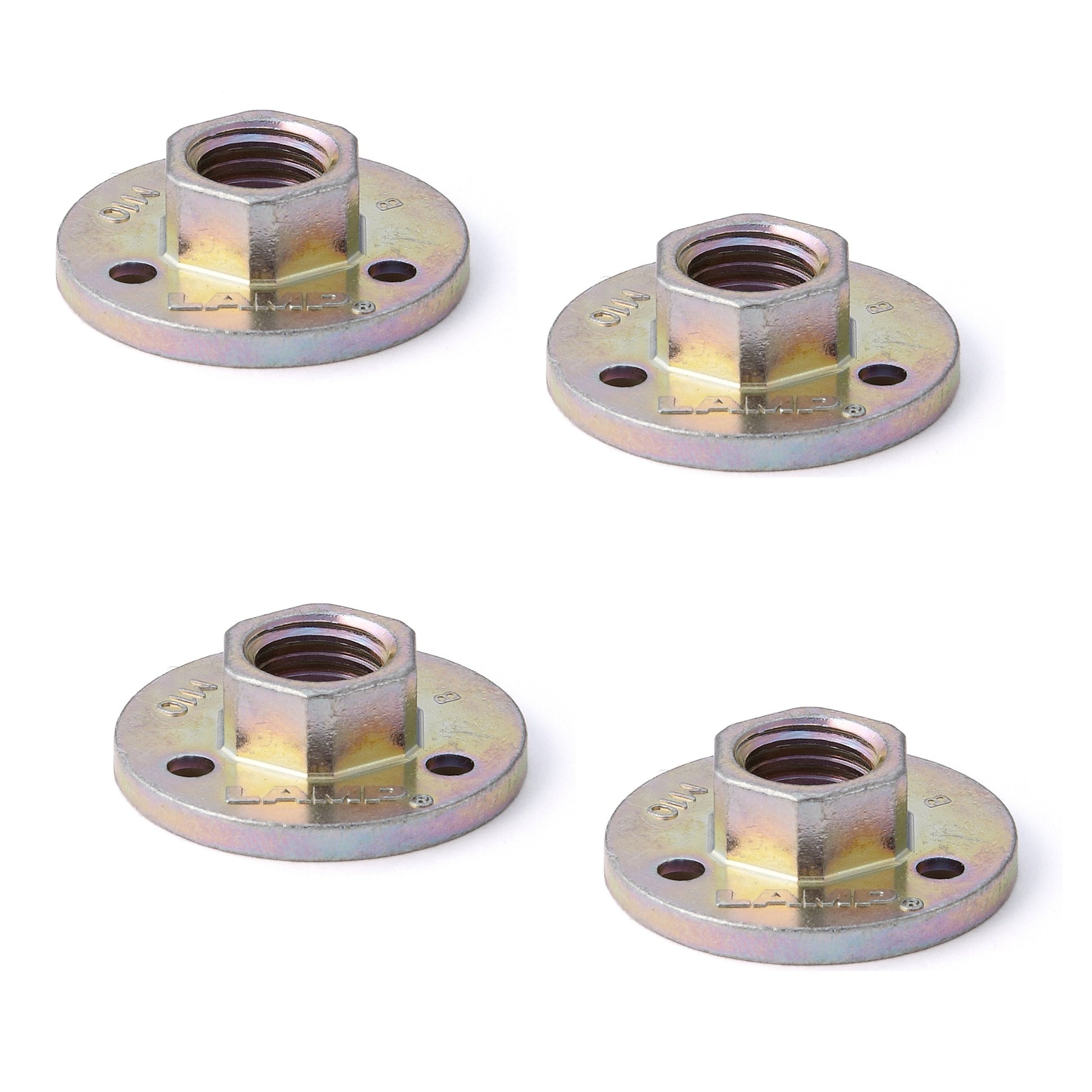

• 4 pieces screwing plate AD-555-28-M10 made of solid zinc alloy, zinc chromate

Manufacturer reference number:

• Article number: 200-140-076
• Item number: AD-555-28-M10
• EAN number: 4510932840088

Manufacturer: Sugatsune / LAMP® (Japan)
