4 pieces round mounting plate with M8 thread, fastening plate, made of stainless steel, 36 mm (1.5"), AP36-M8. Screw-on plate, for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet, and much more, from Sugatsune / LAMP® (Japan)

4 pieces round mounting plate with M8 thread and three mounting holes, screw-on plate, made of stainless steel (V2A), surface: shiny polished, AP36-M8, size: 36 mm (1.5")

Application: Screw-on plate for furniture feet, furniture casters, machine feet, cabinet legs, sofa feet and much more. The AP36-M8 screw plate is used to attach furniture feet, leveling feet, etc. under furniture, sofas, appliances, machines, etc. Also suitable for replacing defective furniture feet, furniture casters or sofa feet. The galvanized surface of the mounting plate protects it from rust and corrosion. The high-quality mounting plates 200-140-501 are ideal for:

• Device feet
• Leveling feet
• Cabinet casters
• Articulated feet
• Adjustable feet
• Adjustable feet
• Roll container
• Furniture feet
• Furniture casters
• Machine feet
• Cabinet legs
• Sofa feet

Material:

• The mounting plates AP36-M8 are made of stainless steel (V2A)

Surface:

• Shiny polished

Assembly:

• The screw plate has three mounting holes with a diameter of ⌀4.2 mm (11/64″) and is attached to the lower surface of the furniture with three screws (not included).
• The furniture feet or castors, which are equipped with a screw, are then screwed into the thread of the AP36-M8 mounting plate and tightened

Characteristics:

• Weight: 13 g
• Size: 36 mm (1.5″)
• with M8 thread
• around
• with three mounting holes
• robust
• stable
• shiny polished
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Mounting plate diameter: ⌀36 mm (1-27/64″)
• Height: 12 mm (15/32″)
• Thread: M8
• Mounting hole diameter: ⌀4.2 mm (11/64″)
• Threaded nut diameter: ⌀9.6 mm (3/8″)

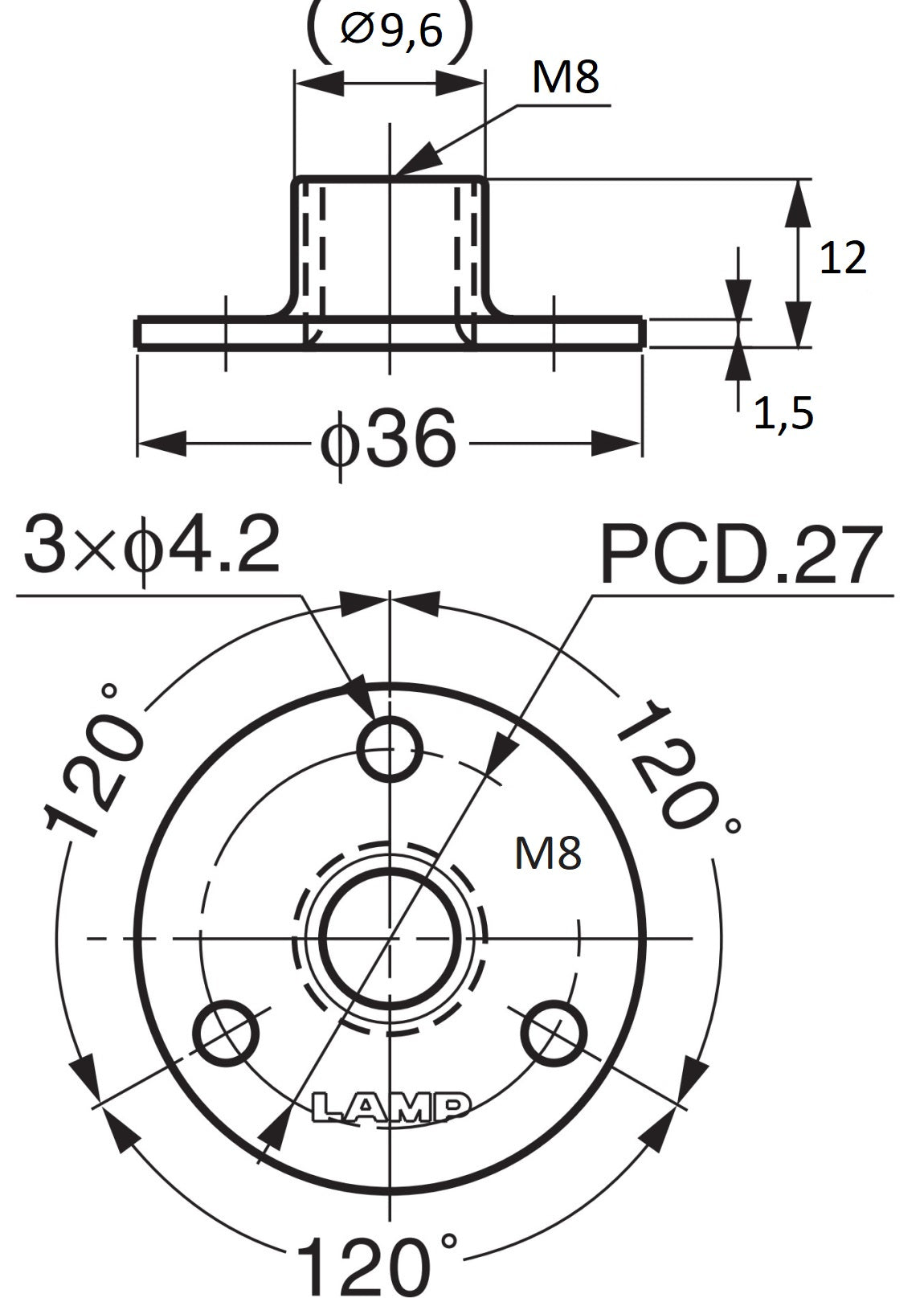

[caption id="attachment_132287" align="alignnone" width="299"] Round mounting plate with M8 thread, fixing plate, AP36-M8, 36 mm, from Sugatsune. Technical drawing[/caption] Included in delivery:

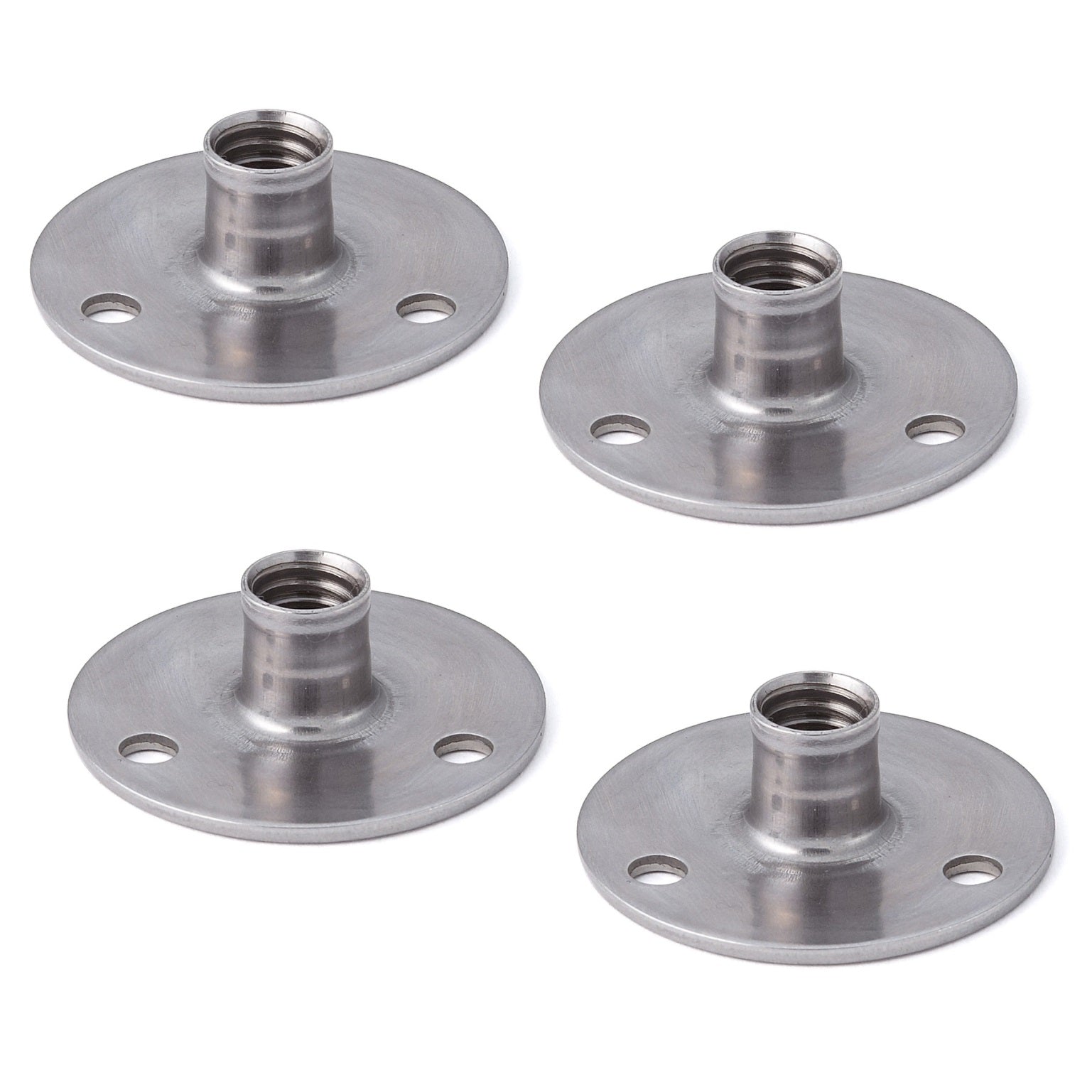

• 4 pieces mounting plate AP36-M8 made of stainless steel, shiny polished

Manufacturer reference number:

• Article number: 200-140-501
• Item number: AP36-M8
• EAN number: 4510932005098

Manufacturer: Sugatsune / LAMP® (Japan)
