Hochwertiger runder Federklapphaken zum Einlassen, Oberfläche: schwarz, satiniert matt, 52 mm (2,1″), NF-R52-BL. Runder Klapphaken mit Schließautomatik, für Tinyhouse, Wohnmobil, Caravan, Yacht, Zug, Bus und viel mehr, von Sugatsune / LAMP® (Japan)

High-quality round spring-loaded hook, made of solid zinc alloy (ZDC), surface: black, satin matt, NF-R52-BL, size: 52 mm (2.1")

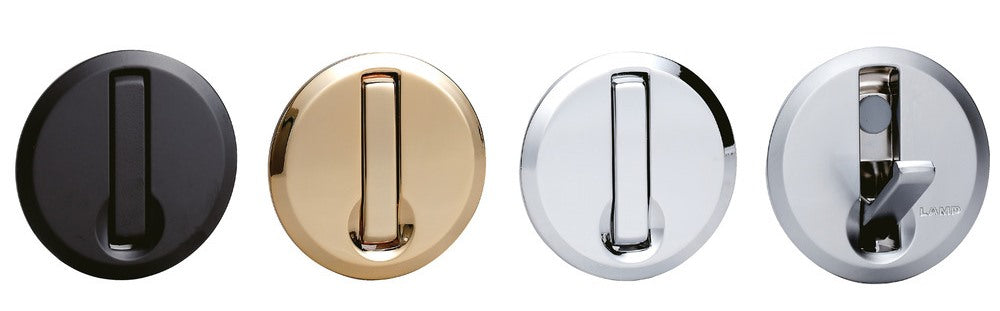

Application: Round folding hook with automatic closing, for tiny houses, motorhomes, caravans, yachts, trains, buses and much more. [caption id="attachment_130777" align="alignnone" width="420"] High-quality round spring-loaded hook for flush mounting, NF-R52-BL, 52 mm, from Sugatsune, black, satin finish. Application[/caption] The NF-R52-BL spring-loaded folding hooks close automatically when hanging items are removed. This ensures greater security. Furthermore, the folding hook with automatic closing remains unobtrusive and contributes to the minimalist design of the interior. The folding hook with automatic closing NF-R52-BL is perfect for wall mounting in wood and also in sheet metal. The NF-R52-BL spring hook has excellent load-bearing capacity and durability and is suitable for hanging various objects. The NF-R52-BL folding hook with automatic closing has a well-finished surface (color: black, satin matt) that withstands daily scratches. The tip of the NF-R52-BL folding hook has a curvature that prevents the hanging objects from accidentally falling off. The high-quality spring-loaded hooks NF-R52-BL have a simple and robust design and are ideal for, among others:

• wardrobe
• boat
• Airplane
• Seat in the public sector
• cinema seat
• Theater seat
• Tiny house
• Motorhome
• Caravan
• yacht
• Train
• bus

Material:

• The spring hooks NF-R52-BL are made of solid zinc alloy (ZDC)

Surface:

• Black, satin matt

Assembly:

• The spring hook NF-R52-BL has a mounting hole with a diameter of ⌀4.5 mm, with countersink for mounting in wooden panel
• The folding hook NF-R52-BL also has an additional mounting hole thread M4 for mounting in the metal sheet
• For mounting in the wooden panel or sheet metal, a cutout with the dimensions 45 mm (1-49/64″) x 19 mm (3/4″) must be made
• For mounting in the wooden panel, the depth of the cutout should be at least 13 mm (33/64″)
• For mounting in sheet metal, the mounting bracket L.NF-50 is available (for further details see assembly drawing )

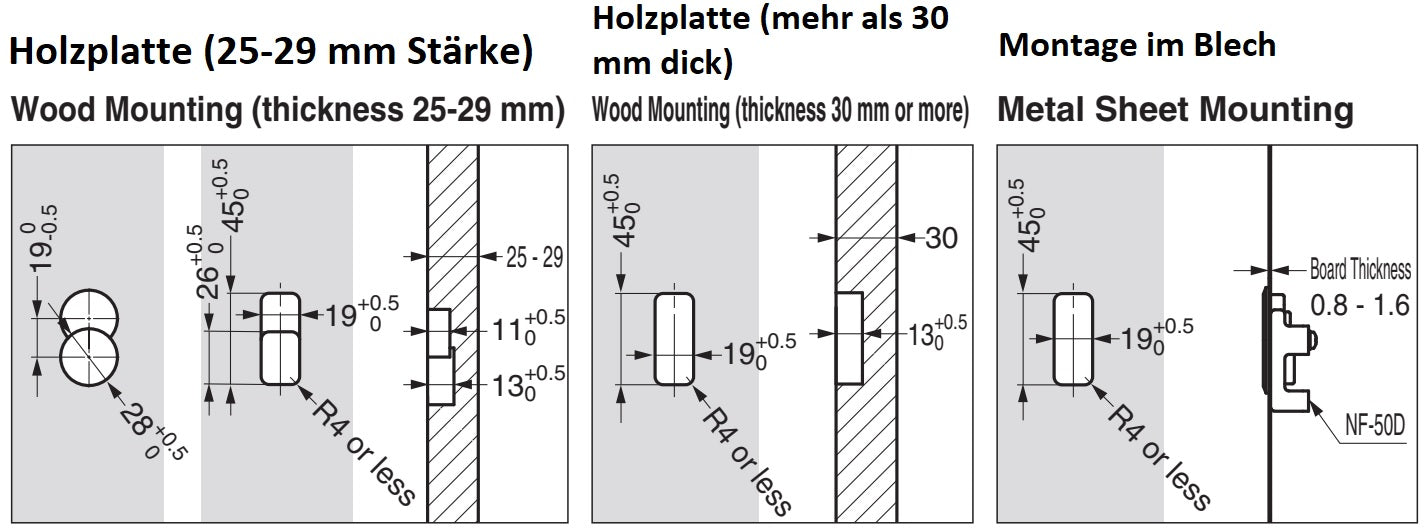

[caption id="attachment_130789" align="alignnone" width="420"] High-quality round spring-loaded hook for flush mounting, NF-R52-BL, 52 mm, from Sugatsune, black, satin finish. Installation drawing[/caption] Characteristics:

• Weight: 70 g
• Load capacity: 196 N (20 kp)
• Size: 52 mm (2.1″)
• to let in
• with automatic closing
• high quality
• high load capacity
• no sharp edges
• rounded hook ends
• robust
• stable
• Black, satin matt
• zinc alloy
• ZDC
• zinc die-casting
• high brand quality from Sugatsune / LAMP®

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the folding hook: ⌀52 mm (2-3/64″)
• Depth of the hook arch when open: 25.9 mm (1-1/64″)
• Width of the hook bend: 9 mm (23/64″)

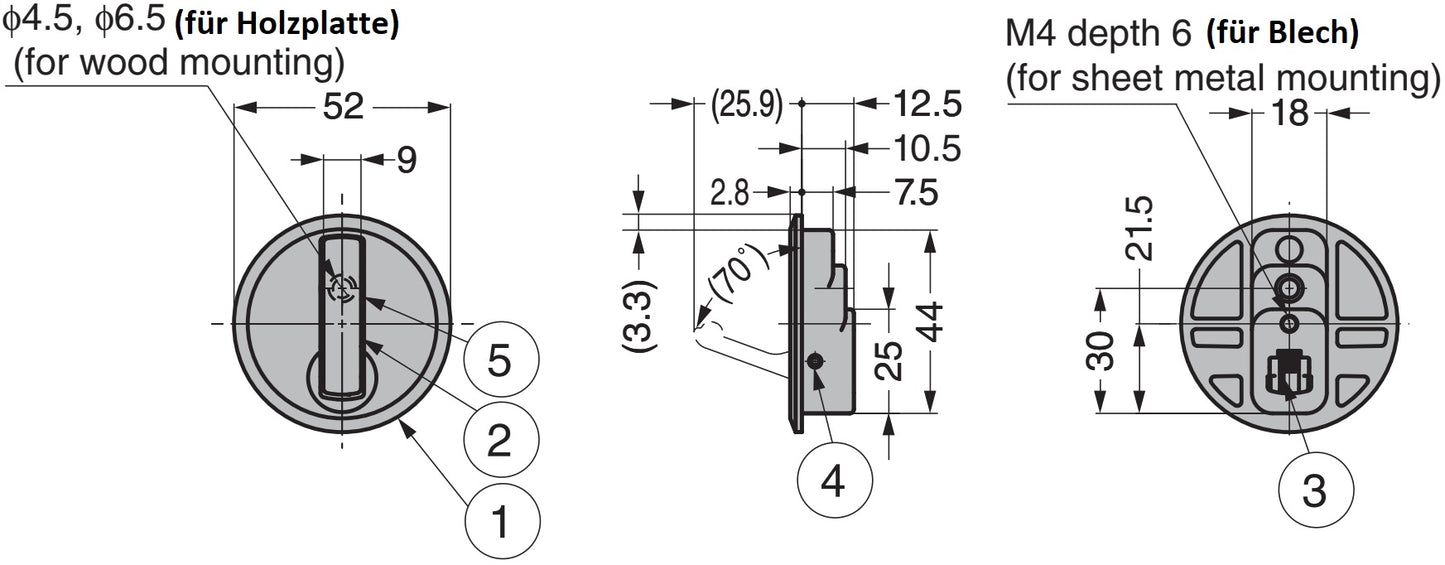

[caption id="attachment_130801" align="alignnone" width="420"] High-quality round spring-loaded hook for flush mounting, NF-R52-BL, 52 mm, from Sugatsune, black, satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece spring hook NF-R52-BL made of solid zinc alloy, black, satin matt

Watch product video: Manufacturer reference number:

• Article number: 110-041-177
• Item number: NF-R52-BL
• EAN number: 4510932179393

Manufacturer: Sugatsune / LAMP® (Japan)
