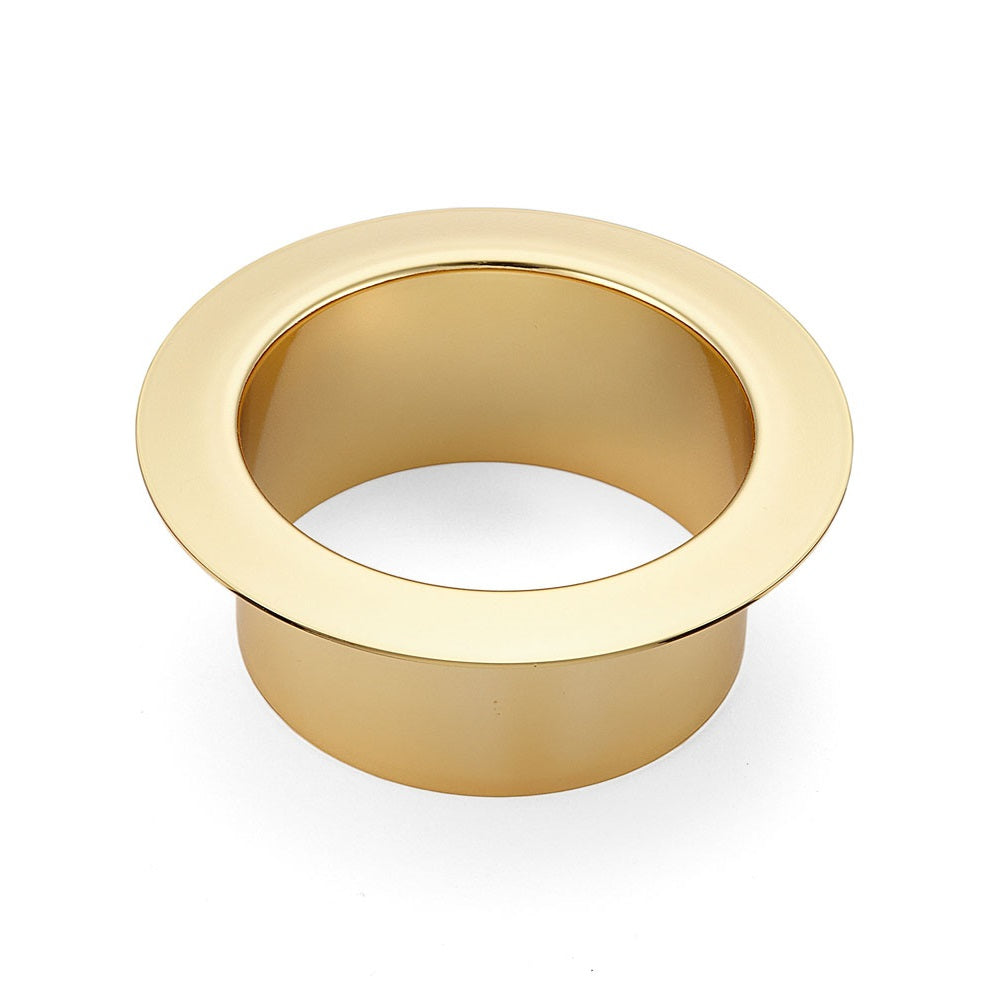

High-quality round waste chute, made of stainless steel, surface: 24K gold-plated, 82 mm (3.3"), AN-DH005-GP. Stainless steel waste chute, for chain restaurants, shopfitting, beauty salons, doctor's offices, and much more, from Sugatsune / LAMP® (Japan)

High-quality round waste disposal unit, made of stainless steel (V2A), surface: 24K gold-plated, AN-DH005-GP, size: 82 mm (3.3")

Application: Stainless steel waste disposal unit, for system catering, shopfitting, beauty salons, doctor's offices and much more. The high-quality stainless steel waste chute AN-DH005-GP made of rust-proof V2A stainless steel (SUS304) has a round shape and is elaborately crafted. [caption id="attachment_137156" align="alignnone" width="420"] High-quality round trash can, AN-DH005-GP, 82 mm, from Sugatsune, 24K gold-plated. Application[/caption] The edges are softened and rounded to avoid injuries during use. The stainless steel waste chute AN-DH005-GP can also be used in humid areas, such as in the medical sector, in laboratories, bathrooms, saunas, etc. Overall, the AN-DH005-GP garbage disposals make a very high-quality impression. [caption id="attachment_137186" align="alignnone" width="420"] High-quality round waste chute, AN-DH005-GP, 82 mm, from Sugatsune, 24K gold-plated. Available in six different diameters: 82 mm - 300 mm and with three different finishes: glossy polished, satin matte, and 24K gold-plated. [caption id="attachment_137196" align="alignnone" width="420"] High-quality round trash can, AN-DH005-GP, 82 mm, from Sugatsune, 24K gold-plated. Available in two versions: shallow (36 mm) and deep (22 mm).[/caption] The high-quality AN-DH005-GP garbage disposals are ideal for:

• gastronomy
• Catering
• professional kitchen
• Drugstore furniture
• Hospital furniture
• kitchen furniture
• System catering
• Shopfitting
• Beauty salon
• doctor's office

Material:

• The AN-DH005-GP waste disposal units are made of stainless steel (V2A)

Surface:

• Gold-plated 24K
• The gold-plated surface looks noble and protects against rust and corrosion

Assembly:

• For insertion

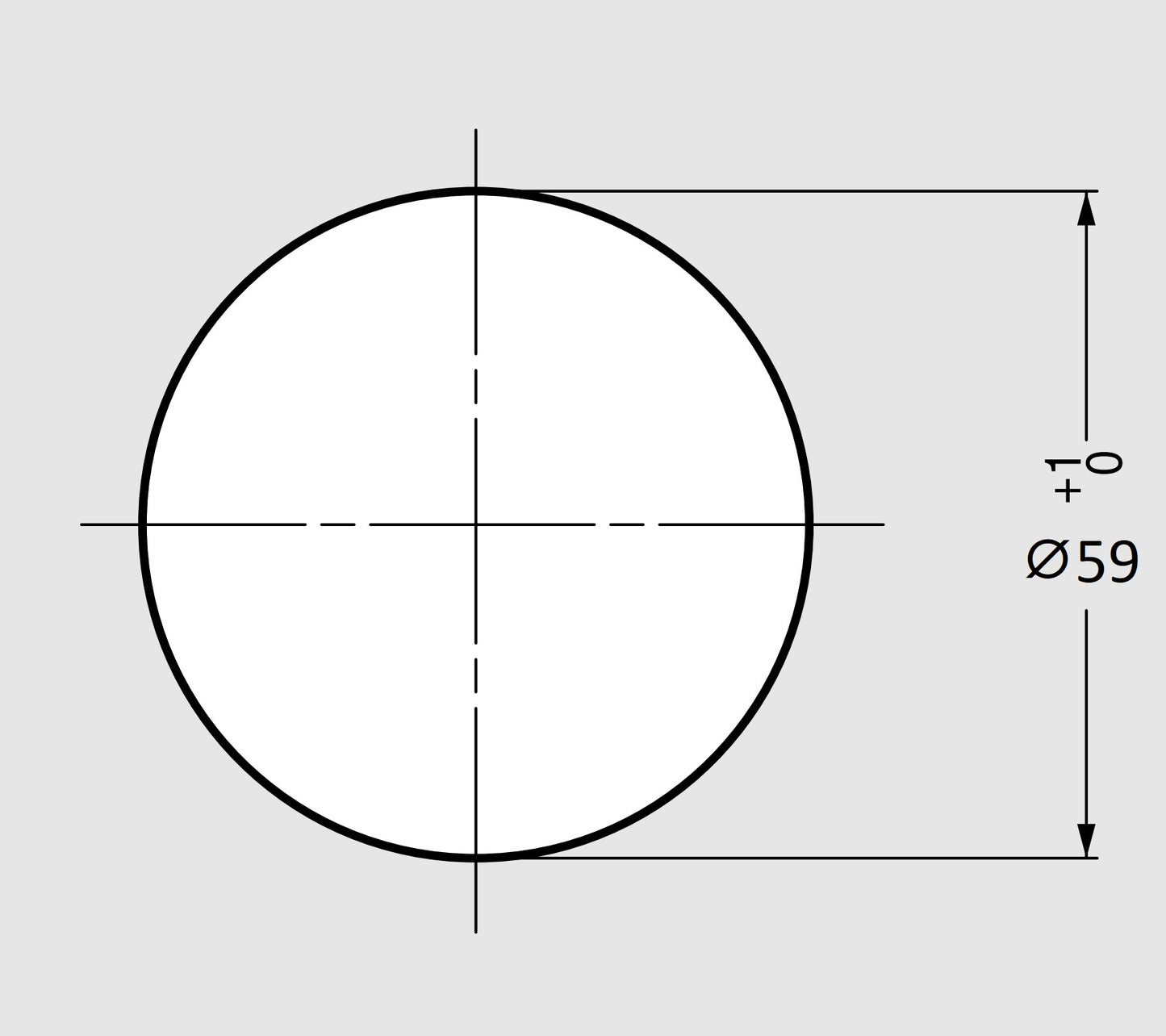

• To install the AN-DH005-GP waste disposal unit, a cutout with a diameter of ⌀59 mm (2-21/64″) must be made in the body wall (for further details see installation drawing ).

[caption id="attachment_137166" align="alignnone" width="420"] High-quality round trash can, AN-DH005-GP, 82 mm, from Sugatsune, 24K gold-plated. Assembly drawing[/caption] Characteristics:

• Weight: 66 g
• Size: 82 mm (3.3″)
• elaborately processed
• Shape: round

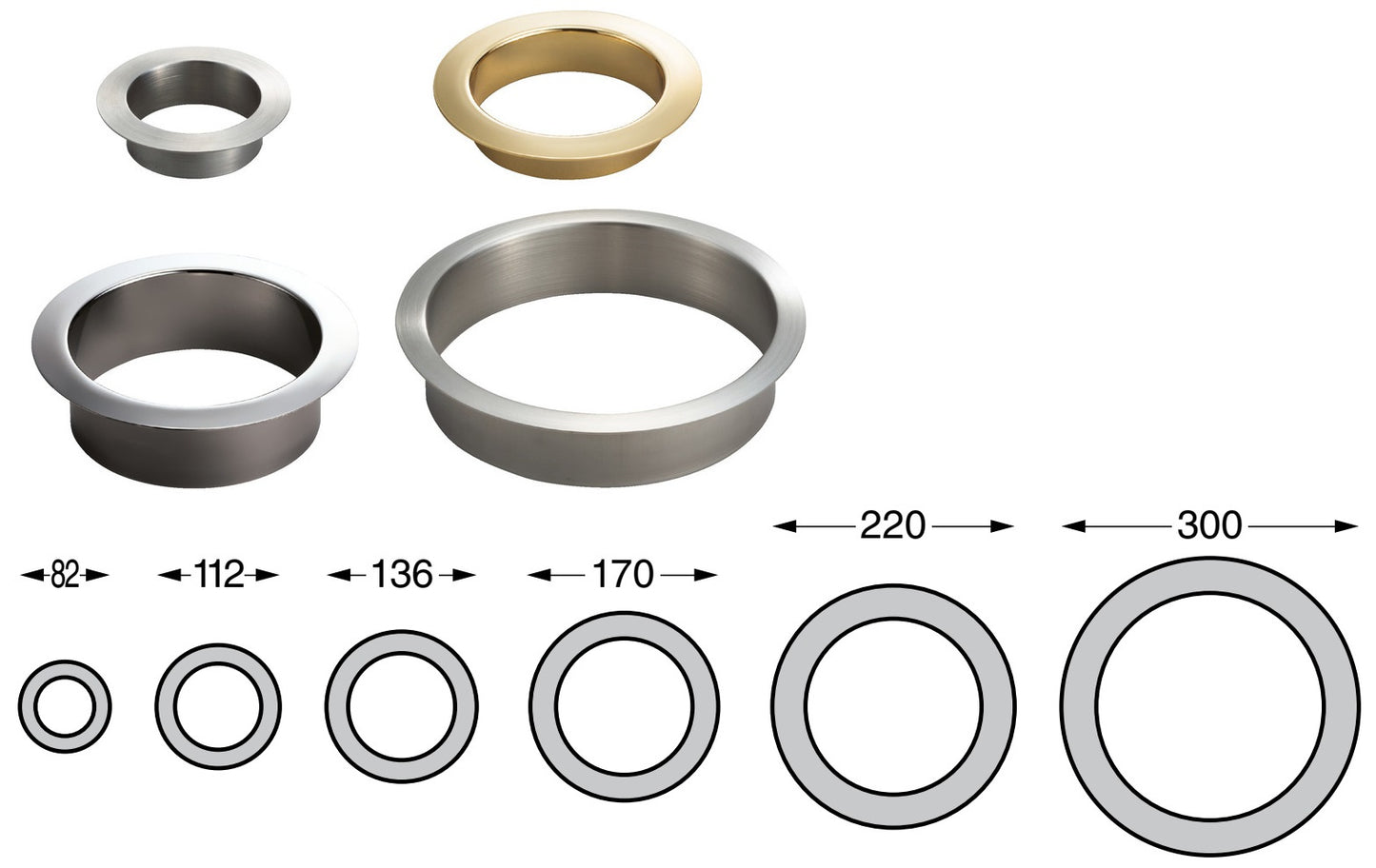

• Available in six different diameters: ⌀82 mm - ⌀300 mm

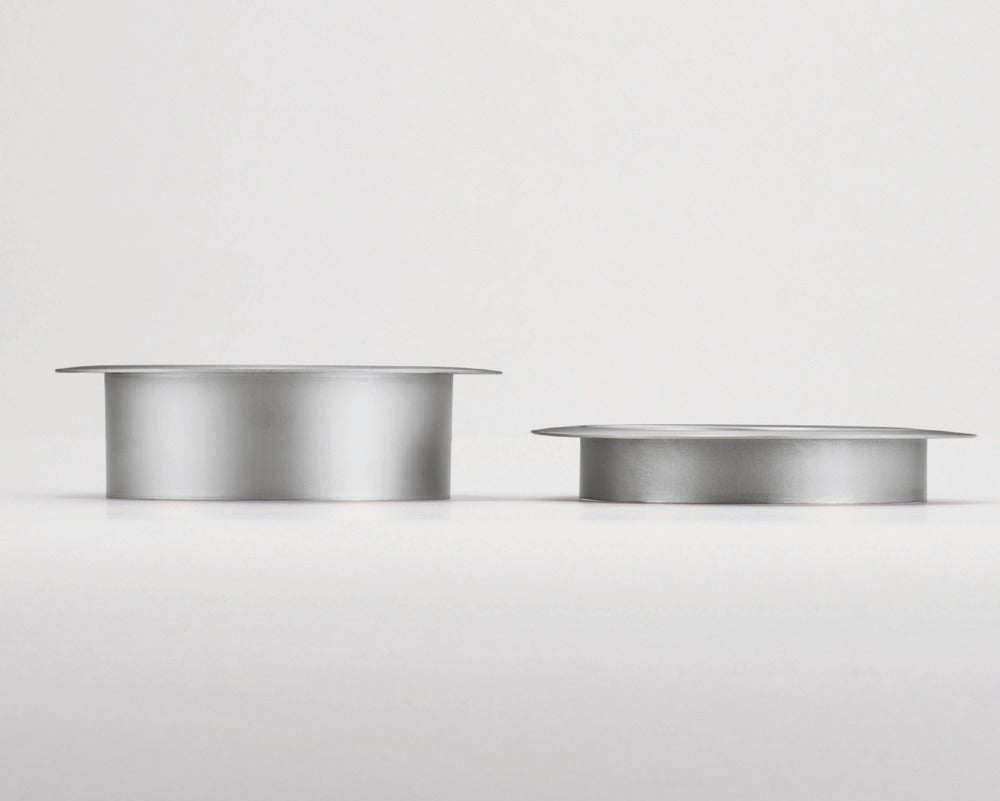

• Available in two versions: flat (36 mm) and deep (22 mm)
• Available with three different finishes: glossy polished, satin matt and 24K gold plated
• high quality
• 24K gold-plated
• weatherproof
• rustproof (corrosion-free)
• high brand quality from Sugatsune / LAMP®

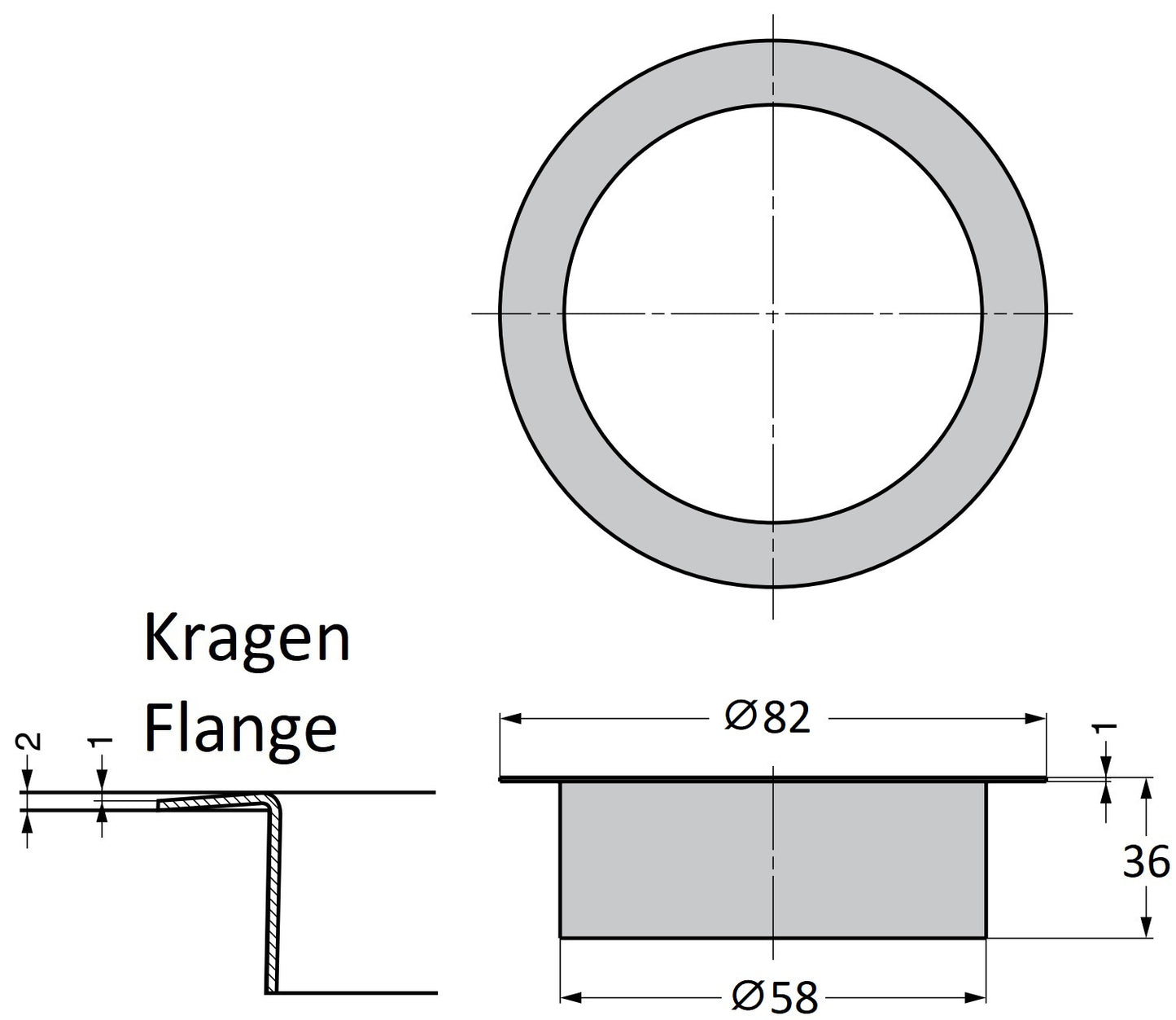

For further dimensions and details see technical drawing . The dimensions:

• Diameter of the waste disposal opening: ⌀82 mm (3-15/64″)
• Inner diameter: ⌀58 mm (2-9/32″)
• Depth of the garbage disposal: 36 mm (1-27/64″)
• Material thickness: 1 mm (3/64″)
• Width of the collar or edge: 12 mm (15/32″)

[caption id="attachment_137176" align="alignnone" width="420"] High-quality round trash can, AN-DH005-GP, 82 mm, from Sugatsune, 24K gold-plated. Technical drawing[/caption] Included in delivery:

• 1 piece garbage disposal AN-DH005-GP made of stainless steel, gold-plated 24K

Manufacturer reference number:

• Article number: 210-032-779
• Item number: AN-DH005-GP
• EAN number: 4510932165693

Manufacturer: Sugatsune / LAMP® (Japan)
