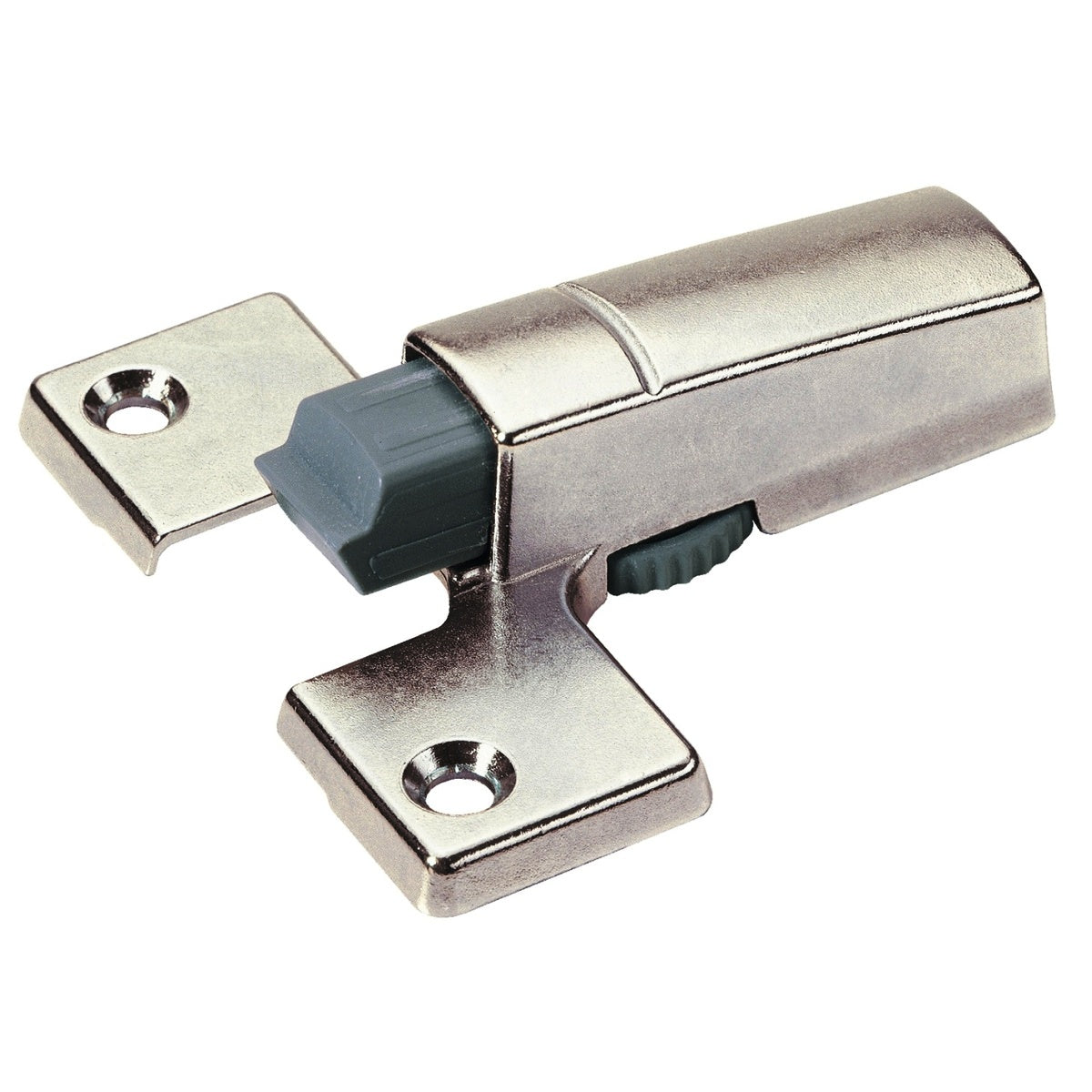

Hinge cup damper 9146514 for Hettich Intermat furniture hinge for retrofitting. Furniture door damper Hettich Silent System for Hettich Intermat furniture hinge for screwing on, from Hettich

Adjustable hinge cup damper for retrofitting 9146514

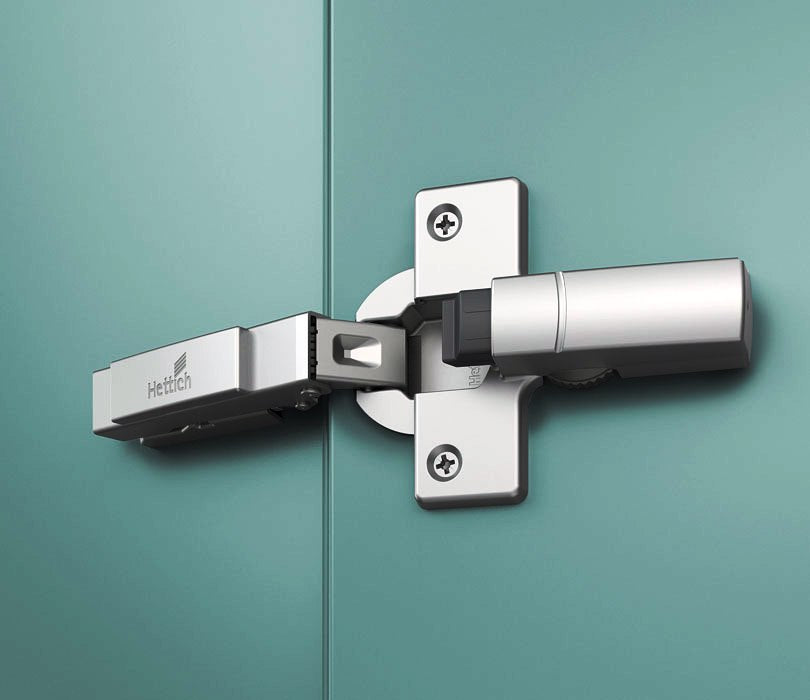

Application: [caption id="attachment_54376" align="alignnone" width="420"] Hinge cup damper 9146514 for Hettich Intermat furniture hinge for retrofitting, from Hettich, nickel-plated. Application[/caption] Furniture door damper Hettich Silent System for Hettich Intermat furniture hinge for screwing on. The hinge cup dampers 9146514 are retrofitted to the Intermat furniture hinge from Hettich to enable quiet and slow closing of the cabinet door on existing furniture cabinets. The door dampers are suitable for the following types of opening: full overlay, half overlay, inset. The damping effect can be continuously adjusted using the adjustment wheel to achieve the desired closing speed of the furniture doors. For cabinet doors weighing up to 13.5 kg. For heavier furniture doors, the use of multiple dampers is recommended. The high-quality hinge cup dampers 9146514 are ideal for:

• Hettich Intermat furniture hinge
• kitchen cabinet
• bedroom closet
• Home furniture
• Office furniture
• Children's room furniture

Material: Housing: die-cast zinc Surface:

• Nickel-plated

Assembly:

• The assembly is carried out using the two screws with which the furniture hinge is attached
• First, the screws are loosened, but the furniture hinge should remain in its position
• Then the damper 9146514 is placed on the furniture hinge so that the mounting holes are placed exactly over the mounting holes of the furniture hinge
• Then the two screws are refastened so that the damper is mounted above the hinge

Characteristics:

• For Hettich Intermat 9936 furniture hinge
• For screwing onto the hinge cup
• Damping effect continuously adjustable via adjustment wheel
• Retrofittable
• Can be used for hinges with cup mounting for screwing, pressing or with expansion sleeves
• Made of Zamak
• Nickel-plated

Dimensions:

• Hole pattern: 52 x 5.5 mm

Included in delivery:

• 1 piece hinge cup damper 9146514 made of solid Zamak SUS304 (V2A)

Manufacturer reference number:

• Article number: 9146514
• EAN number: 4023149533990

Manufacturer: Hettich
