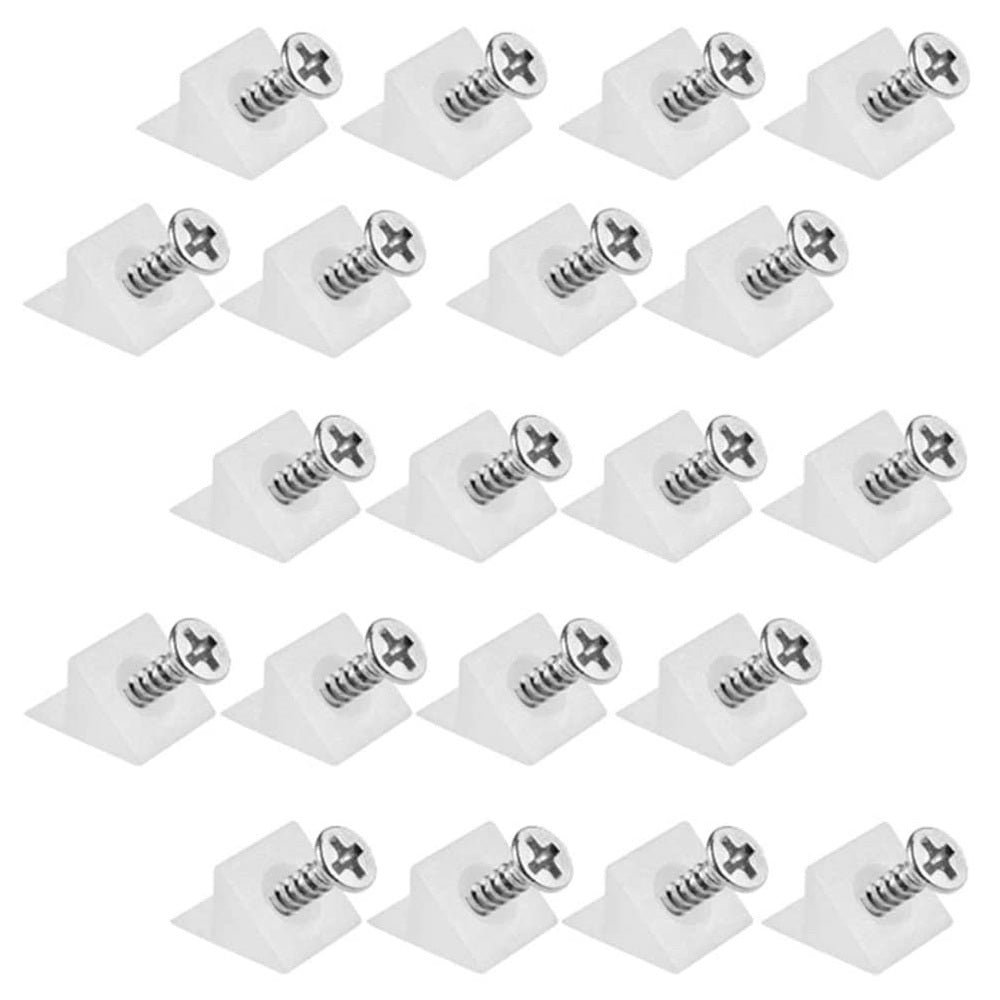

20 pieces of cabinet back panel fasteners 9169715 triangular, with wedge, 15 mm (0.6"). Drawer wedge for securing cabinet back panels and drawer bottoms, from EMUCA

20 pieces cabinet rear wall fastening 9169715 with wedge and pre-assembled screw

Application: Drawer wedge for fixing the cabinet back panel and drawer bottom. The drawer wedge 9169715 is used to secure cabinet back panels so that they do not bend backwards or drawer bottoms so that they do not sag. The back panel bracket provides additional load capacity for the drawer bottom and holds the furniture back panel in place. The L-shaped corner brace is suitable for all wooden furniture, dressers or drawers, such as bookshelves, cabinets and so on. The drawer bottom brackets can be used to attach new furniture as well as to repair existing cabinets. The high-quality drawer base brackets 9169715 are ideal for:

• Cabinet back wall
• Drawer bottom
• Wardrobe
• wardrobe
• Home furniture
• Children's wardrobe
• office cabinet
• Desk

Material: The drawer bottom brackets 9169715 are made of robust plastic. Surface:

• White

Assembly:

• The mounting is done using the screws included in delivery (3.5 mm)
• Insert the back panel connectors with the wedge into the gap in the drawer bottom or the cabinet back panel
• Then tighten the pre-assembled screw with a screwdriver

Characteristics:

• Size: 15 mm (0.6″)
• With pre-assembled screws
• With wedge
• Triangular
• Robust
• Durable
• Made of plastic
• White
• High brand quality from UMAXO®

Dimensions: For further dimensions and details see technical drawing .

• Height of the furniture panel connectors: 15 mm (19/32″)
• Width: 14 mm (18/32″)
• Depth: 7.6 mm (10/32″)
• Screw length: 20 mm (25/32″)

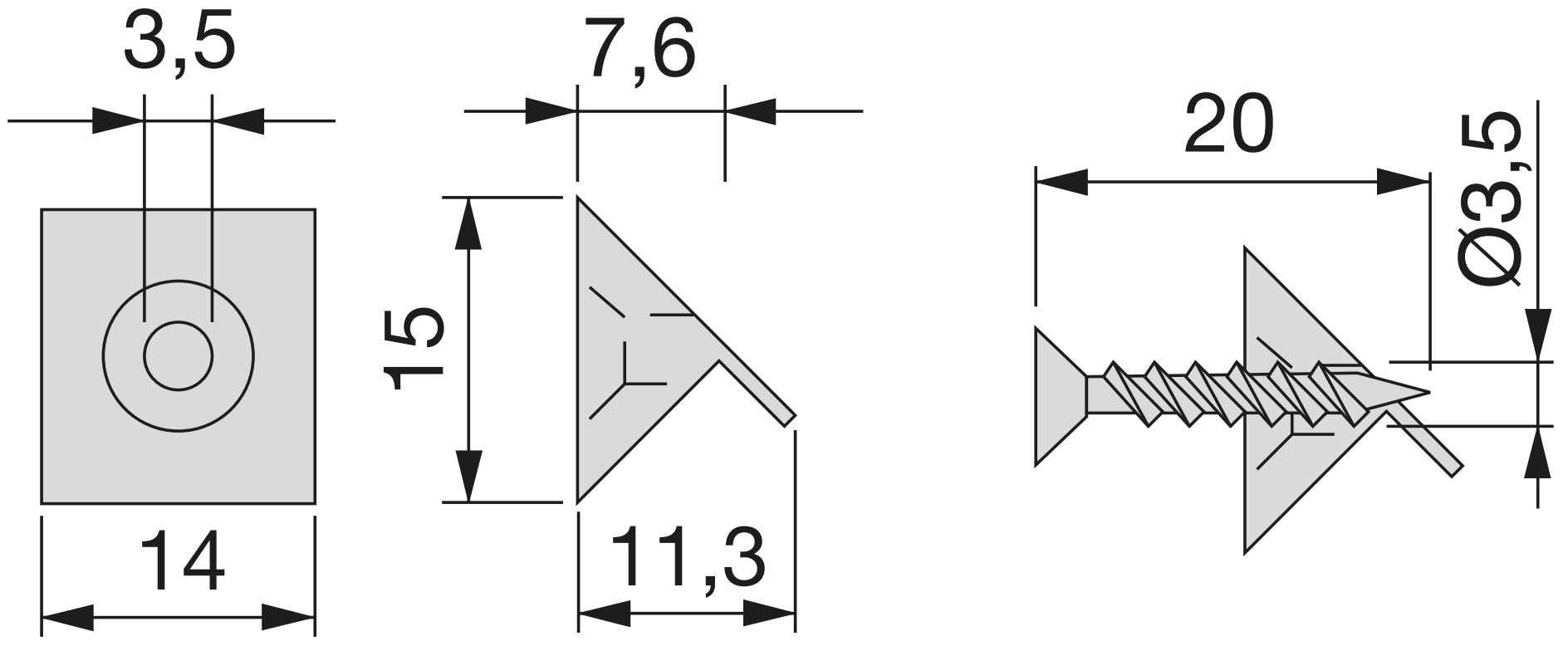

[caption id="attachment_54752" align="alignnone" width="420"] EMUCA 9169715 triangular cabinet back panel fixing with 15 mm wedge, white. Technical drawing[/caption] Included in delivery:

• 20 pieces cabinet rear wall fastening 9169715 made of plastic
• 20 screws Φ3.5 mm, 20 mm (25/32″), pre-assembled

Manufacturer reference number:

• Article number: 9169715
• EAN number: 8432393124629

Manufacturer: EMUCA
