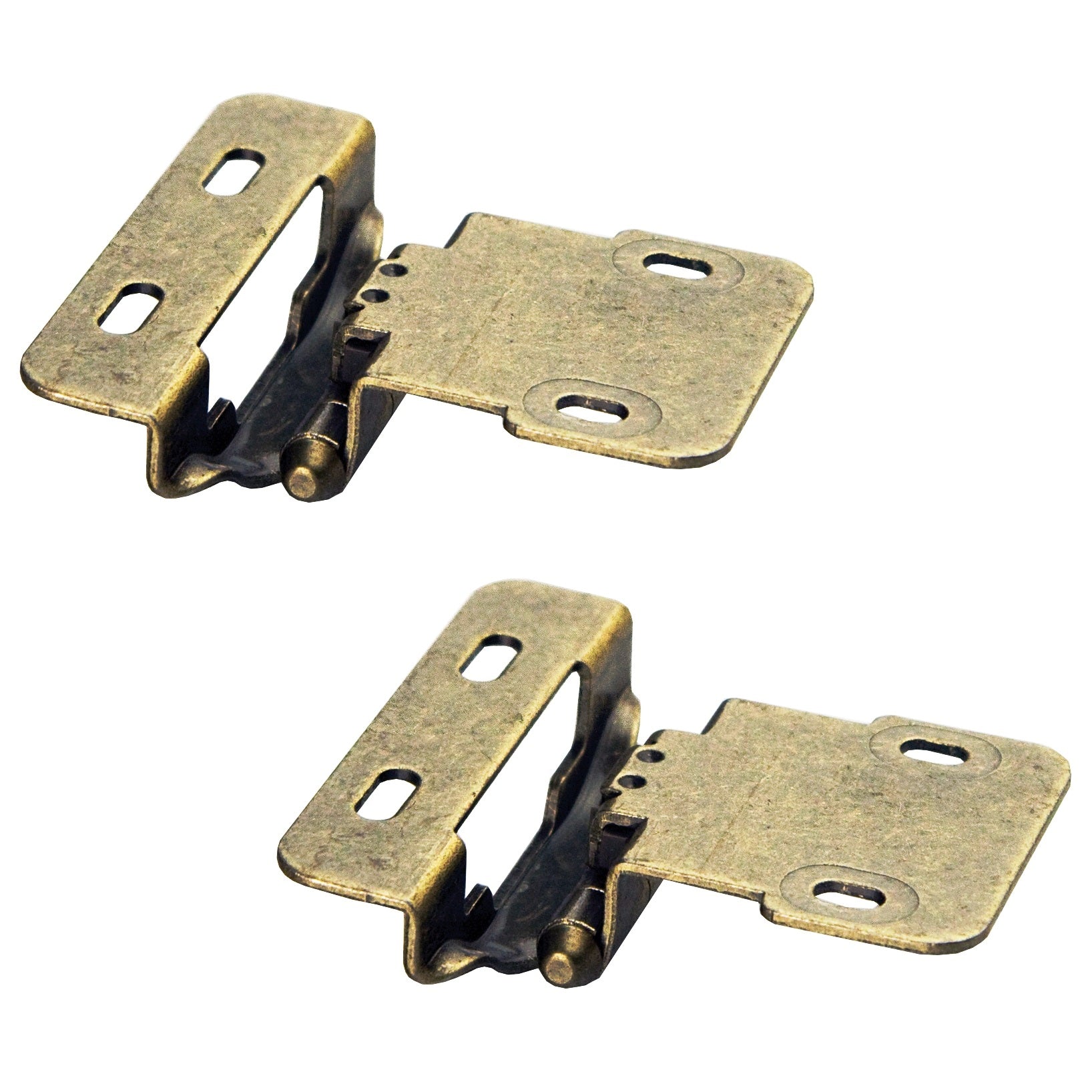

Set consisting of two SISO / UMAXO® vintage furniture hinges for wooden doors with visible hinge joints. Antique-style furniture hinges with self-closing mechanism, 6 mm overlay, and 2D adjustment.

Set of two classic furniture hinges with visible hinge joint from SISO / UMAXO® for vintage style furniture

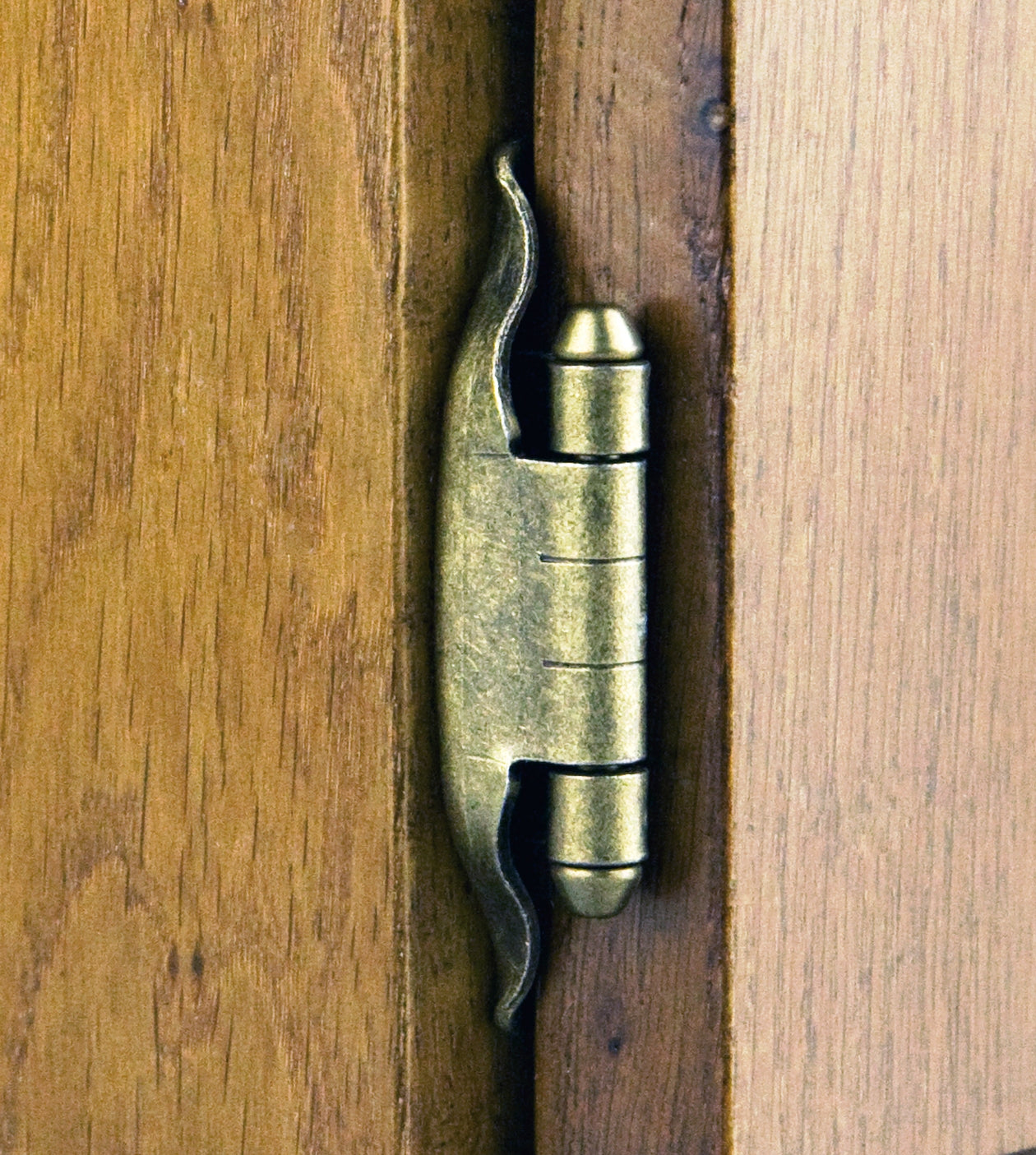

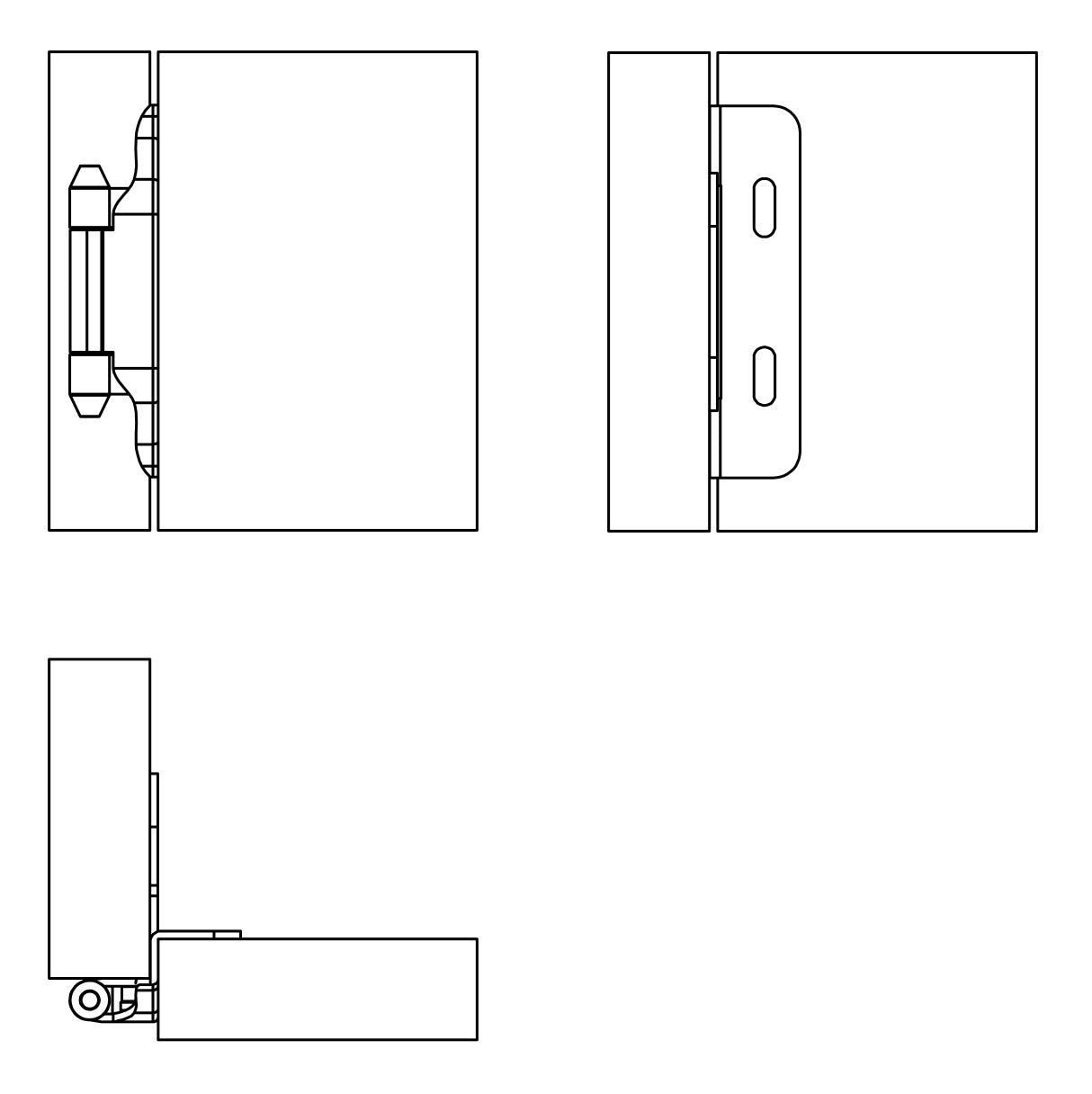

[caption id="attachment_30490" align="alignnone" width="422"] SISO / UMAXO® Antique-style vintage furniture hinge for wooden doors with visible hinge joint[/caption] Application: The vintage style furniture hinges for wooden doors are perfect for wooden furniture with an antique style look. The automatic closing mechanism (lock) built into the hinges ensures that the door remains closed at the end of the closing movement due to spring force. The support is 6mm. Thanks to the elongated holes, the furniture hinges have a two-dimensional adjustment option. Assembly: The classic furniture hinges can be easily mounted with screws (not included) (see sketch). NO top drilling on the door is necessary! [caption id="attachment_30526" align="alignnone" width="420"] Installation of SISO / UMAXO® antique-style vintage furniture hinges for wooden doors with visible hinge joint[/caption] Characteristics:

• Opening angle: 180°

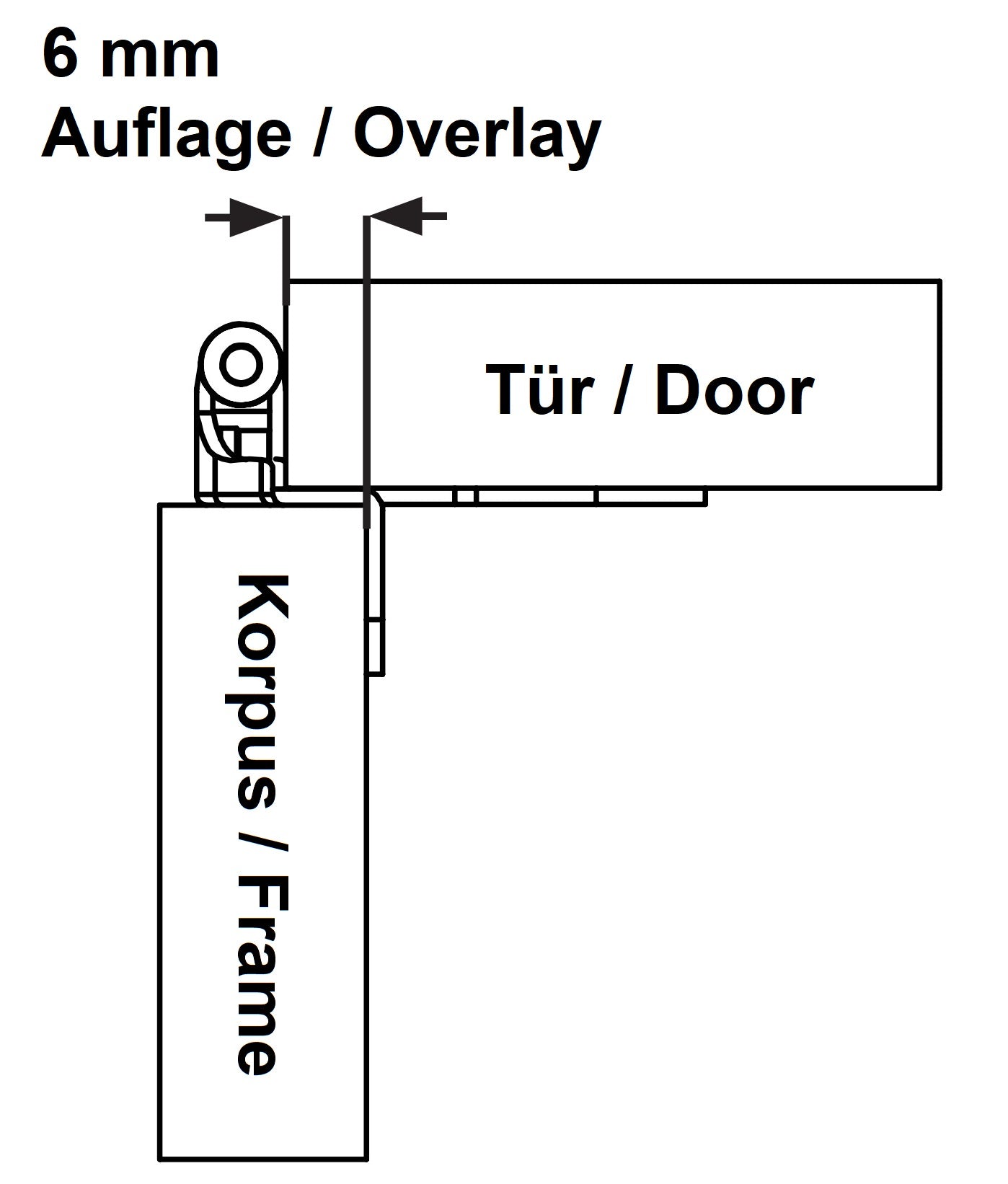

• Support: lying, 6 mm

Adjustment options:

• Vertical: ± 4 mm
• Horizontal: ± 3 mm

Included in delivery:

• 2 pieces antique style vintage furniture hinge

Material:

• Steel

Surface:

• Bronze coated

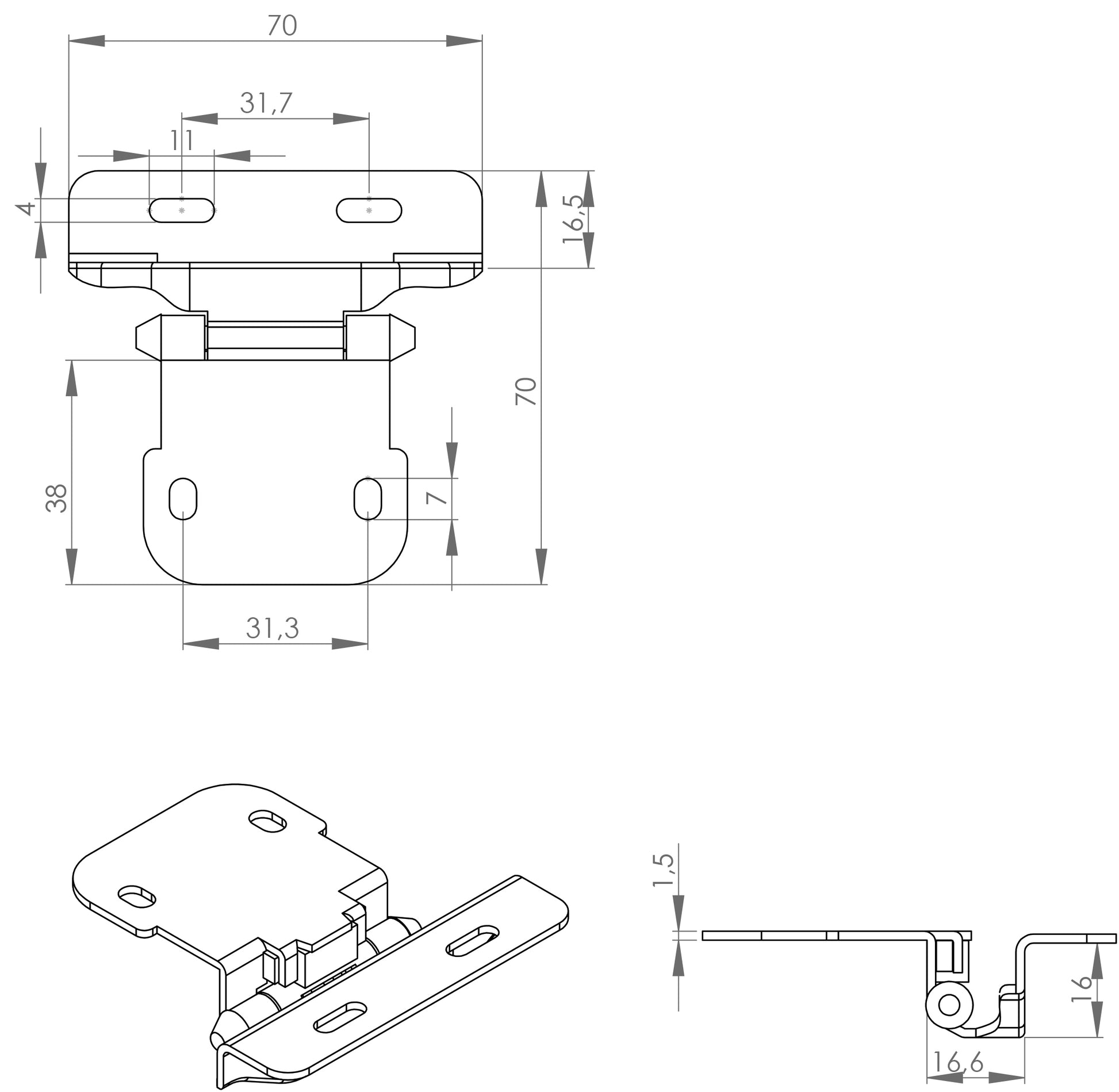

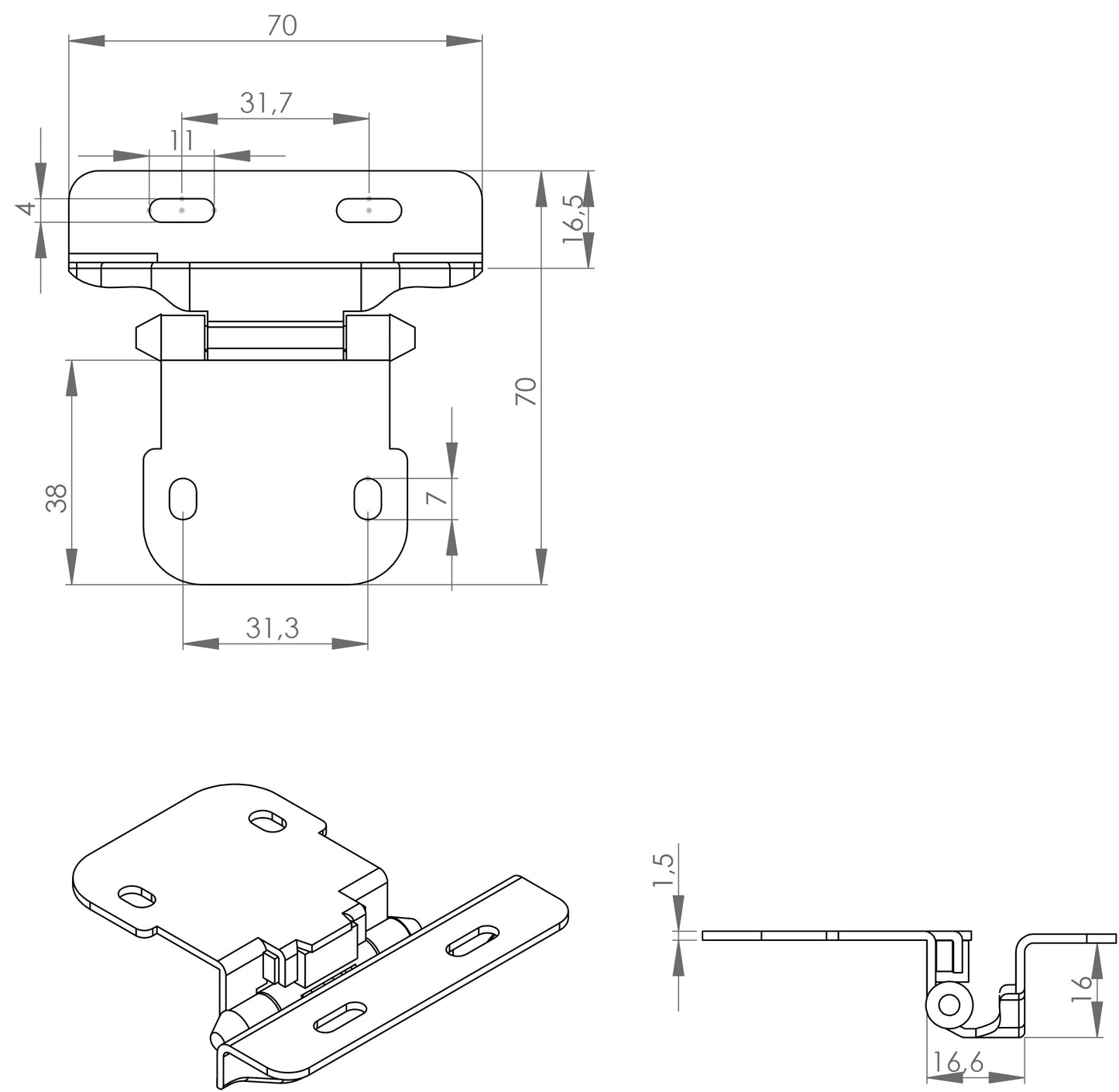

Dimensions: 70 x 70 mm See drawing (mm) [caption id="attachment_30502" align="alignnone" width="421"] Drawing: SISO / UMAXO® antique-style vintage furniture hinge for wooden doors with visible hinge joint[/caption] Download:

• Download the Reach Declaration

Manufacturer reference number:

• 15.90.011
• 15.90.011-1

Manufacturer: SISO (Denmark)
