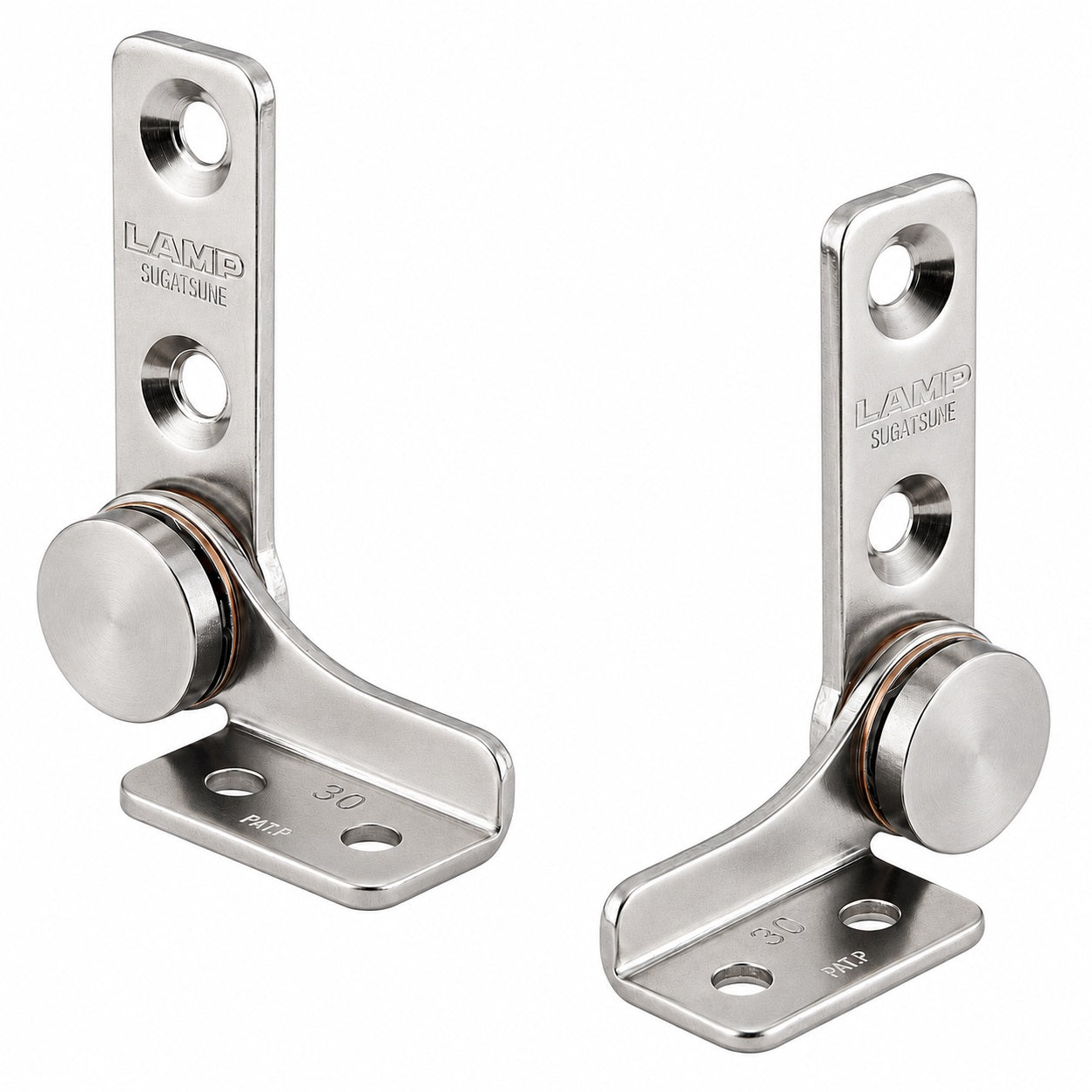

Set of 2 high-quality friction hinges (left + right), torque: 6 N·m, made of high-quality stainless steel SUS430 (1.4016 or X6Cr17), surface: polished gloss, HG-TB30 (HG-TB30L and HG-TB30R)

Application:

2 high-quality friction hinges for equipment covers, furniture flaps, monitor housings and much more.

The HG-TB30 torque hinge set consists of a left (HG-TB30L) and a right (HG-TB30R) hinge for symmetrical, horizontally mounted flap guidance.

Each hinge generates a constant torque of 3 N·m, allowing continuous positioning of the flap within the suitable load range.

Together, both hinges provide a nominal total torque of 6 N·m and distribute the load evenly to both sides.

The free-stop function holds covers, displays, or equipment flaps in the desired position without additional latching.

The mirrored left-right design ensures clean installation and stable, controlled movement in both directions of rotation.

The robust construction made of SUS430 stainless steel is particularly suitable for devices, furniture, and technical installations.

The high-quality HG-TB30 friction hinges (HG-TB30L and HG-TB30R) are ideally suited for, among other things:

• LCD mounts
• Surveillance cameras
• Control panels

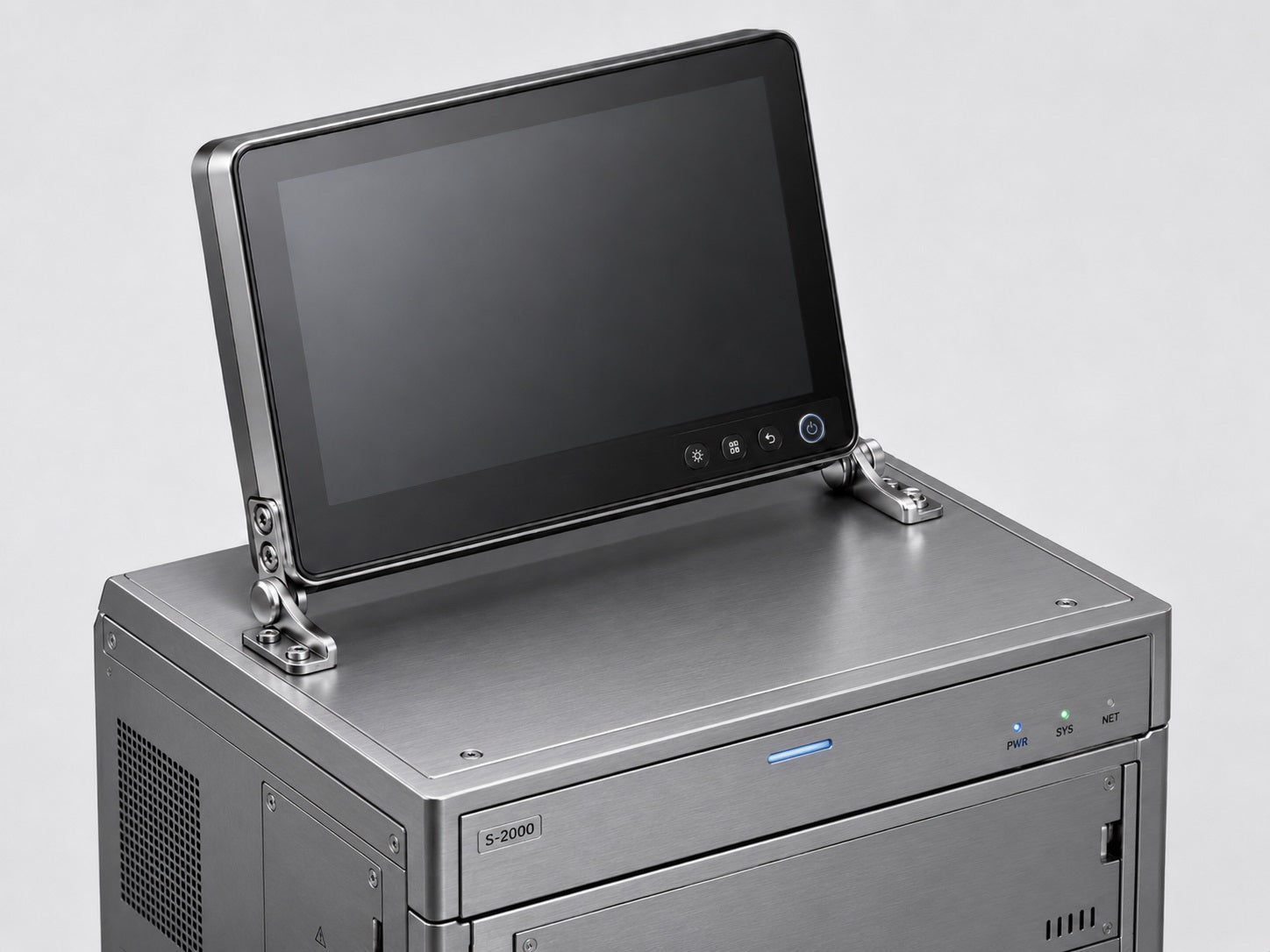

• Machine covers
• Display units
• Consoles
• Technical housings
• Equipment covers
• Furniture flaps
• Monitor housings

Material:

• The HG-TB30L and HG-TB30R friction hinges are made of high-quality stainless steel SUS430 (1.4016 or X6Cr17)
• SUS430 (1.4016) stainless steel offers solid corrosion resistance for dry to moderately humid indoor areas, making it suitable for furniture and industrial fittings without chloride exposure
• It is ferromagnetic and therefore ideal for magnetic catches, detent mechanisms, and counterplates

Surface:

• Polished gloss
• Polished gloss surfaces on furniture fittings and components enhance aesthetics and give them a high-quality, refined appearance
• Additionally, the smooth surface facilitates cleaning and reduces the adherence of dirt and impurities

Assembly:

• First, the mounting positions on the flap and on the cabinet or device housing must be marked and pre-drilled using the technical dimension drawing
• The HG-TB30L is mounted on the left side and the HG-TB30R on the right side
• Both hinge axes must be at the exact same height, horizontally aligned, and flush with each other
• For the required alignment clearance, the mounting holes must be made slightly oversized with a tolerance of C0.5 according to the manufacturer's specifications
• The vertical arms are securely fastened with M5 countersunk screws and the horizontal arms with M5 pan-head or cylinder-head screws
• Afterwards, the flap must be operated throughout its entire range of motion and its secure positioning in different open positions must be checked

Features:

• Weight: 64 g
• Size: 52.5 mm (2-1/16″)

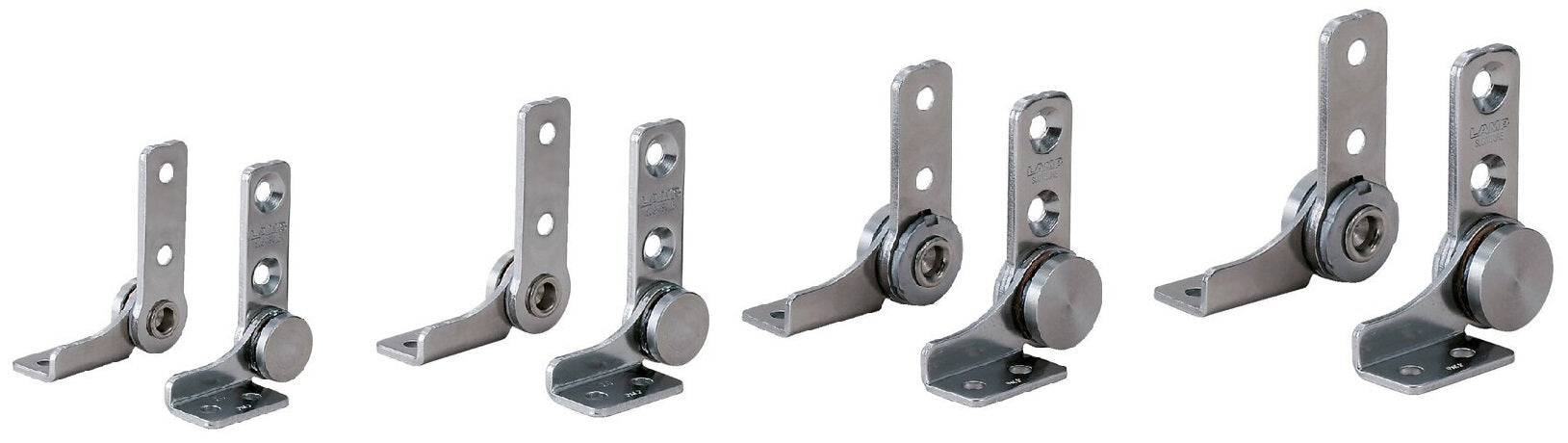

• Available in four different torque levels: 1.4 N·m (HG-TB7), 4 N·m (HG-TB20), 6 N·m (HG-TB30) and 9 N·m (HG-TB45)
• Easy to install
• Practical
• Stable
• Set of one left and one right torque hinge
• HG-TB30L for the left side
• HG-TB30R for the right side
• Constant torque in both directions of movement
• Stepless free-stop function
• Opening angle up to 360°
• For horizontal mounting
• Main material SUS430 stainless steel
• Operating temperature from 0 °C to 40 °C
• Tested in-house by the manufacturer for 20,000 opening and closing cycles
• Mirrored left-right design
• Suitable for technical and industrial applications
• Material thickness: 2.5 mm (3/32″)
• Polished gloss
• Weather-resistant
• Rustproof (corrosion-resistant)
• High brand quality from Sugatsune / LAMP®

Dimensions:

• The dimensions apply to both left and right hinges; the two versions are mirrored
• Height of the torque hinges: 52.5 mm (2-1/16″)
• Depth: 42.5 mm (1-43/64″)
• Width: 19 mm (3/4″)

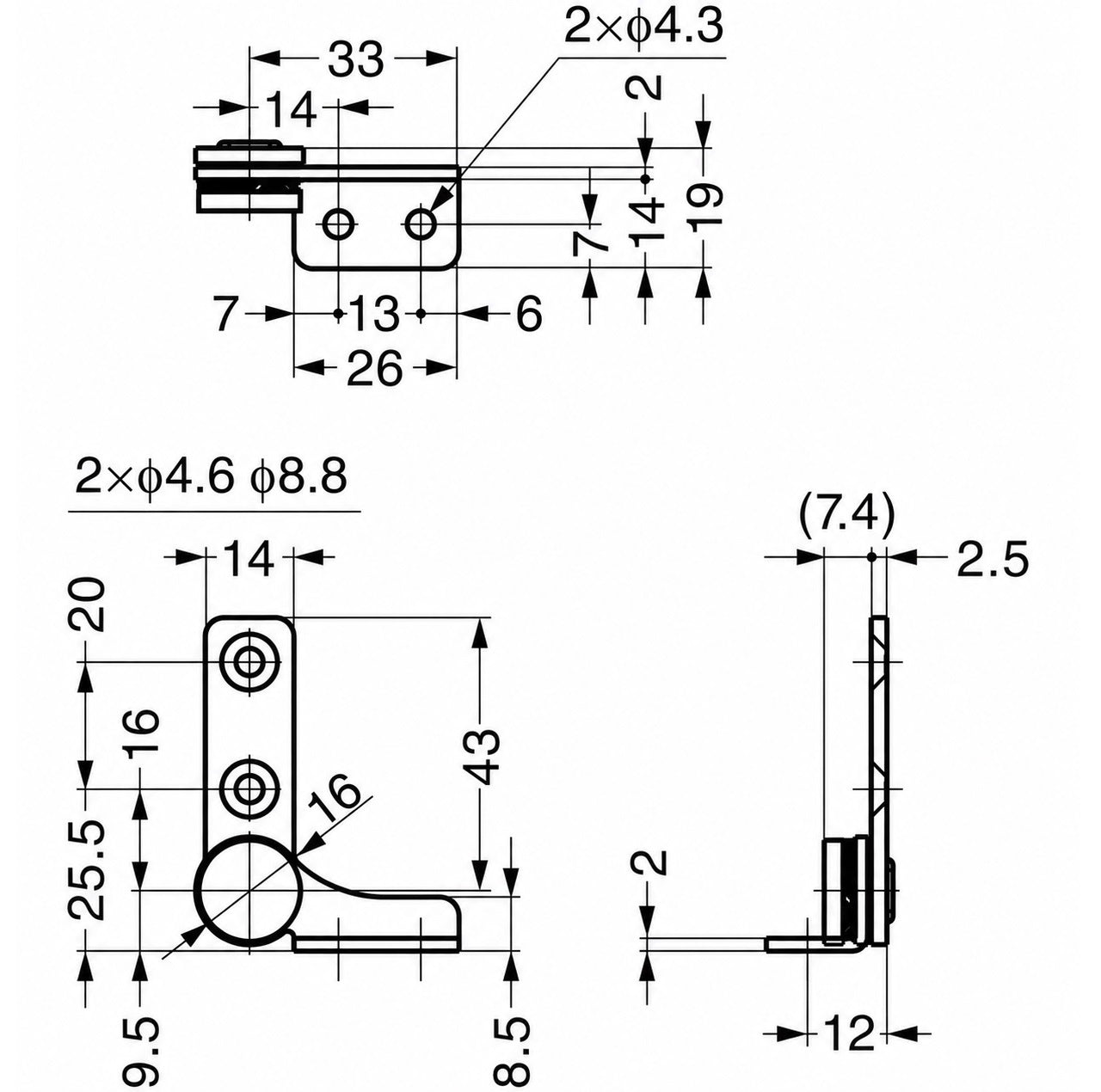

For further dimensions and details, please see technical drawing.

Included in delivery:

• 1 set of HG-TB30 torque hinges (HG-TB30L and HG-TB30R) made of high-quality stainless steel SUS430, polished gloss
• Please note that mounting screws are not included in the scope of delivery

Watch product video:

Manufacturer's reference numbers:

• Item identification number: HG-TB30L and HG-TB30R (alternatively: 170-012-416 and 170-012-415)
• Item number: HG-TB30
• GTIN (EAN, UPS) number: 4510932004114 and 4510932004107

Manufacturer: Sugatsune / LAMP® (Japan)
