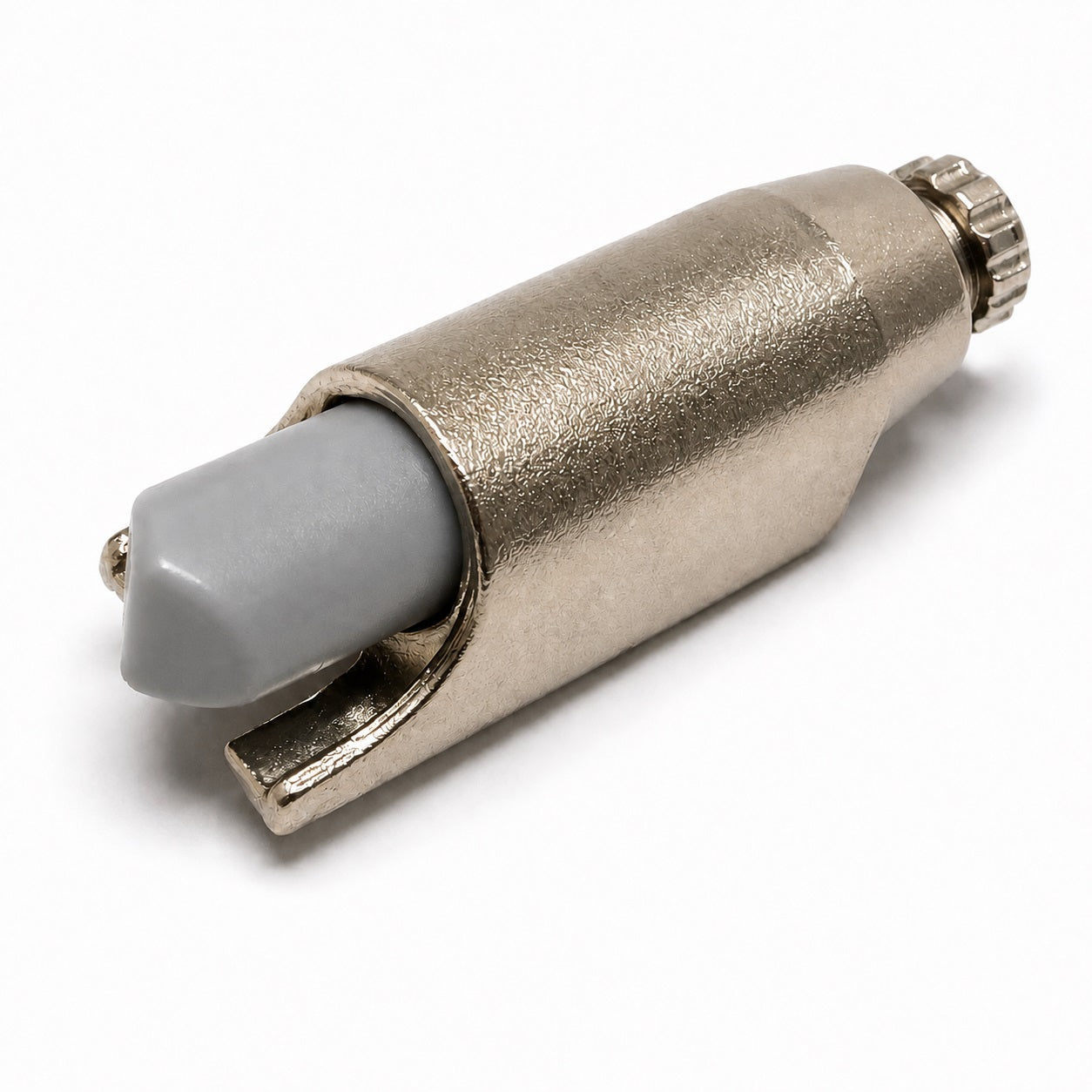

Soft-Close Damper, made of metal and robust plastic, surface: nickel-plated, F069073711

Application:

Robust hinge damper for Nexis Click-on Mirro hinge, Nexis Click-on Mirro -15° hinge and much more.

The F069073711 soft-close damper adds a soft-close function to GRASS Nexis Click-on Mirro and Mirro -15° hinges for mirror and glass doors.

It gently slows down the door when closing, ensuring a soft and quiet closing.

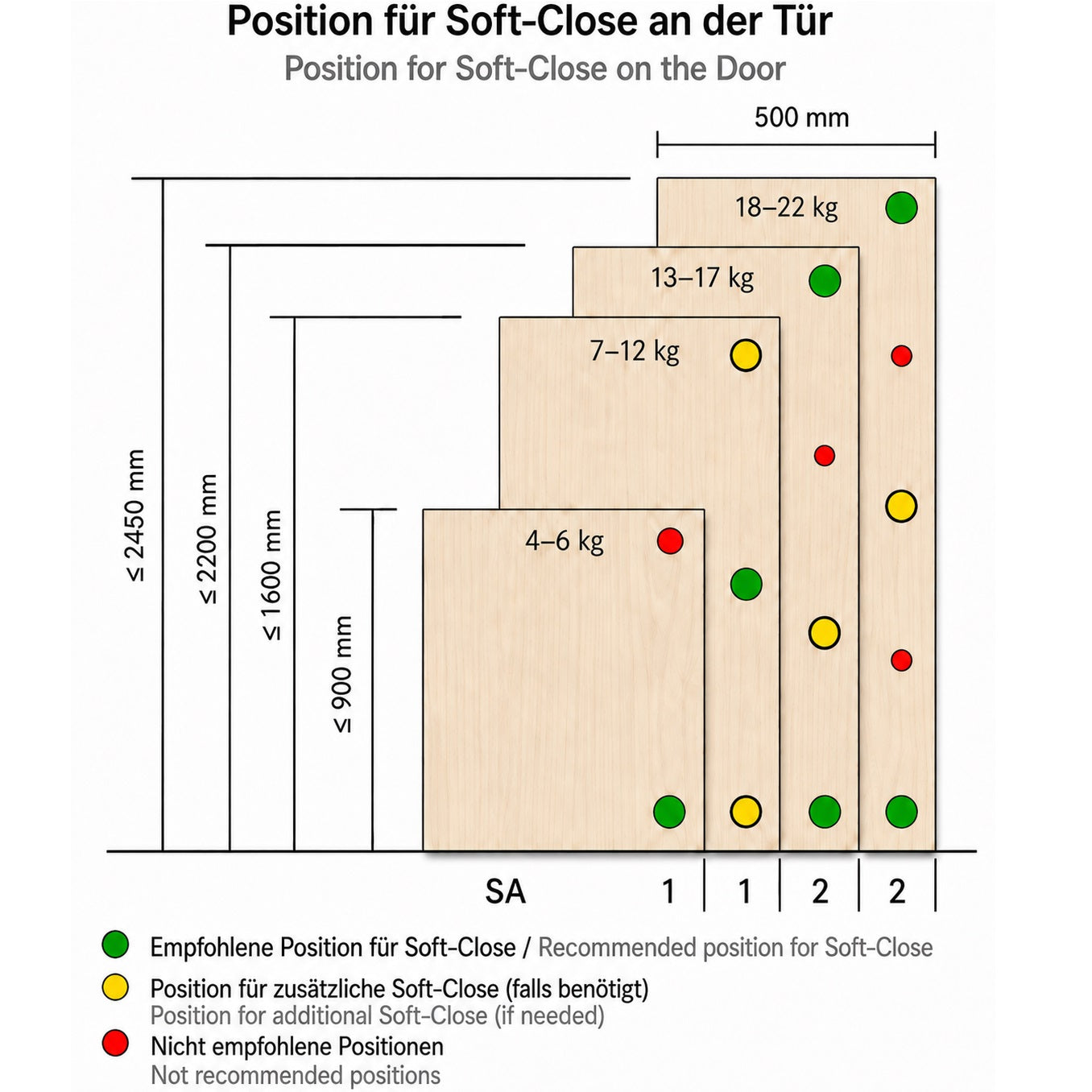

The damping performance can be individually adjusted without tools to adapt to different door sizes and weights.

Thanks to the clip-on design, the damper can be mounted without tools and retrofitted if necessary.

No additional drilling on the cabinet is required, which keeps the installation effort particularly low.

The compact mounting directly on the hinge enables an inconspicuous soft-close solution especially for mirror and glass doors.

The high-quality F069073711 soft-close damping systems are ideal for, among other things:

• Mirror doors
• Glass doors
• Display cabinet doors
• Mirrored cabinets
• Glass display cases
• Bathroom furniture
• Living room furniture
• Cabinet doors
• Nexis Click-on Mirro hinge
• Nexis Click-on Mirro -15° hinge

Material:

• The F069073711 soft-close damping systems are made of metal and robust plastic
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny appearance that is both modern and timeless
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to wipe down

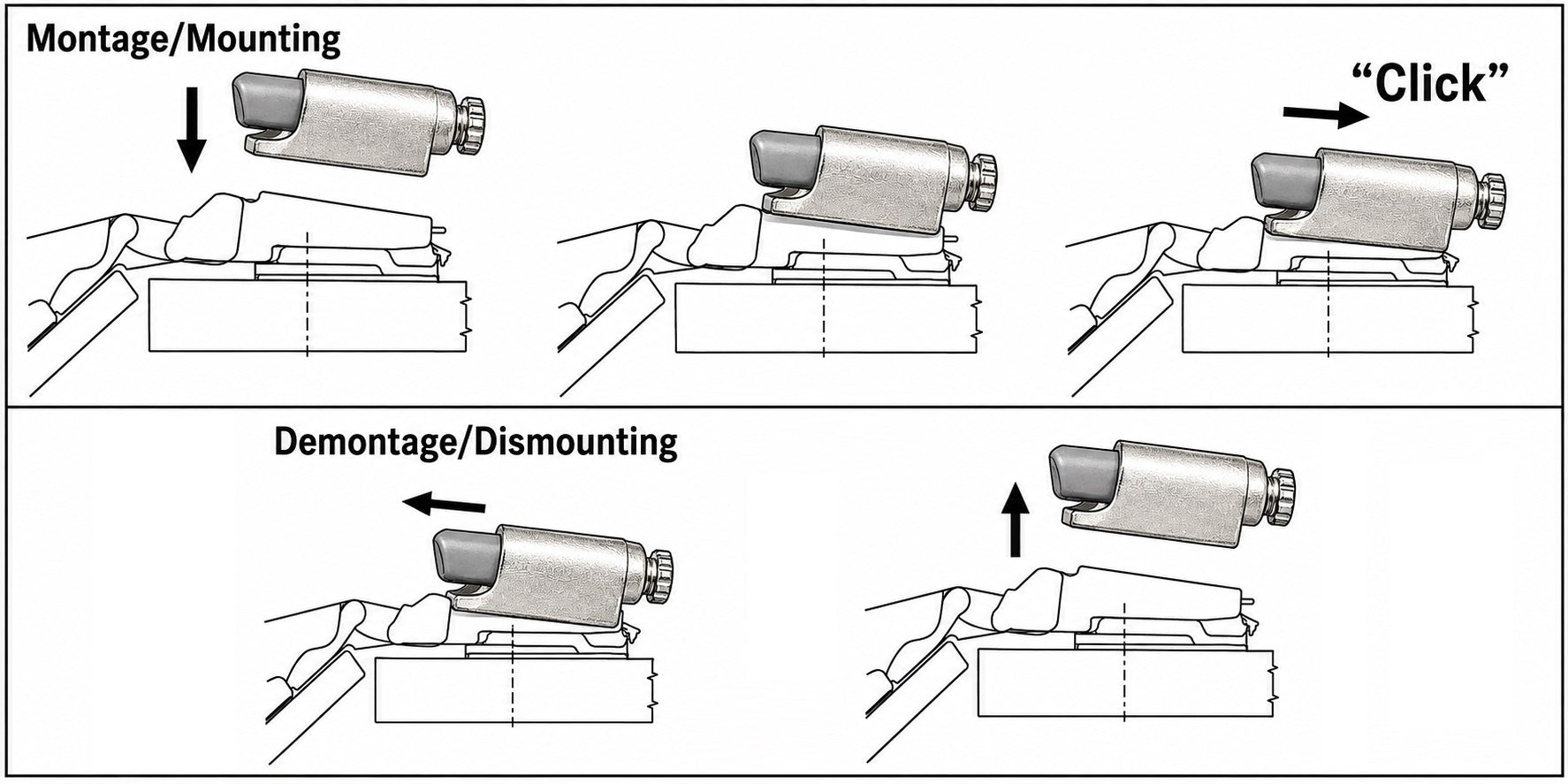

Assembly:

• First, the hook on the underside of the soft-close Mirro adapter must be inserted into the recess provided on the hinge arm
• Then, the adapter is pushed backward until it audibly "clicks" into place

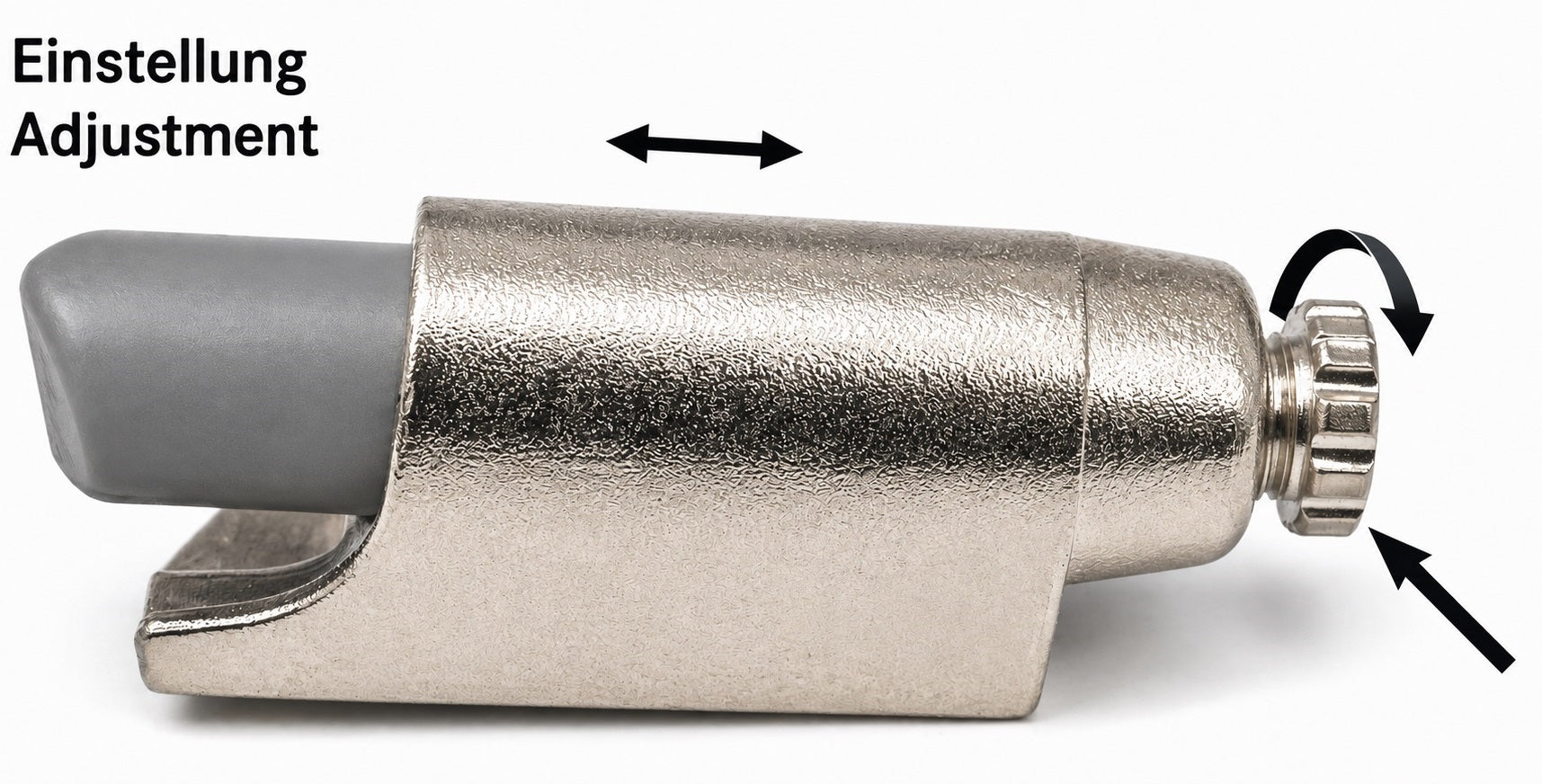

• Afterward, the damping performance can be adjusted according to the respective door
• No tools, additional screws, or drill holes are required for mounting the damper itself (for more details, see assembly drawing)

Features:

• Weight: 42 g
• Size: 37.1 mm (1-29/64″)
• easy to install
• practical
• stable
• For GRASS Nexis Click-on Mirro hinges
• For GRASS Nexis Click-on Mirro -15° hinges
• Soft-close damping for mirror and glass doors
• Damping performance individually adjustable (tool-free)
• Tool-free installation
• Can be retrofitted
• No additional drilling on the cabinet
• Mounting directly on the hinge arm
• Soft-close damper already integrated into the adapter
• Suitable for the 128° Mirro hinge system
• nickel-plated
• robust
• high brand quality from UMAXO®

Dimensions:

• Total height: 37.1 mm (1-29/64″)
• Depth: 84 mm (3-5/16″)

For further dimensions and details, see technical drawing.

Included in delivery:

• 1 piece hinge damper F069073711 made of metal and robust plastic, nickel-plated
• Please note that no mounting screws are included

Manufacturer's reference numbers:

• Item identification number: F069073711 (alternatively: 924.200.38.0215)
• GTIN number (EAN, UPS): 9003012417768

Manufacturer: GRASS
