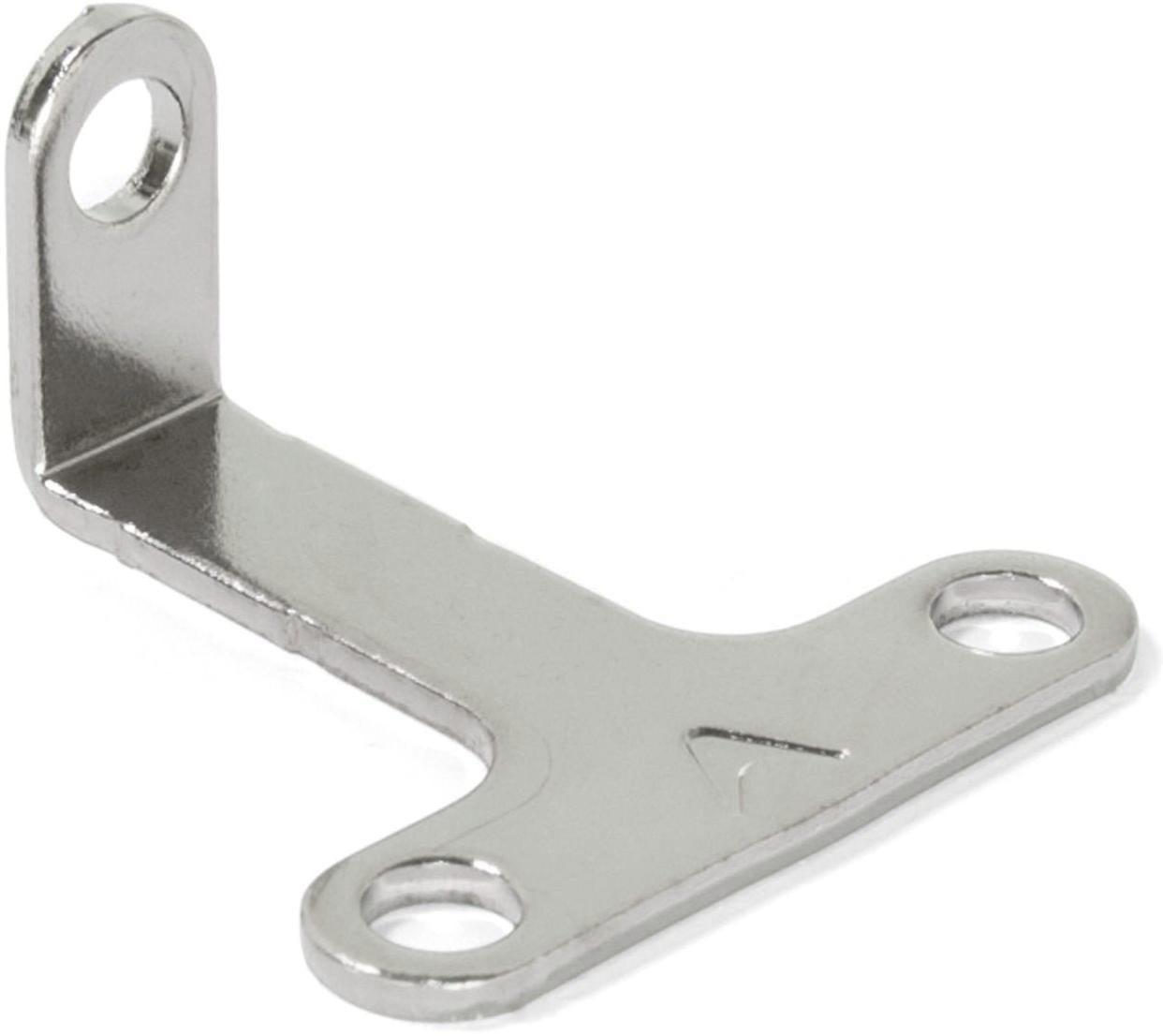

10 pieces of sturdy T-shaped angle brackets with three connecting holes made of robust steel, nickel-plated finish, 43 mm (1.7") 8030907. Mounting bracket E.FB.32 for shelves, bookcases, tables, cabinets, and much more, by EMUCA

10 pieces 90 degree angle connectors, T-shaped, made of robust steel, surface: nickel-plated 8030907

Application: [caption id="attachment_107898" align="alignnone" width="420"] Sturdy T-shaped corner bracket with three connecting holes, made of robust steel, nickel-plated finish, 43 mm, by EMUCA. Application[/caption] Mounting bracket E.FB.32 for shelves, bookshelves, tables, cupboards and much more. The sturdy steel angle connector can be used to attach all types of surfaces at right angles. The T-shaped angle bracket contains two mounting holes on one side and one mounting hole on the angle side. The high-quality angle connectors E.FB.32 are ideal for, among other things:

• shelf
• bookshelf
• Table
• Wardrobe

Material:

• The high-quality angle connectors E.FB.32 are made of robust steel

Surface:

• Nickel-plated

Assembly:

• For screwing
• Two-hole fastening on one side of the mounting bracket for better hold
• The distances between the mounting holes of the metal bracket are 32 mm (1-17/64″)
• The distance between the corner of the angle connector and the mounting hole on the side of the angle is 37 mm (1-29/64″)

Characteristics:

• Weight: 13 g
• Size: 43 mm (1.7″)
• With three mounting holes
• T-shaped
• Rectangular
• Stable
• Solid
• Robust
• Nickel-plated
• High brand quality from UMAXO®

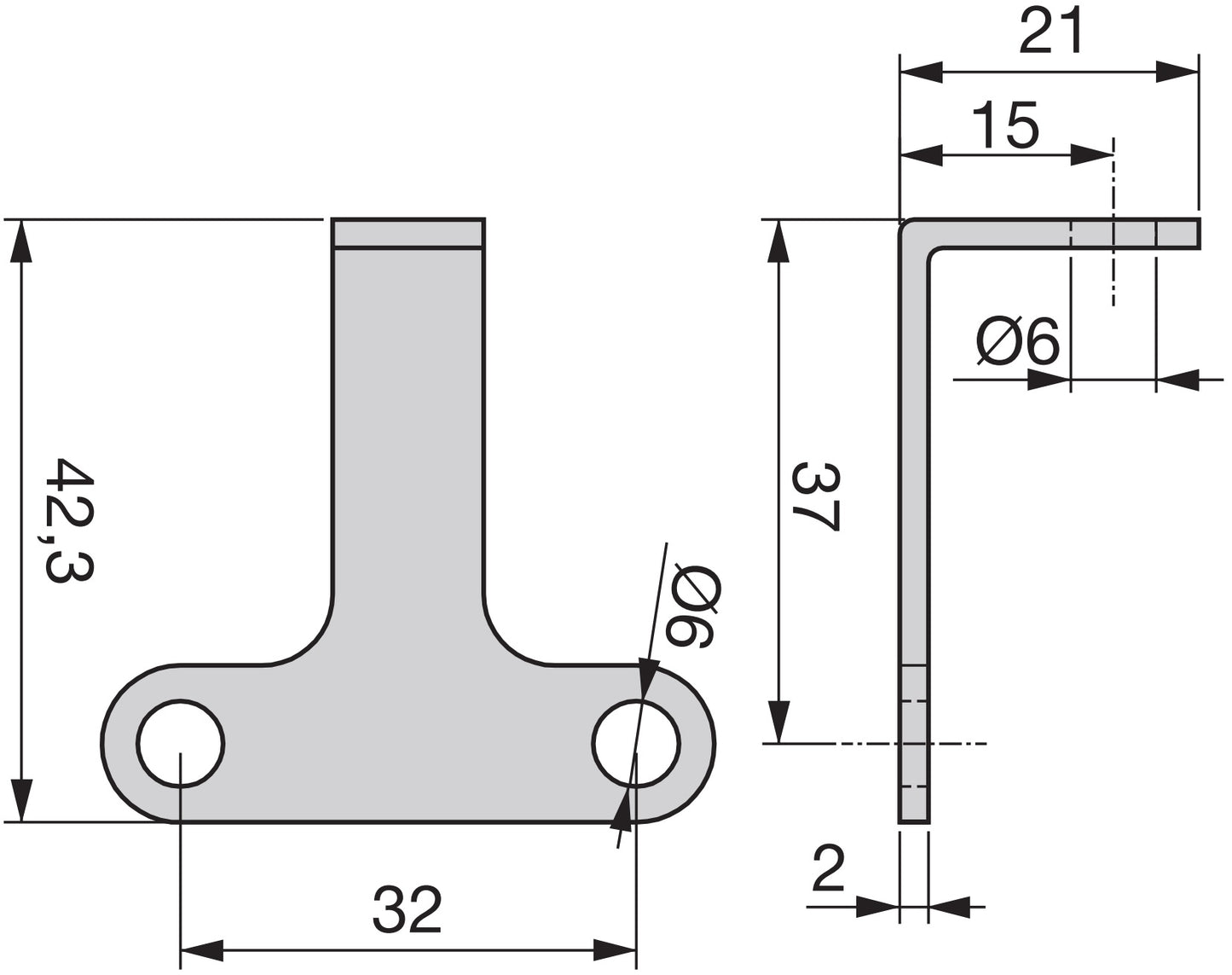

Dimensions: For further dimensions and details see technical drawing .

• Angle connector size: 43 mm (1-11/16″) x 42.3 mm (1-43/64″)
• Height: 21 mm (53/64″)
• Material thickness: 2 mm (5/64″)
• Mounting hole diameter: Φ6 mm (15/64″)

[caption id="attachment_107916" align="alignnone" width="420"] Sturdy T-shaped corner bracket with three connecting holes, made of robust steel, nickel-plated finish, 43 mm, by EMUCA, nickel-plated. Technical drawing[/caption] Included in delivery:

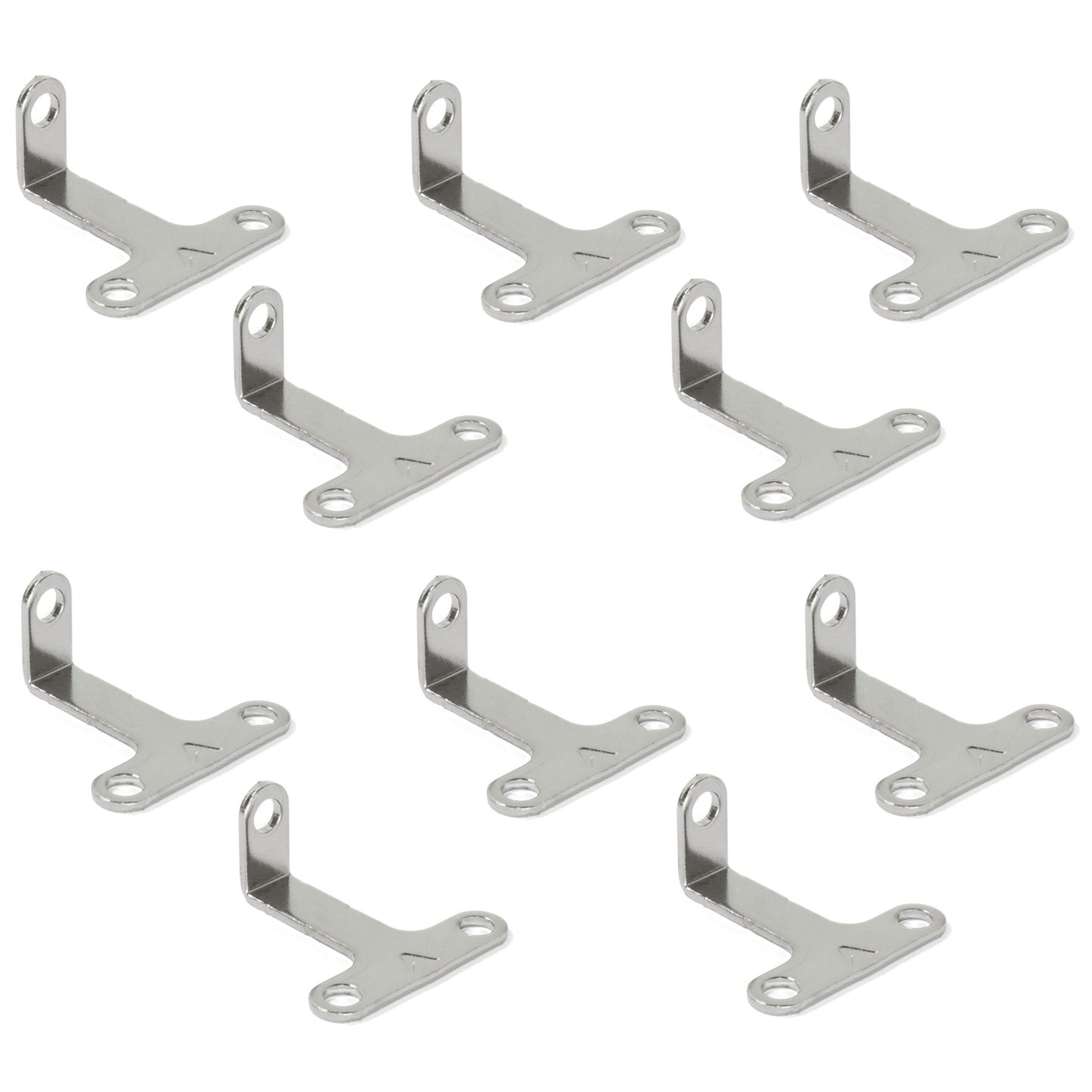

• 10 pieces angle connectors E.FB.32 made of robust steel, nickel-plated

Manufacturer reference number:

• Article number: 8030907
• EAN number: 8432393119847

Manufacturer: EMUCA
