10 pieces of sturdy angle connectors with four connection holes made of robust steel, surface: galvanized, 42 mm (1.7") 8219805. Mounting bracket E.FB.42 for shelves, bookcases, tables, cabinets and much more, by EMUCA

10 pieces 90 degree angle connectors made of robust steel, surface: galvanized 8219805

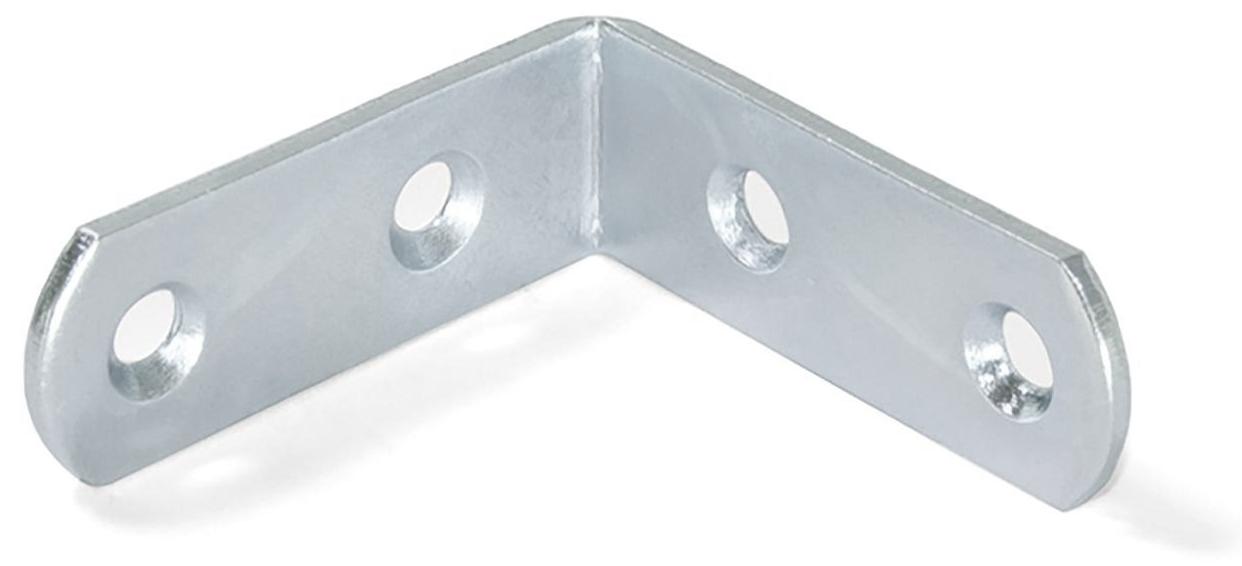

Application: [caption id="attachment_107843" align="alignnone" width="420"] Stable angle connector with four connection holes made of robust steel, surface: galvanized, 42 mm, by EMUCA[/caption] Mounting bracket E.FB.42 for shelves, bookshelves, tables, cupboards and much more. The sturdy steel angle connector can be used to attach all types of surfaces. The angle bracket has two sides of equal length and contains two mounting holes on each side of the angle. The high-quality angle connectors E.FB.42 are ideal for, among other things:

• shelf
• bookshelf
• Table
• Wardrobe

Material:

• The high-quality angle connectors E.FB.42 are made of robust steel

Surface:

• Galvanized

Assembly:

• For screwing
• Two-hole fastening on both sides of the mounting bracket for a better hold
• The distances between the mounting holes of the metal bracket are 20 mm (25/32″)
• The distances between the corner of the angle connector and the first mounting hole are 14 mm (35/64″)

Characteristics:

• Weight: 20 g
• Size: 42 mm (1.7″)
• With four mounting holes
• Rectangular
• Stable
• Solid
• Robust
• Galvanized
• High brand quality from UMAXO®

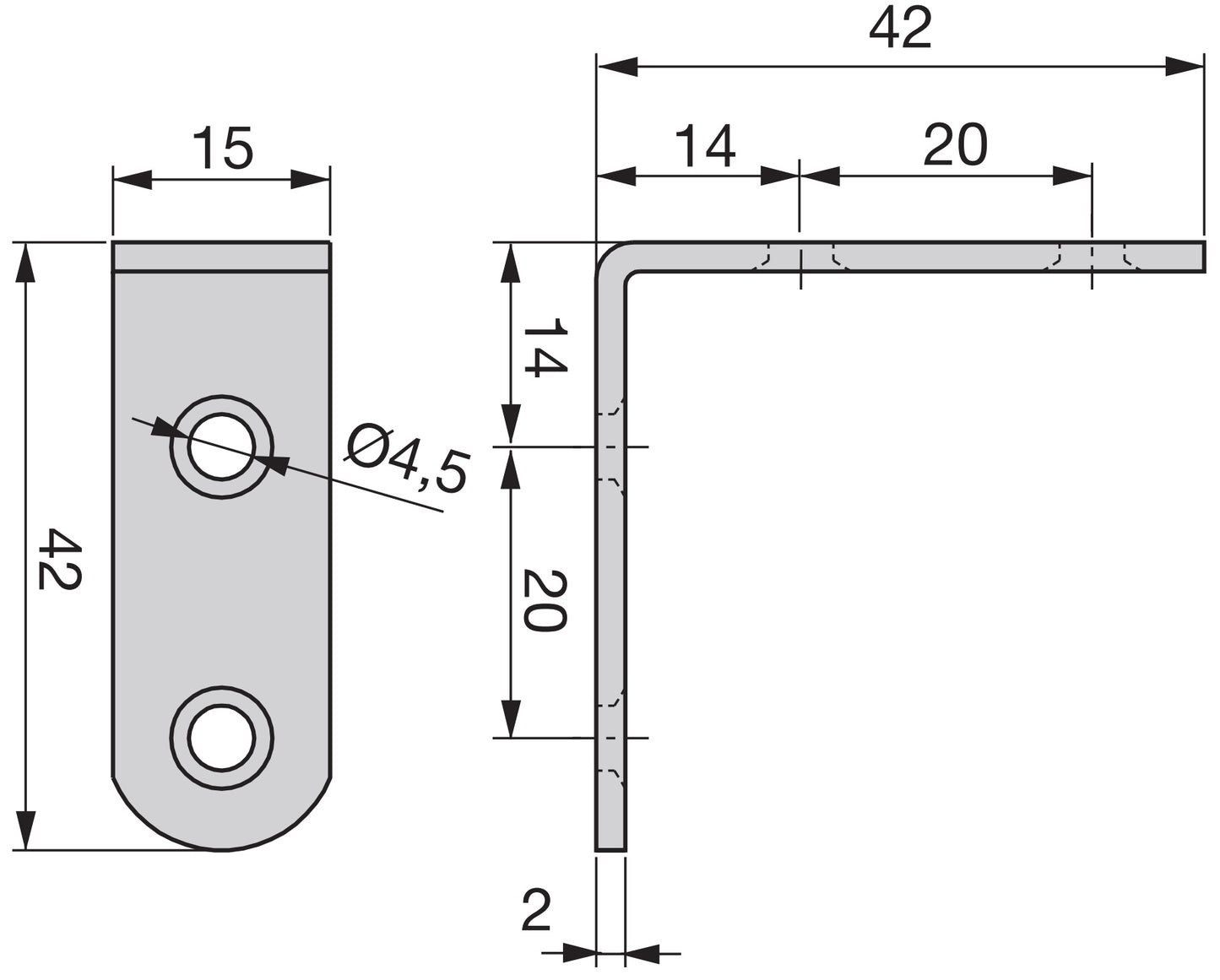

Dimensions: For further dimensions and details see technical drawing .

• Angle connector size: 42 mm (1-21/32″) x 42 mm (1-21/32″)
• Width: 15 mm (19/32″)
• Material thickness: 2 mm (5/64″)
• Mounting hole diameter: Φ4.5 mm (11/64″)

[caption id="attachment_107861" align="alignnone" width="420"] Stable angle connector with four connection holes made of robust steel, surface: galvanized, 42 mm, from EMUCA, galvanized. Technical drawing[/caption] Included in delivery:

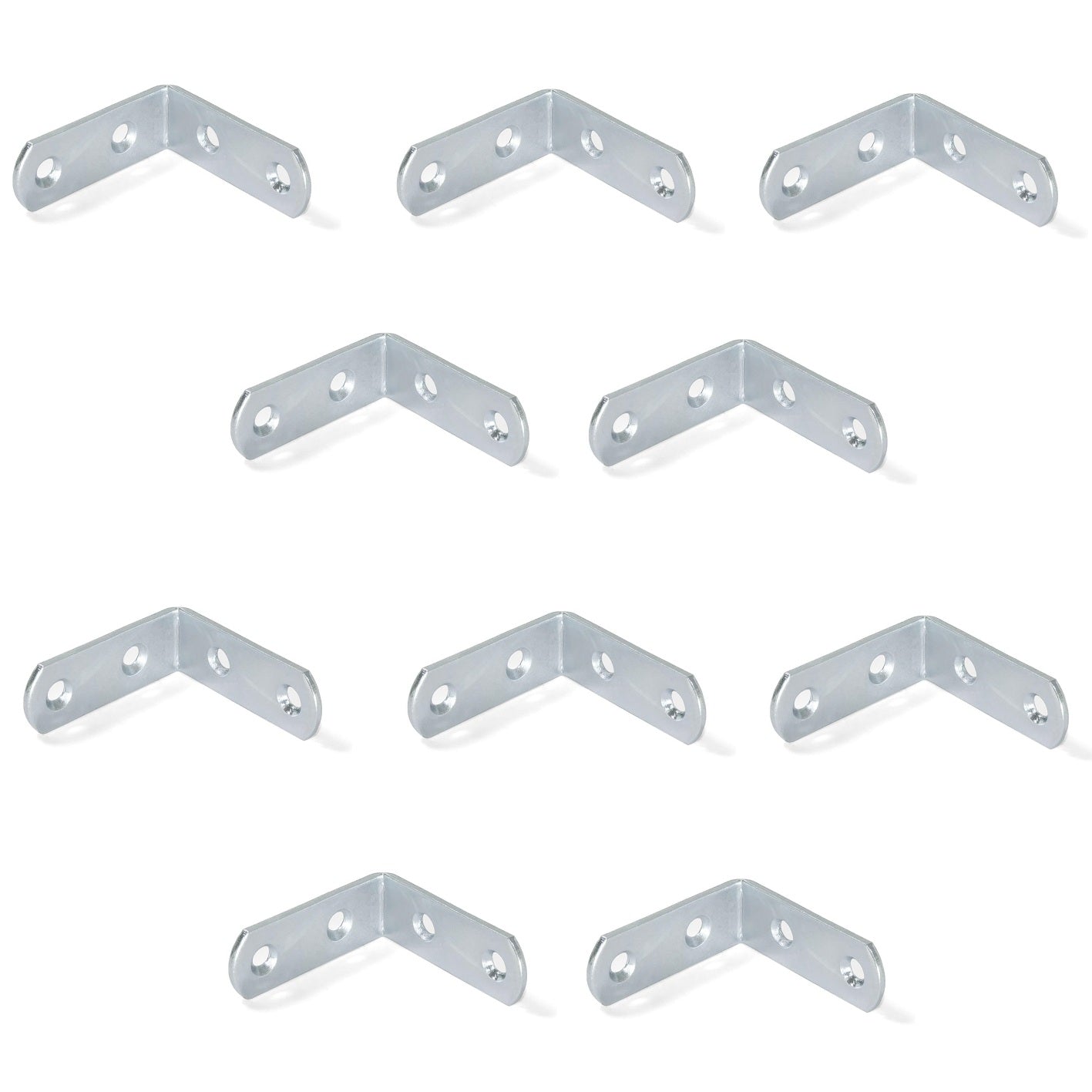

• 10 pieces of angle connectors E.FB.42 made of robust steel, galvanized

Manufacturer reference number:

• Article number: 8219805
• EAN number: 8432393121598

Manufacturer: EMUCA
