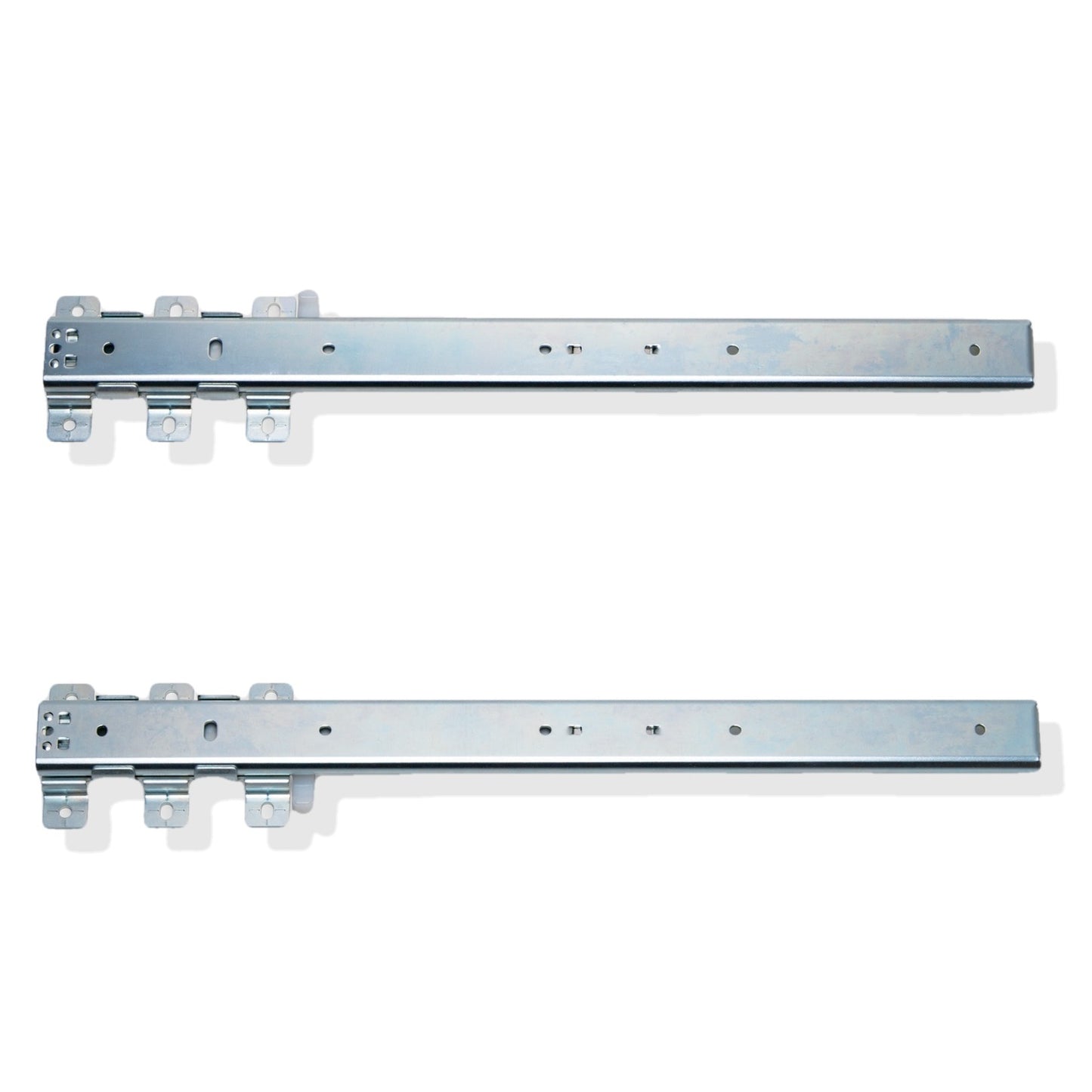

A pair of invisible under-cabinet slides, pull-out rails for the display case. Concealed drawer slides for high-end shopfitting (left and right) C203V from Sugatsune / LAMP® (Japan)

Invisible display case pull-outs C203V for sophisticated shopfitting

Application: The concealed drawer slides C203V are used in high-quality shopfitting. Because the underfloor guides are hidden beneath the base of the display case, customers in the store cannot see them when pulling out the drawer. This gives the display case an exclusive look. Therefore, the C203V is perfectly suited for upscale stores where the goods are kept in a glass case and have to be temporarily removed at the request of customers for demonstration or display. The typical examples for the use of hidden guide rails are:

• Jewelry stores
• Watch shops
• Jewelry stores
• Eyeglass shops
• High-quality display cases

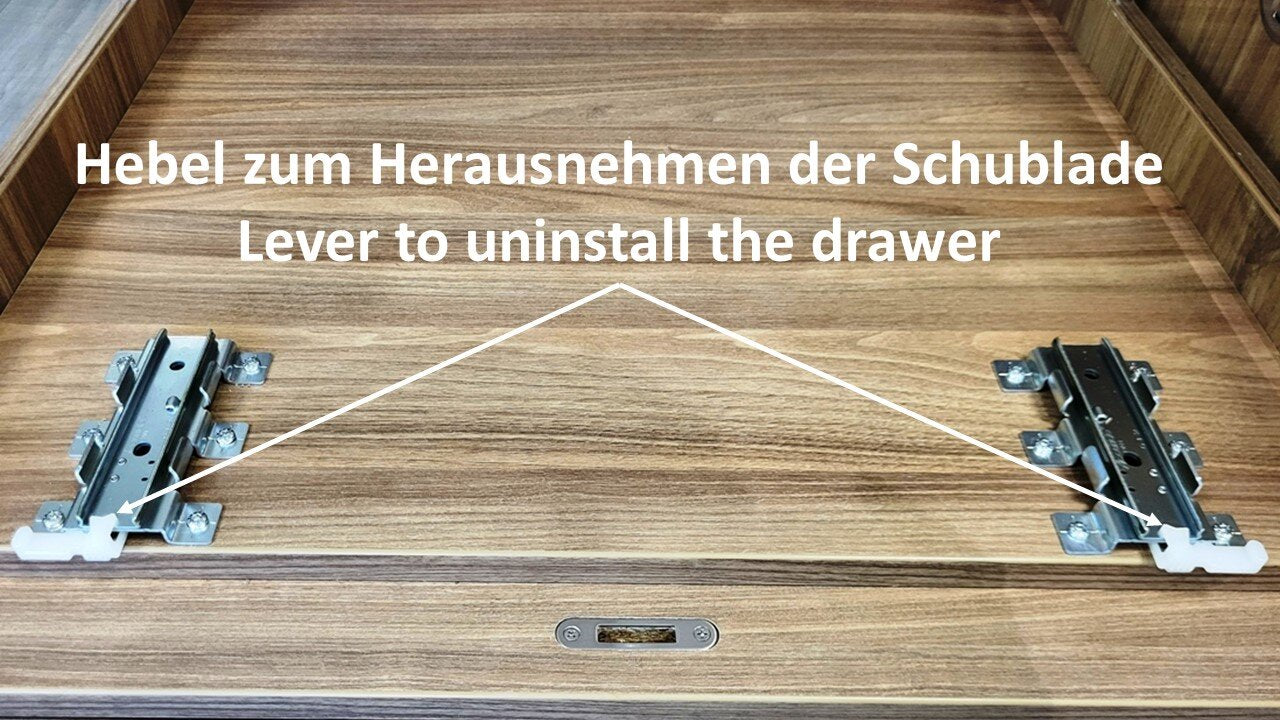

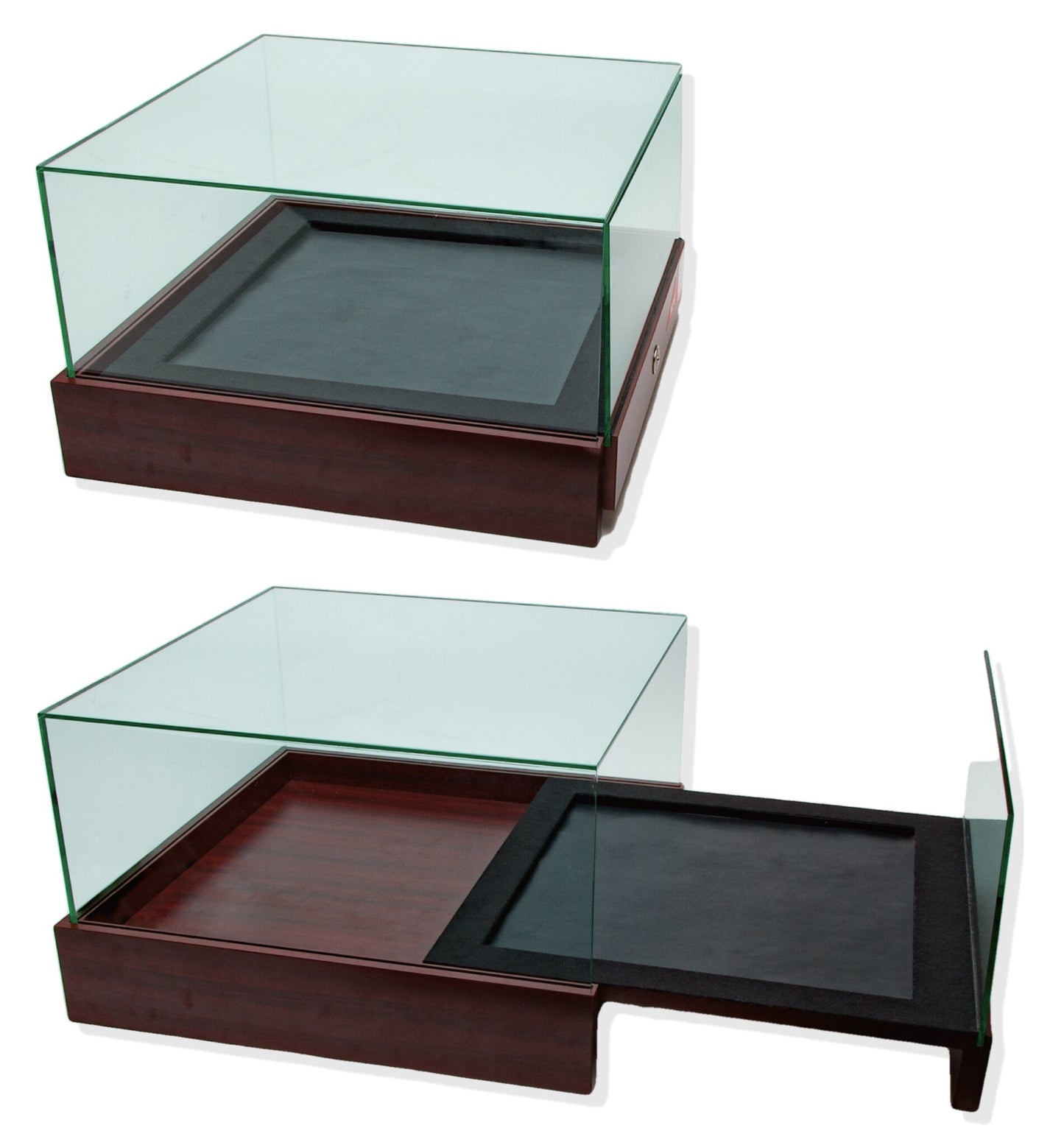

[caption id="attachment_33281" align="alignnone" width="420"] Invisible display case drawers C203V for high-quality shopfitting projects[/caption] The display case can be easily removed using a plastic lever on the guide rail. [caption id="attachment_33017" align="alignnone" width="420"] Invisible display case drawers C203V: Press the levers on the left and right to remove the drawer[/caption] Characteristics:

• Display case drawers are not visible when pulled out
• Drawer can be removed
• The pull-out rails are flat with only 19.5 mm

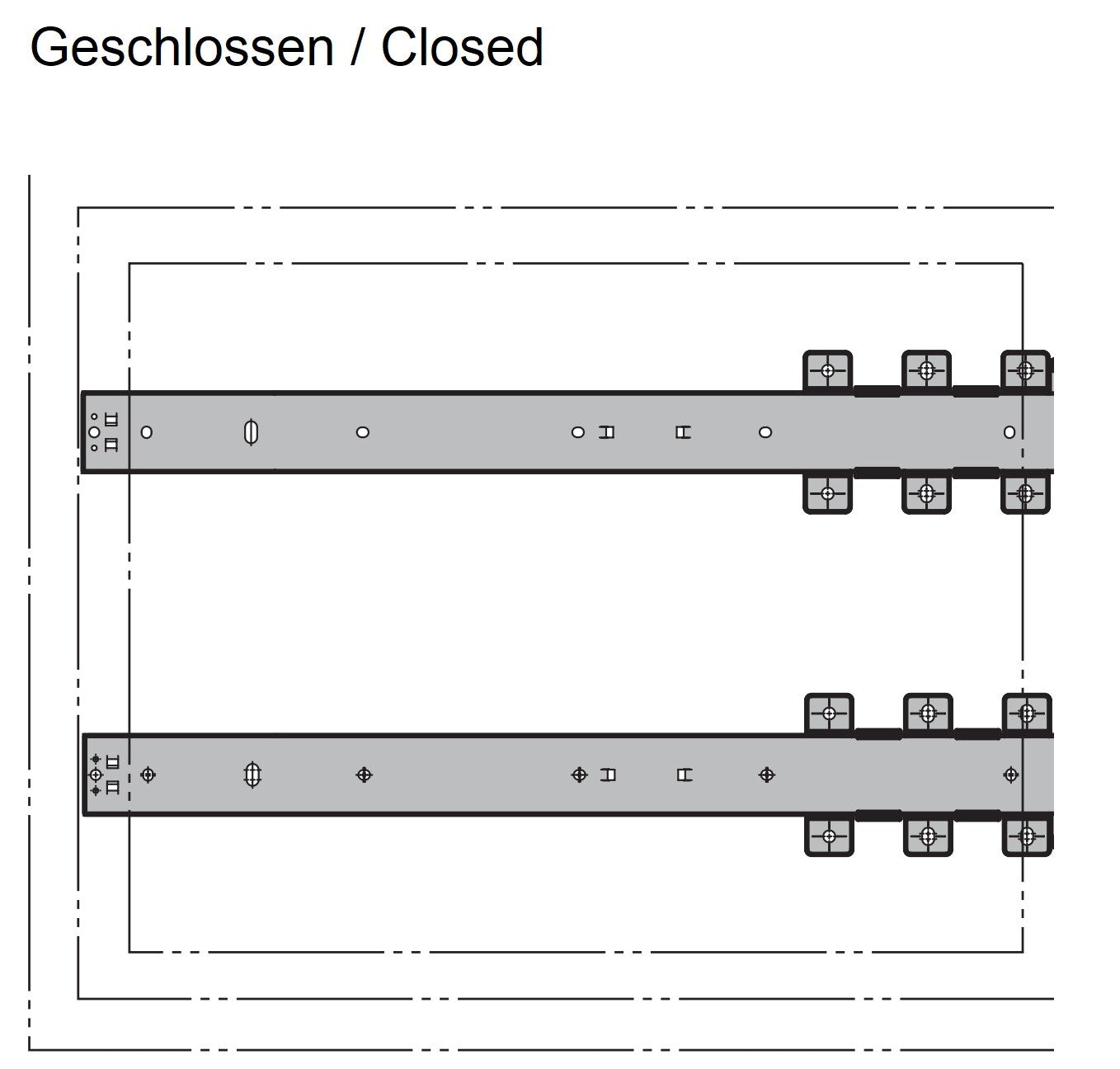

Assembly: [caption id="attachment_33096" align="alignnone" width="420"] Invisible display case drawers C203V: Technical drawing, assembly[/caption] The rail brackets are mounted on the floor of the display case with screws. Recommended screws:

• Outer rail: M4 lens or truss head screw
• Inner rail: M5 lens or truss head screw

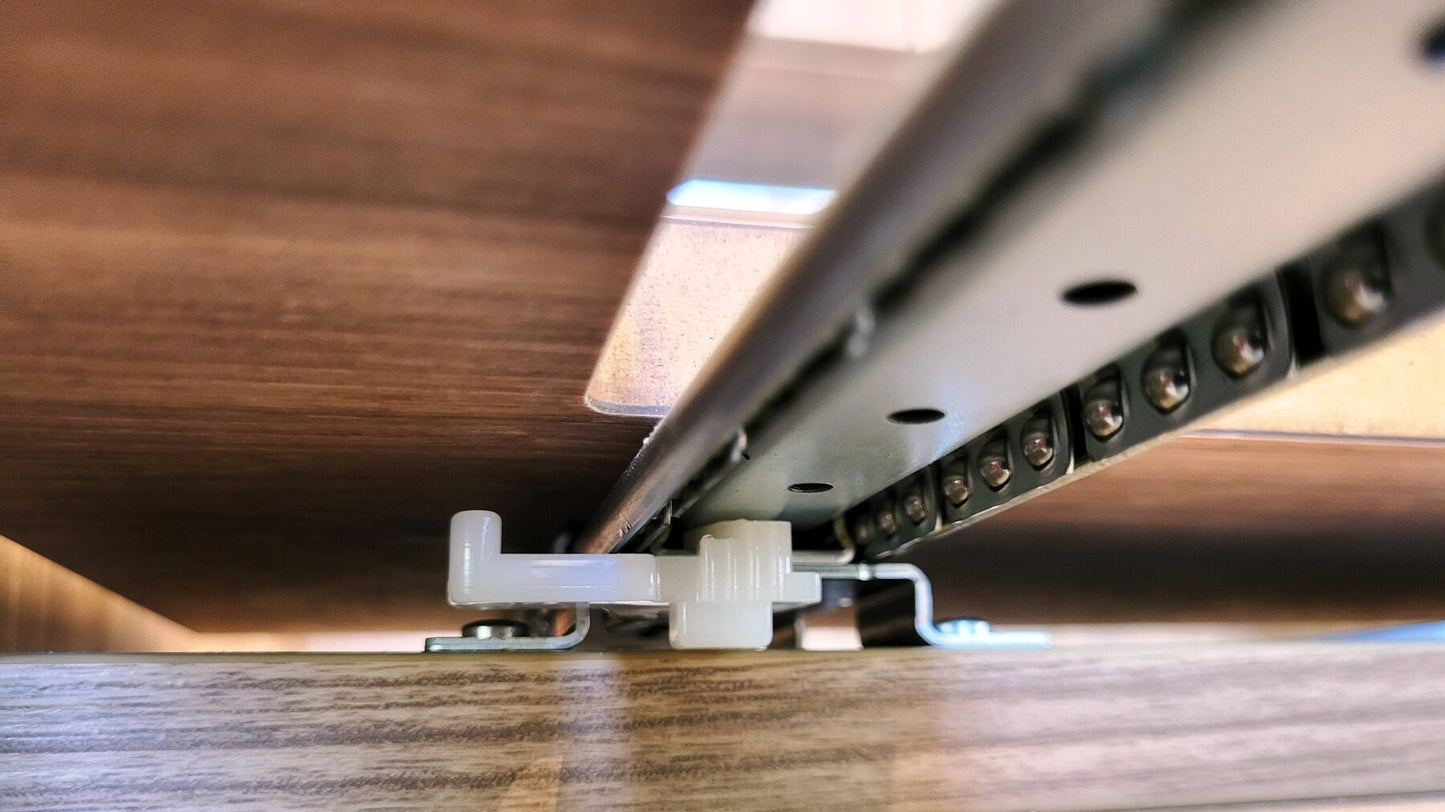

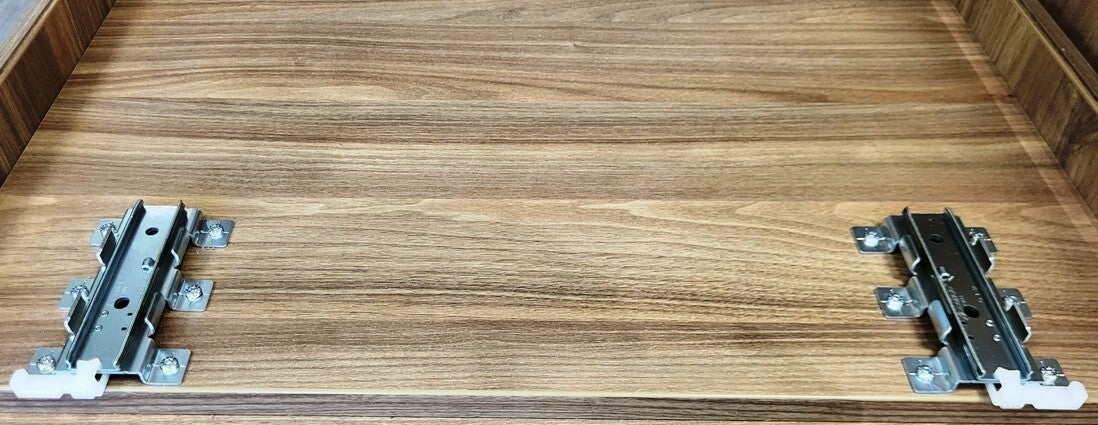

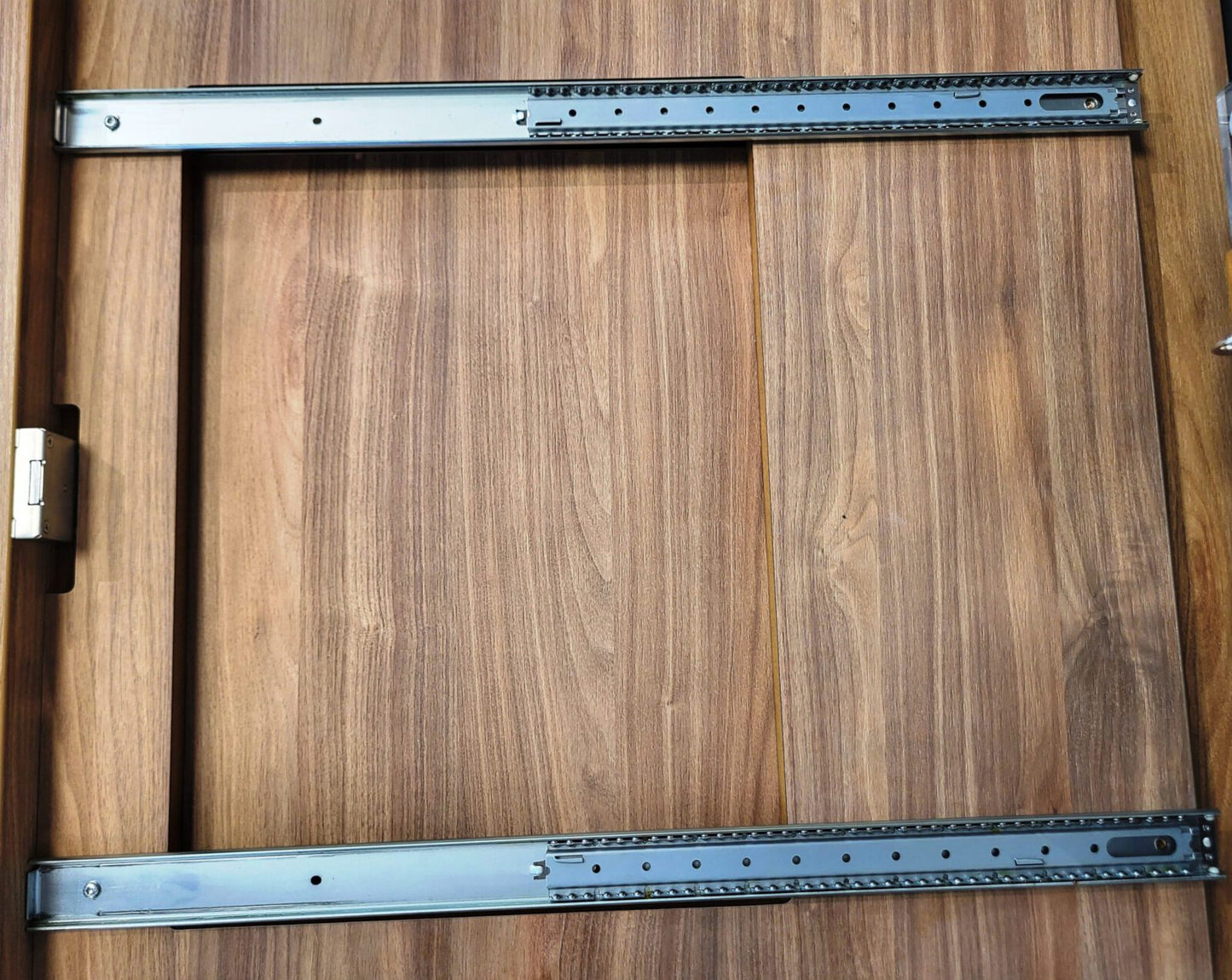

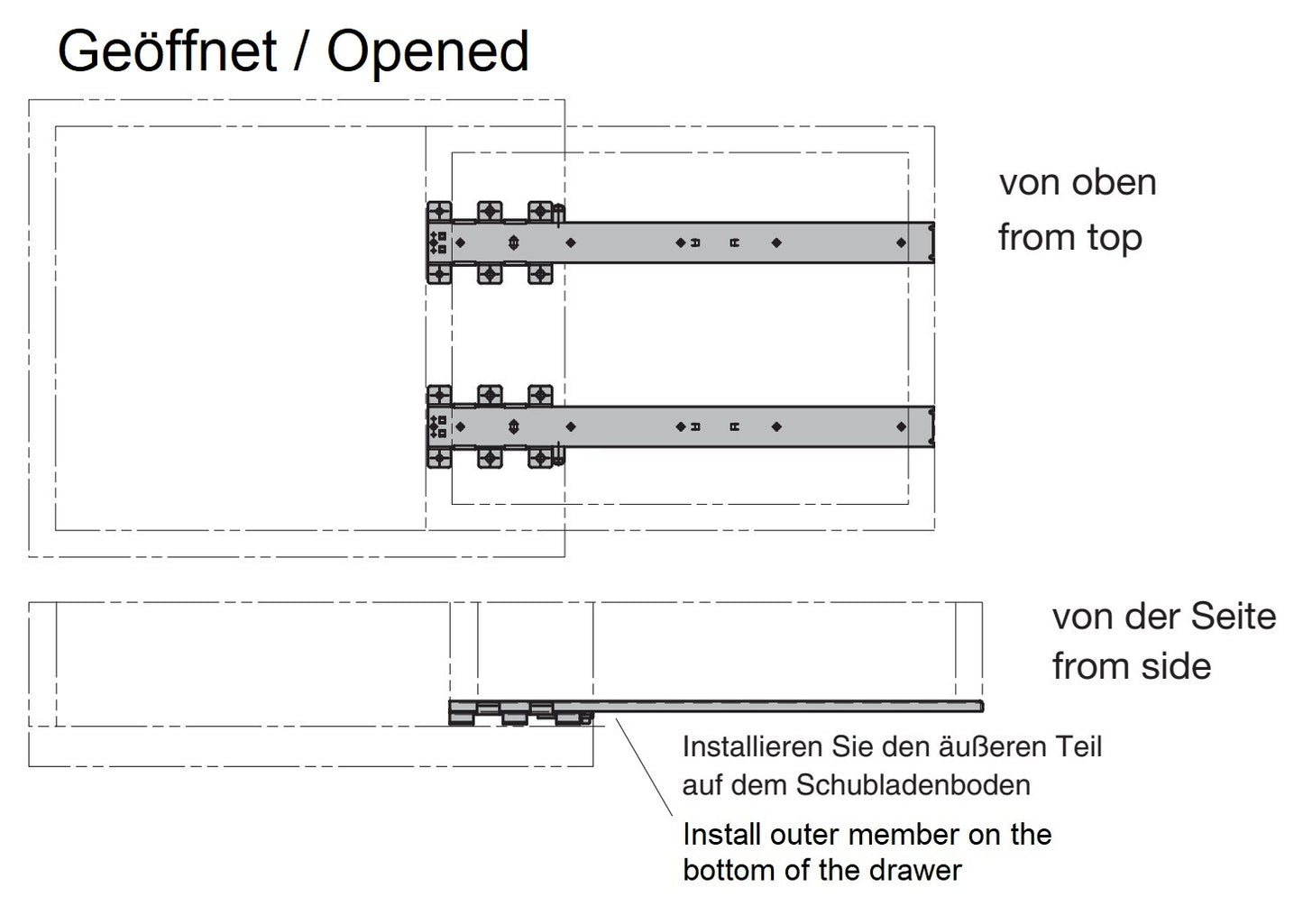

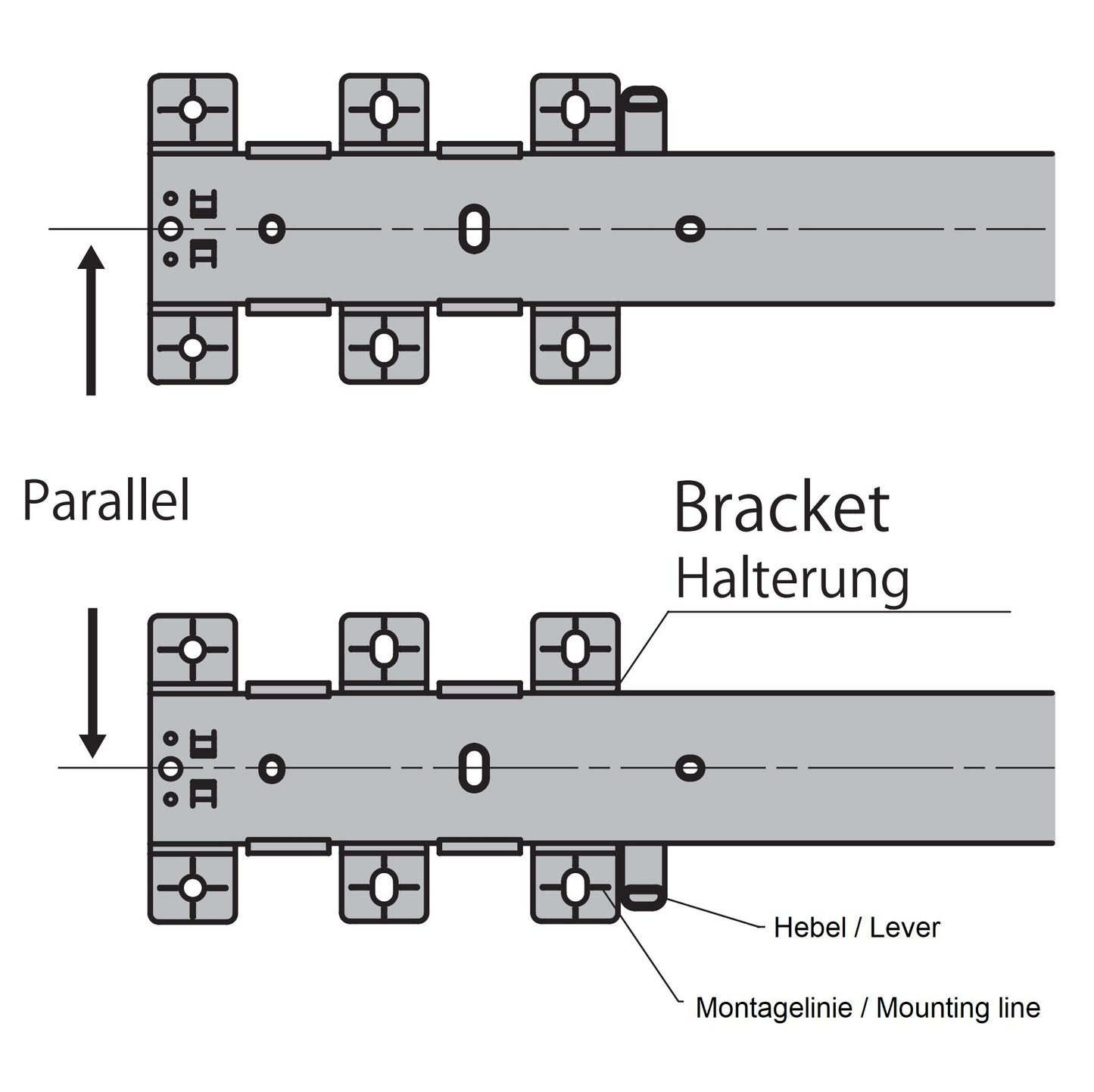

[caption id="attachment_33029" align="alignnone" width="420"] Invisible display case drawers C203V: Mounting the brackets[/caption] The two slide rails must be mounted on the underside of the drawer (on the drawer base). To ensure optimal movement, they must be positioned parallel to each other. [caption id="attachment_33041" align="alignnone" width="420"] Invisible display case pull-outs C203V: Installing the drawer rails[/caption] When installing the drawer in the display case, the drawer rails are retracted into the brackets. As soon as the end position is reached, you will hear a click - then the drawer is securely anchored to the display case. [caption id="attachment_33053" align="alignnone" width="420"] Invisible display case drawers C203V: Mounting the drawer on the brackets[/caption] Included in delivery:

• Two pull-out rails
• Two brackets

Material:

• Inner rails and brackets: steel (SPCC)
• Balls: steel

Surface:

• Inner rails and brackets: zinc chromate
• Balls: Not coated

Watch product video: [video width="1280" height="720" mp4="https://furniton.com/wp-content/uploads/hidden-drawer-slides-shopfitting-sugatsune-lamp-umaxo-accuride-190-036-253-190-036-252-C203V-50L-C203V-50R-video.mp4" preload="auto"][/video] Dimensions: For dimensions see the technical drawing and the following table:

Nominal length, mm	Exit route, mm	A	B	C
300	178	-	181.7	242.8
350	228	-	201.7	292.8
400	278	171.4	231.7	342.8
450	328	196.4	281.7	392.8
500	378	221.4	331.7	442.8
550	428	246.4	381.7	492.8
600	478	271.4	431.7	542.8

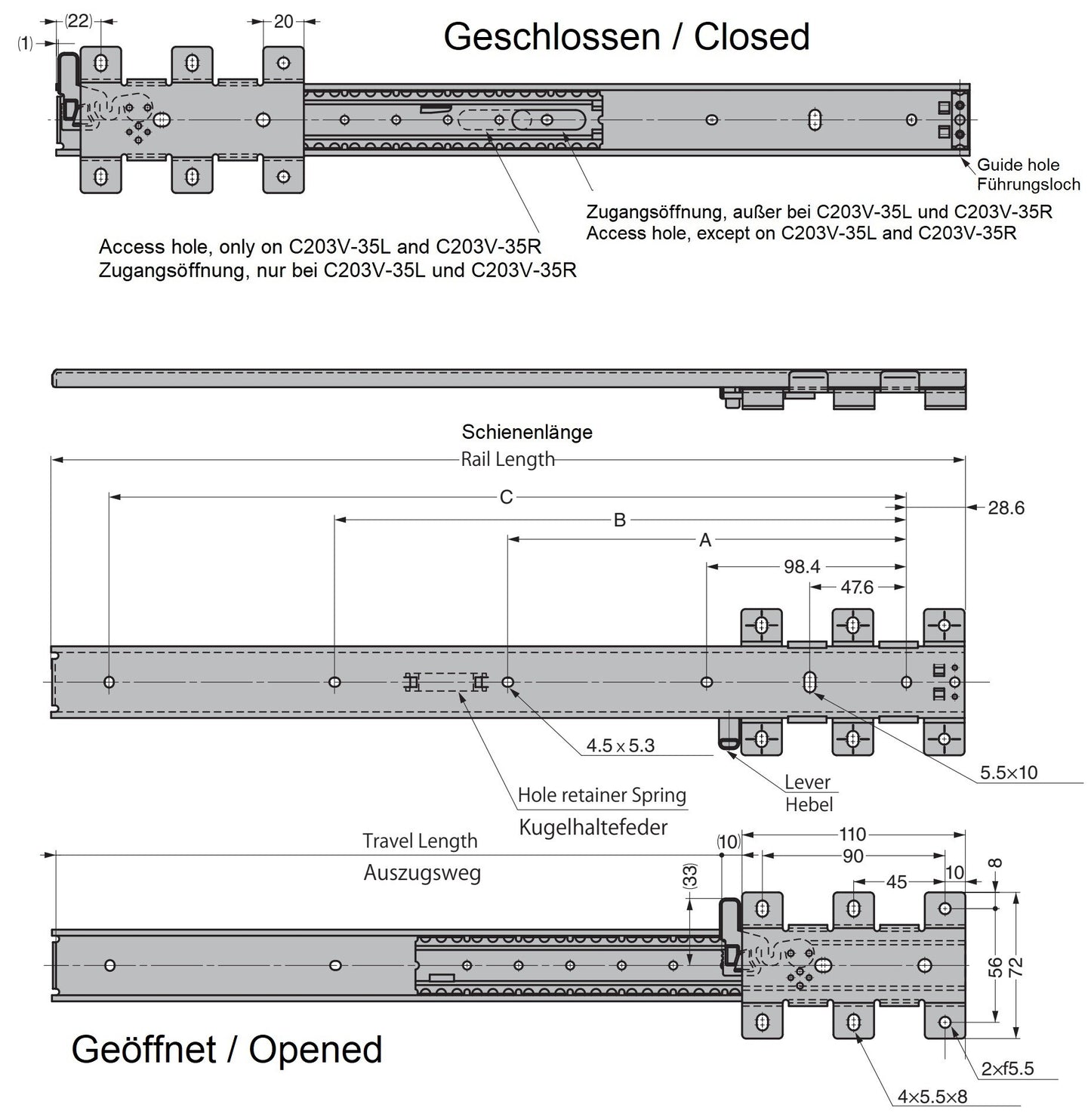

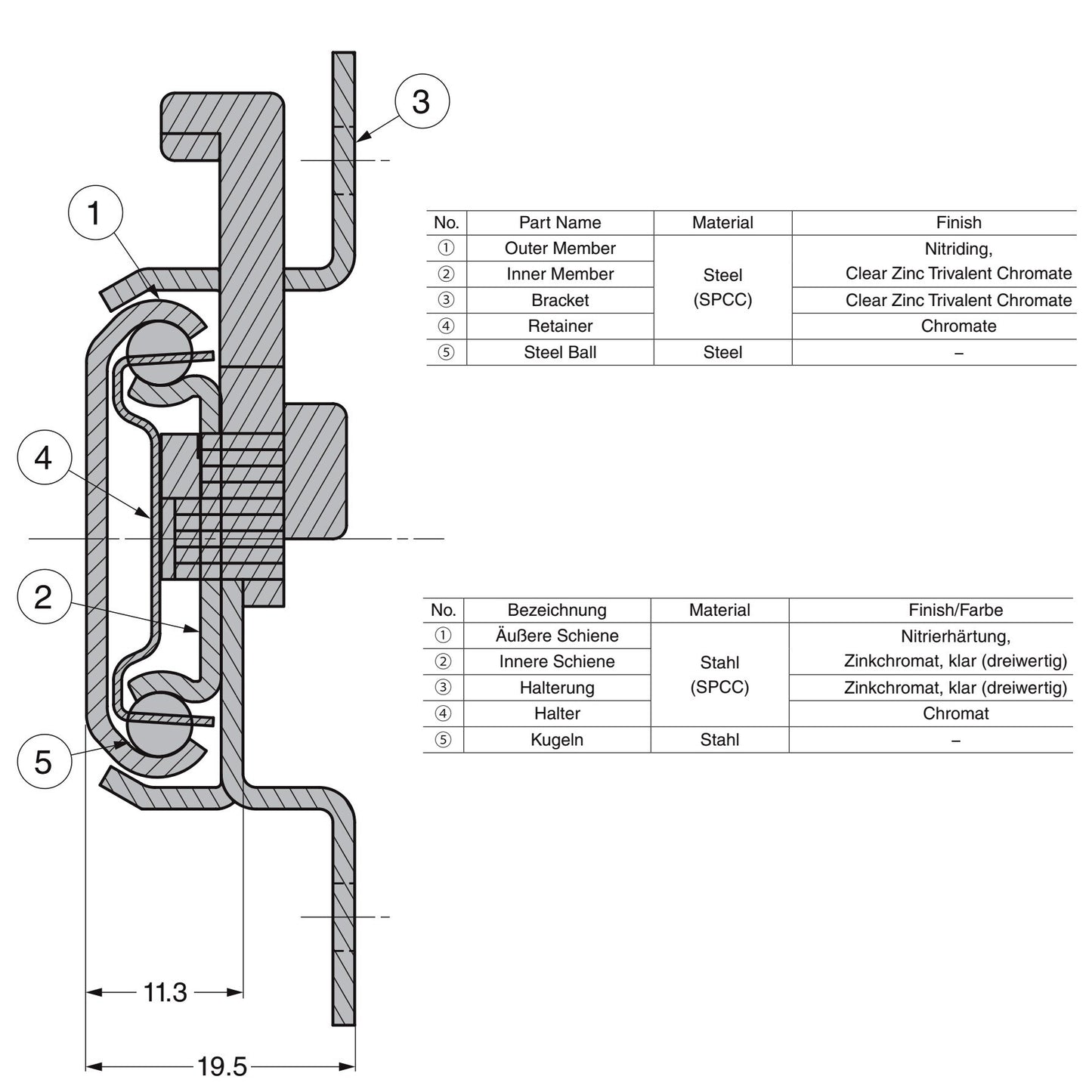

[caption id="attachment_33192" align="alignnone" width="420"] Invisible display case drawers C203V: Technical drawing[/caption] Technical data: See the following table:

Nominal length, mm	Resilience N	Resilience kgf	Weight G
300	245 / pair	25 / pair	350 / piece
350	215 / pair	22 / pair	380 / piece
400	196 / pair	20 / pair	420 / piece
450	166 / pair	17 / pair	450 / piece
500	147 / pair	15 / pair	490 / piece
550	117 / pair	12 / pair	520 / piece
600	98 / pair	10 / pair	550 / piece

Manufacturer reference number:

Nominal length, mm	Article number	Article name
300	190-036-244 190-036-245	C203V-30L C203V-30R
350	190-036-246 190-036-247	C203V-35L C203V-35R
400	190-036-248 190-036-249	C203V-40L C203V-40R
450	190-036-250 190-036-251	C203V-45L C203V-45R
500	190-036-252 190-036-253	C203V-50L C203V-50R
550	190-036-254 190-036-255	C203V-55L C203V-55R
600	190-036-256 190-036-257	C203V-60L C203V-60R

Manufacturer: SUGATSUNE / LAMP® (Japan) in cooperation with ACCURIDE
