Underfloor guides, load capacity: 25 kg (56 lbs), 350 mm (13-25/32″), partial extension with soft-close, 3019205 for wooden drawer, wooden drawer, wooden shelf

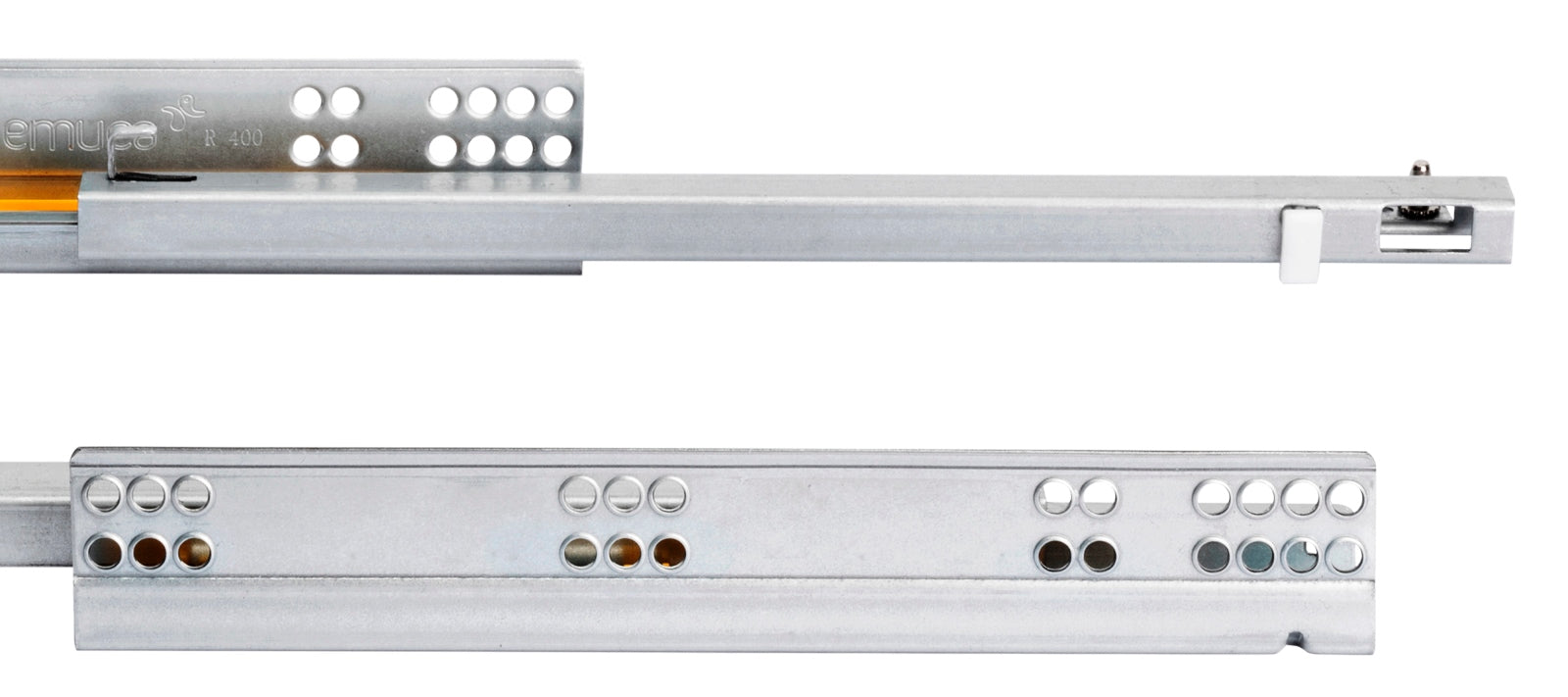

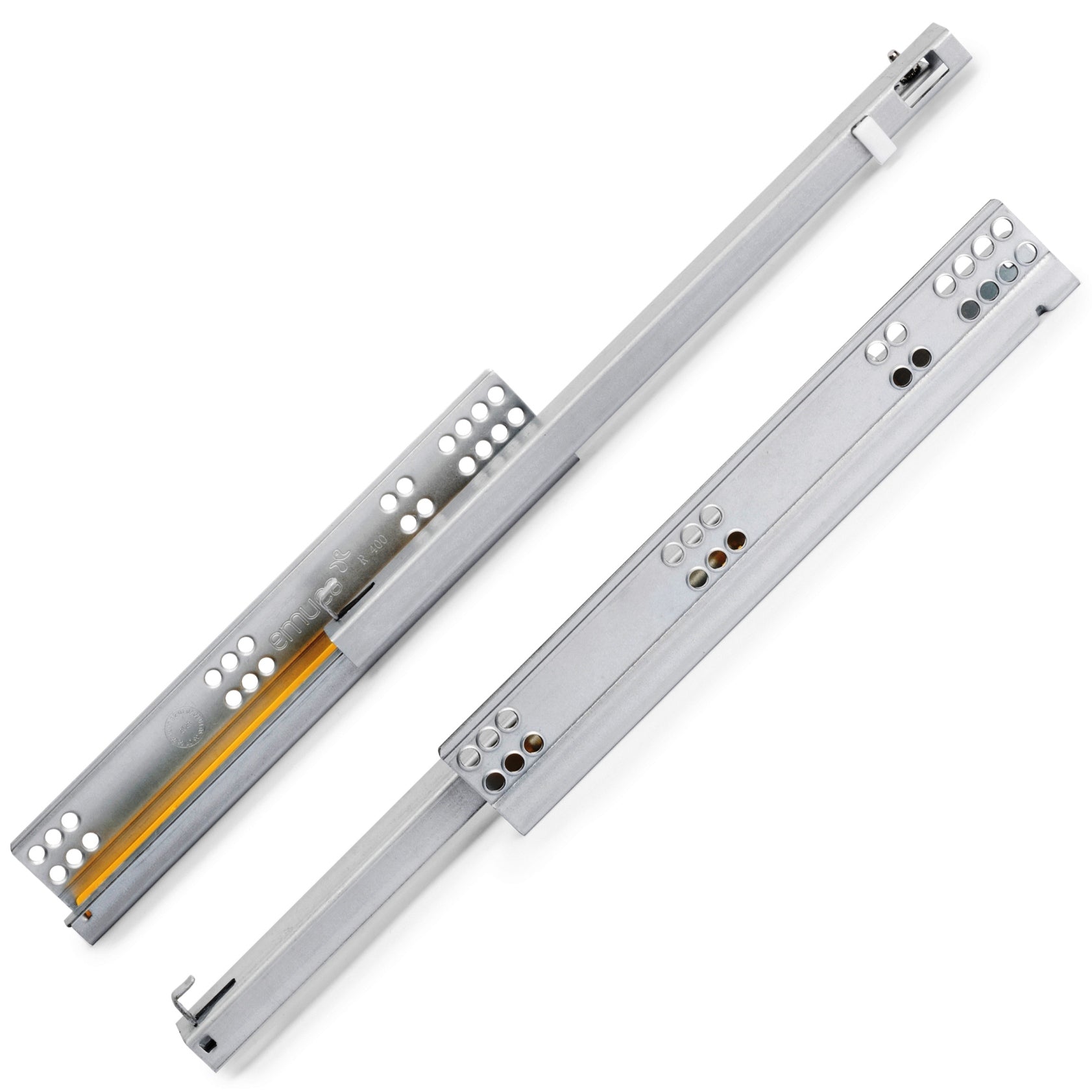

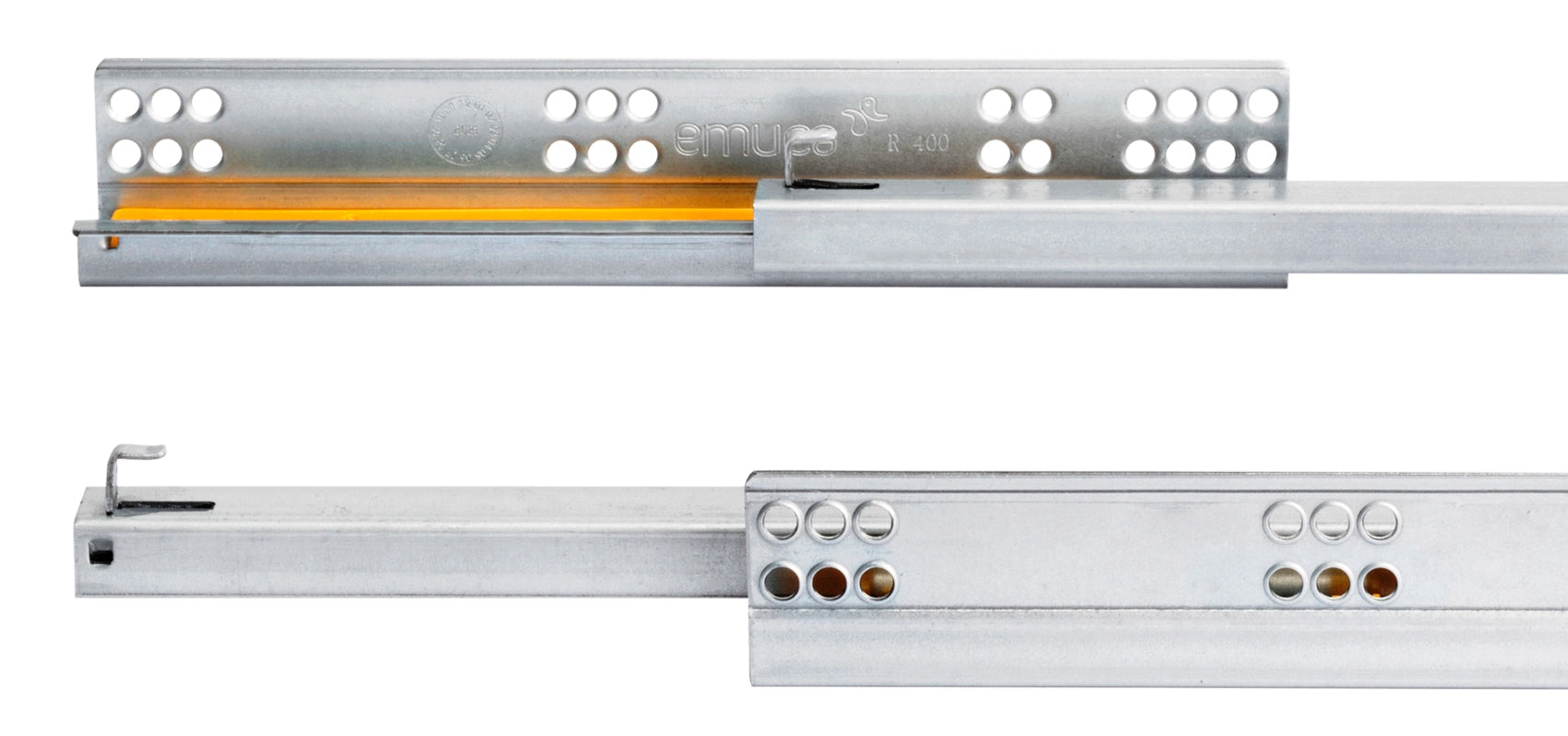

High-quality underfloor drawer runners, made of robust steel, surface: galvanized, 3019205, size: 350 mm (13-25/32″), design: partial extension with soft-close, load capacity: 25 kg (56 lbs)

Application:

High-quality underfloor pull-outs for wooden drawers, wooden drawer units, wooden shelves and much more.

These guide rails offer partial extension, self-retraction and gentle soft-close for comfortable and quiet closing.

The concealed underfloor guides 3019205 are perfect for most drawers in the living room and kitchen area.

The integrated rollers ensure smooth and quiet running.

An integrated lock prevents the drawer from being accidentally removed.

The load capacity of the underfloor guides 3019205 is 25 kg (56 lbs).

The vertical adjustment of +5.0 mm makes it easier to adjust fronts precisely.

Made of galvanized steel, the underfloor drawers are robust and durable.

The high-quality underfloor guides 3019205 are ideal for, among other things:

• kitchen furniture
• bathroom furniture
• Home furniture
• Office container
• Sideboards
• chests of drawers
• Wardrobes
• Workshop cabinets
• pantry cabinets
• wooden drawer
• wooden drawer
• wooden shelf

Material:

• The underfloor guides 3019205 are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Galvanized
• The galvanized surface protects against rust and corrosion

Assembly:

• The fastening is done with chipboard screws ⌀3.5 x 16 mm, lens head (not included in delivery)
• Two holes with a diameter of ⌀6.5 mm (1/4″) and a depth of 10 mm (25/64″) must be drilled in the drawer back panel
• The hole should be 7 mm (9/32″) from the side wall and 11 mm (7/16″) from the drawer bottom

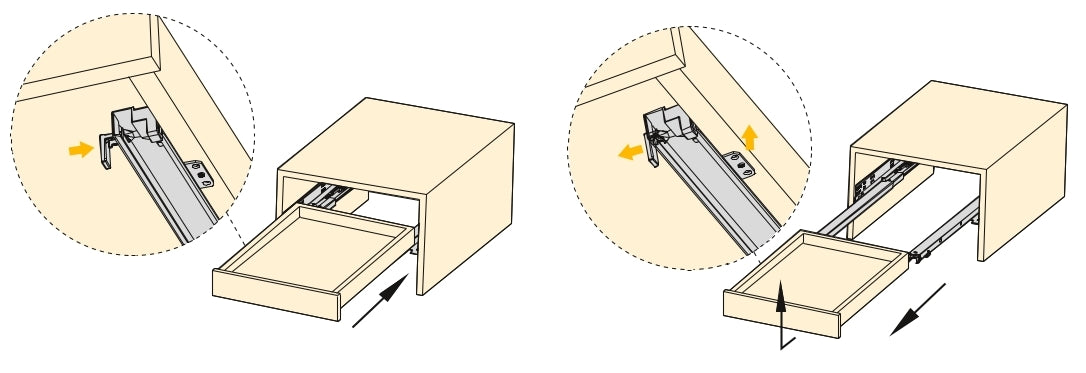

• Two holes with a diameter of ⌀6.5 mm (1/4″) must also be drilled under the drawer side walls (for further details see assembly drawing )

Characteristics:

• Design: Partial extension with soft-close
• Weight: 1000 g
• Load capacity: 25 kg (56 lbs)
• Size: 350 mm (13-25/32″)
• Available in 8 nominal lengths: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm and 600 mm
• Available in 3 versions: Soft-Close with self-closing full extension, Soft-Close with self-closing partial extension and Push-to-open partial extension
• easy to assemble
• practical
• stable
• Drawer depth: 340 mm (13-25/64″)
• Maximum page thickness: 16 mm (5/8″)
• Height adjustment: + 5.0 mm (11/64″)
• galvanized
• Steel
• robust
• high brand quality from UMAXO®

The dimensions:

• Length of the underfloor guides: 350 mm (13-25/32″)

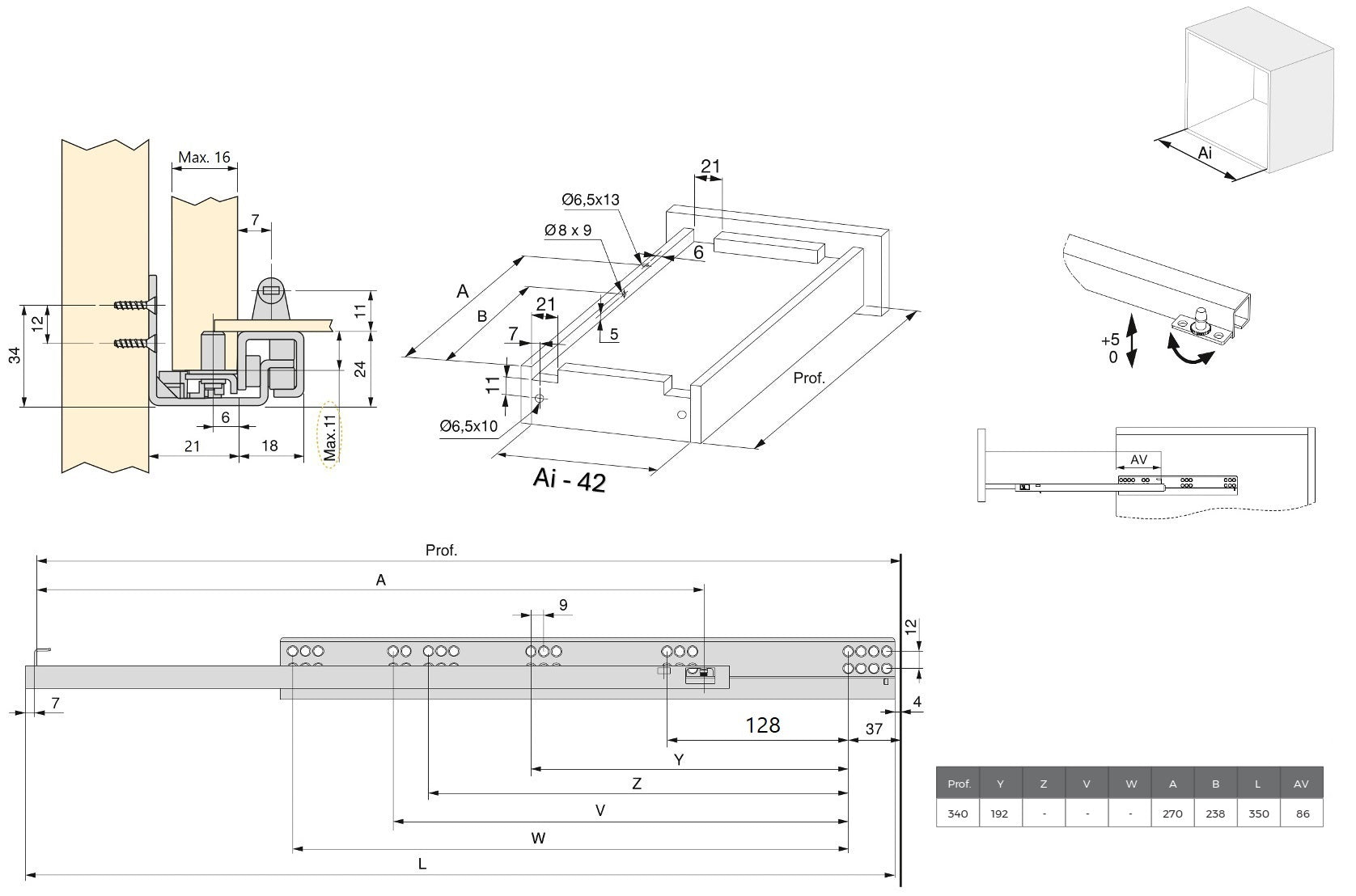

For further dimensions and details see technical drawing .

Included in delivery:

• 1 piece of underfloor guides 3019205 made of robust steel, galvanized, design: partial extension with soft-close
• Please note that the mounting screws are not included in delivery

Manufacturer reference number:

• Article number: 3019205
• EAN number: 8432393127033

Manufacturer: EMUCA
