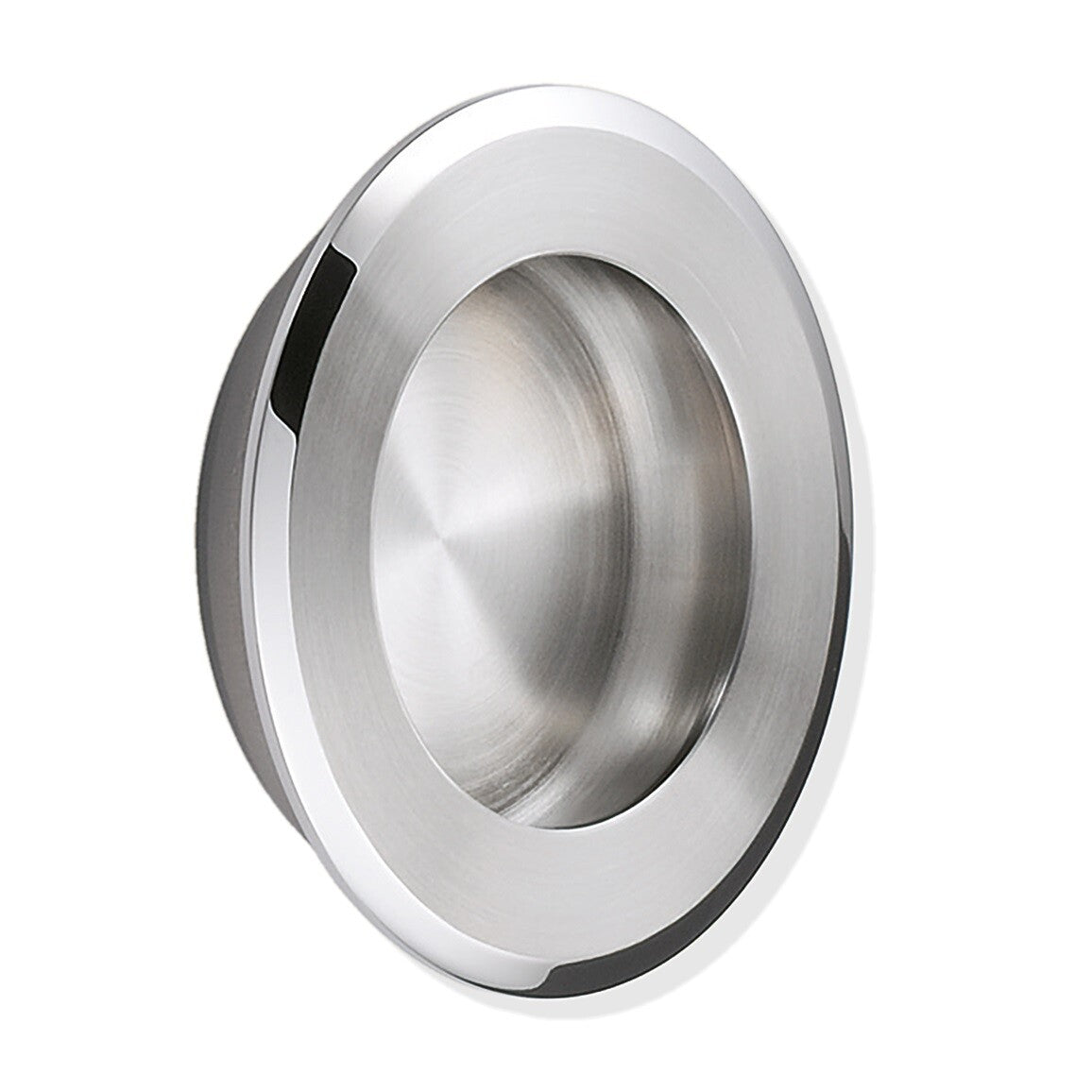

ZweiL® stainless steel flush pull, 80 mm (3.2") ZL-2501-80. High-quality, solid and elegant flush pull made of the finest V4A (SUS316) stainless steel for exclusive interior design and high-quality furnishings by Sugatsune / LAMP® (Japan).

Exclusive ZweiL® handle shell made of stainless steel SUS316 ZL-2501-80

Application: High-quality, solid and elegant handle shell made of the finest stainless steel V4A (SUS316) for exclusive interior design and high-quality furnishings. The SUS316 stainless steel gives the ZL-2501-80 handle shells unique properties. The surface is partly high-gloss and partly satin, creating unique optical and tactile effects. The ZL-2501-80 handle shells are ideal for:

• Cruise ships
• yachts
• boats
• Private aircraft
• Outdoor area
• coastal facilities
• Luxury hotels
• exclusive bathrooms
• Luxury facilities

Material: The ZL-2501-80 handle shells are made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. ZL-2501-80 handle shells made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• ZweiL® stands for exclusive quality of the stainless steel surface
• The high-quality surface is elaborately processed and has a unique structure and appearance
• The lines are straight, clear and sharp
• The ZL-2501-80 handle shells appear solid and extremely high quality

Assembly:

• The mounting is done using the screws included in delivery (3.1 × 16 mm)
• The fastening screws are also made of stainless steel
• The handle is recessed into the door
• A hole with a minimum depth of 15 mm (0.6″) and a diameter of Φ62 mm (2.45″) must be drilled
• First, the bracket is mounted
• Then the handle shell is screwed into the holder (see drawing )

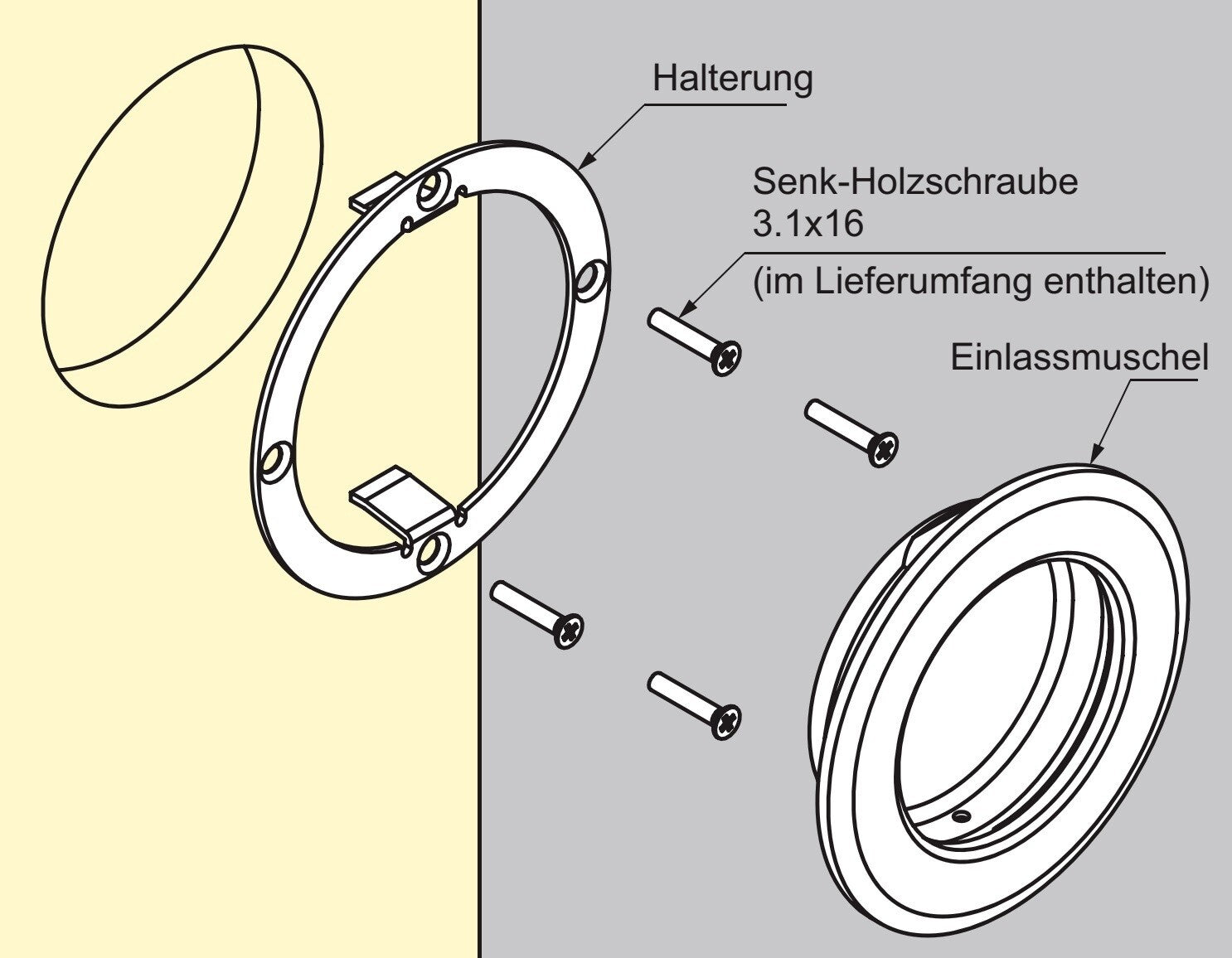

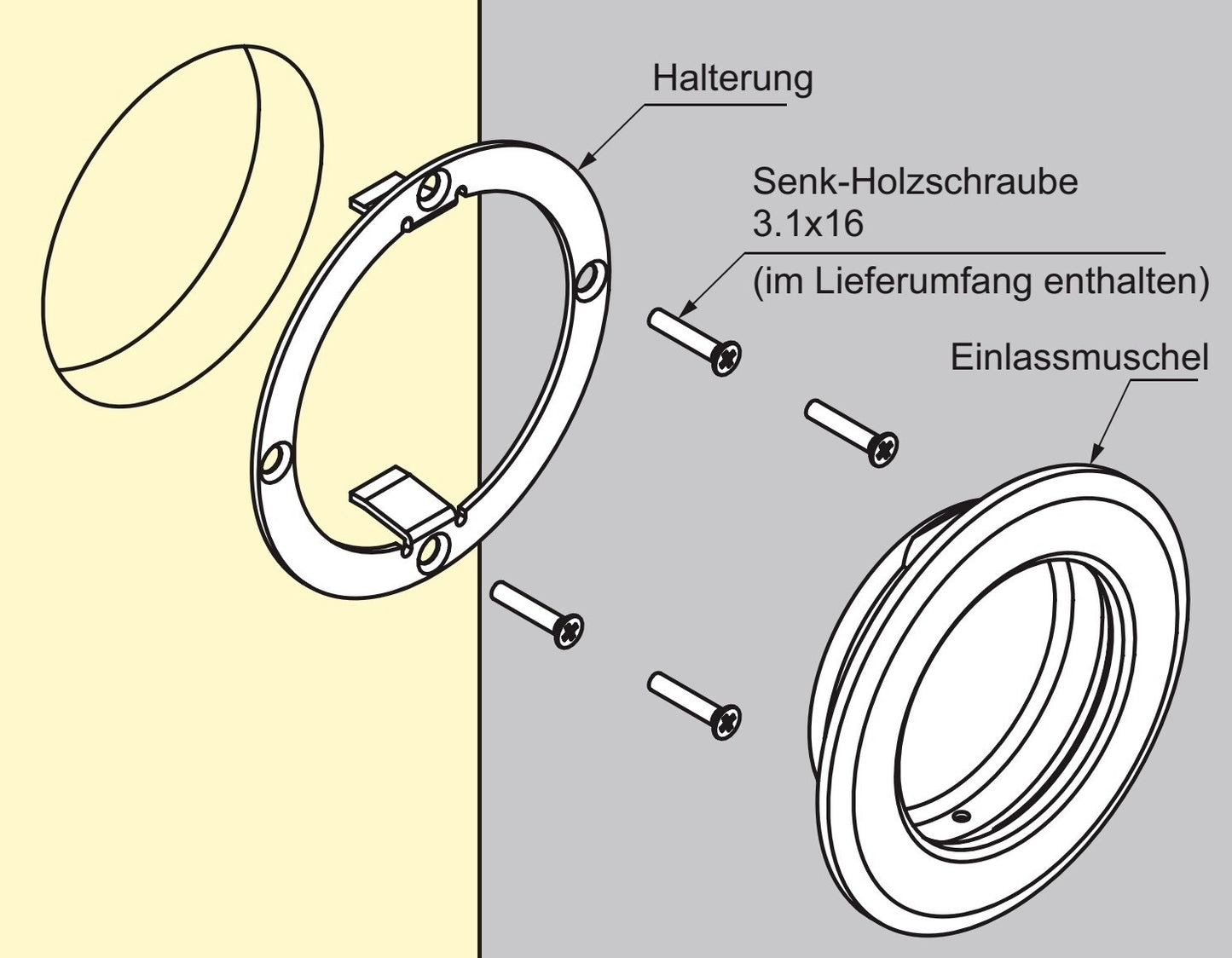

[caption id="attachment_40688" align="alignnone" width="420"] Sugatsune's two-piece stainless steel pull handle, ZL-2501-80 (80 mm). Installation[/caption] Characteristics:

• Weight: 196 g
• Size: 80 mm (3.2″)
• To let in
• Elaborately finished surface
• Corrosion-resistant
• Exclusive high-quality optics

Dimensions: For further dimensions and details see technical drawing .

• Diameter of the handle shell: Φ80 mm (3.15″)
• Inner diameter: Φ50 mm (1.97″)
• Depth of the grip shell: 16.5 mm (0.65″)
• Diameter of the mounting hole in the door: Φ62 mm (2.45″)
• Minimum mounting hole depth: 15 mm (0.6″)

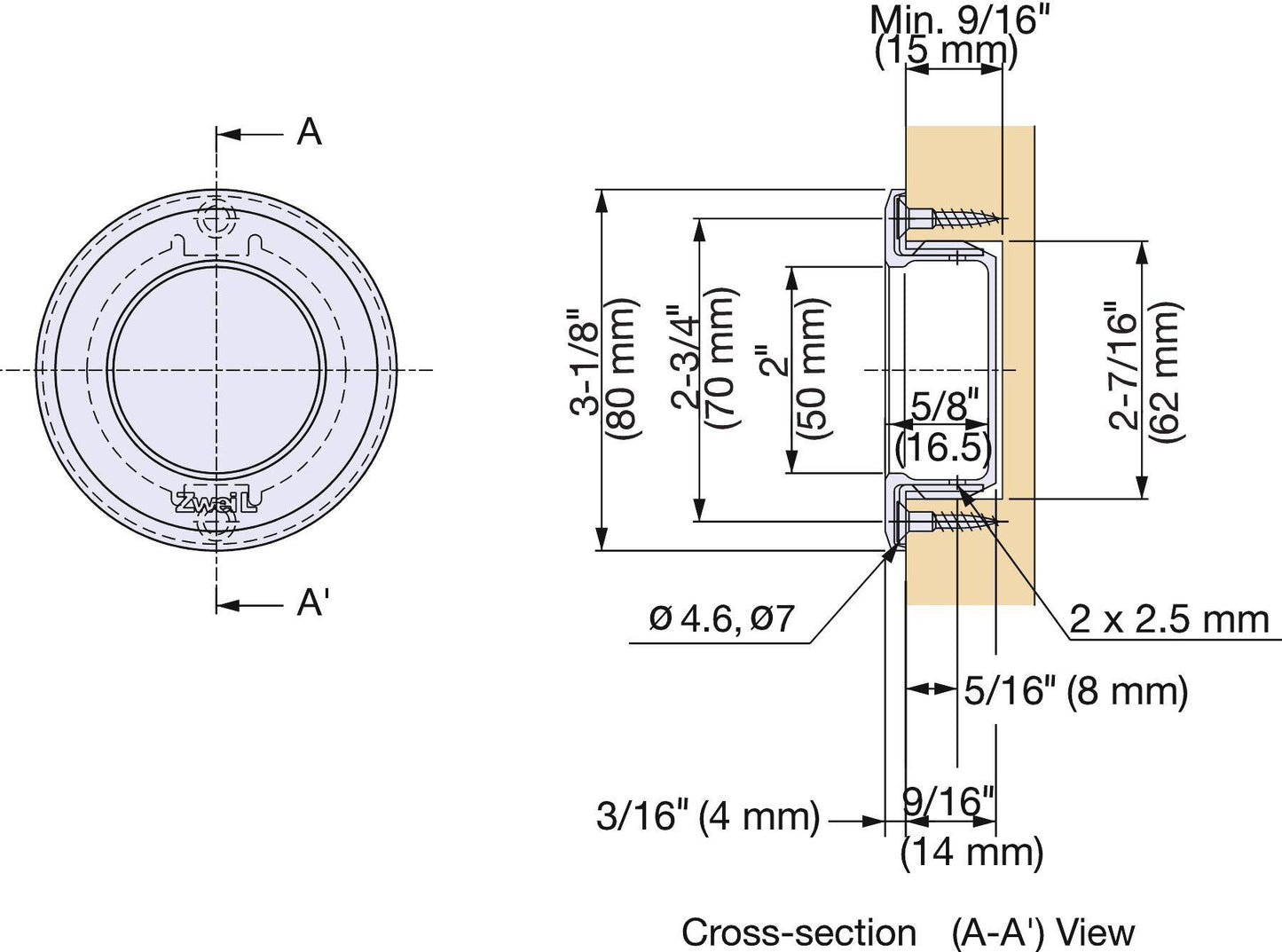

[caption id="attachment_40701" align="alignnone" width="420"] Sugatsune's two-piece stainless steel handle, ZL-2501-80 (80 mm). Technical drawing[/caption] Included in delivery:

• 1 piece handle shell ZL-2501-80 made of stainless steel SUS316 (V4A)
• 1 piece bracket
• 4 x M3.1 × 16 mm mounting screws

Watch product video: Manufacturer reference number:

• Article number: 100-011-035
• Article name: ZL-2501-80
• EAN number: 4510932009737

Manufacturer: SUGATSUNE / LAMP® (Japan)
