ZweiL® Edelstahl-Möbelknopf, 26 mm (1,1″) ZL-1906-28. Hochwertiger massiver und eleganter Türgriffknopf für Holztür und Glastür aus feinstem Edelstahl V4A (SUS316) für exklusive Raumgestaltung und hochwertige Einrichtungen von Sugatsune / LAMP® (Japan)

Exclusive ZweiL® stainless steel doorknob for wooden or glass doors ZL-1906-28

Application: High-quality, solid and elegant door handle knob for wooden doors and glass doors made of the finest stainless steel V4A (SUS316) for exclusive interior design and high-quality furnishings. The SUS316 stainless steel gives the ZL-1906-28 doorknobs unique properties. The surface is partly high-gloss and partly satin, creating unique optical and tactile effects. The ZL-1906-28 furniture knobs are ideal for:

• Cruise ships
• yachts
• boats
• Private aircraft
• Outdoor area
• coastal facilities
• Luxury hotels
• exclusive bathrooms
• Luxury facilities

Material: The ZL-1906-28 door handle knobs are made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Doorknobs ZL-1906-28 made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• ZweiL® stands for exclusive quality of the stainless steel surface
• The high-quality surface is elaborately processed and has a unique structure and appearance
• The lines are straight, clear and sharp
• The stainless steel buttons ZL-1906-28 appear solid and extremely high quality

Assembly:

• The stainless steel doorknob ZL-1906-28 can be installed on wooden door and glass door
• The mounting is done using the screws included in delivery (M4 × 28 mm and M4 × 16 mm)
• The fastening screws are also made of stainless steel
• For fastening, a hole must be prepared in the door ( see drawing )

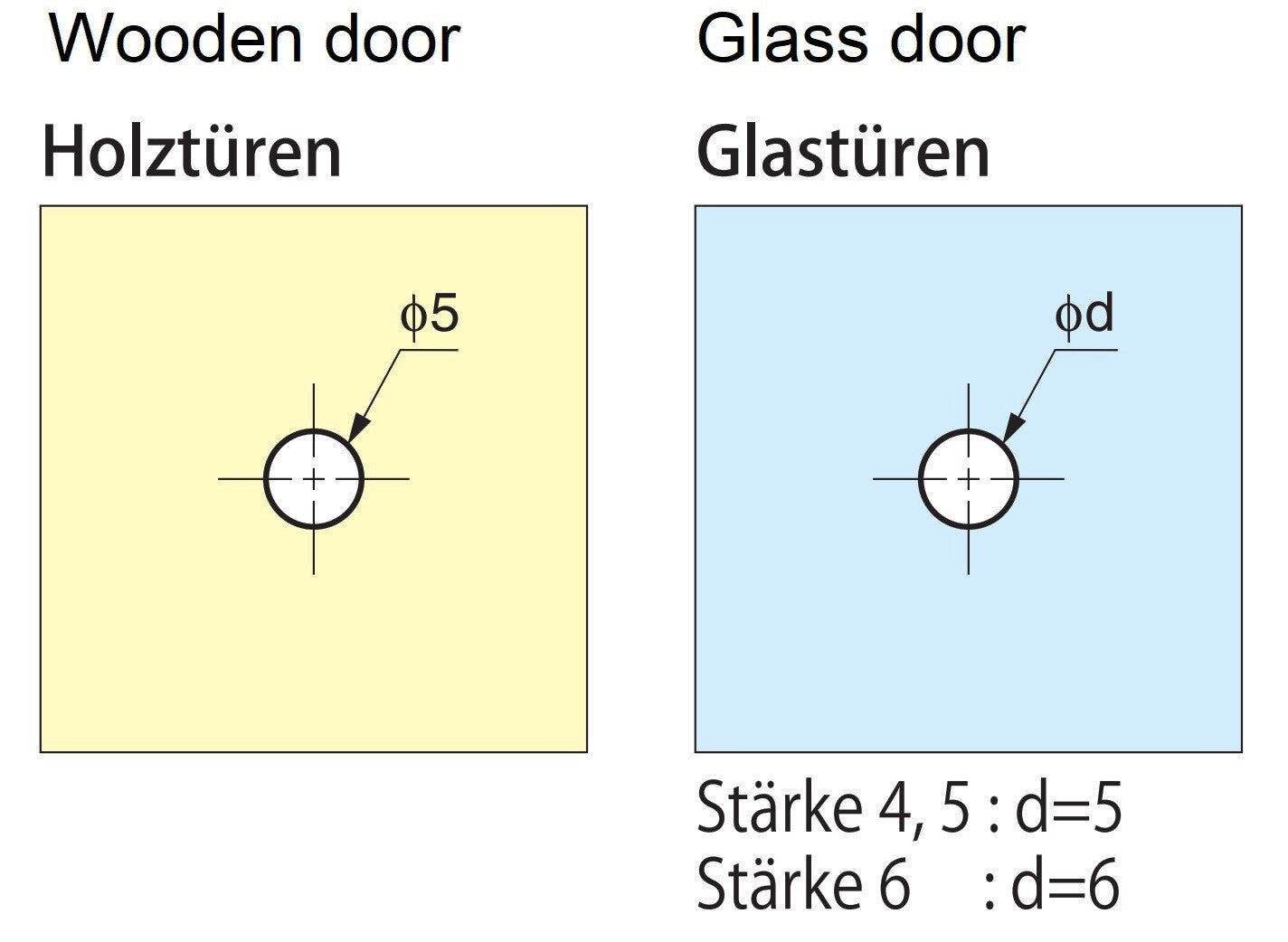

[caption id="attachment_40228" align="alignnone" width="420"] Two-piece stainless steel cabinet knob from Sugatsune, ZL-1906-28 (26 mm). Installation[/caption] Characteristics:

• Weight: 83 g
• Size: 26 mm (1.1″)
• Elaborately finished surface
• Corrosion-resistant
• Exclusive high-quality optics

Dimensions: For further dimensions and details see technical drawing .

• Doorknob diameter: Φ26 mm (1.03″)
• Grip depth: 28 mm (1.11″)
• Inner diameter: Φ22.5 mm (0.89″)
• Mounting hole depth: 15 mm (0.6″)

[caption id="attachment_40241" align="alignnone" width="420"] Two-piece stainless steel cabinet knob from Sugatsune, ZL-1906-28 (26 mm). Technical drawing[/caption] Included in delivery:

• 1 piece doorknob ZL-1906-28 made of stainless steel SUS316 (V4A)
• 1 piece seal (for glass door)
• 1 x M4 × 28 mm fixing screw (for wooden door)
• 1 x M4 × 16 mm fixing screw (for glass door)

Watch product video: Manufacturer reference number:

• Article number: 100-011-018
• Article name: ZL-1906-28
• EAN number: 4510932011167

Manufacturer: SUGATSUNE / LAMP® (Japan)
